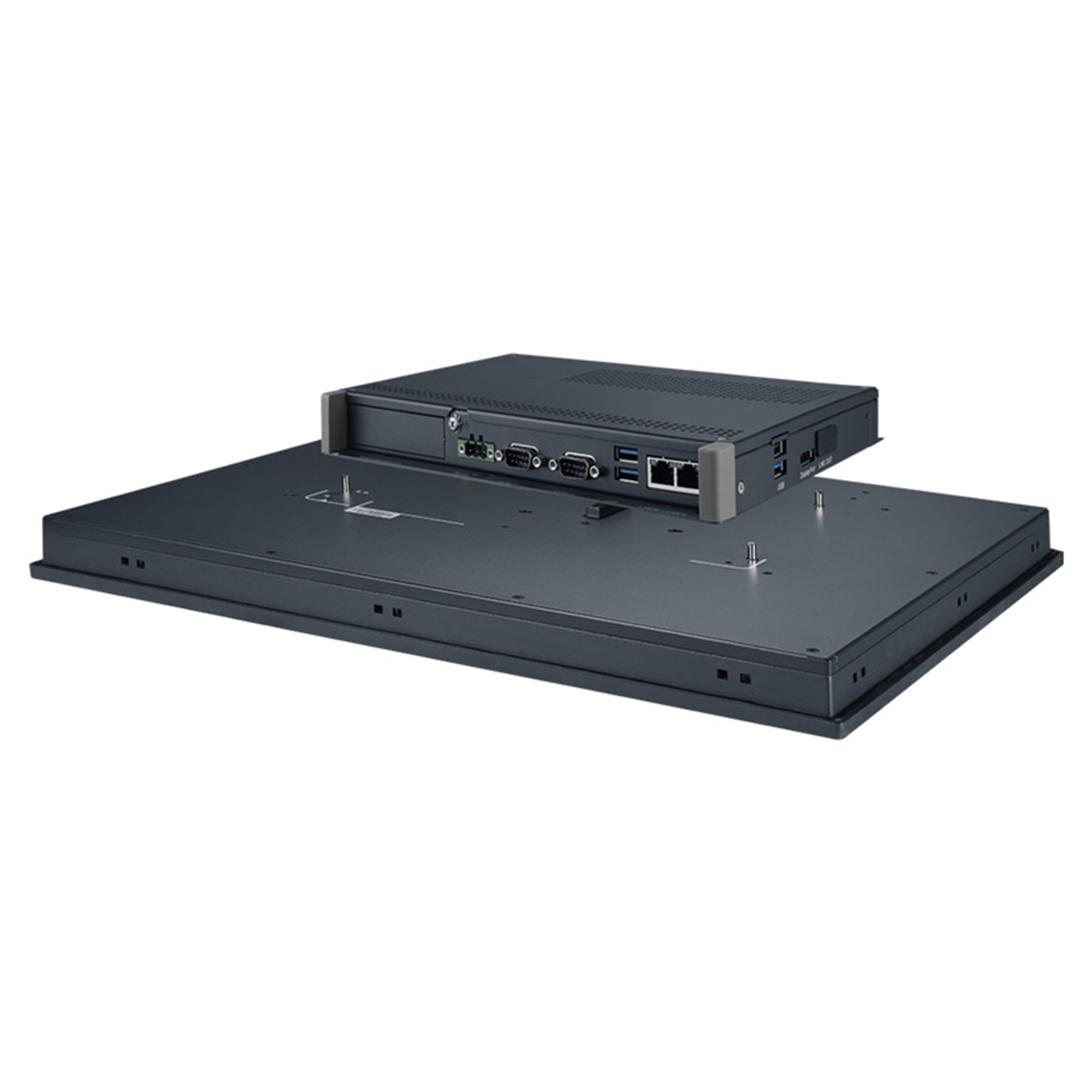

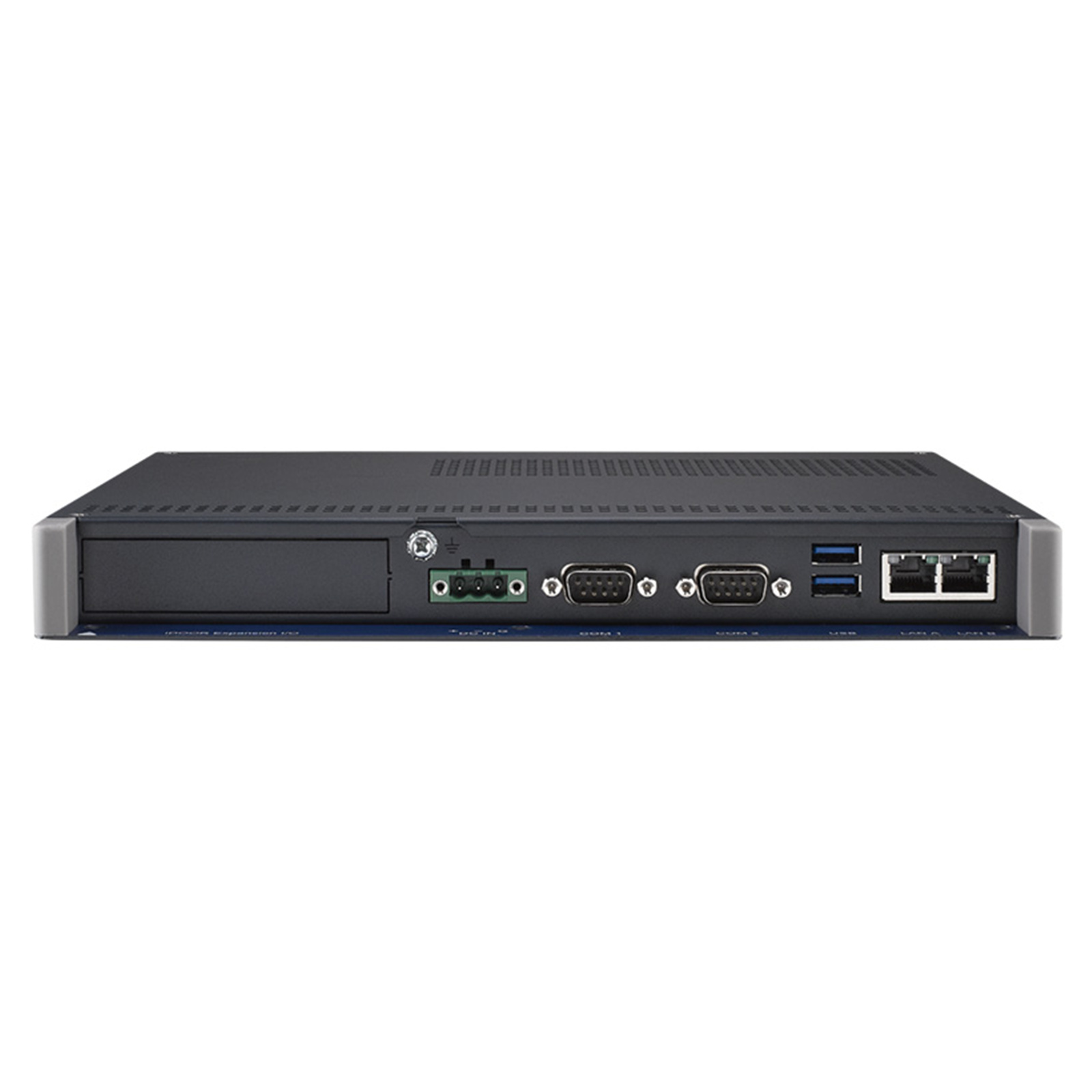

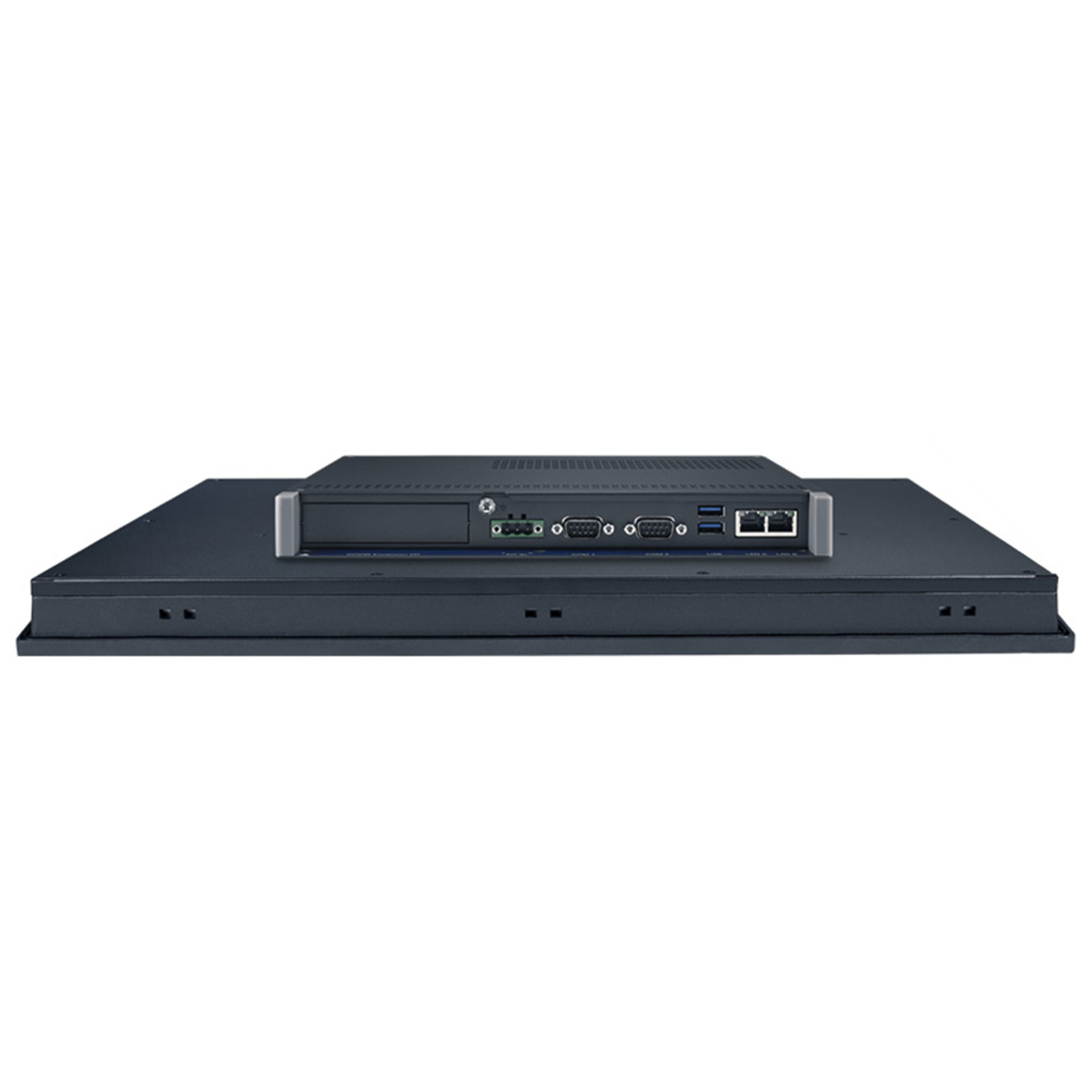

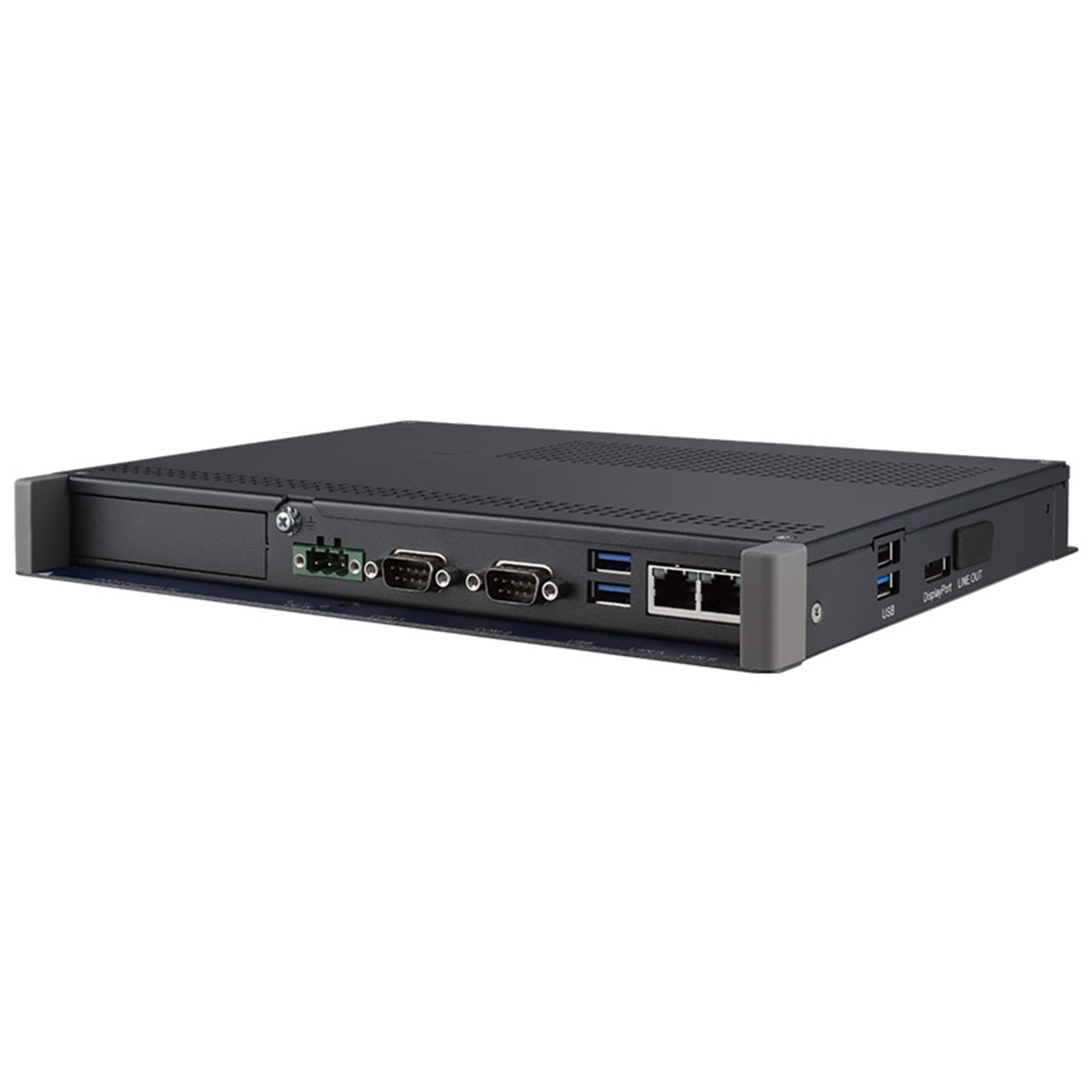

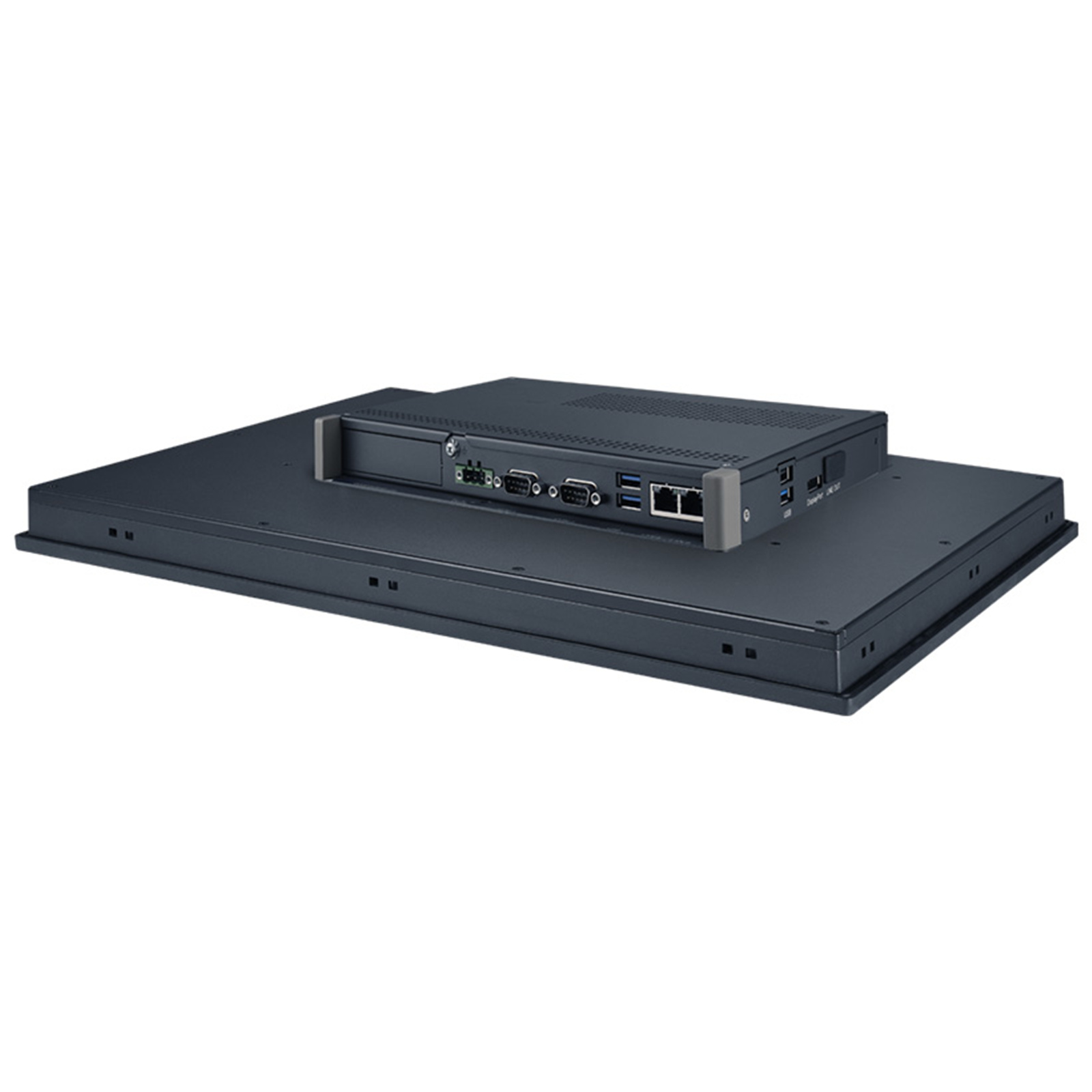

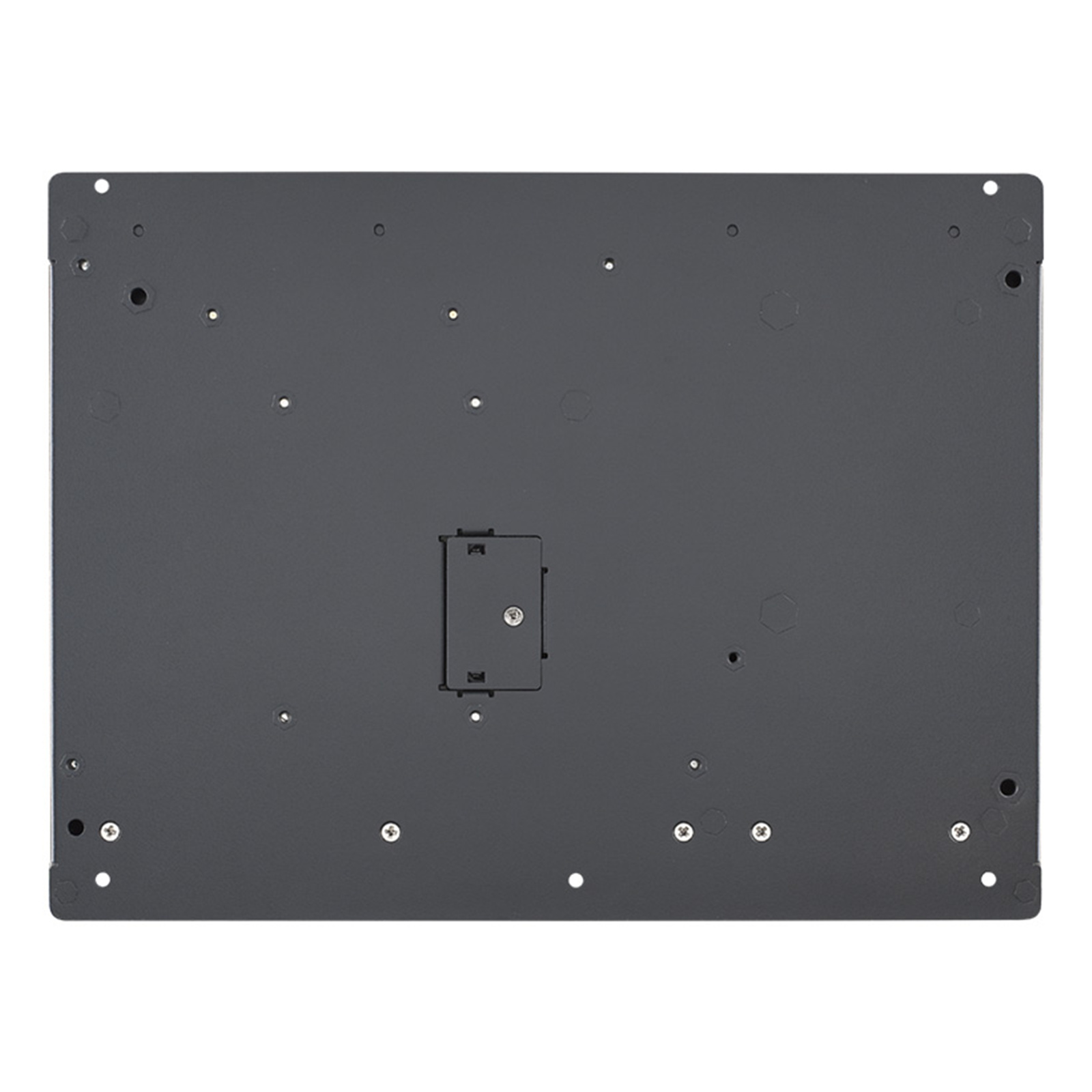

Advantech TPC-B300-E20A Modular TPC - Computing Box Module with Atom X6425E (12W) 1x mPCIe, 1x M.2 AE key, 1x M.2 M key, 1x SATA, Wide temp.
Advantech TPC-B300-E20A Modular TPC - Computing Box Module with Atom X6425E (12W) 1x mPCIe, 1x M.2 AE key, 1x M.2 M key, 1x SATA, Wide temp.
- Brand: Advantech
- MPN: TPC-B300-E20A
- Part #: IPCAVH221485
- UPC:
- Brand: Advantech
- MPN: TPC-B300-E20A
- Part #: IPCAVH221485
- UPC:
COMBO DEALS: Buy Together and SAVE!






Advantech Power adaptor 96PSA-A150W24T2-4 A/D 100-240V 150W 24V W/PFC C14 CORD END 62368
$94.66 +GST
$108.86


Advantech FPM-D24W-CE 23.8" (FHD) modular front display design compatible with TPC-B610, TPC-B520,...
$1,673.18 +GST
$1,924.16


Advantech FPM-D21W-CE 21.5" FHD (1920x1080) PCAP 250 nits modular front display design compatible...
$1,546.01 +GST
$1,777.91
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech TPC-B300-E20A Modular TPC - Computing Box Module with Atom X6425E (12W) 1x mPCIe, 1x M.2 AE key, 1x M.2 M key, 1x SATA, Wide temp.
- Brand: Advantech
- MPN: TPC-B300-E20A
- Part #: IPCAVH221485

Product URL: https://www.pbtech.co.nz/product/IPCAVH221485/Advantech-TPC-B300-E20A-Modular-TPC---Computing-Bo
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
Modular TPC - Computing Box Module with Intel Atom and Celeron CPU
- Computing Box powered by Intel Atom® X6425E/ Intel® Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 1 x Full-size mini PCIe for iDoor expansion
- 1 x M.2 Key-E 2230 for WIFI + BT module
- 1 x M.2 Key-M 2280 for NVMe SSD (PCIe Gen 3 x 2)
- 1 x 2.5" SATA SSD expansion
- 2 x 2.5Gb LAN
- Supports TPM2.0 hardware security
- Wide Temp Support. Range -20~60 °C (Atom™ X6425E)
Specifications
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-20~70 °C (-4~158 °F)
Vibration Protection
1 Grms1
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
Intel® Atom™ x6425E 2.0GHz Quad-Core
Expansion
1 x Full-size mPCIe slot
Hardware Security
TPM 2.0
I/O
1 x RS-232, 1 x RS-232/422/485
LAN
2 x 10/100/1000/2500 Mbps
Memory
1 x DDR4 SO-DIMM Slot
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android
Power Input
24 VDC ±20%
Storage
1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
I/O Interface
USB Ports
3 x USB 3.2, 1 x USB 2.0
Mechanical
Dimension (W x H x D)
269 x 203 x 30 mm
Mounting
Panel, Wall, Stand, VESA
Weight (Net)
2 kg (4.41 lb)
