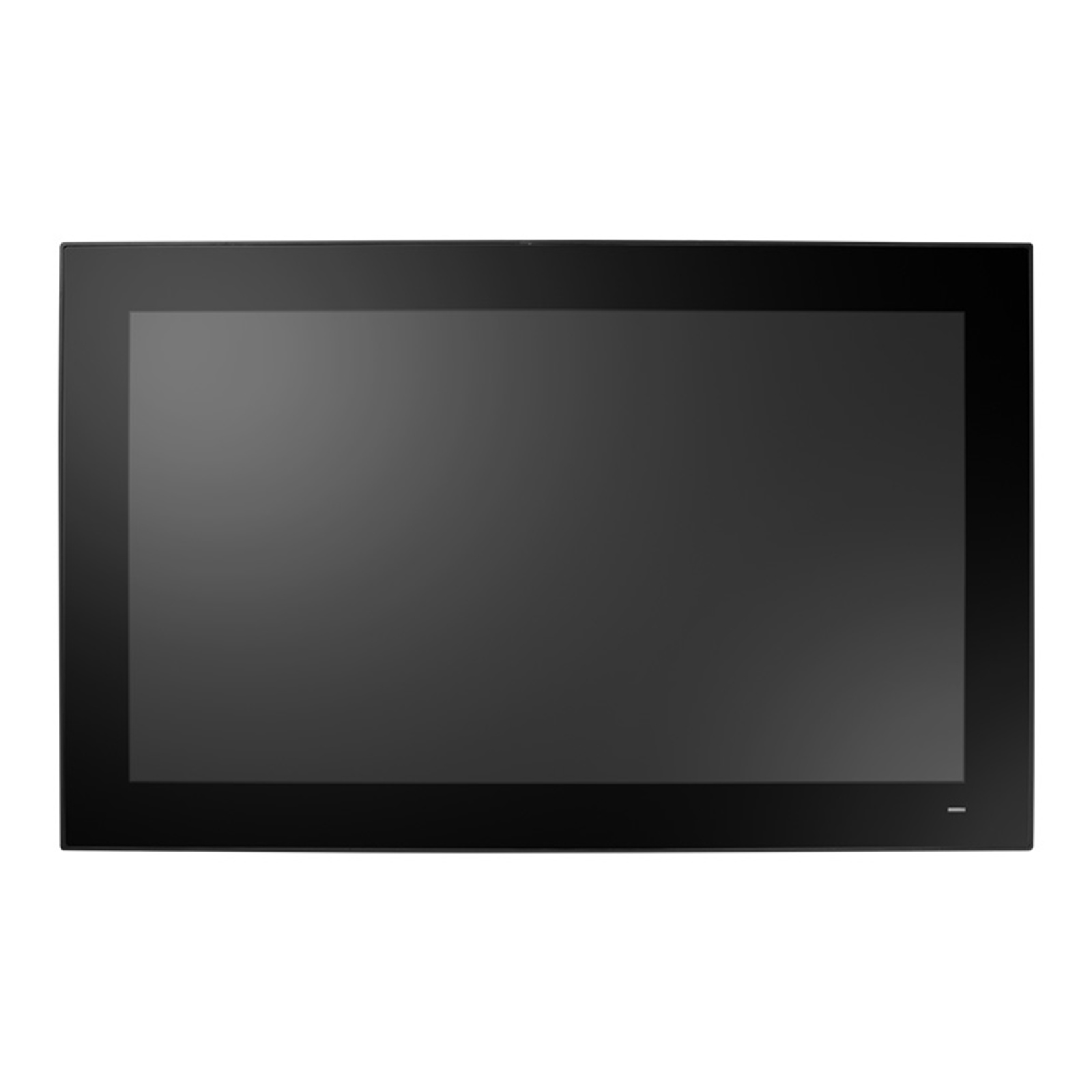

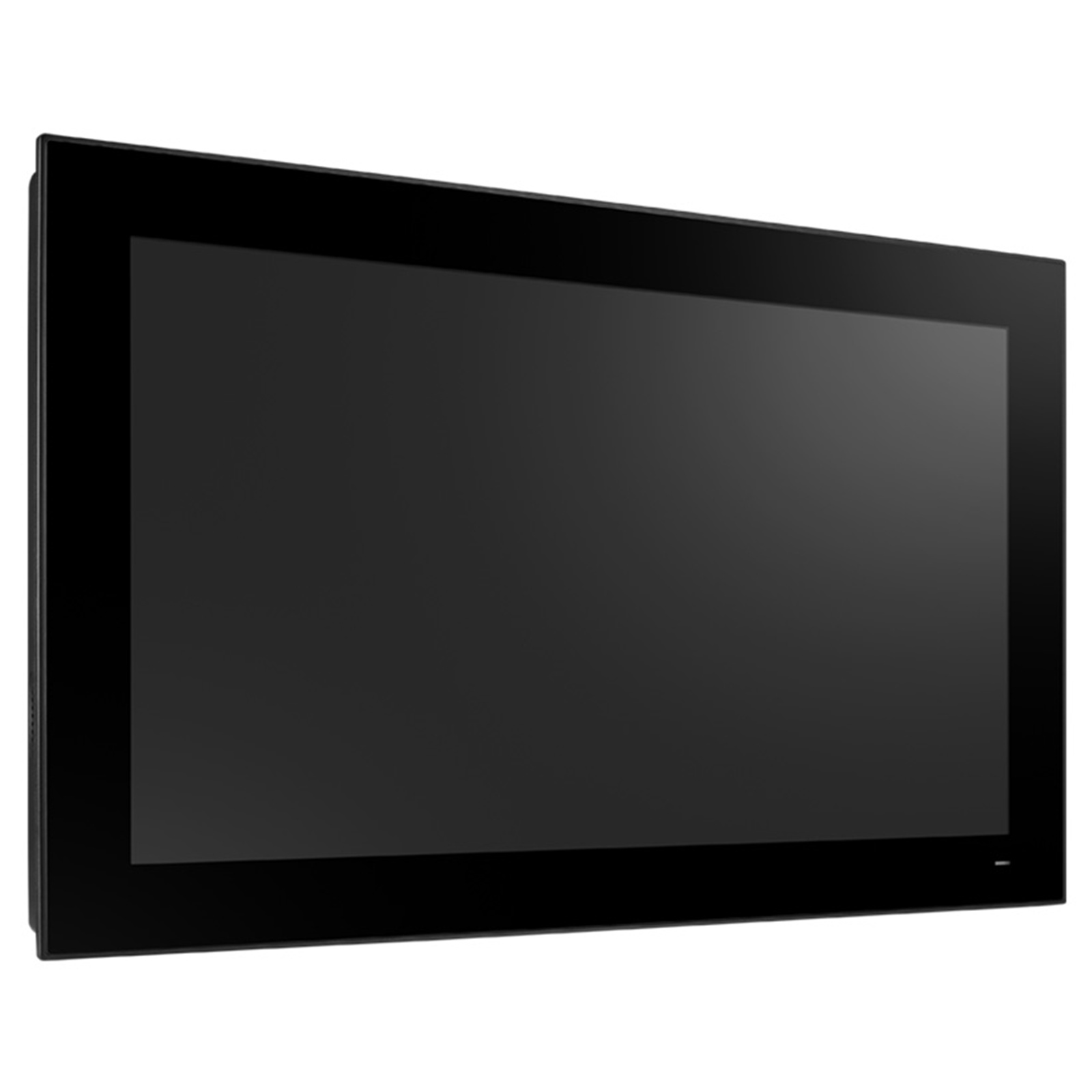

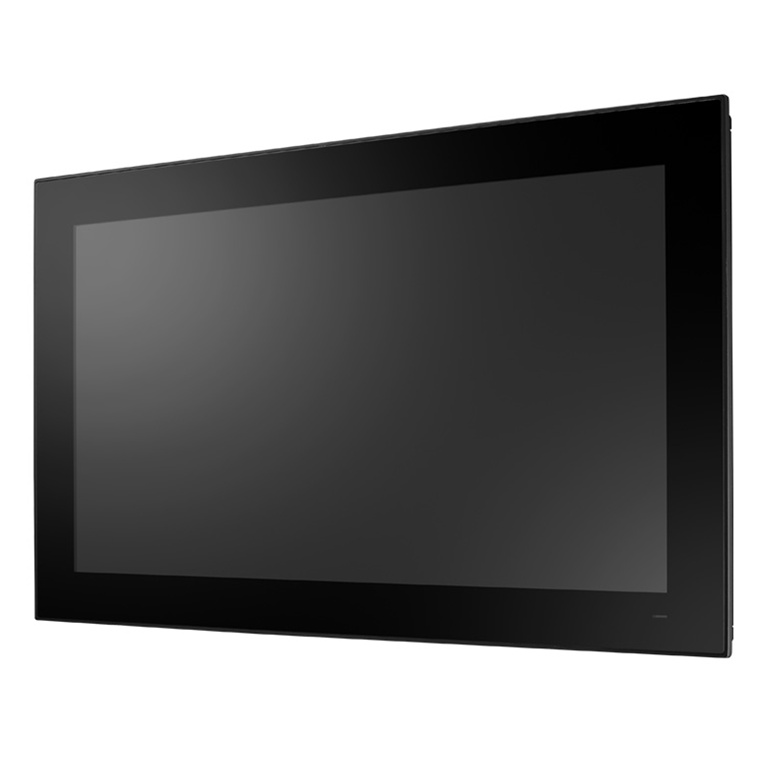

Advantech PPC-421W-PD5A 21.5" Fanless Widescreen Panel PC with Intel 13th Gen Core i5 Processor
- Brand: Advantech
- MPN: PPC-421W-PD5A
- Part #: IPCAVH221489

Product URL: https://www.pbtech.co.nz/product/IPCAVH221489/Advantech-PPC-421W-PD5A-215-Fanless-Widescreen-Pan
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 21.5" true-flat Full HD LCD panel with projected capacitive touchscreen, anti-glare coating
- Intel® Core™ i5-1345URE processor with fanless system design
- Supports PCIe x4 or PCI expansion
- 1 x isolated RS-422/485 with auto flow
- Wide input power range (9 ~ 32 VDC)
- Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- 3 x Independent displays
- 1 x M.2 bay (2242/2280) for storage only
- Support TPM2.0 hardware security
Specifications
Hardware
CPU
13th Gen. Intel® Core™ i5-1345URE 1.40GHz Deca-Core
Memory
2 x SO-DIMM Slot with DDR5 4800MHz
Storage
2 x 2.5" SSD/HDD Bay, 1 x NVMe PCIe x 4/SATA M.2 slot (2242/2280 M-key)
LAN
2 x 10/100/1000/2500 Mbps
Ethernet
Intel® i226-LM

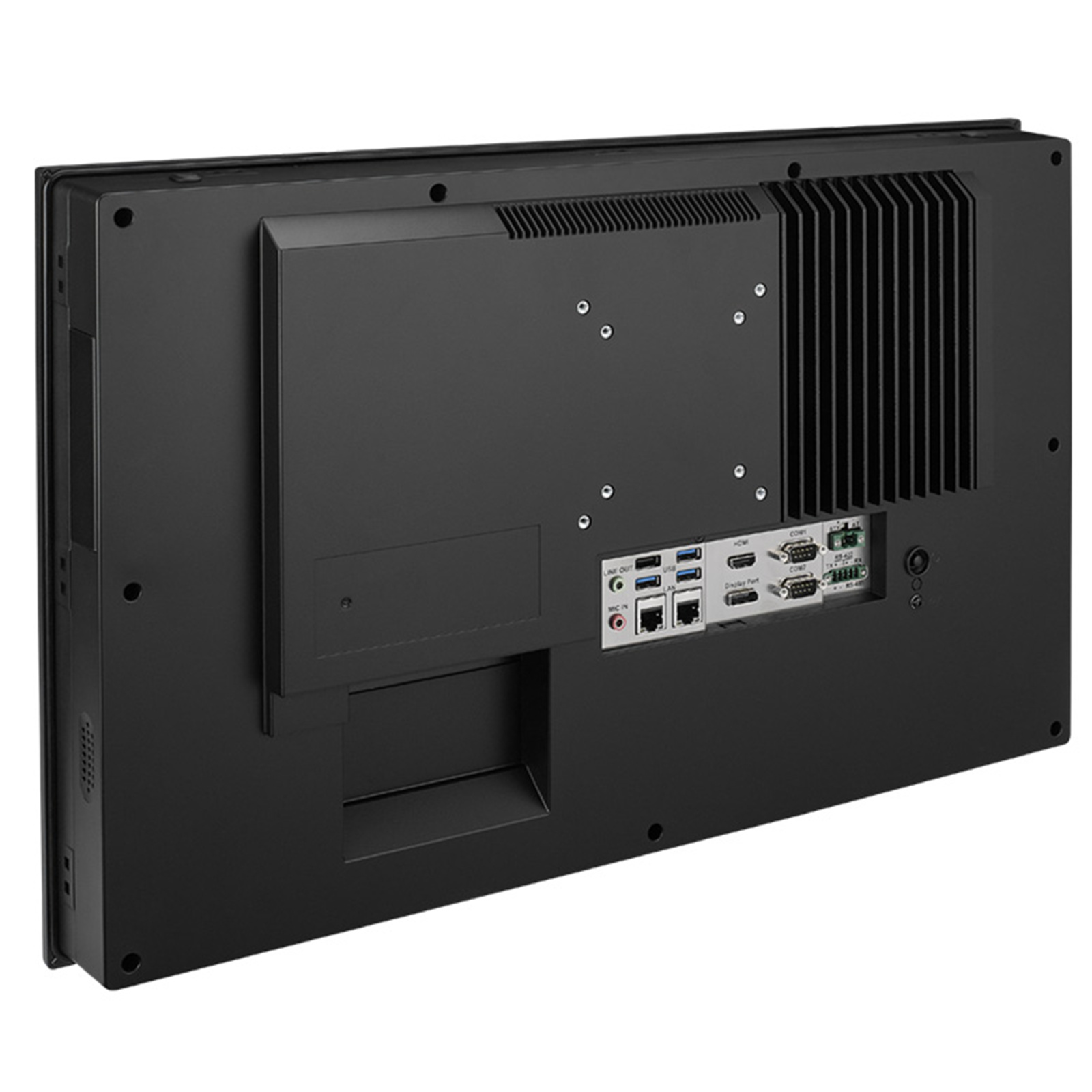

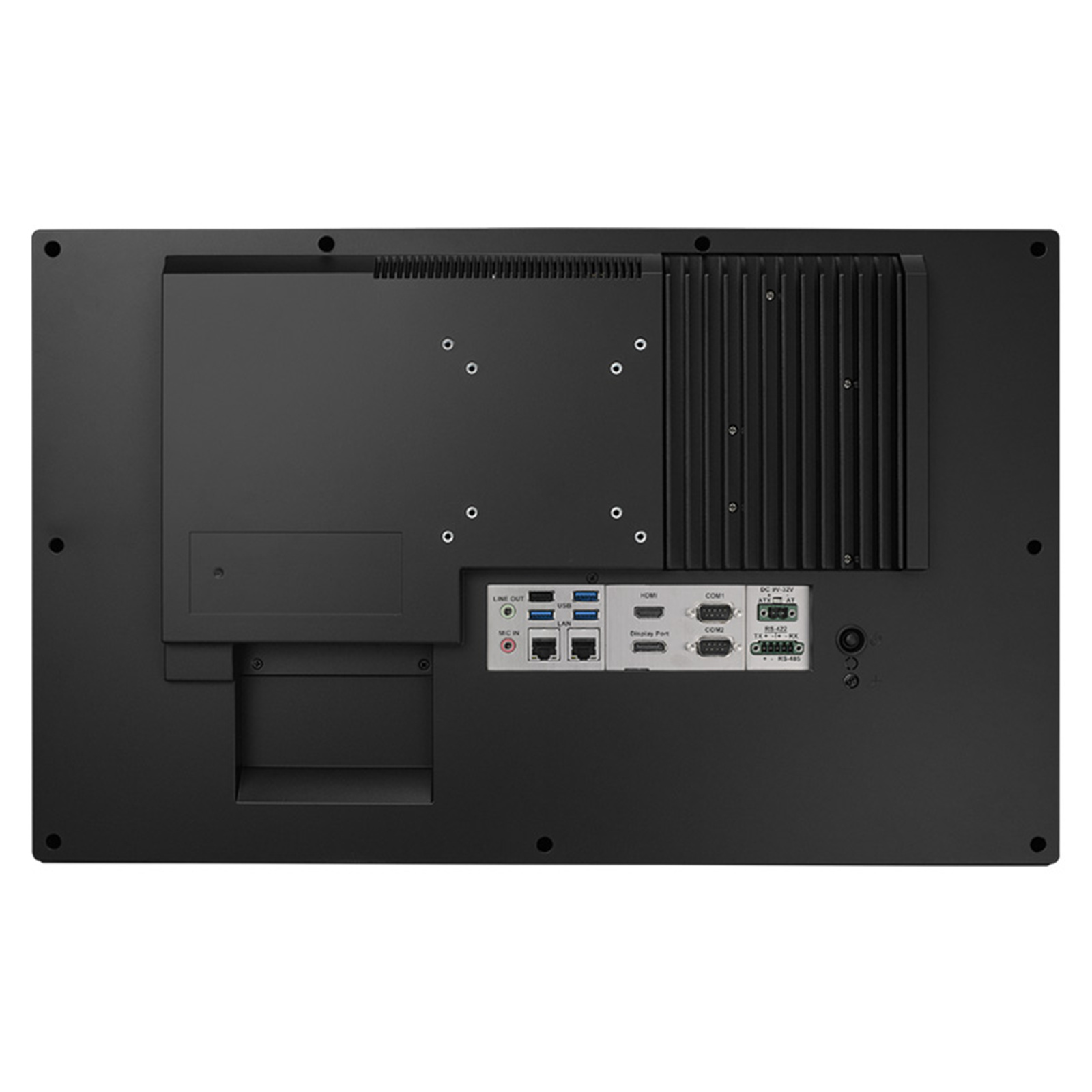

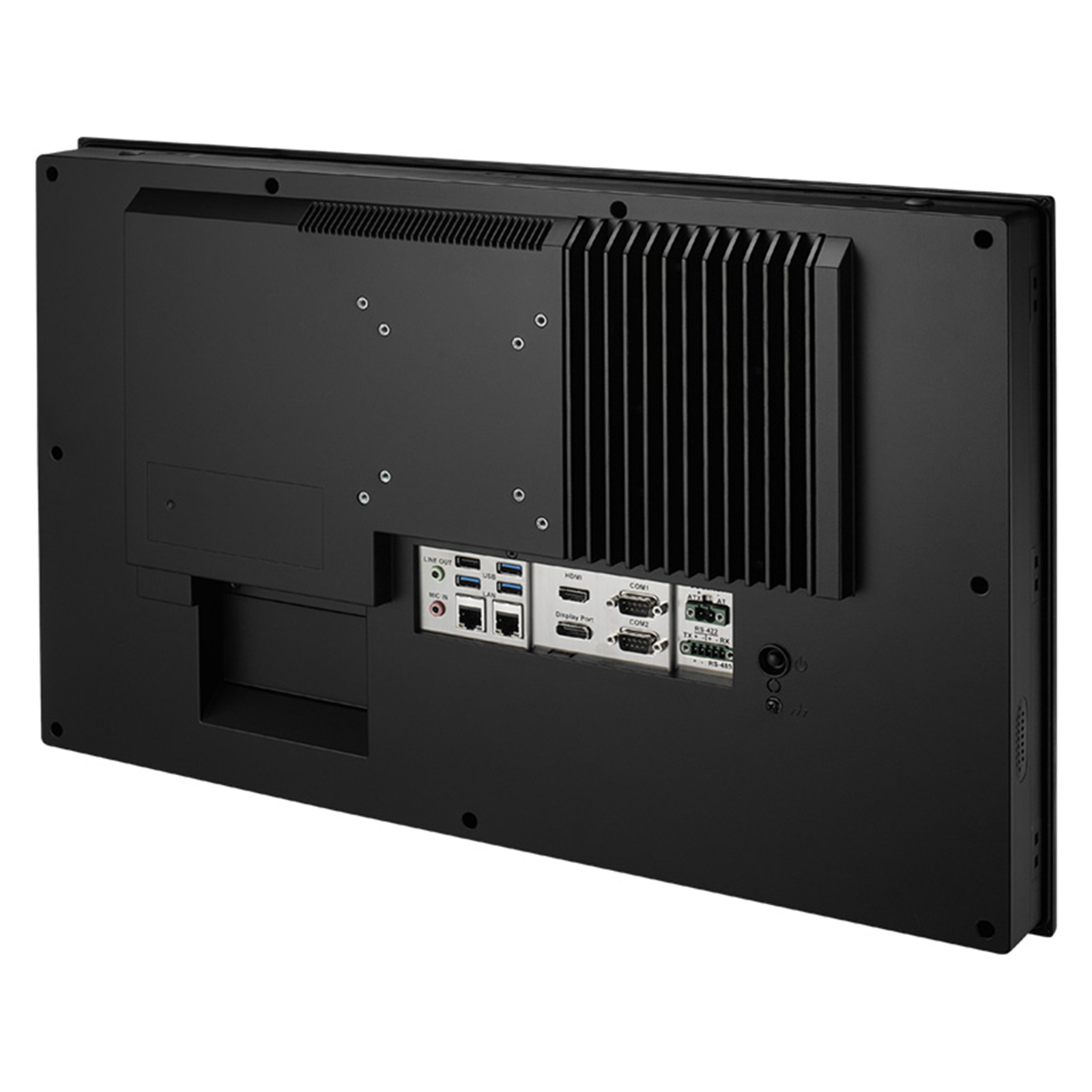

I/O
2 x RS-232, 1 x RS-422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP
Expansion
1 x M.2 E key 2230, 1 x PCIe x4 or 1 x PCI
Watchdog Timer
1~255 s
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
9~32 VDC
Power Consumption
110 W @ 19 VDC
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
I/O Interface
Serial Ports
4 x RS-232, 1 x RS-422/485
Displays
1 x HDMI, 1 x DP
Audio
Line-Out, Mic-In
Power Connector
1 x 2-Pin Terminal Block
USB Vision
Connector
3 x USB 3.2 Type A,1 x USB 2.0 Type A
Mechanical
Dimension (W x H x D)
558 x 350 x 64 mm
Weight (Net)
7.7 kg (17.1 lb)
Enclosure
Die-cast aluminum alloy, PC + ABS
Mounting
Stand, Wall, VESA, Panel
Touchscreen
Touch Type
PCAP
LCD Display
Display Size
21.5"
Max. Resolution
1920 x 1080
Viewing Angle (H/V°)
178/178
Luminance (cd/m2)
350
Backlight Life (hrs)
50,000
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-30~60 °C (-22~140 °F)
Relative Humidity
95% RH (non-condensing)
Shock Protection
10 G, half sine
Vibration Protection
2 Grms, random
Ingress Protection
Front Panel IP66
