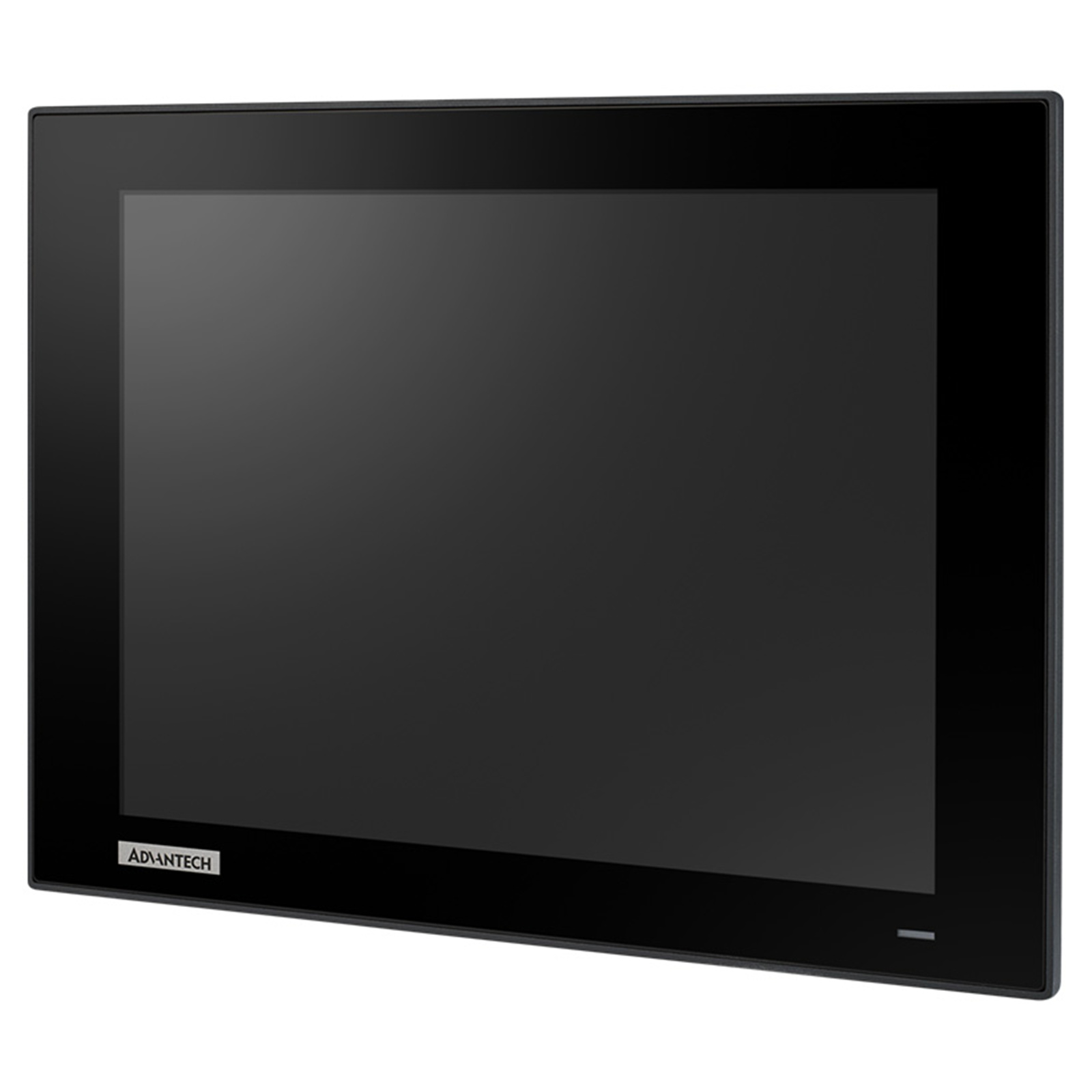

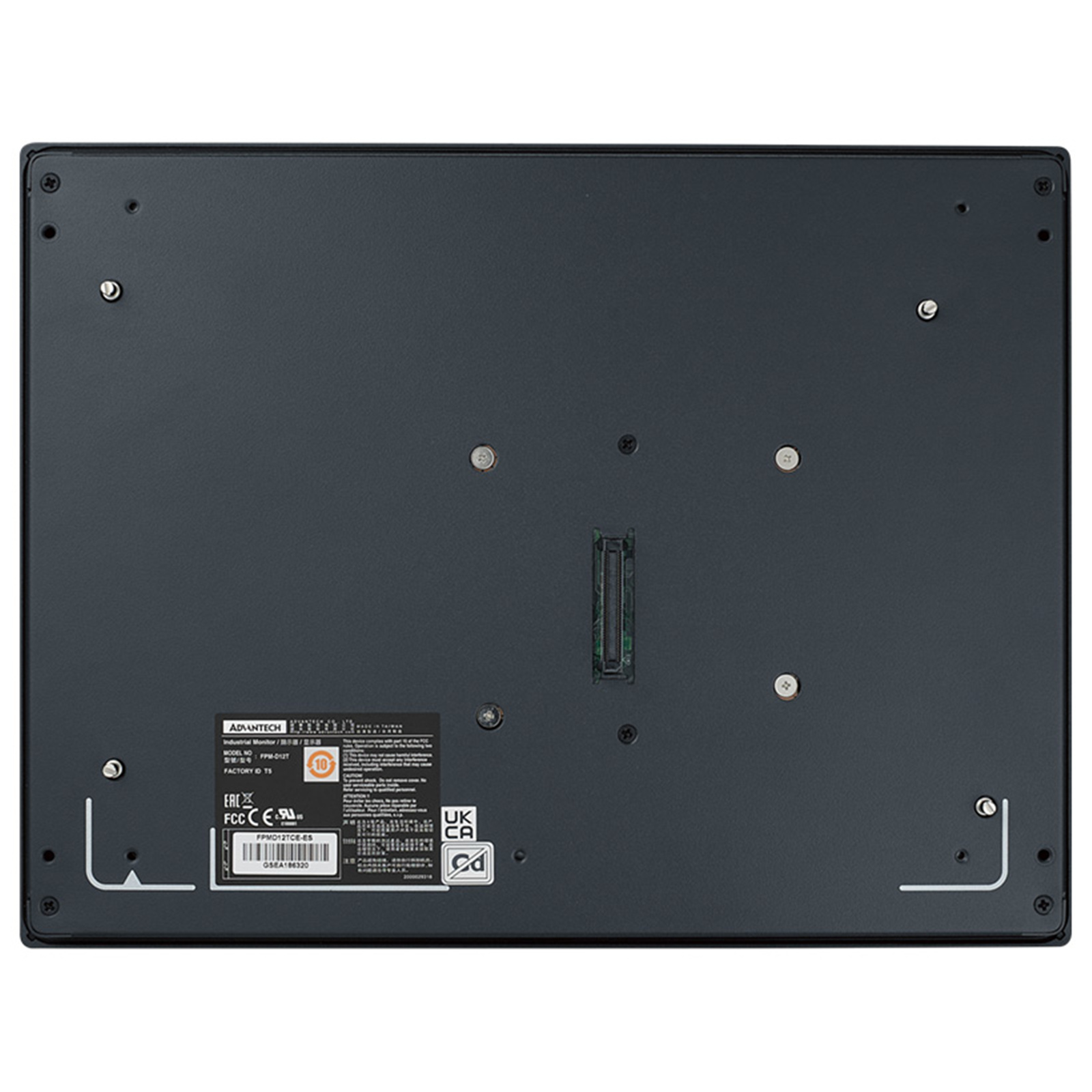

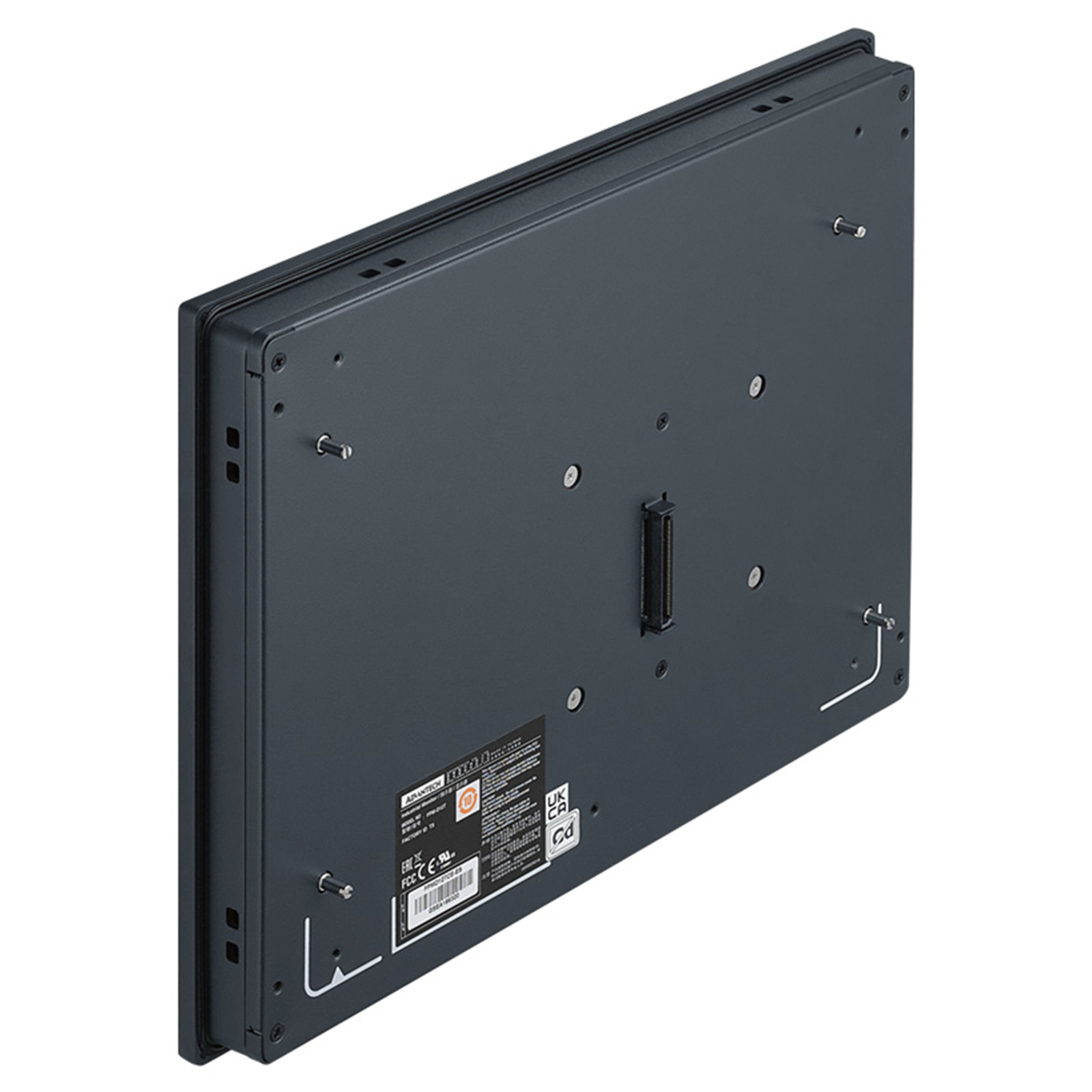

Advantech FPM-D12T-CE 12.1" (4:3)XGA (1024x768) PCAP 600 nits modular front display design compatible with TPC-B520, TPC-B300 models
Advantech FPM-D12T-CE 12.1" (4:3)XGA (1024x768) PCAP 600 nits modular front display design compatible with TPC-B520, TPC-B300 models
- Brand: Advantech
- MPN: FPM-D12T-CE
- Part #: IPCAVH500001
- UPC:
- Brand: Advantech
- MPN: FPM-D12T-CE
- Part #: IPCAVH500001
- UPC:
COMBO DEALS: Buy Together and SAVE!







Advantech TPC-B300-J20A Modular TPC - Computing Box Module with Intel Celeron J6412
$1,119.02 +GST
$1,286.87


Advantech Power adaptor 96PSA-A150W24T2-4 A/D 100-240V 150W 24V W/PFC C14 CORD END 62368
$93.69 +GST
$107.74


Advantech TPC-B520-D50A Modular TPC - Computing Box Module with Intel Core i5-1335UE
$2,257.67 +GST
$2,596.32


Advantech Modular TPC-B610H-A00A Barebone with Socket LGA1200 for Intel 10th Gen. Core i CPU,
$1,617.67 +GST
$1,860.32
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech FPM-D12T-CE 12.1" (4:3)XGA (1024x768) PCAP 600 nits modular front display design compatible with TPC-B520, TPC-B300 models
- Brand: Advantech
- MPN: FPM-D12T-CE
- Part #: IPCAVH500001

Product URL: https://www.pbtech.co.nz/product/IPCAVH500001/Advantech-FPM-D12T-CE-121-43XGA-1024x768-PCAP-600
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
12.1" (4:3) modular front display design compatible with TPC-B520, TPC-B300 models
- 600 cd/m² luminance with 1024 x 768 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
Specifications
LCD Panel
Display Size
12"
Display Type
XGA TFT LED LCD
Aspect Ratio
4:3
Max. Resolution
1024 x 768
Max. Color
16.2M
Luminance
600 cd/m²
Viewing Angle (H/V)
178°/178°
Backlight Life
50,000 hr
Contrast Ratio
1000:1
Touchscreen
Type
PCAP
Light Transmission
Above 88%
Anti-Glare Treatment
Yes
Built-In iKey
N/A
Expandability
NFC Support on Front Panel
N/A
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-30~70 °C (-22~158 °F)
Ingress Protection
Font IP66
Housing Color
Panel Frame and Back Cover
Pantone 432C
