Features

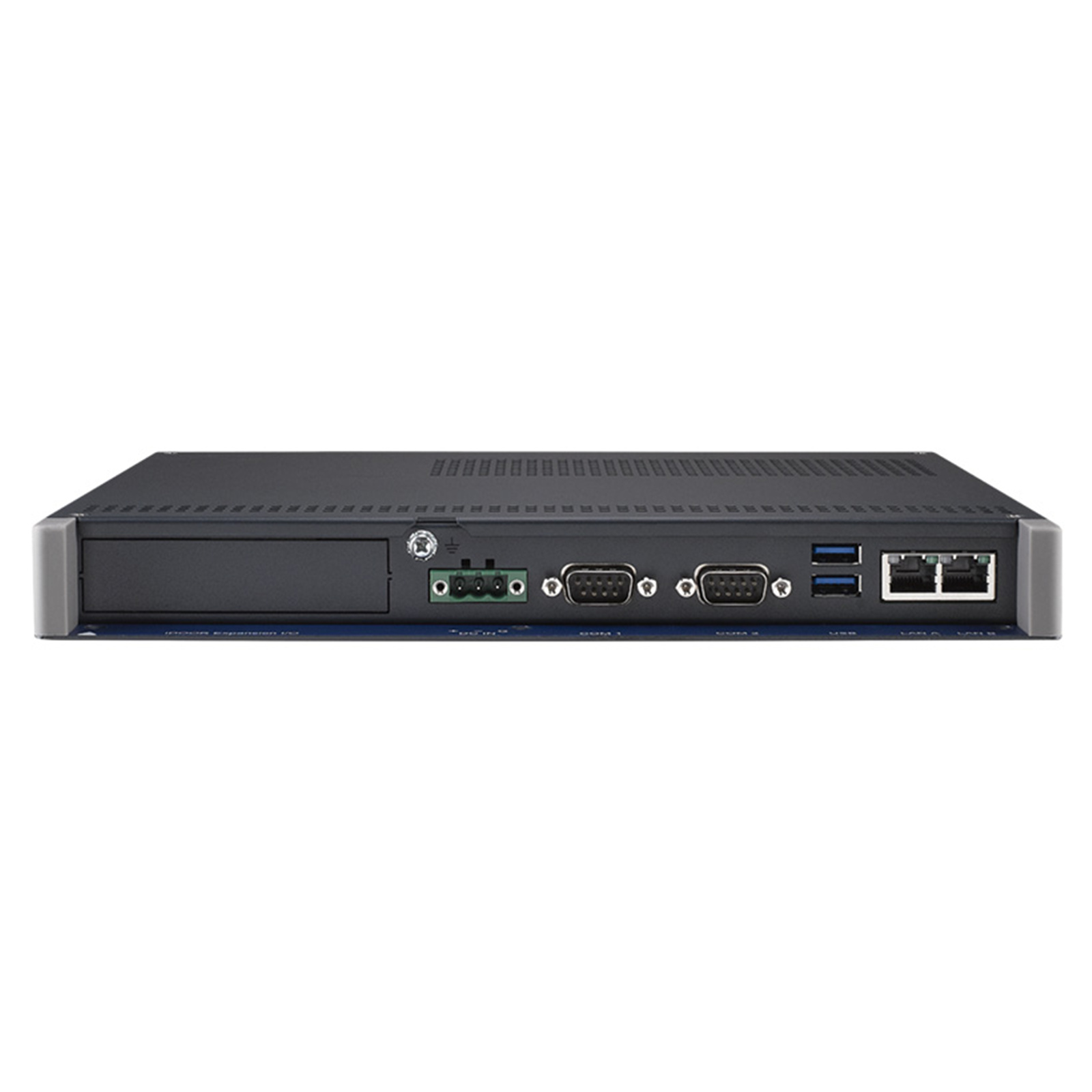

Advantech TPC-B300 Modular TPC - Computing Box Module with Intel Atom and Celeron CPU
- Computing Box powered by Intel Atom® X6425E/ Intel® Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 1 x Full-size mini PCIe for iDoor expansion
- 1 x M.2 Key-E 2230 for WIFI + BT module
- 1 x M.2 Key-M 2280 for SATA SSD
- 1 x 2.5" SATA SSD expansion
- 2 x 2.5Gb LAN
- Supports TPM2.0 hardware security
- Wide Temp Support. Range -20~60 °C (Atom™ X6425E)
Flexible Performance and Memory Options
The Advantech TPC-B300 Modular Computing Box packs a strong computing punch by offering options powered with either the Intel Atom® X6425E or the Intel® Celeron® J6412 processor. Accompanied by a DDR4 SODIMM slot supporting up to 32GB RAM, this system is ready to tackle a broad array of industrial and commercial applications requiring reliable and robust processing.

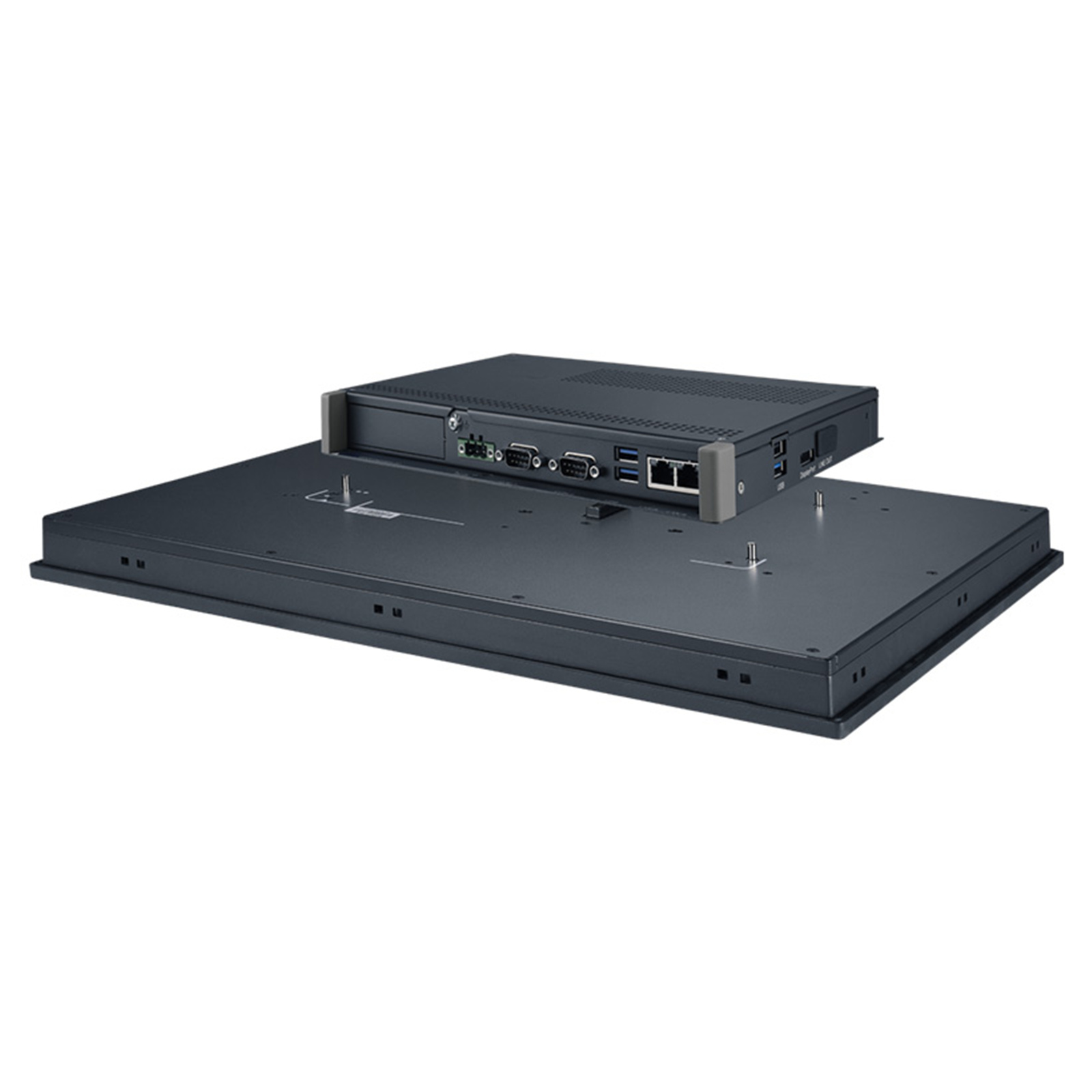

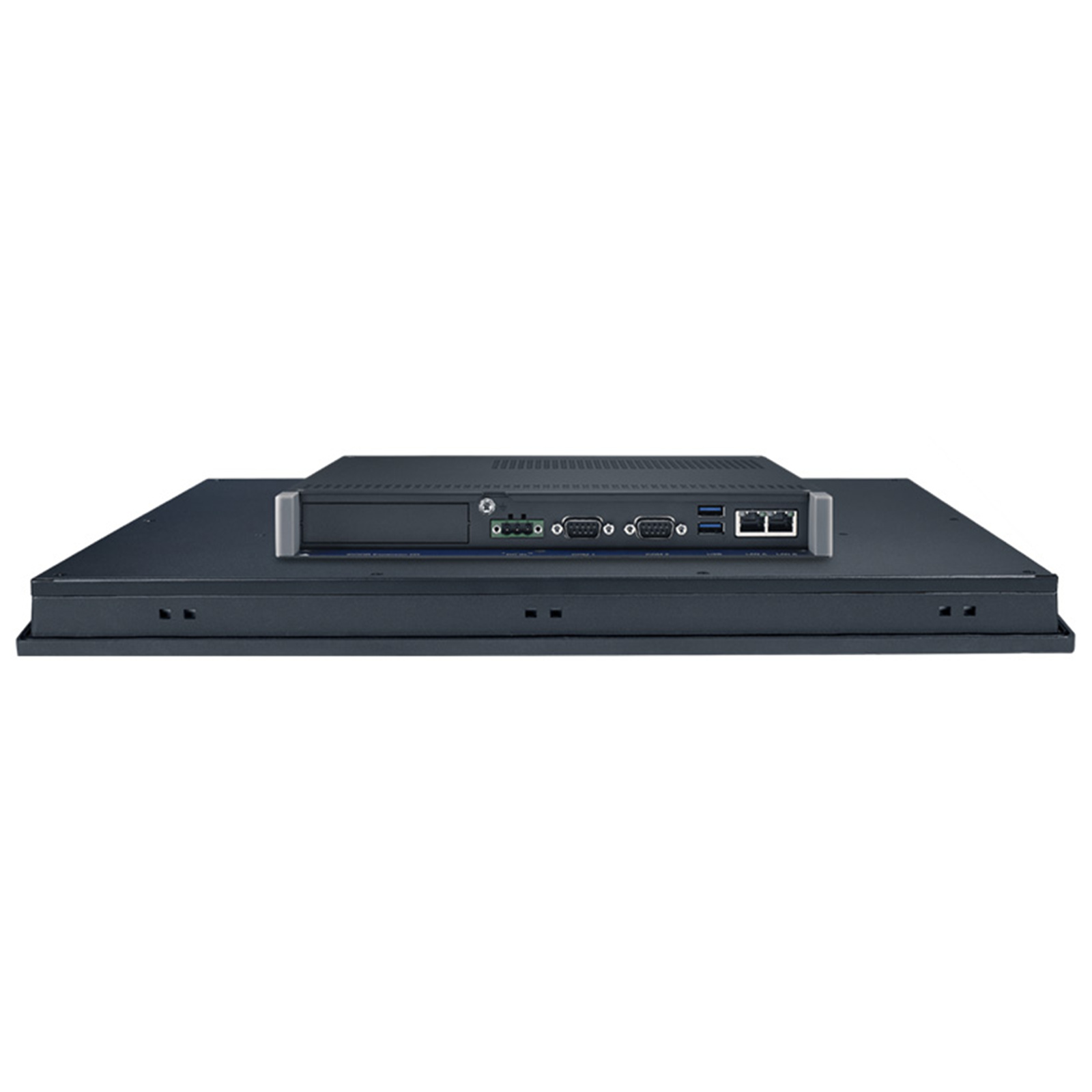

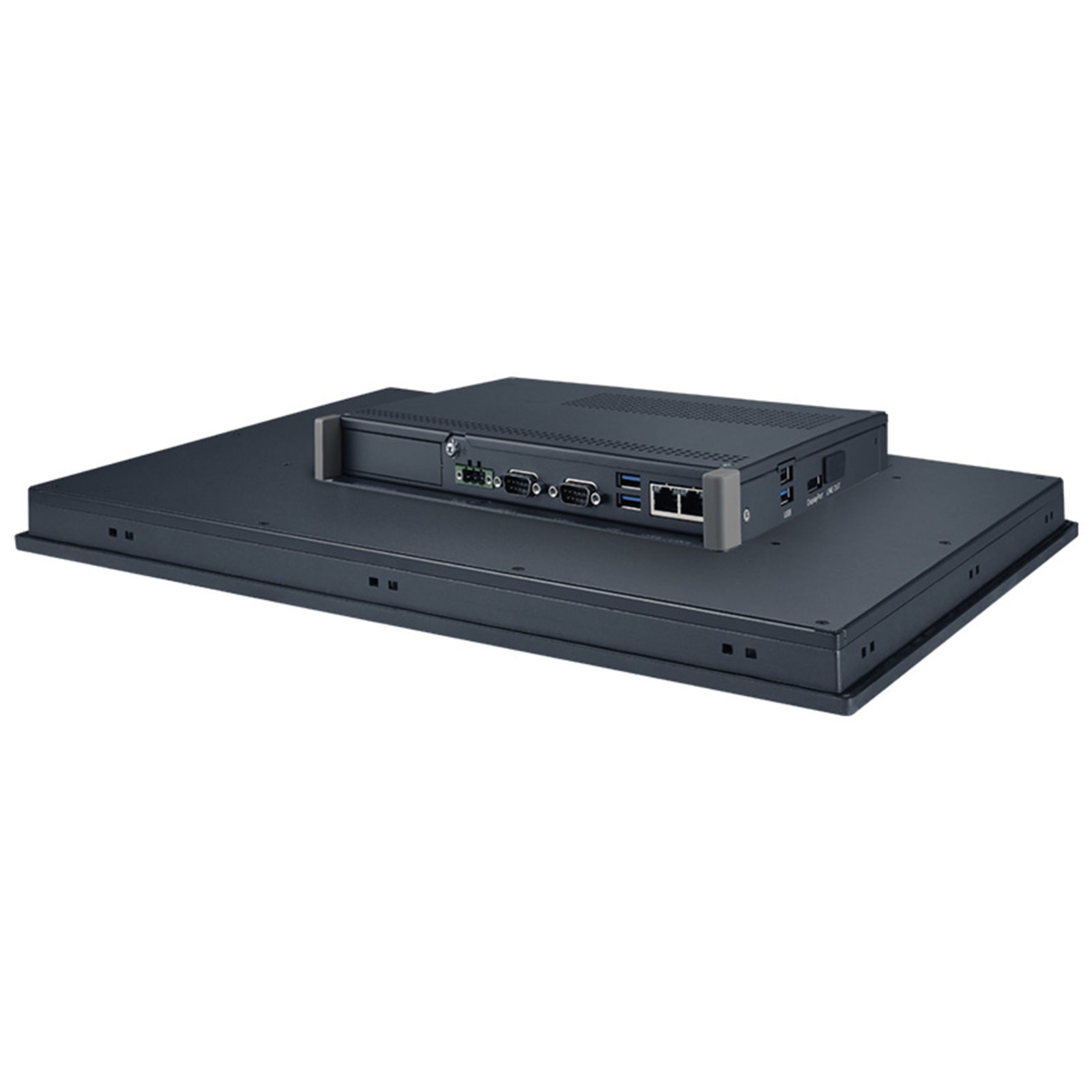

Versatile Front Panel and Touch Solutions
Designed for adaptability, the TPC-B300 comes with multiple front panel module options. Users can choose between 12.1-inch or 19-inch displays, both equipped with P-Cap (Projected Capacitive) multi-touch sensors for intuitive interactions. Additionally, the panels support a rugged 5-wire resistive touch alternative, allowing for reliable operation even in demanding environments.
Expansion Capabilities and Connectivity
This modular computing box is built for expandability. It features a full-size mini PCIe slot compatible with Advantech's iDoor expansion modules, enabling tailored I/O, fieldbus, or communication functions. Furthermore, an M.2 Key-E 2230 slot allows for Wi-Fi and Bluetooth connectivity, while an M.2 Key-M 2280 and a 2.5" SATA slot provide flexible SSD storage options.
Advanced Networking and Security
Networking is robust on the TPC-B300 thanks to dual 2.5Gb LAN ports, ensuring high-speed connection and redundancy for industrial networks. Security is also a priority, as TPM 2.0 hardware support is integrated, providing trustworthy hardware-level protection for sensitive data and system authentication.
Wide Temperature Range and Rugged Durability
Ideal for industrial settings, the Advantech TPC-B300 supports a wide operating temperature range from -20°C to 60°C (for Atom™ X6425E models). This ensures stable and reliable performance in a variety of challenging environmental conditions, making it suitable for factories, automation control, and outdoor applications.
Specifications
Environment
Operating Temperature
-20~55 °C (-4~131 °F)
Storage Temperature
-20~70 °C (-4~158 °F)
Vibration Protection
1 Grms
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
Intel® Celeron® J6412 2.00 GHz, Quad core
Expansion
1 x Full-size mPCIe slot
Hardware Security
TPM 2.0
I/O
1 x RS-232, 1 x RS-232/422/485
LAN
2 x 10/100/1000/2500 Mbps
Memory
1 x DDR4 SO-DIMM Slot
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android
Power Input
24 VDC ±20%
Storage
1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
I/O Interface
USB Ports
3 x USB 3.2, 1 x USB 2.0
Mechanical
Dimension (W x H x D)
269 x 203 x 30 mm
Mounting
Panel, Wall, Stand, VESA
Weight (Net)
2 kg (4.41 lb)
