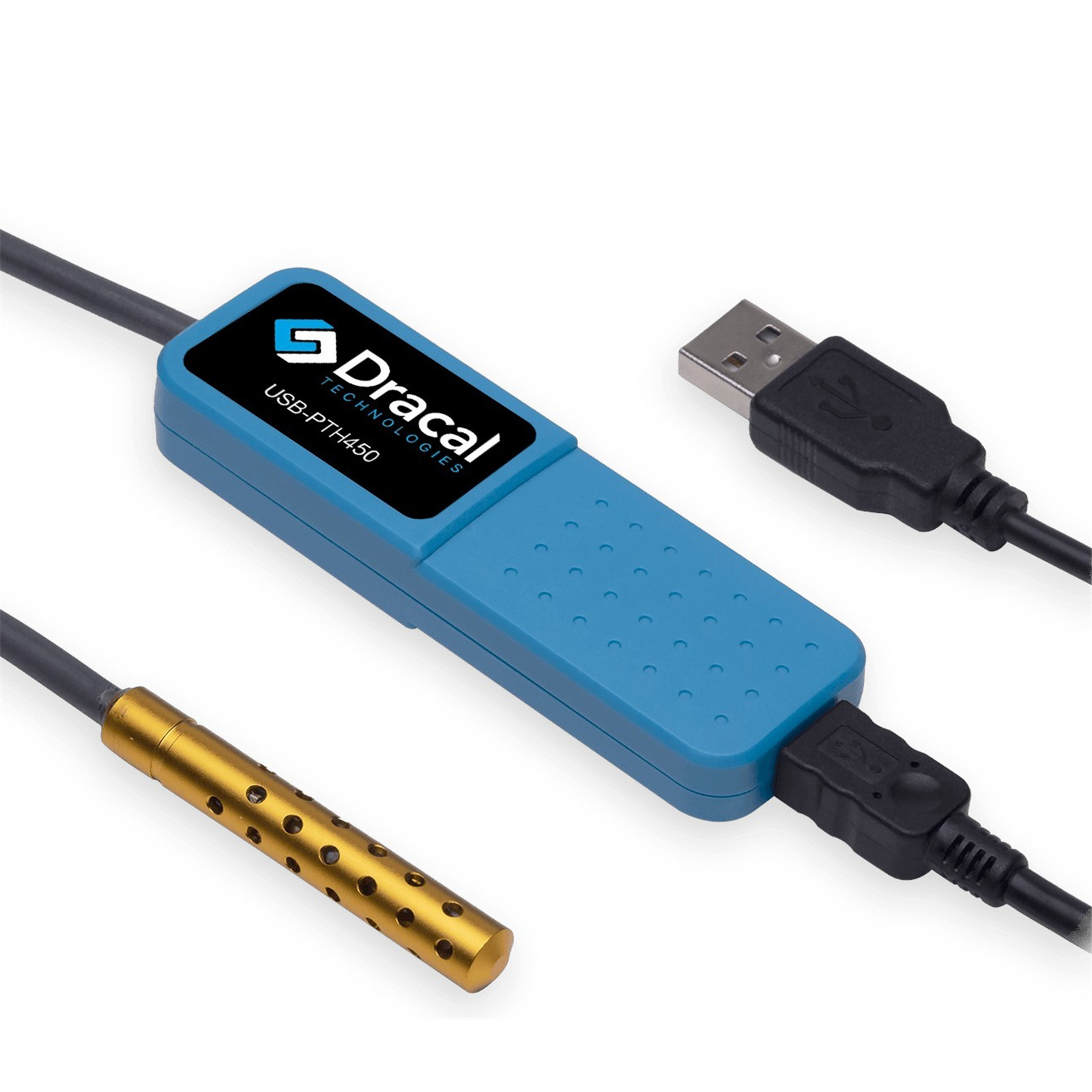

Dracal USB-PTH450 Atmospheric pressure, temperature and relative humidity sensor with improved accuracy and aluminum probe

Dracal USB-PTH450 Atmospheric pressure, temperature and relative humidity sensor with improved accuracy and aluminum probe

  • Brand: Dracal
  • MPN: USB-PTH450
  • Part #: IPCDAL20001
  • UPC:

Features

PTH450: USB sensor with improved precision for temperature, relative humidity, and atmospheric pressure (±0.1°C/±1.5% RH), equipped with a particle filter and an aluminum tip for harsh environments.

The PTH450 allows for the acquisition of temperature, relative humidity, and atmospheric pressure data in a harmonized manner, thanks to its advanced electronics. As a member of the PTH series, it stands out as the most robust, with its anodized aluminum-coated probe capable of withstanding temperatures of up to 125°C. The compact aluminum probe makes it easy to install in confined spaces, and the integrated filtration membrane provides additional protection against dust.

Furthermore, the probe cable is coated with silicone, making it highly resistant to heat, chemicals, UV radiation, and mechanical stress.

Like all Dracal measurement instruments, the PTH450 works with free software tools, making it an integral part of a DAQ (Data Acquisition) solution. For those looking to integrate the PTH450 into their system, command-line tools and VCP (Virtual COM Port) mode are two possible options. For those who prefer a graphical interface, DracalView is highly recommended.

Easy to use in your applications

- Virtual COM option (VCP)
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate

Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.

Free data monitoring and calibration software

Be instantly operational with DracalView: Dracal's free data visualization, logging and calibration software

- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with Dracal's Wi-Fi gateway
- Easy calibration mechanism open to the end-user

Examples of use

- Reference instrument for calibrating other instruments
- Climatic chamber
- Monitoring environmental conditions
  at the CERN
  in telematics
  in laboratory settings (for ISO purposes, in nuclear physics, for audio product development)
  in environmental engineering

Dimensions



Warning: This product should not be used in applications where its failure may cause personal injury.

Note: Data may change without notification, and you are strongly advised to obtain copies of the most recently issued datasheet.

Specifications

What is included

One (1) PTH450 measuring instrument
One (1) USB Cable
Quick installation guide
Data acquisition solution for DAQ system

Temperature (probe)

Operating range

-40°C to 125°C

Extended temperature range

-45°C to 130°C

Accuracy (typical)

±0.1°C (20°C to 60°C)
±0.2°C (-40°C to 20°C)
±0.4°C (60°C to 125°C)

Resolution (typical)

0.015°C

Repeatability (typical)

0.06°C

Long-term drift

<0.03°C/year

Relative humidity (probe)

Operating range

0 to 100%RH

Accuracy at 25°C (typical)

±1.5%RH (0 to 80%RH)
±2%RH (80 to 100%RH)

Accuracy at 0 to 80°C (typical)

±2.0% from 0 to 100%RH,

Resolution (typical)

0.01%RH

Long-term drift (-40 to 125°C)

<0.25%RH/year

Atmospheric (barometric) pressure

Operating pressure range

45 to 110 kPa

Accuracy at 25°C

±0.15 kPa

Extended pressure range

1 to 120 kPa

Overpressure

600 kPa

Resolution

0.0065 kPa

Signal Noise filter

1st Order
Internal factory-calibrated coefficients

ADC resolution

24 bits

Altitude resolution

approx. 10 cm

Sensor IC

MS5611

Long-term drift

±0.1 kPa/year

Probe filters

First filter material

Puncture anodized aluminum

Second filter material

PTFE membrane

Efficiency

>99.99% for particles of 200 nm

Miscellaneous

Sensor cable material

Silicone

Sensor housing

Anodized aluminum

USB cable length

1 meter (3 ft.)

Operating temperature range (USB cable interface)

0°C to 70°C

Powered through

USB

Compliance

RoHS3 and CE

Note

This product can operate at 100 %RH but is not waterproof. Protect the sensor and CPU against direct exposure to water or snow. Extra housing may be required depending on the application.
It is recommended that the probe be installed pointing down to reduce the risk of water infiltration or build-up in the probe.

Manufacturer Part No:
USB-PTH450
Brand:
Dracal
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.01 kg
PB Part No:
IPCDAL20001
Product Model:
USB-PTH450
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
