Features

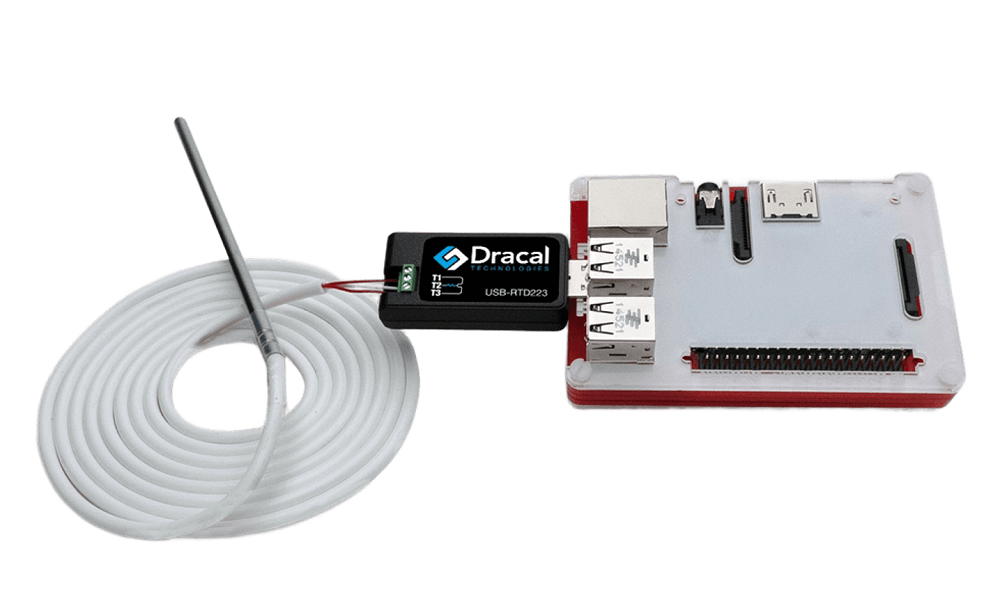

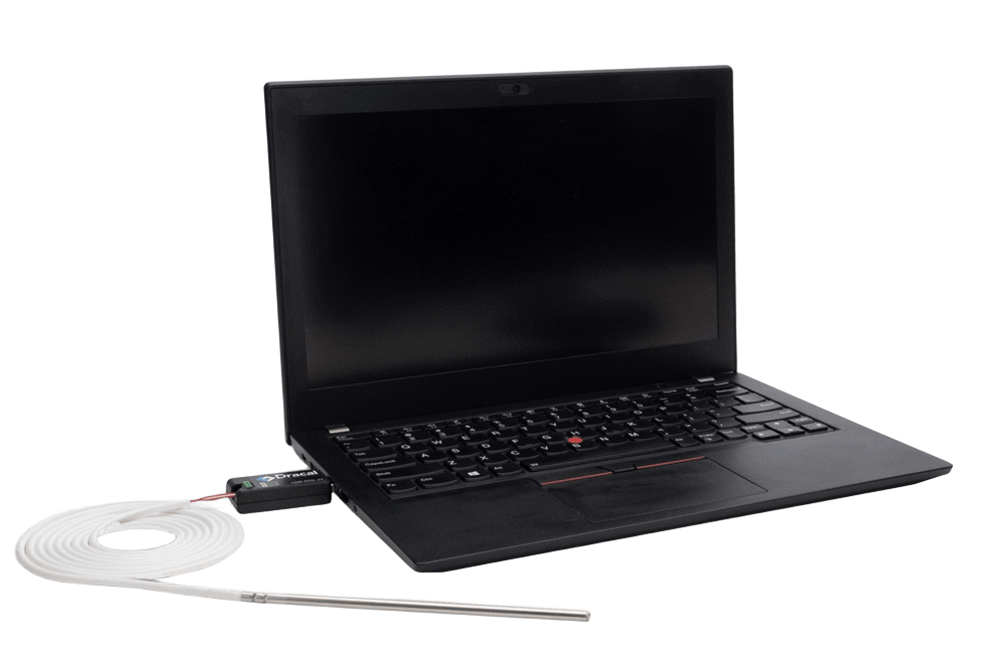

RTD223: Connect an RTD Pt100 sensor to a USB port for precise and extensive temperature measurement.
All instruments of the RTD series are resistance temperature detectors (RTD) connected to USB, which support all 2-wire and 3-wire Pt100 probes, such as the one offered by Dracal. The sensor wires are secured using the RTD223's screw connections for a robust installation. With its 18-bit precision electronics, small temperature variations can be detected. The RTD223 is, therefore, suitable for a wide range of applications. The RTD223 is designed in a compact key format for easy integration, even in applications where space is limited. The unique serial number assigned to each unit allows for data traceability and certification. Multiple units can be simultaneously connected and operational on the same USB HUB or computer. Additionally, the RTD223 is equipped with calibration options and a virtual COM port mode for direct data integration without third-party software.
Easy to use in your applications
- Virtual COM option (VCP)
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate
Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.

Application examples
- Aerospace
- Biomedical
- Food processing
- Robotics
- Materials engineering
- Engineering
- R&D
- Monitoring of environmental conditions at the CERN

Free data monitoring and calibration software
Like all Dracal measuring instruments, the RTD223 is compatible with free software tools, making it an essential component of a DAQ solution. For those looking to integrate the RTD223 into their system, two options are available: command-line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.
Be instantly operational with DracalView: Dracal's free data visualization, logging and calibration software
- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with Dracal's Wi-Fi gateway
- Easy calibration mechanism open to the end-user
Dimensions and Wiring

Specifications
General
Temperature Range
-200°C to 800°C
ADC resolution
18-bit
Temperature resolution
0.02°C
Accuracy
±0.06°C or better
Drift
<1% per year
Sensing Element Type
2 or 3-wire RTD 100 Ω sensors (Pt100 type)
Connector
3-screw terminal, robust connection
Maximum wire size
26 AWG to 20 AWG
Long-term stability
Yes
Miscellaneous
Enclosure operating temperature
-20°C to 70°C
Enclosure
ABS Plastic, USB-key form factor
Communication
USB 2.0
Certification
RoHS3 and CE compliant
