Dracal USB-RTD300 2/3-wire RTD sensor to USB adapter with connector
Dracal USB-RTD300 2/3-wire RTD sensor to USB adapter with connector
- Brand: Dracal
- MPN: USB-RTD300
- Part #: IPCDAL20010
- UPC:
- Brand: Dracal
- MPN: USB-RTD300
- Part #: IPCDAL20010
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
Dracal USB-RTD300 2/3-wire RTD sensor to USB adapter with connector
- Brand: Dracal
- MPN: USB-RTD300
- Part #: IPCDAL20010
Product URL: https://www.pbtech.co.nz/product/IPCDAL20010/Dracal-USB-RTD300-23-wire-RTD-sensor-to-USB-adapte
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features

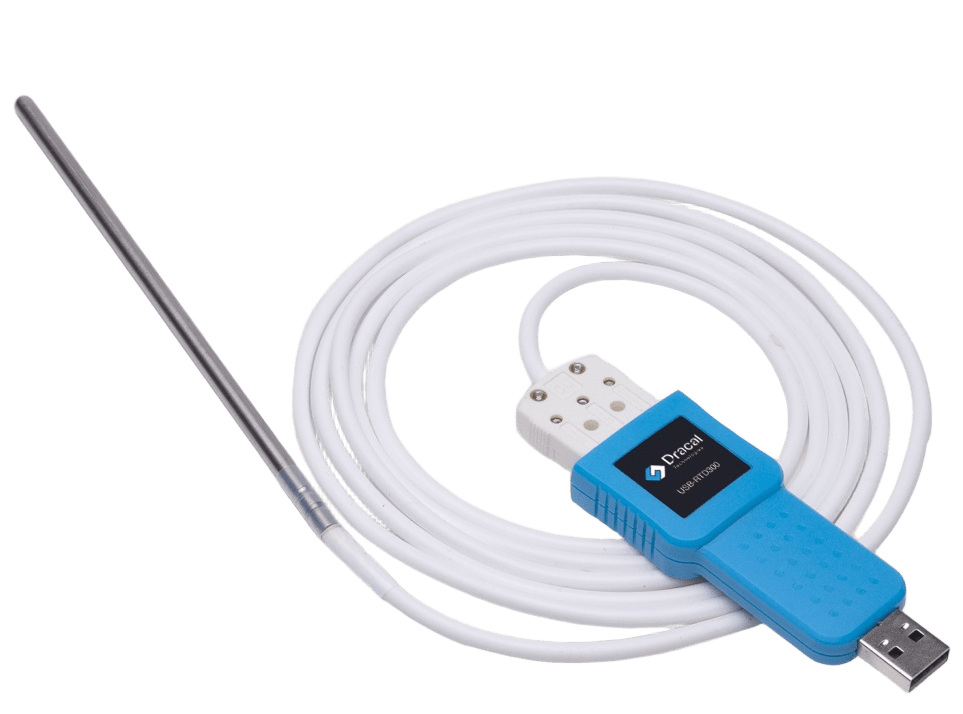

RTD300: With this adapter, connect an RTD Pt100 probe to a USB port for measuring a wide temperature range with exceptional precision.
The RTD300 is a universal converter for Pt100-type RTD probes with 2 or 3 wires. It can be combined with the RTD probe offered by Dracal, which is pre-wired for optimal use with the RTD300. However, since the RTD300 comes with a probe connector, you have the flexibility to choose a compatible probe of your choice.
Using state-of-the-art chip technology, the RTD300 delivers unparalleled accuracy and resolution for your temperature readings across a broad range. It is the most precise among the range of USB converters for RTD probes available from Dracal.

Easy to use in your applications
- Virtual COM option (VCP)
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate
Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.

Application examples
- Calibrating other components
- Monitoring environmental conditions
- Using as a working reference

Free data monitoring and calibration software
Like all Dracal measuring instruments, the RTD300 is compatible with free software tools, making it an essential component of a DAQ solution. For those looking to integrate the RTD300 into their system, two options are available: command-line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.
Be instantly operational with DracalView: Dracal's free data visualization, logging and calibration software
- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with Dracal's Wi-Fi gateway
- Easy calibration mechanism open to the end-user
Specifications
General
Temperature Range
-200°C to 800°C
ADC resolution
24-bit
Temperature resolution
0.0001°C
Accuracy at 25°C (typical)
±0.005°C
Accuracy (0°C to 50°C)
±0.018°C
Noise level at 25°C (typical)
±0.0015°C
Long-term drift at 25°C (reading 0°C, typical)
0.008°C per year
Sampling rate
10 SPS (100 ms)
Response time (t63%)
Fast, probe dependant
Noise filter
Built-in
Temperature compensation
Yes
Calibration
Factory calibrated individually
Sensing Element Type
2 or 3-wire RTD 100 Ω sensors (Pt100 type)
Connection
Polarized 3-pin standard miniature receptacle
Miscellaneous
Enclosure operating temperature
-20°C to 70°C
Enclosure
ABS Plastic, USB-key form factor
Communication
USB 2.0
Certification
RoHS3 compliant
