Features

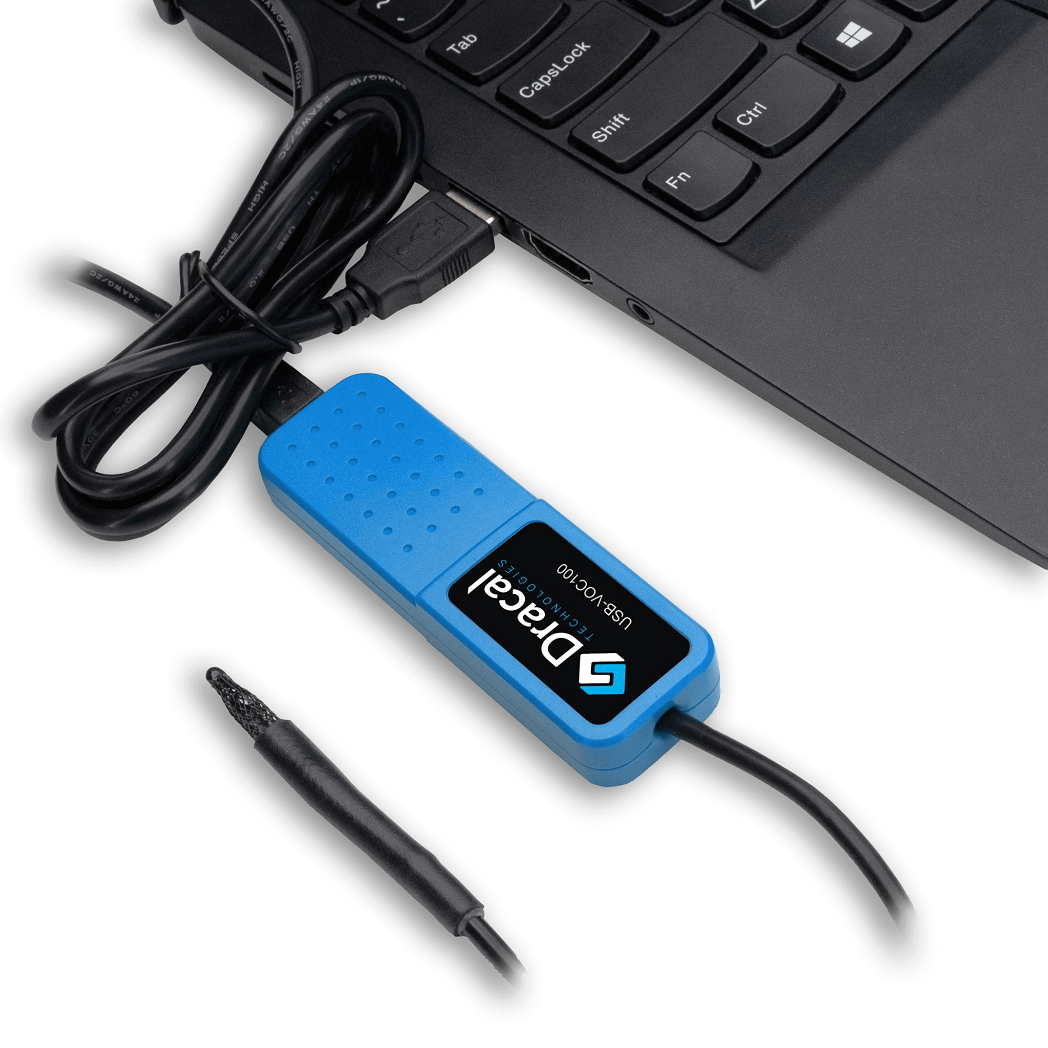

VOC100: All-in-One USB Sensor for Indoor Air Quality Monitoring
The VOC100 is an all-in-one USB sensor for indoor air quality monitoring, measuring volatile organic compounds (VOCs) with a range of 0 to 32,768 ppb and semi-quantitative precision. Equipped with an AMS CCS811 digital gas sensor, it detects various compounds such as paints, solvents, alcohols, and refrigerants. It also features a temperature and relative humidity sensor for accurate measurements.
Easy to use in your applications
- Virtual COM option (VCP)
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate
Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.
Possible applications
- Indoor Air Quality (IAQ) monitoring
- Home, offices, laboratories
- OEM integration
- Laboratories
- Engineering and R&D
- Education

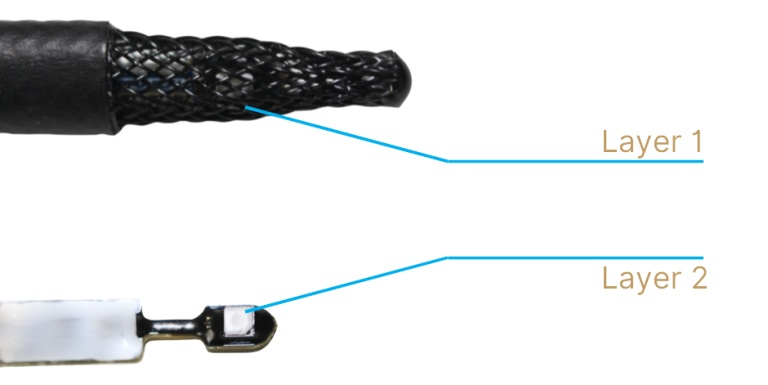

Probe filters
- First filter material: Polyethylene terephthalate (PET) mesh
- Second filter material: PTFE membrane

Free data monitoring and calibration software
Like all Dracal measurement instruments, the VOC100 is compatible with free software tools, making it an essential component of a DAQ solution. For those who wish to integrate the VOC100 into their system, there are two options available: command line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.
Be instantly operational with DracalView: Dracal's free data visualization, logging and calibration software
- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with Dracal's Wi-Fi gateway
- Easy calibration mechanism open to the end-user
Specifications
Volatile Organic Compounds
TVOC Range
From 0 to 32,768 ppb
Accuracy
Semi-Quantitative
Sensor IC
AMS CCS811
eCO2 measurement
Computes CO2 equivalent from TVOC
Temperature (probe)
Probe operating range
-40°C to 70°C
Accuracy (typical)
±0.3°C (20°C to 60°C)
±0.4°C (-40°C to 70°C)
Resolution (typical)
0.015°C
Repeatability (typical)
0.06°C
Relative humidity (probe)
Operating range
0 to 100 %RH
Accuracy at 25°C (typical)
±2.0 %RH (0 to 80 %RH)
±4.5 %RH (90 to 100 %RH)
Accuracy at 0 to 70°C (typical)
±2.0 %RH from 0 to 70 %RH
Resolution (typical)
0.01 %RH
Repeatability
0.1 %RH
Probe filters
First filter material
Polyethylene terephthalate (PET) mesh
Second filter material
PTFE membrane
Efficiency
>99.99% for particles of 200 nm
