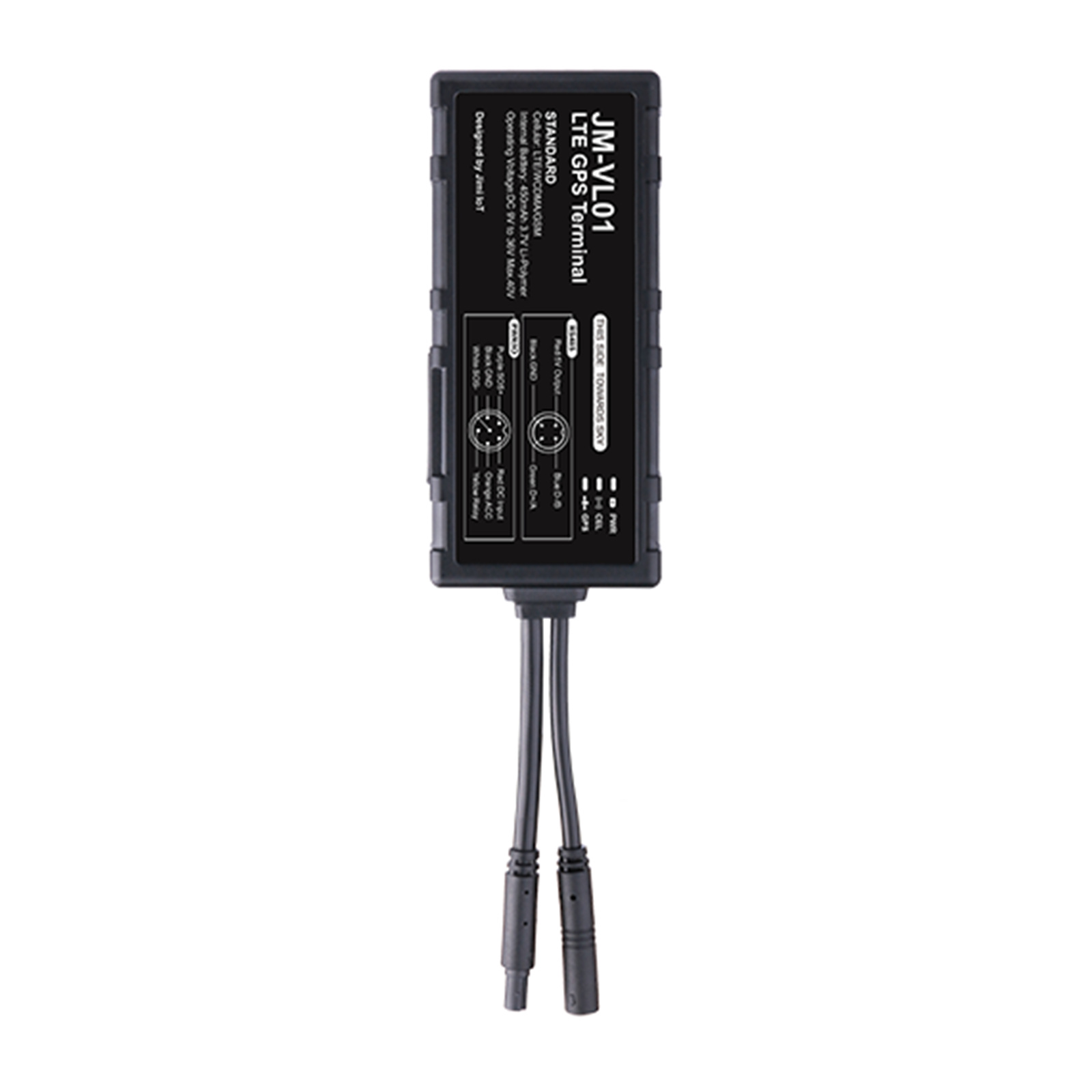

JimiLab JM-VL01 4G LTE Vehicle GPS Tracker UMTS & GSM Network Support, ACC Detection for Ignition Status, Remote Cut-Off (Petrol/Power), WiFi Hotspot, Emergency SOS Button, RS485 Interface, with Lifetime LIC

PB Tech price
PB Tech price
$ 229 .49
 +GST
$ 263 .91
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

JimiLab JM-VL01 4G LTE Vehicle GPS Tracker UMTS & GSM Network Support, ACC Detection for Ignition Status, Remote Cut-Off (Petrol/Power), WiFi Hotspot, Emergency SOS Button, RS485 Interface, with Lifetime LIC

  • Brand: JimiLab
  • MPN: JM-VL01
  • Part #: IPCJIM0001
  • UPC:
PB Tech price
$ 229 .49 $ 263 .91
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
The item you're looking at is currently unavailable or has limited stock, how about this one instead?

Features



Improve the performance of your fleet business today with the feature-rich and lightning-fast JM-VL01. The JM-VL01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the JM-VL01 can also act as a WiFi hotspot.



Product is including the tracking platform of 10 years subscriptions. Contact [email protected], to register account for free softtware and APP.

Specifications

GNSS

Positioning system

GPS+WiFi

Frequency

L1

Positioning accuracy

<2.5m CEP

Tracking sensitivity

-162dBm

Acquisition sensitivity

-149dBm

TTFF (open sky)

Avg. hot start =1sec
Avg. cold start =45sec

Cellular

Communication network

LTE/UMTS/GSM

Frequency

JM-VL01LA:
LTE: B1/B2/B3/B4/B5/B7/B8/B28AB
UMTS/HSPA: 850/900/1900/2100 MHz
GSM: 850/900/1800/1900 MHz

JM-VL01A:
LTE: B2/B4/B5/B7/B12/B66
UMTS/HSPA: 850/1900 MHz
GSM: 850/1900 MHz

JM-VL01E:
LTE: B1/B3/B5/B7/B8/B20/B28A
UMTS/HSPA: 900/1900/2100MHz
GSM: 900/1800 MHz

Power

Battery

450mAh/3.7V industrial-grade Li-Polymer battery

Input voltage

9-36VDC

Interface

LED indication

GNSS (Blue), Cellular (Green), Power (Red)

SIM

Micro-SIM

Data storage

4Gb+2Gb

Digital inputs

ACC, SOS

Digital outputs

Relay

Physical specification

Dimensions

113.0 x 51.0 x 20.0mm

Weight

105g

Operating environment

Operating temperature

-20 to +70C

Operating humidity

5%~95%, non-condensing

IP rating

IP65

Feature

Sensors

Accelerometer

Scenarios

Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection

Driving behavior

analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision

WiFi hotspot

2.4GHz

Manufacturer Part No:
JM-VL01
Brand:
JimiLab
Product Type:
4G LTE Vehicle GPS Tracker
UPC
-
Product Family:
-
Shipping Weight:
0.4 kg
PB Part No:
IPCJIM0001
Product Model:
JM-VL01
Warranty: 12 months *
