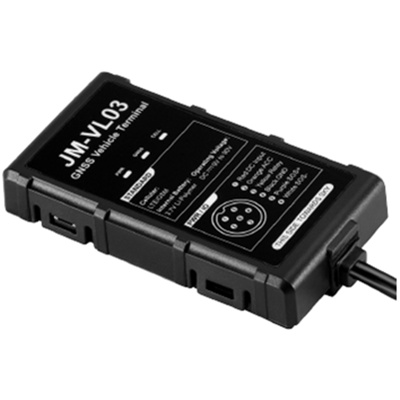

JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;
JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;
- Brand: JimiLab
- MPN: JM-VL03
- Part #: IPCJIM0003
- UPC:
- Brand: JimiLab
- MPN: JM-VL03
- Part #: IPCJIM0003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;
- Brand: JimiLab
- MPN: JM-VL03
- Part #: IPCJIM0003
Product URL: https://www.pbtech.co.nz/product/IPCJIM0003/JimiLab-JM-VL03-LTE-Vehicle-Tracker-LTE--GSM-Netwo
Branch | New Stock | On Display |
---|---|---|
Albany | - | |
Glenfield | - | |
Queen Street | - | |
Auckland Uni | - | |
Newmarket | - | |
Westgate | - | |
Penrose | - | |
Henderson (Express) | - | |
St Lukes | - | |
Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Head Office | - | |
Hornby | - | |
Christchurch Central | - |
Features
Product is including the tracking platform of 10 years subscriptions. Contact [email protected], to register account for free softtware and APP.
Specifications
GNSS | |
Positioning system | GPS+BDS+LBS |
Frequency | L1 |
Positioning accuracy | <2.5m CEP |
Tracking sensitivity | -165dBm |
Acquisition sensitivity | -148dBm |
TTFF (open sky) | Avg. hot start =1sec Avg. cold start =32sec |
Cellular | |
Communication network | LTE/GSM |
Frequency | JM-VL03E: LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B34/B38/B39/B40/B41 GSM: GSM900/DCS1800 JM-VL03ME: JM-VL03MX: |
Power | |
Battery | 60mAh/3.7V industrial-grade Li-Polymer battery |
Input voltage | 9-90VDC |
Interface | |
LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
SIM | Micro-SIM |
Data storage | 64+128Mb |
Digital inputs | ACC |
Digital outputs | Relay |
Physical specification | |
Dimensions | 94.3 x 50.4 x 15.0mm |
Weight | 69.0g |
Operating environment | |
Operating temperature | -20? to +70? |
IP rating | IP65 |
Feature | |
Sensors | Accelerometer |
Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Low battery alert, Power-off alert |
Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
