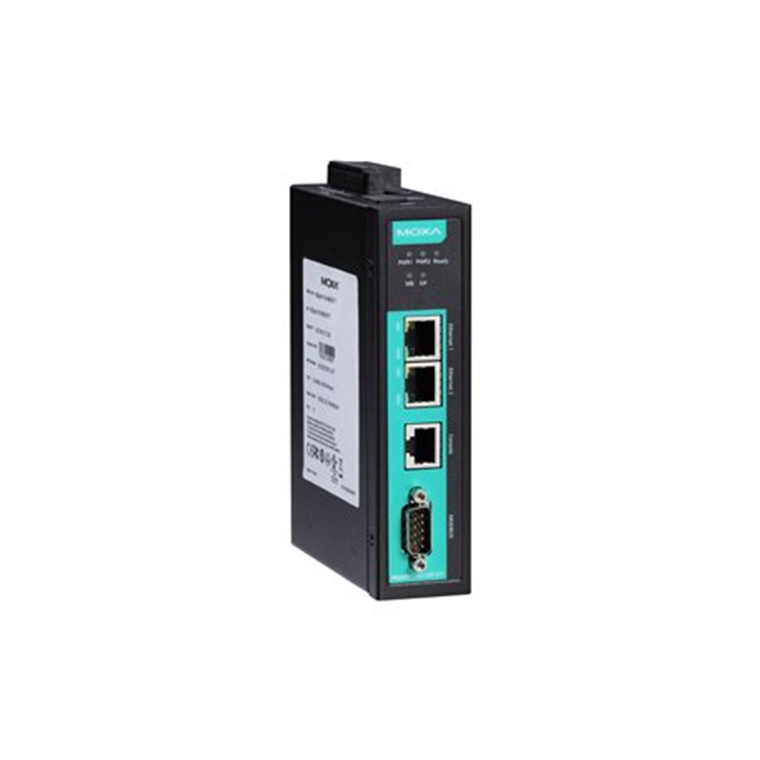

MOXA MGate 5105-MB-EIP 1-port MQTT-supported Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, 0 to 60°C operating temperature

PB Tech price

$ 1,531 .75

+GST

$ 1,761 .51

inc GST

MOXA MGate 5105-MB-EIP 1-port MQTT-supported Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, 0 to 60°C operating temperature

Brand: MOXA
MPN: MGate 5105-MB-EIP
Part #: IPCMXA51050001
UPC:

PB Tech price

$ 1,761 .51

inc GST

+GST inc GST

In stock at Supplier

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 07 Oct When will I receive it?

Add To Compare

Stock Alerts

Finance from $16.18 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: MOXA
MPN: MGate 5105-MB-EIP
Part #: IPCMXA51050001
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Configuration Backup via microSD Card

The MGate 5105-MB-EIP is equipped with a microSD card slot. A microSD card can be used to back up both the system configuration and system log, and can be used to conveniently copy the same configuration to several MGate 5105-MP-EIP units. The configuration file stored in the microSD card will be copied to the MGate itself when the system is rebooted.

Effortless Configuration and Troubleshooting via Web Console

The MGate 5105-MB-EIP also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings, or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway's memory, and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.

Redundant Power Inputs

The MGate 5105-MB-EIP has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-EtherNet/IP gateways ideal for demanding industrial applications.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

2, Auto MDI/MDI-X connection

Magnetic Isolation Protecttion

1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols

Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Scanner, EtherNet/IP Adapter, MQTT

Configuration Options

Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console

Management

ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

MIB

RFC1213, RFC1317

Time Management

NTP Client

Security Functions

Authentication

Local database

Encryption

HTTPS, AES-128, AES-256, SHA-256

Security Protocols

SNMPv3
SNMPv2c Trap
HTTPS (TLS 1.3)

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

No. of Ports

Connector

DB9 male

Serial Standards

RS-232/422/485

Baudrate

50 bps to 921.6 kbps

Data Bits

7, 8

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 2

Flow Control

RTS Toggle (RS-232 only), RTS/CTS

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

120 ohms

Isolation

2 kV (built-in)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Configuration Options

Serial Console

Industrial Protocols

Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave

Modbus RTU/ASCII

Mode

Master, Slave

Functions Supported

1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Commands

100

Input Data Size

2048 bytes

Output Data Size

2048 bytes

Modbus TCP

Mode

Client (Master), Server (Slave)

Functions Supported

1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Client Connections

Max. No. of Server Connections

Max. No. of Commands

100

Input Data Size

2048 bytes

Output Data Size

2048 bytes

EtherNet/IP

Mode

Scanner, Adapter

CIP Objects Supported

Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port

Max. No. of Scanner Connections

16 (for read-only), 1 (for read/write)

Max. No. of Adapter Connections

100

Input Data Size

496 bytes

Output Data Size

496 bytes

MQTT

Mode

Publisher/Subscriber of MQTT, Azure IoT Hub Device, Alibaba IoT Platform Device

Version Supported

v3.1.1

QoS Level

QoS 0,1,2

Secure Transmission

TLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key

Max. No. of Data Tag

300 data tags

Max. No. of Message

20 messages

MQTT General Features

Keep Alive, Retain Message, Last Will Message, Clean Session

Memory

microSD Slot

Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB)

Power Parameters

Input Voltage

12 to 48 VDC

Input Current

455 mA @ 12 VDC

Power Connector

Screw-fastened Euroblock terminal

Manufacturer Part No:

MGate 5105-MB-EIP

Brand:

MOXA

Product Type:

1-port

UPC

Product Family:

Shipping Weight:

1.3 kg

PB Part No:

IPCMXA51050001

Product Model:

MGate 5105-MB-EIP

Warranty: 60 months *
