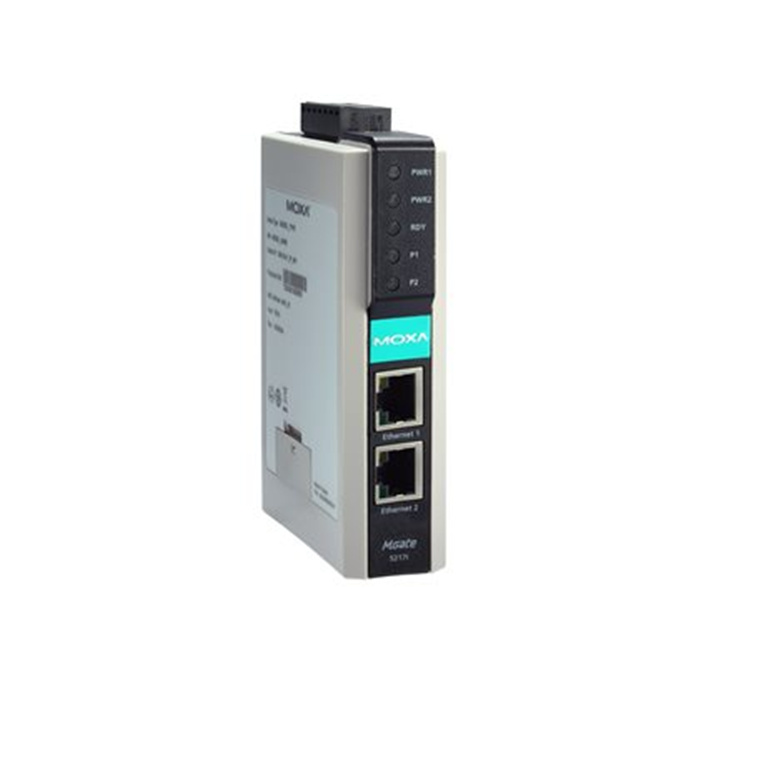

MOXA MGate 5217I-1200-T 2 port Modbus-to-BACnet/IP gateway, 600 points, 2kV isolation, 12 to 48 VDC, 24 VAC, -40 to 75°C

PB Tech price
PB Tech price
$ 2,147 .17
 +GST
$ 2,469 .25
 inc GST
$2,147.17  +GST
$2,469.25

MOXA MGate 5217I-1200-T 2 port Modbus-to-BACnet/IP gateway, 600 points, 2kV isolation, 12 to 48 VDC, 24 VAC, -40 to 75°C

  • Brand: MOXA
  • MPN: MGate 5217I-1200-T V1.0.0
  • Part #: IPCMXA52170002
  • UPC:
PB Tech price
$ 2,147 .17 $ 2,469 .25
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 07 Oct When will I receive it?
$2,147.17  +GST
$2,469.25

Finance from $22.25 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: MOXA
  • MPN: MGate 5217I-1200-T V1.0.0
  • Part #: IPCMXA52170002
  • UPC:

Features

Easy Configuration Via Web Console and Excel Spreadsheet

The MGate 5217I Series comes with an intuitive UI design to make configuration easy. With that, you can easily access protocol conversion modes and finish the configuration in a few steps instead of installing an additional engineering utility in your computer. Besides, the MGate can generate Modbus commands by importing an Excel spreadsheet, which makes it easy to edit Modbus commands.

Modbus and BACnet/IP Protocol Traffic Monitor and Diagnostics

The MGate 5217I gateways support Modbus and BACnet/IP Protocol Traffic Monitor and Diagnostics for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as the wrong slave ID and register address, or an incorrect command configuration. With Diagnostics, you can check the communication status and view values at a glance. With Modbus/BACnet Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.

Security Features Based on IEC 62443

Using network devices that are IEC 62443-4-2 compliant and equipped with basic security capabilities is an effective precautionary measure to ward off cyberattacks. The MGate 5217I Series is capable of several basic security capabilities, including password cracking defense, sniffer and data breach prevention, whitelisting, and the account management.

- Supports Modbus RTU/ASCII/TCP master/client
- Supports BACnet/IP slave/server
- Supports 600 points and 1200 points models
- Supports COV for fast data communication
- Supports virtual nodes designed to make each Modbus device as a separate BACnet/IP device
- Configures Modbus commands quickly by editing an Excel spreadsheet
- Embedded traffic and diagnostic information for easy troubleshooting
- Built-in Ethernet cascading for easy wiring
- Industrial design with -40 to 75°C operating temperature range
- Serial port with 2 kV isolation protection
- Dual AC/DC power supply
- Security features based on IEC 62443

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

2
Auto MDI/MDI-X connection

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols

Modbus TCP Client (Master), BACnet/IP Server (Slave)

Configuration Options

Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console

Management

ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client

MIB

RFC1213, RFC1317

Time Management

NTP Client

Security Functions

Authentication

Local database

Encryption

HTTPS, AES-128, AES-256, SHA-256

Security Protocols

SNMPv3
SNMPv2c Trap
HTTPS (TLS 1.3)

Serial Interface

No. of Ports

2

Connector

DB9 male

Serial Standards

RS-232/422/485

Baudrate

50 bps to 921.6 kbps

Data Bits

7, 8

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 2

Flow Control

RTS Toggle (RS-232 only), RTS/CTS, DTR/DSR

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

120 ohms

Isolation

2 kV (built-in)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols

Modbus RTU/ASCII Master

Modbus RTU/ASCII

Mode

Master

Functions Supported

1, 2, 3, 4, 5, 6, 16

Max. No. of Commands

600

Modbus TCP

Mode

Client (Master)

Functions Supported

1, 2, 3, 4, 5, 6, 16

Max. No. of Server Connections

32

Max. No. of Commands

600

Power Parameters

Input Voltage

24 VAC, 12 to 48 VDC

Input Current

300 mA @ 24 VAC
510 mA @ 12 VDC

Power Connector

Screw-fastened Euroblock terminal

Manufacturer Part No:
MGate 5217I-1200-T V1.0.0
Brand:
Product Type:
2 port
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCMXA52170002
Product Model:
MGate 5217I-1200-T
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
