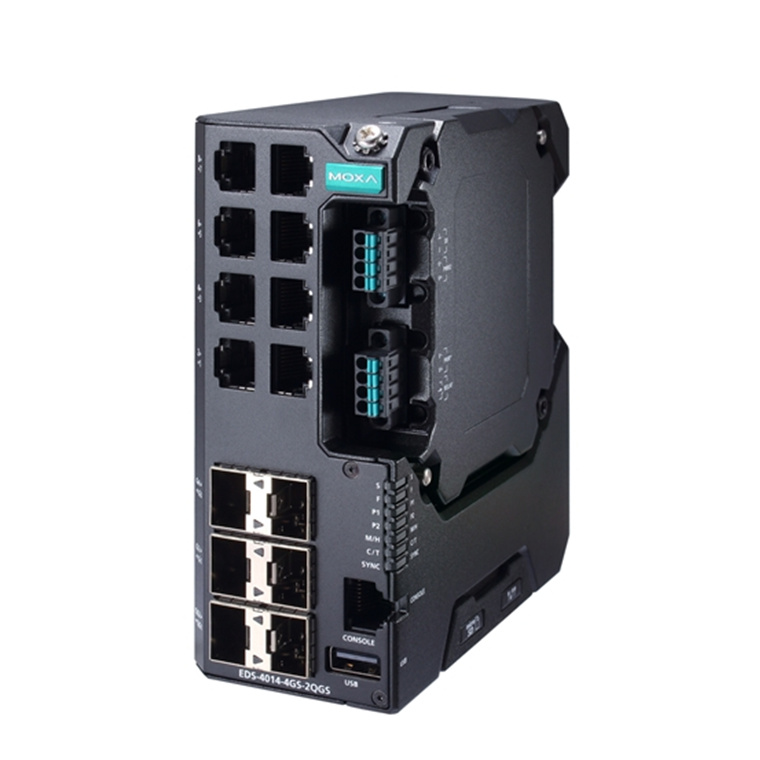

MOXA Industrial switch EDS-4014-4GS-2QGS-LV 7-port Managed Ethernet switch,2 mm sfp -10 to 60°C operating temperature with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power supply, 12/24/48 VDC

PB Tech price

$ 3,992 .00

+GST

$ 4,590 .80

inc GST

MOXA Industrial switch EDS-4014-4GS-2QGS-LV 7-port Managed Ethernet switch,2 mm sfp -10 to 60°C operating temperature with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power supply, 12/24/48 VDC

INDUSTRIAL NETWORK INFRASTRUCTURE

Brand: MOXA
MPN: EDS-4014-4GS-2QGS-LV
Part #: IPCMXAEDS40144GS
UPC:

PB Tech price

$ 4,590 .80

inc GST

+GST inc GST

In stock at Supplier

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 04 Mar When will I receive it?

Add To Compare

Stock Alerts

Finance from $40.42 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: MOXA
MPN: EDS-4014-4GS-2QGS-LV
Part #: IPCMXAEDS40144GS
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

8+4G+2 2.5GbE-port managed Ethernet switches

The EDS-4014 Series is a range of 14-port managed Fast Ethernet switches with four 1 Gbps and two 2.5 Gbps fiber-optic ports. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone. The EDS-4014 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping customers meet the compliance requirements of secure industrial network design.

- Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
- Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps Turbo Ring and
- Turbo Chain (recovery time < 20 ms @ 250 switches)1, and RSTP/STP for network redundancy
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management

Versatile Fiber and Copper Connectivity

The EDS-4014 series combines 8 Fast Ethernet ports, 4 Gigabit SFP slots, and 2 high-speed 2.5GbE SFP slots, providing versatile connectivity for fiber and copper in a single compact housing.

Rugged Industrial Design and Power Options

With an operating temperature range from -10°C to 60°C, redundant dual power inputs (12/24/48VDC), and robust construction, this switch is ideal for deployment in harsh industrial environments and confined cabinets.

Fast Network Recovery and Reliability

Turbo Ring and Turbo Chain enable recovery times under 20 ms for up to 250 switches, while RSTP/STP protocols ensure high reliability and continuous backbone network operation.

Scalable Backbone Applications

The series is designed for scalable backbones in applications such as video monitoring, ITS, and DCS. It is fully compatible with MXstudio software for visualized, simplified industrial network management.

Compact Modular Design for Limited Spaces

A compact and modular form factor allows for installation in limited spaces, while a wide range of power input options ensure flexible and reliable integration into existing industrial infrastructures.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

8
Auto MDI/MDI-X connection
Auto negotiation speed
Full/Half duplex mode

100/1000BaseSFP Slots

1000/2500BaseSFP Ports

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3bz for 2.5GBaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication

Ethernet Software Features

Industrial Protocols

EtherNet/IP, Modbus TCP, PROFINET IO Device

Management

IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

Filter

GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

Redundancy Protocols

STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MRP, MSTP

Security

Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Access control list, Login and Password Policy, DHCP Snooping

Time Management

SNTP, NTP Server/Client, NTP Authentication, IEEE 1588v2 PTP (hardware-based), Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017

Protocols

IPv4/IPv6
TCP/IP
UDP
ICMP
ARP
RARP
TFTP
DNS
NTP Client
DHCP Server
DHCP Client
802.1X
QoS
HTTPS
HTTP
Telnet
SMTP
SNMPv1/v2c/v3
RMON
Syslog

MIB

P-BRIDGE MIB
Q-BRIDGE MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
SNMPv2-MIB
RMON MIB Groups 1, 2, 3, 9

Switch Properties

MAC Table Size

16 K

Jumbo Frame Size

9.216 KB

Max. No. of VLANs

256

VLAN ID Range

VID 1 to 4094

IGMP Groups

512

Priority Queues

Packet Buffer Size

1 MB

LED Interface

LED Indicators

PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

USB Connector

USB Type A (Reserved)

Input/Output Interface

Alarm Contact Channels

1, Relay output with current carrying capacity of 1 A @ 24 VDC

Digital Input Channels

Digital Inputs

+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA

Buttons

Reset button

DIP Switch Configuration

DIP Switches

Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection

2 removable 4-contact terminal block(s)

Pre-installed Power Module

PWR-100-LV

Note

The EDS-4014 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
For example:
EDS-4014-4GS-2QGS-T + PWR-100-LV = EDS-4014-4GS-2QGS-LV-T
EDS-4014-4GS-2QGS-T + PWR-105-HV-I = EDS-4014-4GS-2QGS-HV-T
If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4014-4GS-2QGS-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-4014-4GS-2QGS-HV-T.

Input Voltage

12/24/48 VDC
Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Input Current

12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A

Power Consumption (Max.)

12.15 W

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

IP Rating

IP40

Dimensions

55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)

Weight

846 g (1.87 lb)

Installation

DIN-rail mounting, Wall mounting (with optional kit)

Housing

Metal

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Standards and Certifications

Industrial Cybersecurity

IEC 62443-4-2 Security Level 2

Safety

UL 61010-2-201, EN 62368-1 (LVD)

EMC

EN 55032/35, EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Maritime

DNV, ABS, NK, LR

Vibration

IEC 60068-2-6

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Railway

EN 50121-4

Traffic Control

NEMA TS2

Power Substation

IEC 61850-3, IEEE 1613 Class 1

Hazardous Locations

Class I Division 2, ATEX, IECEx

MTBF

Time: 1,003,814 hrs

Manufacturer Part No:

EDS-4014-4GS-2QGS-LV

Brand:

MOXA

Product Type:

7-port

UPC

Product Family:

Industrial switch

Shipping Weight:

1 kg

PB Part No:

IPCMXAEDS40144GS

Product Model:

EDS-4014-4GS-2QGS-LV

Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
