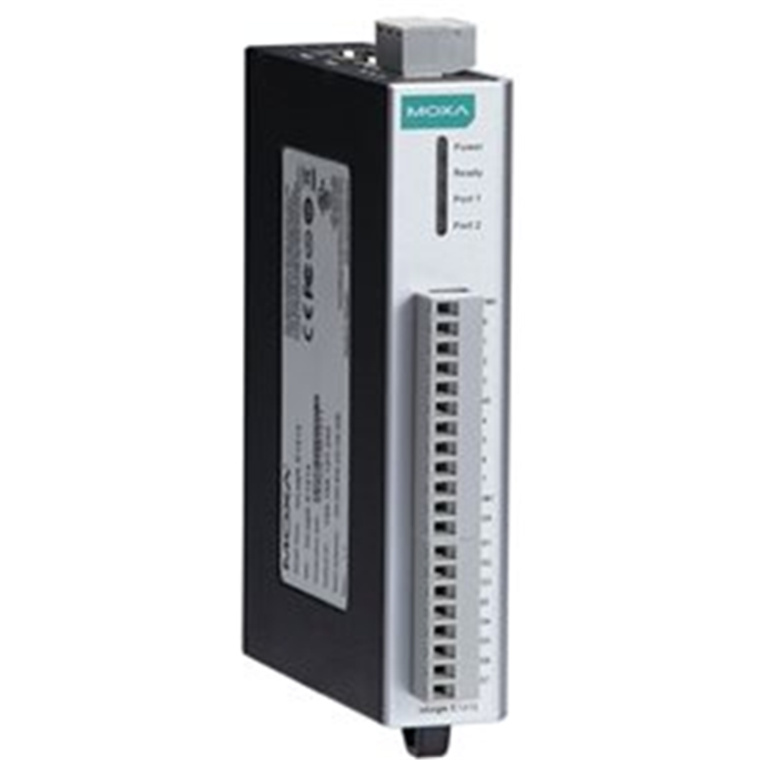

MOXA Universal Controller ioLogik E1211 Universal I/O, 16 DOs, -10 to 60°C operating temperature
MOXA Universal Controller ioLogik E1211 Universal I/O, 16 DOs, -10 to 60°C operating temperature
- Brand: MOXA
- MPN: ioLogik E1211
- Part #: IPCMXAIOE120001
- UPC:
- Brand: MOXA
- MPN: ioLogik E1211
- Part #: IPCMXAIOE120001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Connectivity





MOXA Universal Controller ioLogik E1211 Universal I/O, 16 DOs, -10 to 60°C operating temperature
- Brand: MOXA
- MPN: ioLogik E1211
- Part #: IPCMXAIOE120001

Product URL: https://www.pbtech.co.nz/product/IPCMXAIOE120001/MOXA-Universal-Controller-ioLogik-E1211-Universal
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
Data sheet Download Here
Features and Benefits
- User-definable Modbus TCP Slave addressing
- Supports EtherNet/IP Adapter mode1
- Supports RESTful API for IIoT applications
- 2-port Ethernet switch for daisy-chain topologies
- Saves time and wiring costs with peer-to-peer communications
- Active communication with MX-AOPC UA Server
- Supports SNMP v1/v2c
- Easy mass deployment and configuration with ioSearch utility
- Friendly configuration via web browser
- Simplifies I/O management with MXIO library for Windows or Linux
- Class I Division 2, ATEX Zone 2 certification2
- Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Specifications
Input/Output Interface
Digital Output Channels
16
Isolation
3k VDC or 2k Vrms
Buttons
Reset button
Digital Outputs
Connector
Screw-fastened Euroblock terminal
Current Rating
200 mA per channel
I/O Mode
DO or pulse output
I/O Type
Sink
Over-Current Protection
2.6 A per channel @ 25°C
Over-Temperature Shutdown
175°C (typical), 150°C (min.)
Over-Voltage Protection
35 VDC
Pulse Output Frequency
500 Hz (max.)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
2, 1 MAC address (Ethernet bypass)
Magnetic Isolation Protection
1.5 kV (built-in)
Ethernet Software Features
Configuration Options
Web Console (HTTP), Windows Utility (ioSearch)
Industrial Protocols
EtherNet/IP Adapter, Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library
Management
BOOTP, RESTful API, DHCP Client, HTTP, IPv4, TCP/IP, UDP, SNMPv1 Trap, SNMPv1/v2c
MIB
Device Settings MIB
Security
Access control list
LED Interface
LED Indicators
Power, Ready, Port 1, Port 2
Modbus TCP
Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23
Mode
Server (Slave)
Max. No. of Client Connections
10
EtherNet/IP
Mode
Adapter
Max. No. of Scanner Connections
9 (for read-only), 1 (for read/write)
Power Parameters
Power Connector
Screw-fastened Euroblock terminal
No. of Power Inputs
1
Input Voltage
12 to 36 VDC
Power Consumption
200 mA @ 24 VDC
Physical Characteristics
Housing
Plastic
Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
Weight
200 g (0.44 lb)
Installation
DIN-rail mounting, Wall mounting
Wiring
I/O cable, 16 to 26 AWG
Power cable, 12 to 24 AWG
Environmental Limits
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
4000 m
Standards and Certifications
EMC
EN 55032/24, EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous Locations
ATEX, Class I Division 2
Safety
UL 508
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Declaration
Green Product
RoHS, CRoHS, WEEE
MTBF
Time
923,027 hrs
Standards
Telcordia SR332
