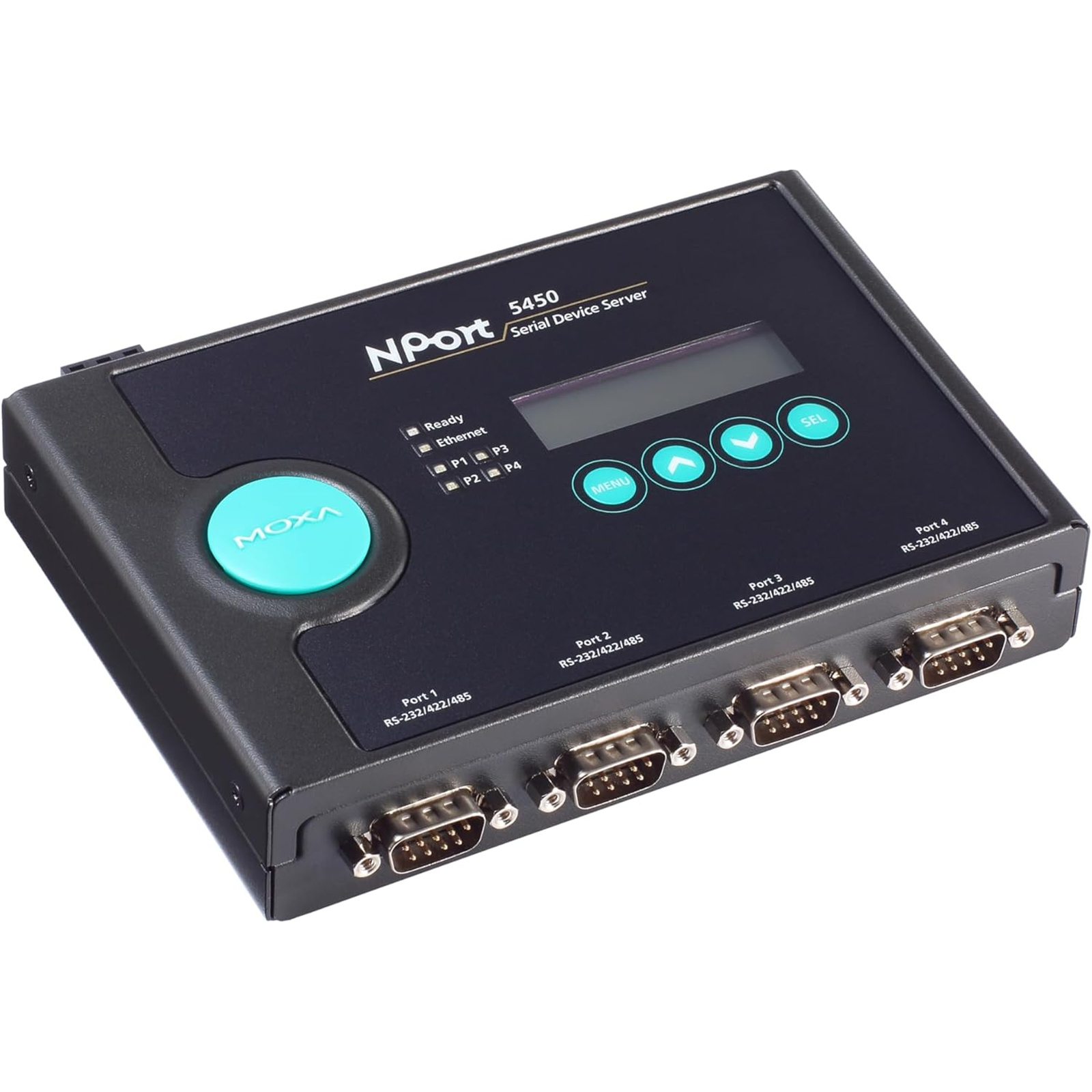

MOXA NPort 5450 4-port device server, 10/100M ethernet, RS-232/422/485 DB9 male, RS-232/422/485 12~48 VDC, 0~55°C, w/o adapter

PB Tech price

$ 1,188 .41

+GST

$ 1,366 .67

inc GST

MOXA NPort 5450 4-port device server, 10/100M ethernet, RS-232/422/485 DB9 male, RS-232/422/485 12~48 VDC, 0~55°C, w/o adapter

INDUSTRIAL EDGE CONNECTIVITY

Brand: MOXA
MPN: NPort 5450
Part #: IPCMXANPOT54003
UPC:

PB Tech price

$ 1,366 .67

inc GST

+GST inc GST

In stock at Supplier

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 22 Dec When will I receive it?

Add To Compare

Stock Alerts

Four payments of $345.08 per fortnight*

Finance from $12.80 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: MOXA
MPN: NPort 5450
Part #: IPCMXANPOT54003
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

- User-friendly LCD panel for easy installation
- Adjustable termination and pull high/low resistors
- Socket modes: TCP server, TCP client, UDP
- Configure by Telnet, web browser, or Windows utility
- SNMP MIB-II for network management
- 2 kV isolation protection for NPort 5430I/5450I/5450I-T
- -40 to 75°C operating temperature range (-T model)

Network Readiness for up to 4 Serial Devices

NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.

Independent Operation Mode for Each Serial Port

NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.

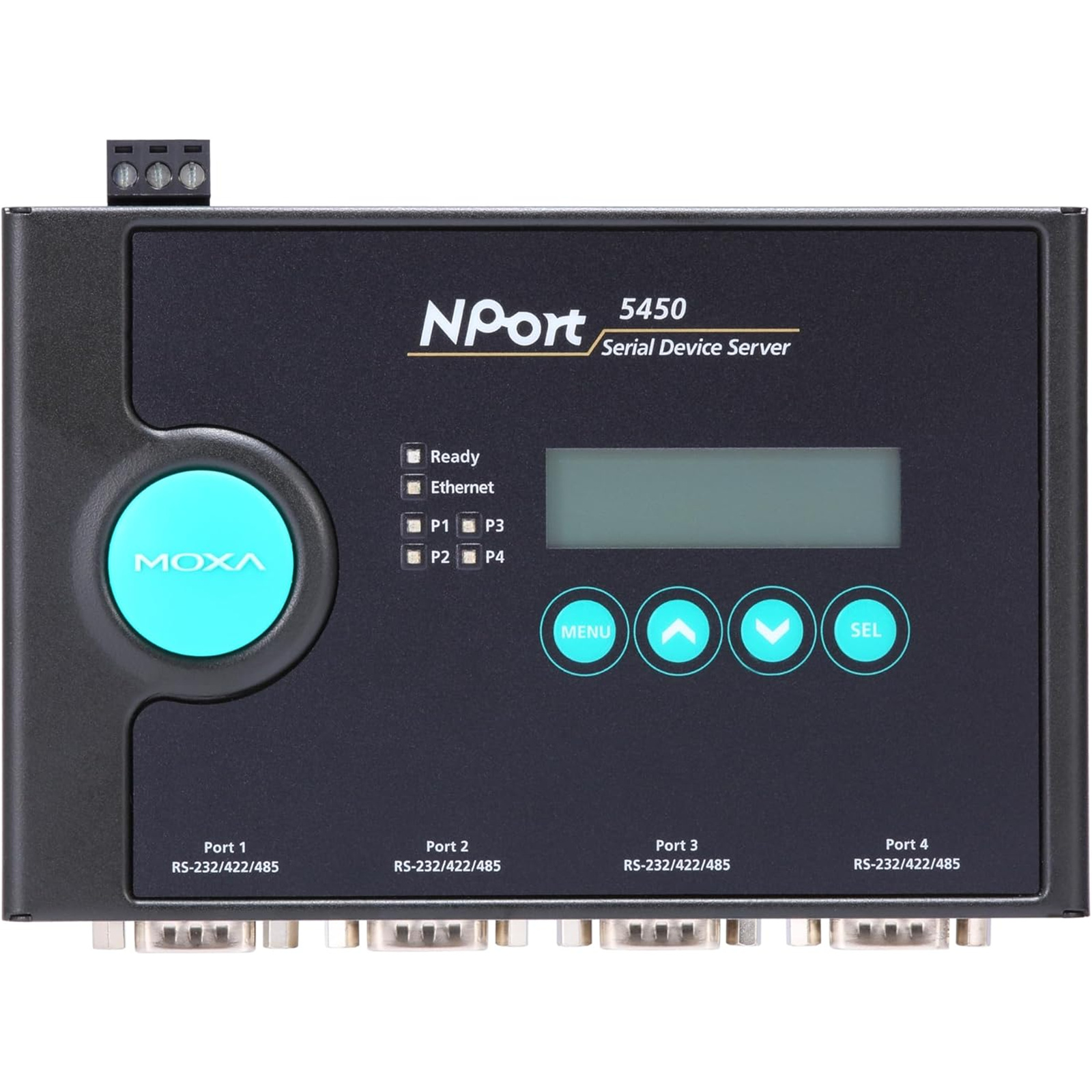

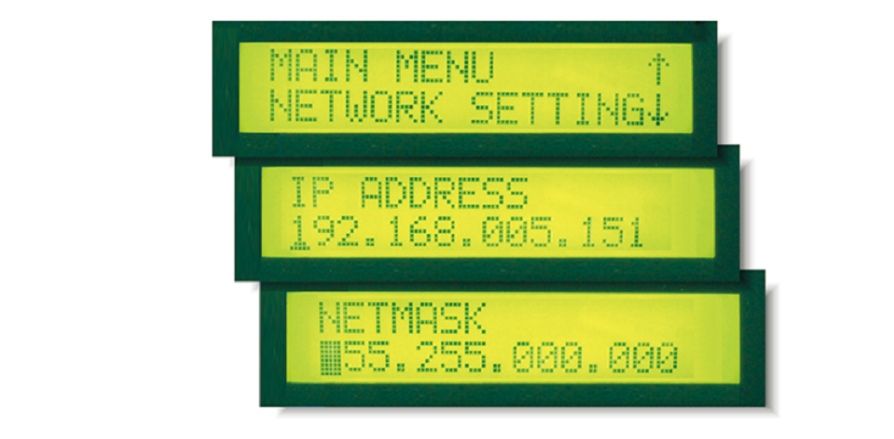

User-friendly LCD Panel for Easy Installation

An LCD panel is built into the NPort® 5400's top panel, with four buttons for data input, configuration, and operation mode selection. The LCD panel displays the server name, serial number, and IP address, and it can be used to enter or modify parameters such as IP address, netmask, and gateway. (The LCD panel is not available on wide-temperature models.)

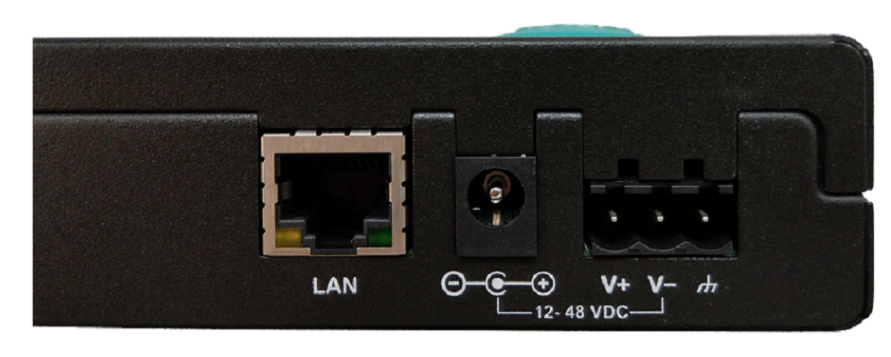

Dual DC Power Inputs

NPort® 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power inputs gives users greater flexibility for use with different applications.

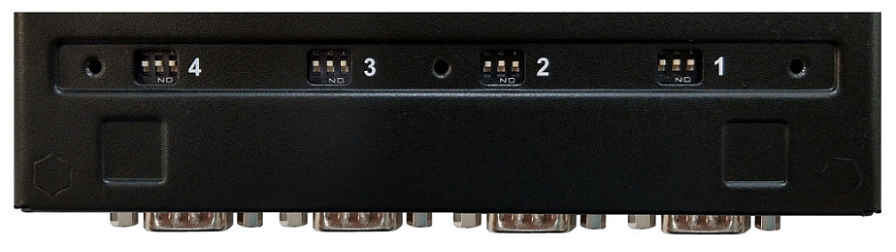

Adjustable Termination and Pull High/Low Resistors

The NPort 5400 Series provides adjustable termination and pull high/low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort® 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Configuration Options

Telnet Console
Windows Utility
Web Console (HTTP/HTTPS)

Management

ARP
BOOTP
DHCP Client
DNS
HTTP
HTTPS
ICMP
IPv4
LLDP
Rtelnet
SMTP
SNMPv1/v2c
TCP/IP
Telnet
UDP

Filter

IGMP v1/v2

Windows Real COM Drivers

Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

Fixed TTY Drivers

macOS Versions: 10.12 to 10.15, 11.x
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Arm®-based Platform Support

Linux Kernel 5.x/4.x

Virtual Machine

VMWare ESXi (Windows 11 / 10)
VMware Fusion (Windows on macOS 10.12 to 11.x)
Parallels Desktop (Windows on macOS 10.12 to 11.x)

Android API

Android 3.1.x and later

Time Management

SNTP

Security Functions

Authentication

Local database

Encryption

HTTPS
AES-128
RSA-1024
SHA-1
SHA-256

Security Protocols

HTTPS (TLS 1.2)
SNMPv3

Serial Interface

Connector

DB9 male

No. of Ports

Serial Standards

RS-232
RS-422
RS-485

Operation Modes

Real COM
TCP Server
TCP Client
UDP
Ethernet Modem
Pair Connection
Reverse Telnet
Disabled

Baudrate

Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS (RS-232 only)
DTR/DSR (RS-232 only)

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

120 ohms

RS-485 Data Direction Control

ADDC (automatic data direction control)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Current

365 mA @ 12 VDC

No. of Power Inputs

Power Connector

1 removable 3-contact terminal block(s)
Power input jack

Input Voltage

12 to 48 VDC, 24 VDC for DNV

Reliability

Automatic Reboot Trigger

Built-in WDT

Alert Tools

Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing

Metal

Dimensions (with ears)

181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)

Dimensions (without ears)

158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)

Weight

740 g (1.63 lb)

Interactive Interface

LCD panel display
Push buttons for configuration

Installation

Desktop
DIN-rail mounting (with optional kit)
Wall mounting

Environmental Limits

Operating Temperature

0 to 55°C (32 to 131°F)

Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11

Safety

UL 62368-1

Maritime

DNV

Medical

EN 60601-1-2 Class B, EN 55011

MTBF

Time

773,682 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Manufacturer Part No:

NPort 5450

Brand:

MOXA

Product Type:

UPC

Product Family:

Shipping Weight:

0.7 kg

PB Part No:

IPCMXANPOT54003

Product Model:

NPort 5450

Warranty: 60 months *
