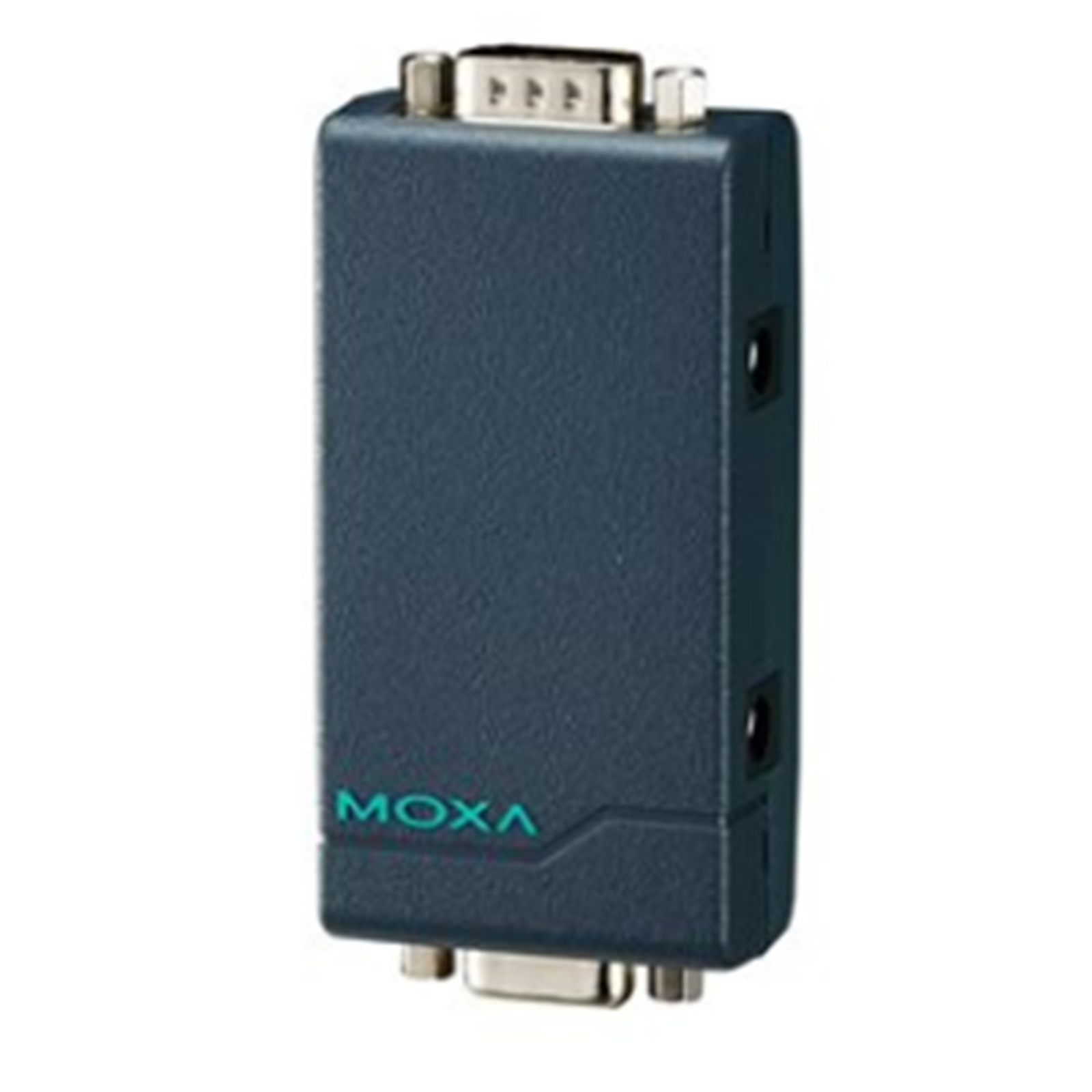

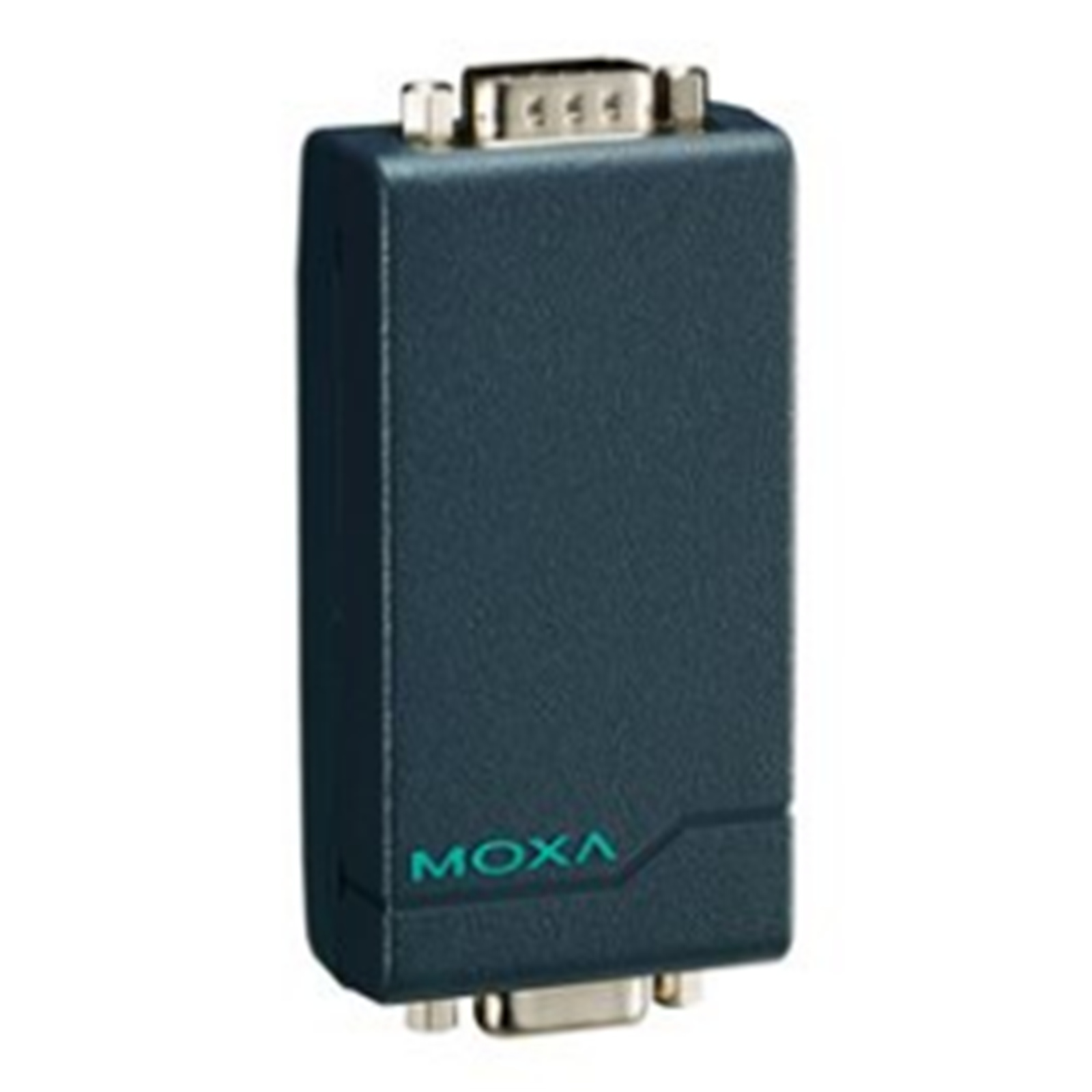

MOXA TCC-82 Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection

PB Tech price
PB Tech price
$ 156 .82
 +GST
$ 180 .34
 inc GST
$156.82  +GST
$180.34

MOXA TCC-82 Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection

  • Brand: MOXA
  • MPN: TCC-82
  • Part #: IPCMXATCC800005
  • UPC:
PB Tech price
$ 156 .82 $ 180 .34
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 14 Oct When will I receive it?
$156.82  +GST
$180.34

Features

The TCC-82 provides full electrical isolation for bidirectional serial communication between two RS-232 devices in a compact, industrial-grade package. Both sides of an RS-232 connection are isolated optically to provide perfect protection against lightning surges, accidental high-voltage shorts, and ground loops. The built-in, wide range isolators are tested to ensure that they can withstand more than 4 kV rms input to output for one minute. This means that the TCC-82 not only meets the requirements of general serial data communications, but also the high standards required by industrial automation and medical applications. The TCC-82 protects the TxD and RxD data lines, and it also protects the RTS and CTS handshake lines for a total of four isolated channels to provide complete protection of your RS-232 applications.

External Power Source Not Required

The TCC-82 supports port-powered operation, which means that it can obtain power directly from the attached serial devices. Power is obtained from the RS-232 TxD, RTS, or DTR lines, regardless of whether the signal is high or low, eliminating the need for an external power supply. However, external power can be used if handshake lines are not available, if the serial cable is too long, or if the serial device is a low-power device. For external power, the TCC-82 can use a 5 to 12 VDC adapter or a USB power cord. Note that both sides of the connection are powered independently, so if necessary, one side can rely on port power and the other on an external power source.

When installing the TCC-82, we recommend that you connect all output signals. The TCC-82 obtains power from these signals even if they are not used by your system. Care should be taken when choosing the external power supply if your application requires the full 4 kV of isolation. Most commercial power supplies provide only 1500 VAC isolation between the primary and secondary windings. If you are using external power for both sides of the TCC-82, make sure that separate power sources are used, each with sufficient isolation protection.

- Four channels of 4 kV RMS isolation for 1 minute
- External power source supported but not required
- Automatic baudrate detection
- Compact size

Specifications

Serial Interface

Connector

DB9 male

No. of Ports

2

Serial Standards

RS-232

Baudrate

50 bps to 921.6 kbps (supports non-standard baudrates)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, GND

Power Parameters

Input Current

5 to 12 VDC, 20 mA (max.)

Input Voltage

5 to 12 VDC

No. of Power Inputs

1

Overload Current Protection

Supported

Source of Input Power

Power input jack

Physical Characteristics

Housing

Plastic

IP Rating

IP30

Dimensions

42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)

Weight

60 g (0.13 lb)

Installation

Desktop

Environmental Limits

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature (package included)

-20 to 75°C (-4 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Manufacturer Part No:
TCC-82
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
IPCMXATCC800005
Product Model:
TCC-82
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
