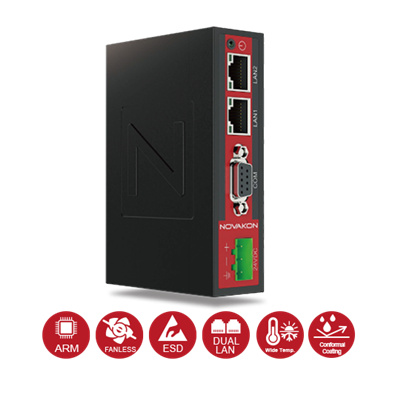

Novakon Protocol gateway DIN-rail Protocol Conversion Gateway ARM Cortex-A8 (1GHz) CPU, 512MB RAM, 4GB eMMC, dual Ethernet ports, 19.2 ~ 28.8V isolated power, metal chassis, iM-Connect Protocol Conversion Software Runtime
Novakon Protocol gateway DIN-rail Protocol Conversion Gateway ARM Cortex-A8 (1GHz) CPU, 512MB RAM, 4GB eMMC, dual Ethernet ports, 19.2 ~ 28.8V isolated power, metal chassis, iM-Connect Protocol Conversion Software Runtime
- Brand: Novakon
- MPN: GW-01
- Part #: IPCNVAGW01
- UPC:
- Brand: Novakon
- MPN: GW-01
- Part #: IPCNVAGW01
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Network Appliances





Novakon Protocol gateway DIN-rail Protocol Conversion Gateway ARM Cortex-A8 (1GHz) CPU, 512MB RAM, 4GB eMMC, dual Ethernet ports, 19.2 ~ 28.8V isolated power, metal chassis, iM-Connect Protocol Conversion Software Runtime
- Brand: Novakon
- MPN: GW-01
- Part #: IPCNVAGW01

Product URL: https://www.pbtech.co.nz/product/IPCNVAGW01/Novakon-Protocol-gateway-DIN-rail-Protocol-Convers
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 2 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- TI SitaraTM AM3352 ARM® CortexTM-A8 1GHz CPU
- Ethernet ports x 2 ; Serial port x 2 (DB9 x 1)
- 19.2 ~ 28.8V, Isolated Power
- Isolated Communication Port
- Fan-less, compact design
- PCB conformal coating protection
- -20°C~70°C wide operating temperature
- Metal chassis, DIN-rail mounting
- Powered by Novakon Software iM-Connect®
Specifications
Processor
TI SitaraTM AM3352 ARM® CortexTM-A8 1GHz CPU
Memory
512MB SDRAM (1GB option)
Thermal Design
Fanless
PCB Conformal Coating
Yes
Storage
4GB eMMC (8GB option)
USB Host
1
RS-232/422/485
RS-232 x 1, RS-422/485 x 1 (DB9 x 1)
LAN
2 x 10/100 Mbit Ethernet Port
Power Connector
3-Pin terminal block
Dimensions (mm)
120 x 85.45 x 31.25
Net Weight (kgs)
0.45
Power Input Range
19.2 ~ 28.8V, Isolated Power
LED Indicator
1
Chassis Material
SECC
Mounting
25mm DIN-rail mounting
Accessories
Setup Manual x 1, 25mm DIN Rail Clip x 1, M3x6mm flat head screw x 2, Recovery USB Drive x 1
Operating Temperature
-20°C~70°C
Storage Temperature
-20°C~80°C
Storage Humidity
10%~90% @40°C (non-condensing)
ESD Protection
Contact Discharge 4kV, Air Discharge 8kV
Certification
CE/FCC (EN 61000-6-4, EN 61000-6-2, EN55032, EN55035), Class A
Built-in Software
iMConnect® Protocol Conversion Software Runtime
Operating Systems
Linux Kernel 3.14
