Features

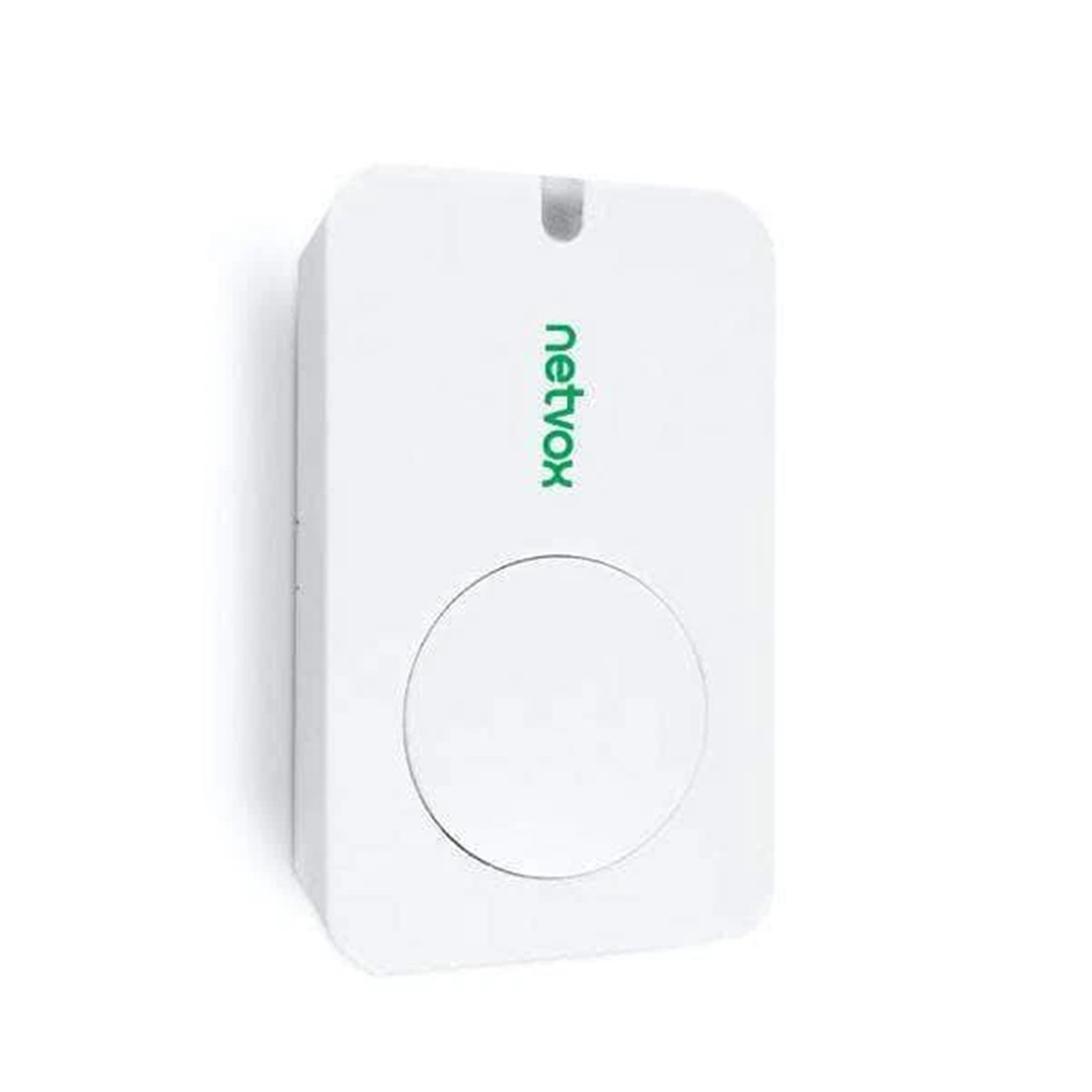

R313D NETVOX LORAWAN WIRELESS ASSET TRACKING SENSOR
The R313D device is a simple positioning function (which can detect the position status of the device), periodically reports RSSI and SNR information to the gateway for processing and can locate the position status of the device according to the reported RSSI and SNR information, and adopts SX1276 wireless communication module. The communication is fully compatible with LoRaWAN™ Protocol (Class A).
- Wireless Range Of 10 Km
- LoRaWAN™ Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life*2: 5 Years (Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Specifications
Electric:
Input Power
2pcs 3.0V CR2450 Button Battery
Working Voltage
DC 2.4V~3.0V
Standby Current
16uA /3.0V
Transmitting Current (Max)
120mA / 3.0V
Receiving Current (Max)
11mA / 3.0V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm
(LoRa,Spreading Factor=12,Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-In Antenna
Communication Range
Up To10 Km, The Actual Transmission Distance Depends On The Environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
AU915-928,AS923
Physical:
Main Body Dimension
57mm X 35mm X 15.2mm
Weight
48.9 G
Operating Temperature
-20 ~ 55C
Environment Humidity Range
<90% RH (No Condensation)
Storage Temperature
-40 ~ 85C
