Netvox LoRa module Wireless Water Leak Detection and Location Sensor (DC-Powered)
Out of stock
Netvox LoRa module Wireless Water Leak Detection and Location Sensor (DC-Powered)
- Brand: Netvox
- MPN: RA07W
- Part #: IPCNVX4808923
- UPC:
- Brand: Netvox
- MPN: RA07W
- Part #: IPCNVX4808923
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Netvox LoRa module Wireless Water Leak Detection and Location Sensor (DC-Powered)
- Brand: Netvox
- MPN: RA07W
- Part #: IPCNVX4808923

Product URL: https://www.pbtech.co.nz/product/IPCNVX4808923/Netvox-LoRa-module-Wireless-Water-Leak-Detection-a
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

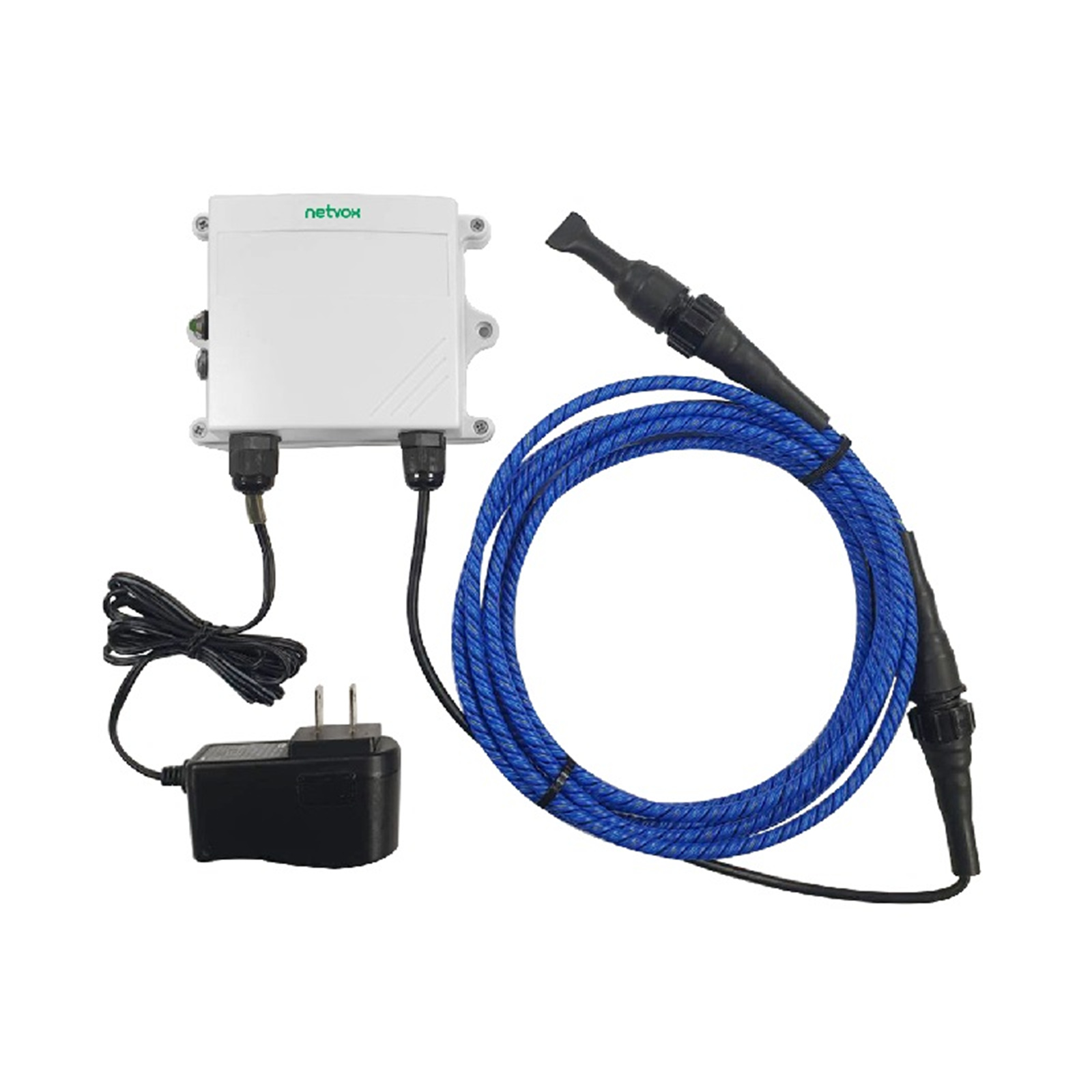

RA07W-Wireless Water Leak Detection and Location Sensor
RA07W is a water leak detector leak locating equipment, which can be connected to water leak sensor through the external four-core positioning leak detection sensor line to detect the water leak location, and transmit the detected data to other devices through the wireless network.
- Compatible with LoRaWAN™ protocol
- Detection of water leak detection line contact with the water location
- Power supply: DC 12V
- Adopt SX1276 wireless communication module
- Compatible with LoRaWANTM Class A
- Frequency hopping spread spectrum technology
- Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
- Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn
Download data sheet: http://www.netvox.com.tw/um/RA07W/RA07Wdatasheet.pdf
Specifications
Electric:
Power Supply
DC12V/1A
Operating Current 1
40mA (no radio frequency signal transmission)
Operating Current 2
80mA (a radio frequency signal emission)
Position Water Leak Detector
100m (max);
Leak Detection Error Range
1% ± 0.5 meters of sensor cable length
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
0.3kbps~50kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
111mm*86mm*41mm
Operating Temperature
-20 ~ 55C
Storage Temperature Range
-40°C ~ 85°C
Environment Humidity Range
5%RH~95%RH
