ONERUGGED P10J Rugged Panel PC Intel N5100 CPU. 4G/Wifi. 8GB/128GB.15" Windows 10 Pro 12V /4A , IP65. Front/Rear Camera
ONERUGGED P10J Rugged Panel PC Intel N5100 CPU. 4G/Wifi. 8GB/128GB.15" Windows 10 Pro 12V /4A , IP65. Front/Rear Camera
- Brand: ONERUGGED
- MPN: P10J
- Part #: IPCORGP10J001
- UPC:
- Brand: ONERUGGED
- MPN: P10J
- Part #: IPCORGP10J001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
ONERUGGED P10J Rugged Panel PC Intel N5100 CPU. 4G/Wifi. 8GB/128GB.15" Windows 10 Pro 12V /4A , IP65. Front/Rear Camera
- Brand: ONERUGGED
- MPN: P10J
- Part #: IPCORGP10J001
Product URL: https://www.pbtech.co.nz/product/IPCORGP10J001/ONERUGGED-P10J-Rugged-Panel-PC-Intel-N5100-CPU-4GW
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features

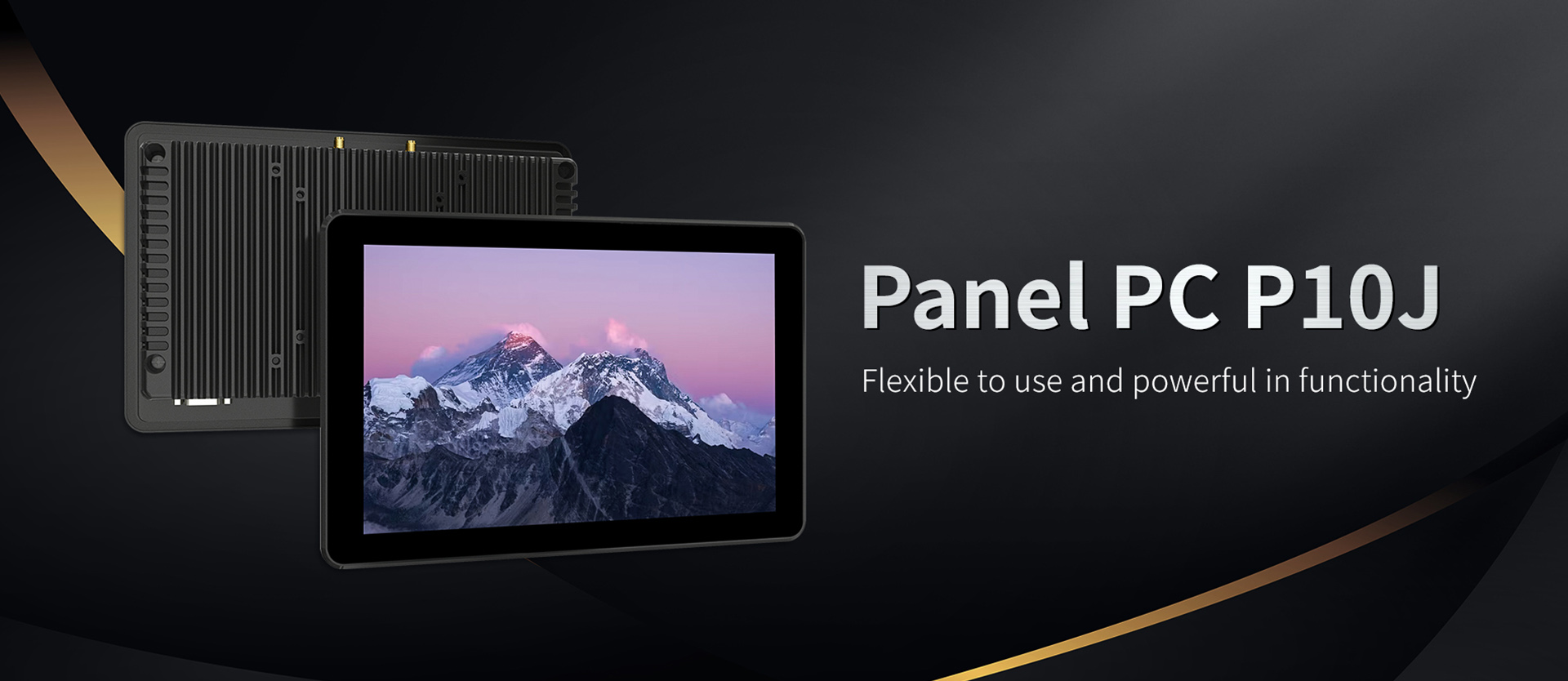

Flexible to use and powerful in functionality
The P10J is a 10.1-inch flat panel pc powered by Intel's 11th generation Celeron processor based on the Jasper Lake platform, and Windows 11 operating system for demanding computing, control and visualization tasks. It's compact and strong structure, fanless design, performance over a wide range of temperatures and voltages, can reliably withstand the rigors of 24/7 operation even in harsh environments. And with various mounting options, it can be widely used in industrial control, communication, network and other automation fields.

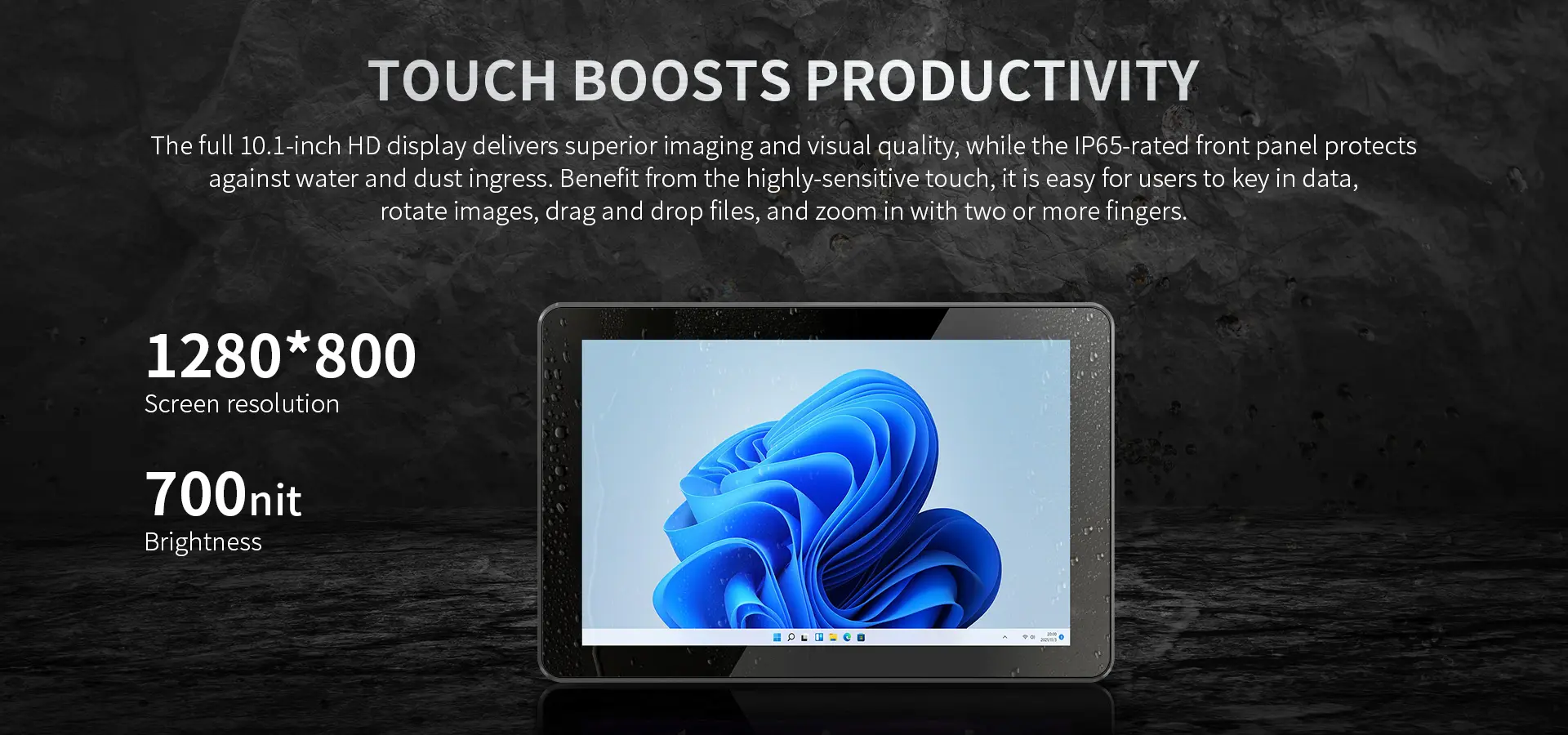

Full Flat Panel: Full 10.1-inch HD display, the IP65-rated front panel protects against water and dust ingress.
Excellent Performance: Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system.
Industrial Motherboard: Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities.

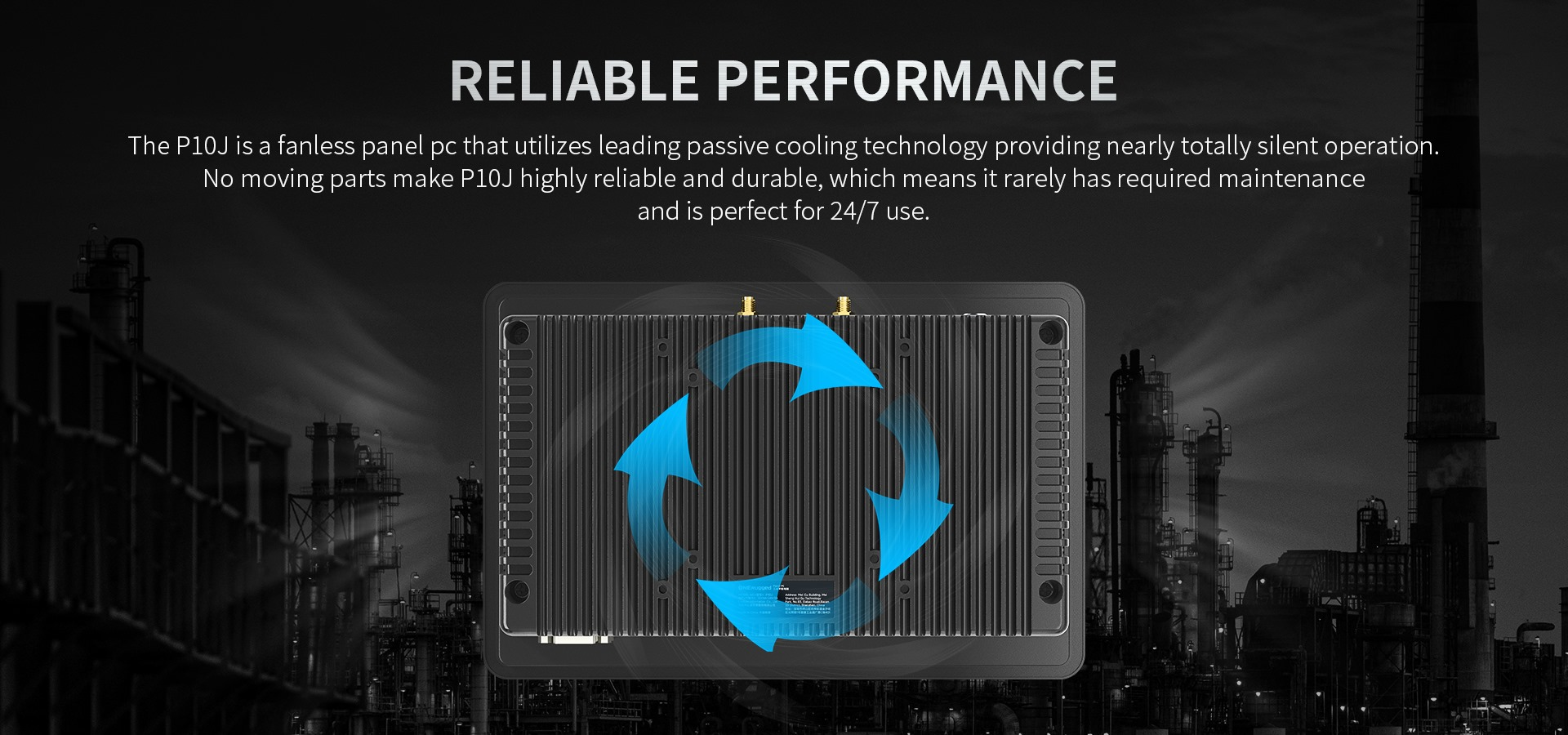

7×24 Operation: Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life.
Rich I/O Interfaces: Rich interfaces, including multiple USB/LAN/HDMI and other I/O ports easily meet various scenario requirements.
Multiple Networking: Dual-band Wi-Fi, Bluetooth 4.2, and expandable 4G (M.2 interface), multiple network connection modes.

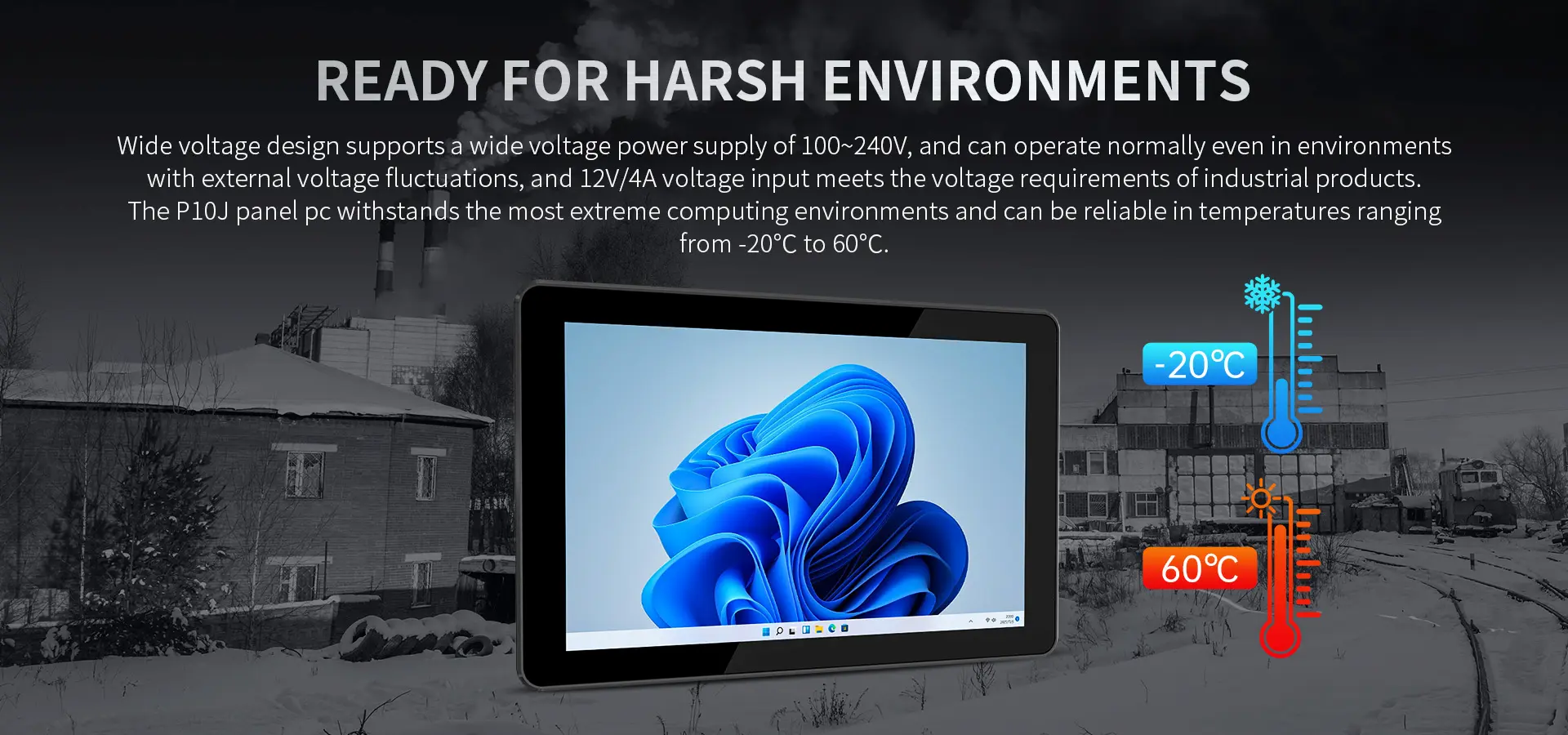

Wide Temperature and Voltage Range: Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions.
Easy to Install: Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted.







Specifications
Appearance
Dimensions
257.2×170×45.95mm
Weight
1.2kg
Product Color
Black
Display
Size
10.1 inch
Resolution
800x1280
Brightness
700cd/m²
Touch Panel
Type
10 PCAP, G+G
I/O Ports
SIM card x 1
USB 3.0 x 2
USB 2.0 x 2
DC 12V4A x1
3.5mm Standard Earphone jack x 1
RJ45 x 2 (10/100/1000M adaptive)
HDMI x 1
Optional: Extensive Slot SATA
Optional: Phoenix Terminal (External charging)
Optional: TPM (Hardware reservation)
Performance
Processor
Intel® Celeron® Processor N5100
Operating System
Windows 10
Memory+Storage
RAM: 8GB
ROM: 128GB (M.2 interface)
Power
Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)
Wireless
WiFi
802.11 (a/b/g/n/ac), 2.4G+5.8G dual-frequency
Standard WiFi antenna
WAN (optional)
2G/3G/4G
Bluetooth
Bluetooth 4.2
Ruggedness
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
ESD Protection
±15kV air discharge
±8kV contact discharge
Accessories
Standard
Adapter, PPC hook assembly, WiFi antenna
