Features

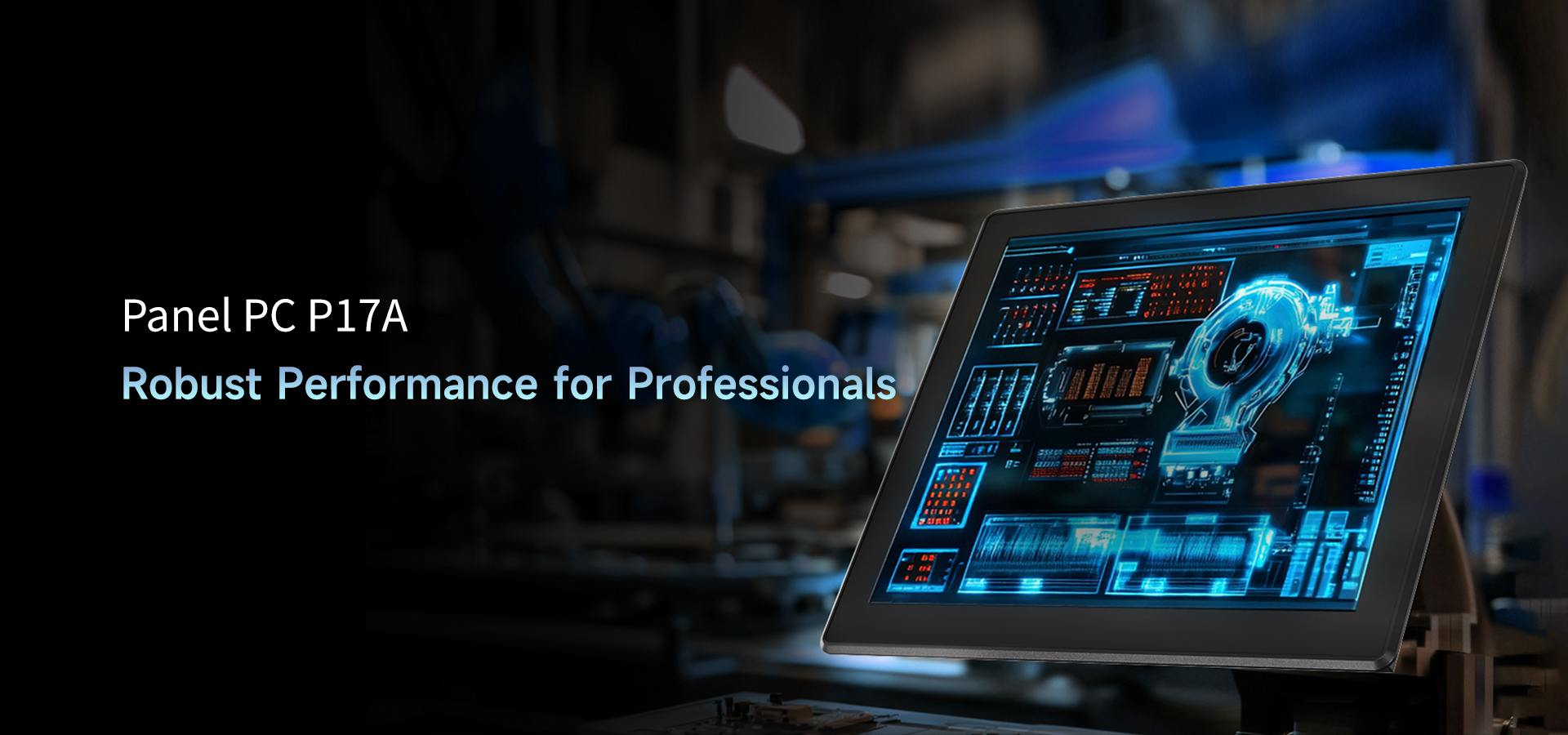

Panel PC P17A robust Performance for Professionals
Equipped with the 12th-Gen Intel® Core™" i5-1235U processor, featuring a unique big.LITTLE architec- ture with 2 performance cores and 8 efficiency cores, and a turbo frequency of up to 4.4GHZ. Designed for productivity and multitasking, it handles everything from data collection to device control and high-load tasks with ease and stability.
CPU: 12th Generation Intel® Core™ i5-1235U Processor.
Operating System: Windows 11.
Fanless design: Fanless design, using large-area uniform heating fin.
7x24 Operation: Running 24/7 without affecting reliability and service life.
Multiple Networking: Wi-Fi 6 and BT 5.1; Supports 4G network connectivity, multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports.
Certification: Front panel IP65.
Easy to Install: Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted.







Specifications
Appearance
Dimensions
401 x 332 x 57 mm
Weight
TBD
Product Color
Black

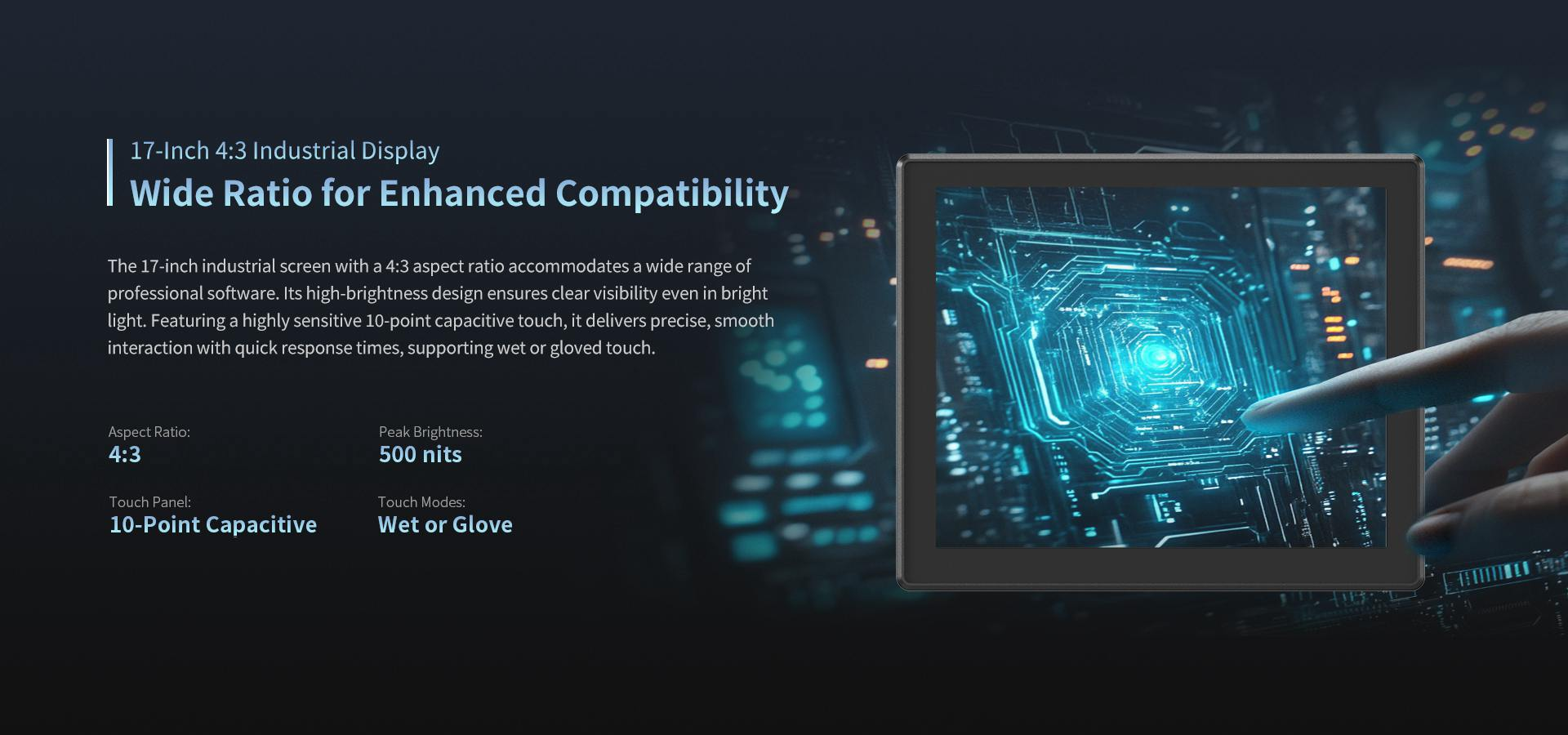

Display
Size: 17 inch 4:3
Resolution: 1280x1024
Brightness: 500 cd/m²
Touch Pannel
10 PCAP

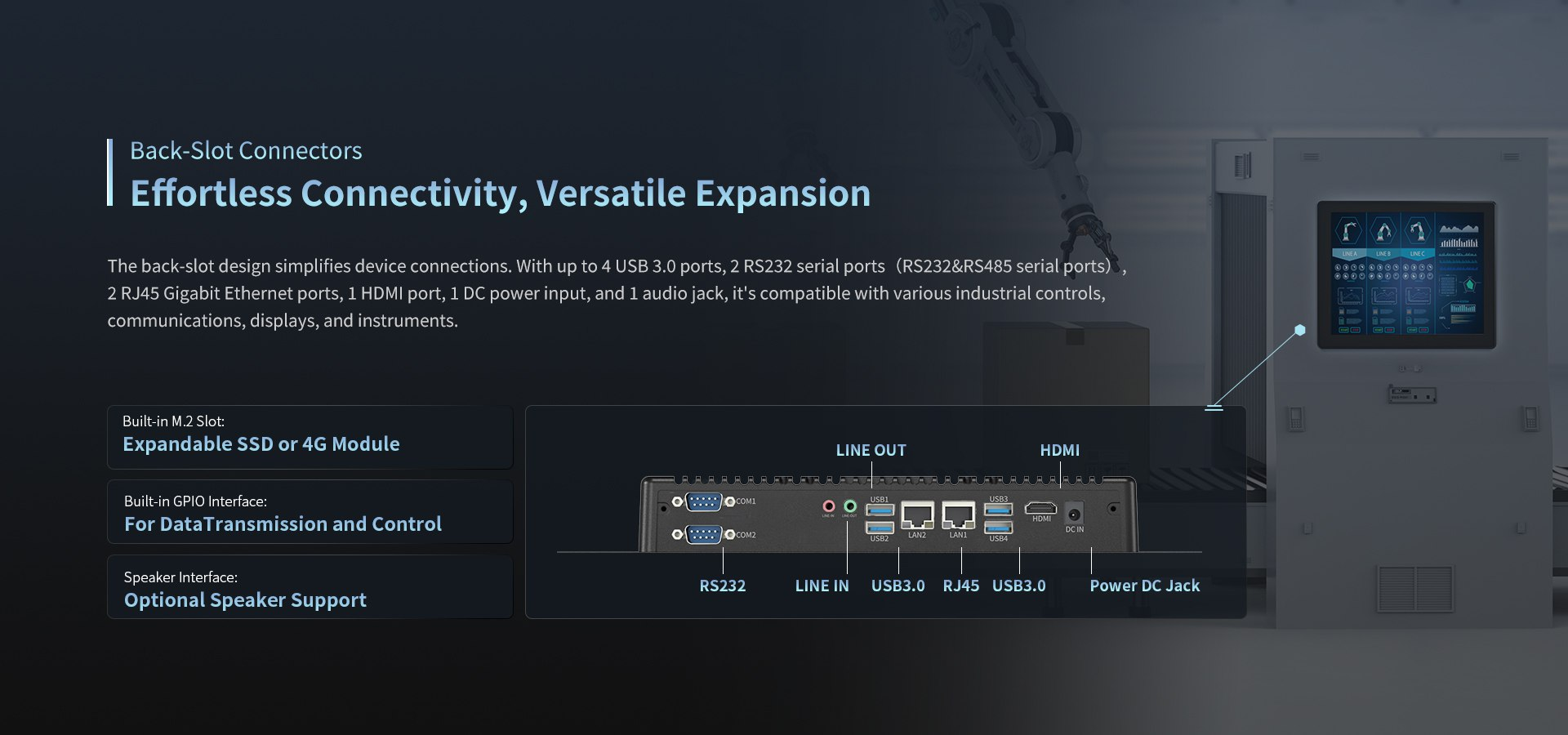

I/O Interface
Type A USB USB3.0 x 4
Power interface DC 19V x 1 (Support 12 to 24V)
3.5mm Standard Earphone Jack x 1
RJ45 x 2 (10M/100M/1000M adaptive)
DB9 PORT RS232 x 2
HDMI x 1
Performance
Processor
12th Generation Intel® Core™ i5-1235U Processor
Operating System
Windows 11
Memory
RAM 8GB ROM 128GB
Adapter
AC100V to 240V, 50Hz/60Hz output DC 19V/3.42A
Wireless
Internet
2.4G+5G , supports WIFI6,BT 5.1
Ruggedness
Certification
Front panel IP65
Rugged Features
Working temperature: -30 °C to 70 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing
Accessories
Standard
Adapter, PPC hook assembly, WiFi antenna
