Features

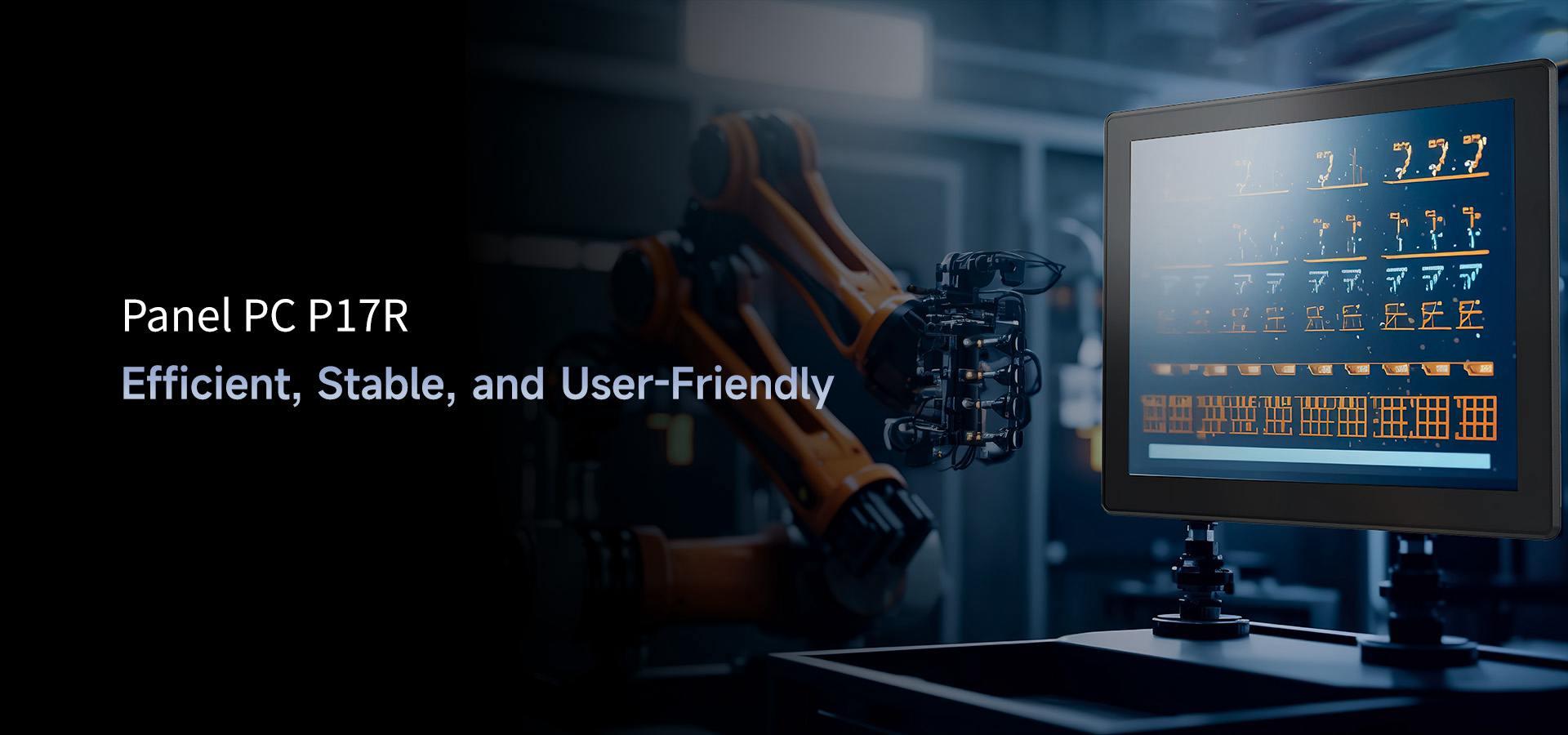

Panel PC P17R, Efficient, Stable, and User-Friendly
Powered by the RK3568 industrial-grade ARM processor, the P17R is designed for demandingindustrial applications. With a robust performance and improved energy efficiency, it meetsthe specific needs of various use cases. Combined with the Android 12 operating system, it offers an open and user-friendly environment for an enhanced user experience.
CPU: Quad-core RK3568 industrial-grade ARM processor.
Operating System: Android 12.
Fanless Design: Fanless design, using large-area uniform heating fin.
7×24 Operation: Running 24/7 without affecting reliability and service life.
Rich I/O Interfaces: Type A USB:USB3.0*1,USB3.0 *1 OTG USB2.0*2 DCIN 12V-24V Power connector *1 3.5mm Standard Earphone Jack*1 RJ45 *1(10M/100M/1000M adaptive) DB9 PORT RS232 *2 HDMI*1.
Multiple Networking: Wi-Fi 5, BT 5.0; Supports 4G network connectivity. Multiple interfaces options: USB, RS232, RJ45, HDMI, and audio ports.
Certification: Front panel IP65.

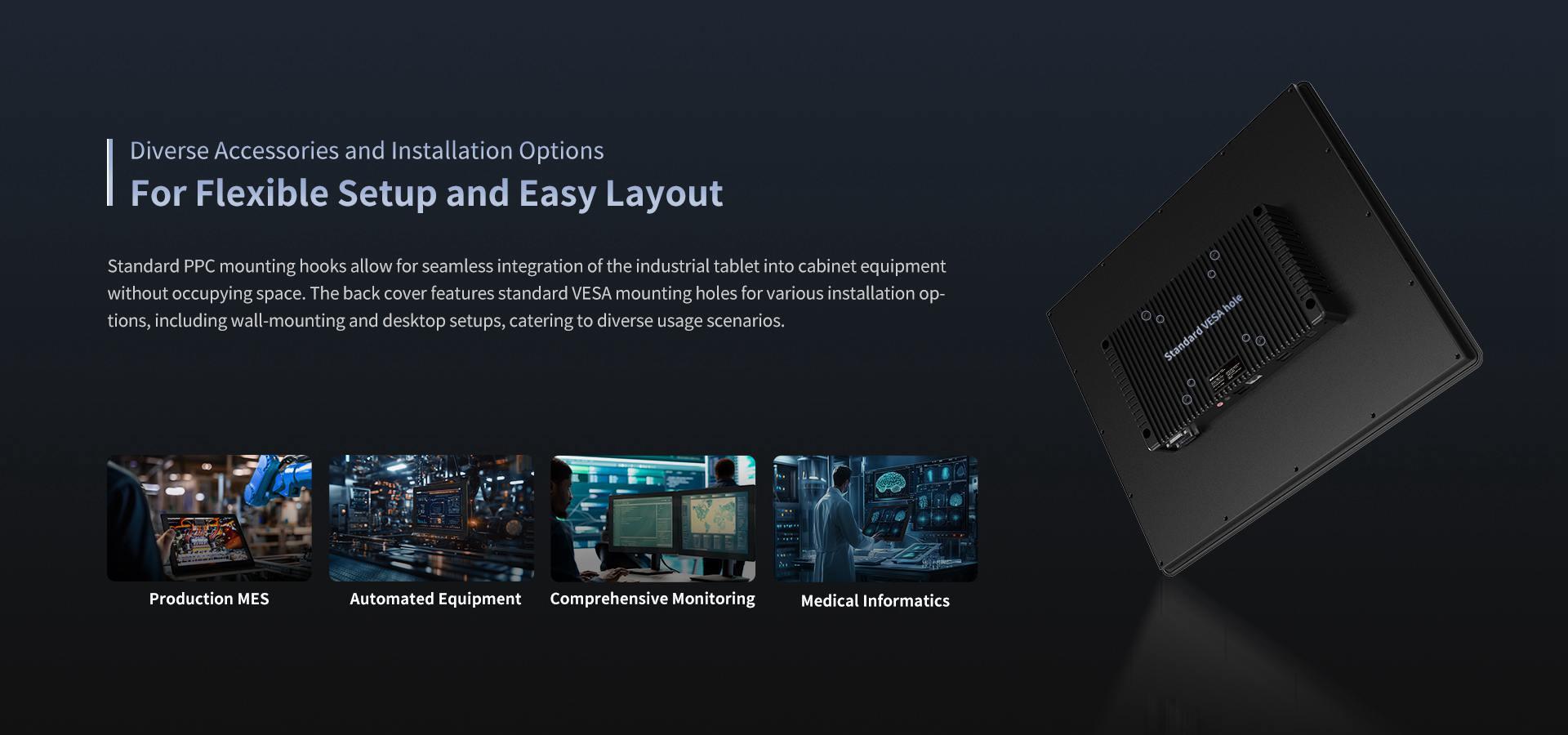

Easy to Install: Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted.








Specifications
Appearance
Dimensions
401 x 332 x 57 mm
Weight
TBD
Product Color
Black
Display
Size: 17-inch 4:3 Resolution: 1280*1024 Brightness: 500 cd/㎡
Touch Pannel
10 PCAP

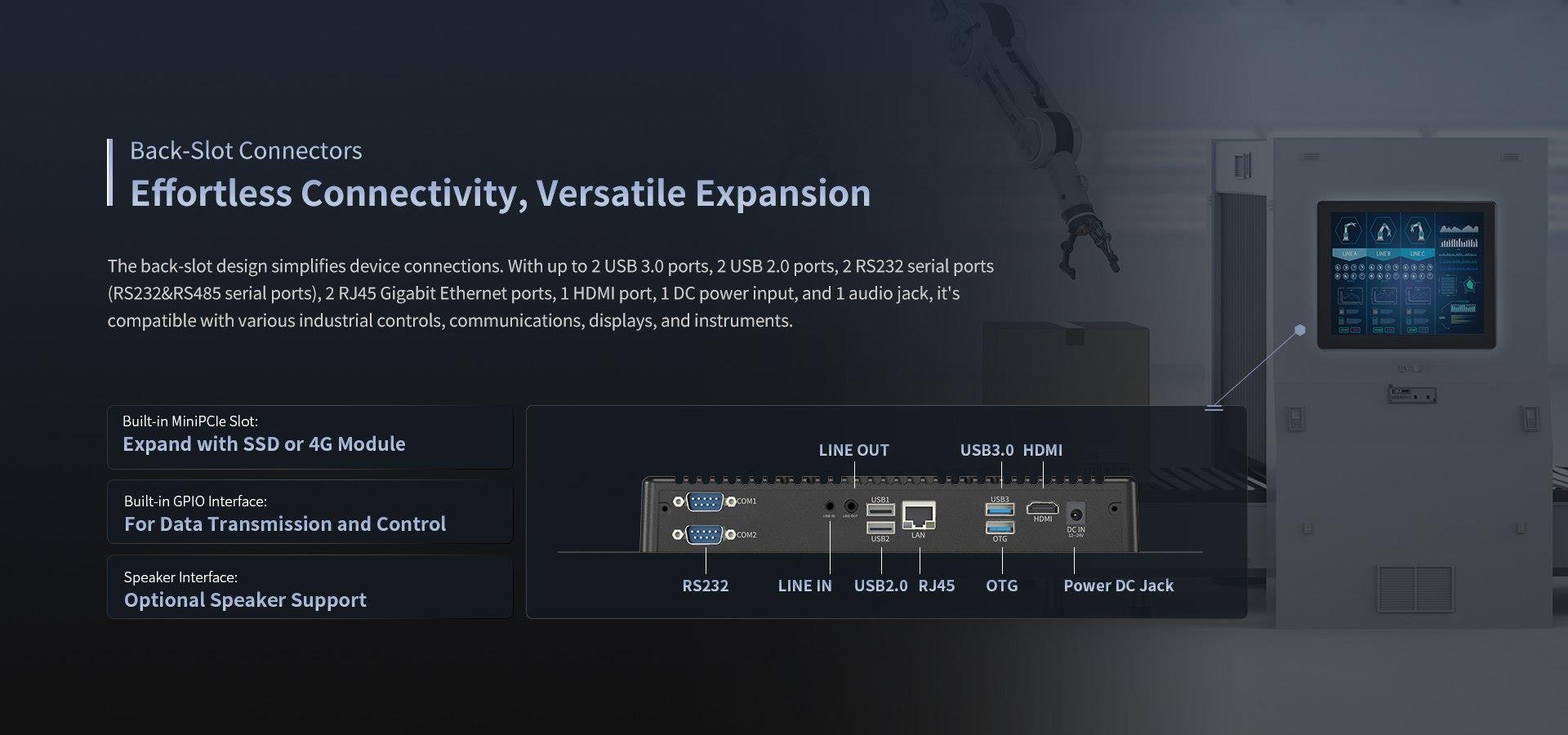

I/O Interface
Standard USB-A: USB3.0 x 1, USB3.0 x 1, OTG+USB2.0 x 2
Power interface: DC IN 12V-24V Power connector x 1"
3.5mm Standard Earphone Jack x 1
RJ45 x 1 (10M/100M/1000M adaptive)
DB9 PORT RS232 x 2
HDMI x 1
Performance
Processor
Quad-core RK3568 industrial-grade ARM processor
Operating System
Android 12
Memory
RAM 4GB onboard ROM 64GB
Adapter
AC100V to 240V, 50Hz/60Hz output DC 12V/4A
Wireless
Internet
2.4G+5.8G dual band WIFI, BT 5.0
Ruggedness
Certification
Front panel IP65
Rugged Features
Working temperature: -30 °C to 70 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing
Accessories
Standard
Adapter, PPC hook assembly, WiFi antenna
