ONERUGGED P18A Rugged Panel PC Intel N5100 CPU. 4G/Wifi. 8GB/128GB.18" Windows 11 IP65, waterproof front panel, rugged, dust-proof
ONERUGGED P18A Rugged Panel PC Intel N5100 CPU. 4G/Wifi. 8GB/128GB.18" Windows 11 IP65, waterproof front panel, rugged, dust-proof
- Brand: ONERUGGED
- MPN: P18A
- Part #: IPCORGP18A002
- UPC:
- Brand: ONERUGGED
- MPN: P18A
- Part #: IPCORGP18A002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
ONERUGGED P18A Rugged Panel PC Intel N5100 CPU. 4G/Wifi. 8GB/128GB.18" Windows 11 IP65, waterproof front panel, rugged, dust-proof
- Brand: ONERUGGED
- MPN: P18A
- Part #: IPCORGP18A002
Product URL: https://www.pbtech.co.nz/product/IPCORGP18A002/ONERUGGED-P18A-Rugged-Panel-PC-Intel-N5100-CPU-4GW
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Panel PC P18A robust Performance for Professionals
Equipped with the 12th-Gen Intel® Core™" i5-1235U processor, featuring a unique big.LITTLE architecture with 2 performance cores and 8 efficiency cores, and a turbo frequency of up to 4.4GHZ. Designed for productivity and multitasking, it handles everything from data collection to device control and high-load tasks with ease and stability.
CPU: 12th Generation Intel® Core™ i5-1235U Processor.
Operating System: Windows 11.

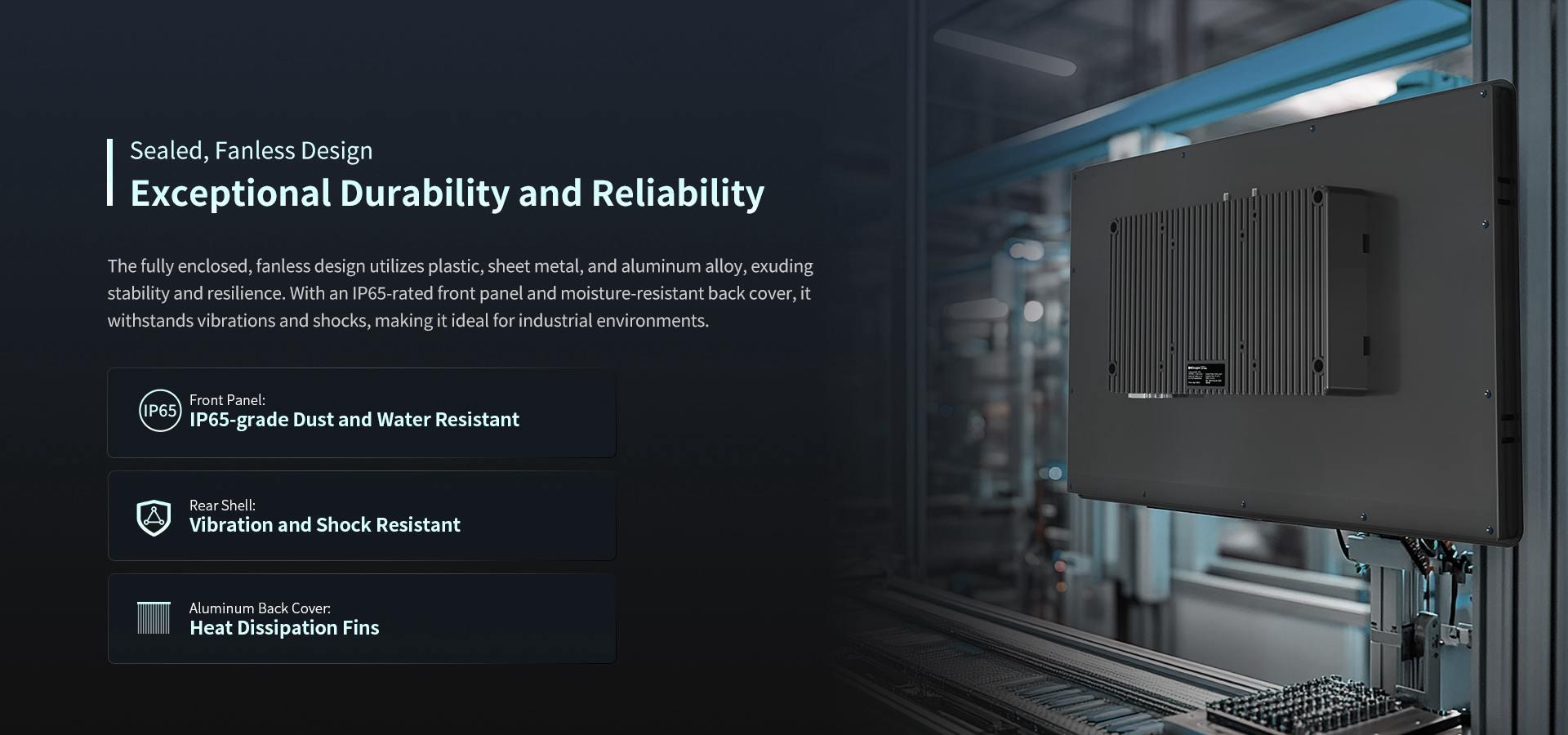

Fanless Design: Fanless design, using large-area uniform heating fin.
7×24 Operation: Running 24/7 without affecting reliability and service life.
Rich I/O Interfaces: Type A USB: USB3.0 *4 D 3. C 19V *1(Support 1 5mm Standard Earphone Jack *1 2 to 24V) D RJ45 *2 (10M/100M/1 B9 PORT RS232 *2 000M adaptive) HDMI *1 M(Supports SATAⅢ .2 2280 standard interface *1 /PCIE3.0X4 signa l).
Multiple Networking: Wi-Fi 6 and BT 5.1; Supports 4G network connectivity, multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports.
Certification: Front panel IP65.

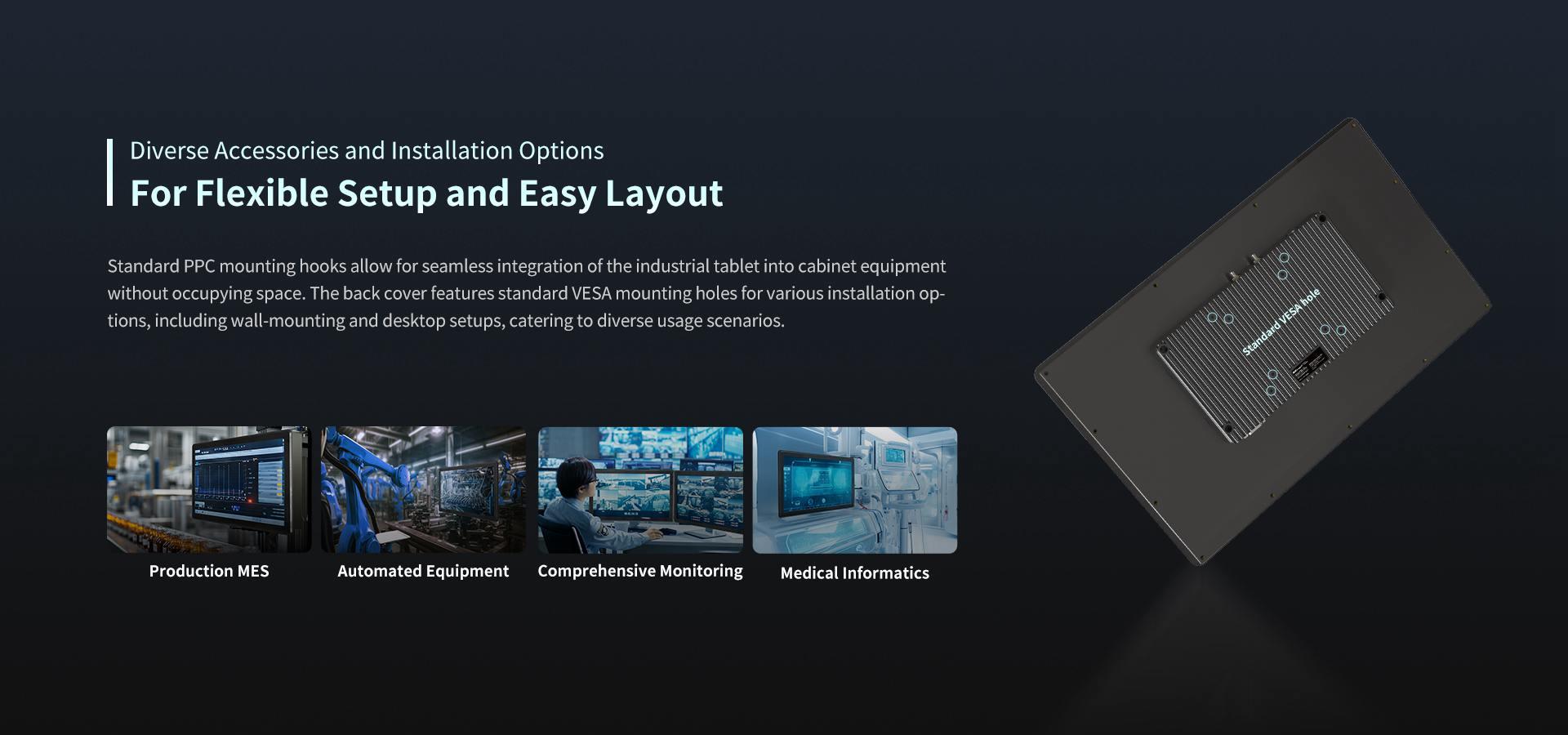

Easy to Install: Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted.








Specifications
Appearance
Dimensions
457 x 279 x 54 mm
Weight
TBD
Product Color
Black
Display

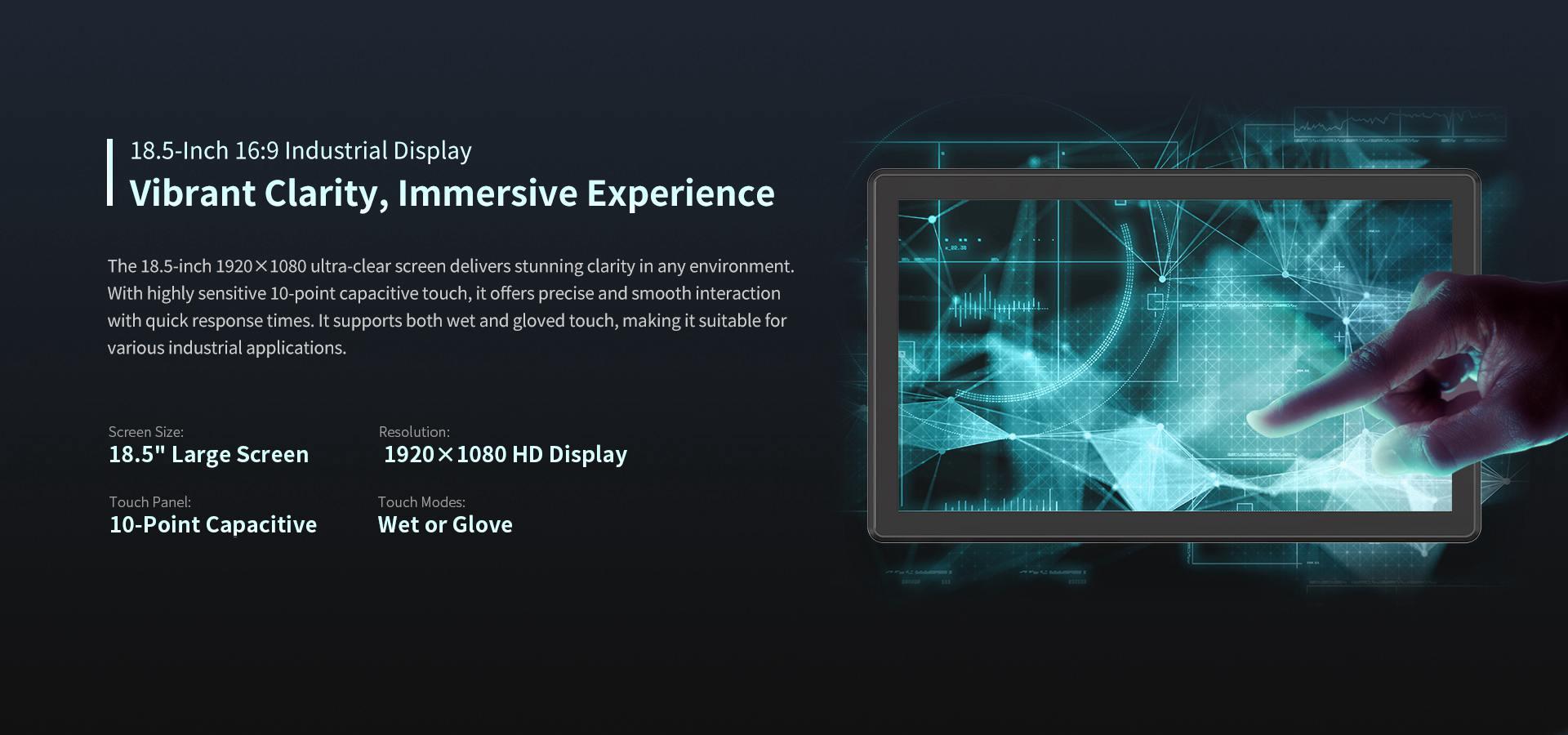

Size: 18.5 inch 16:9 Resolution: 1920*1080 Brightness: 250 cd/㎡
Touch Pannel
10 PCAP

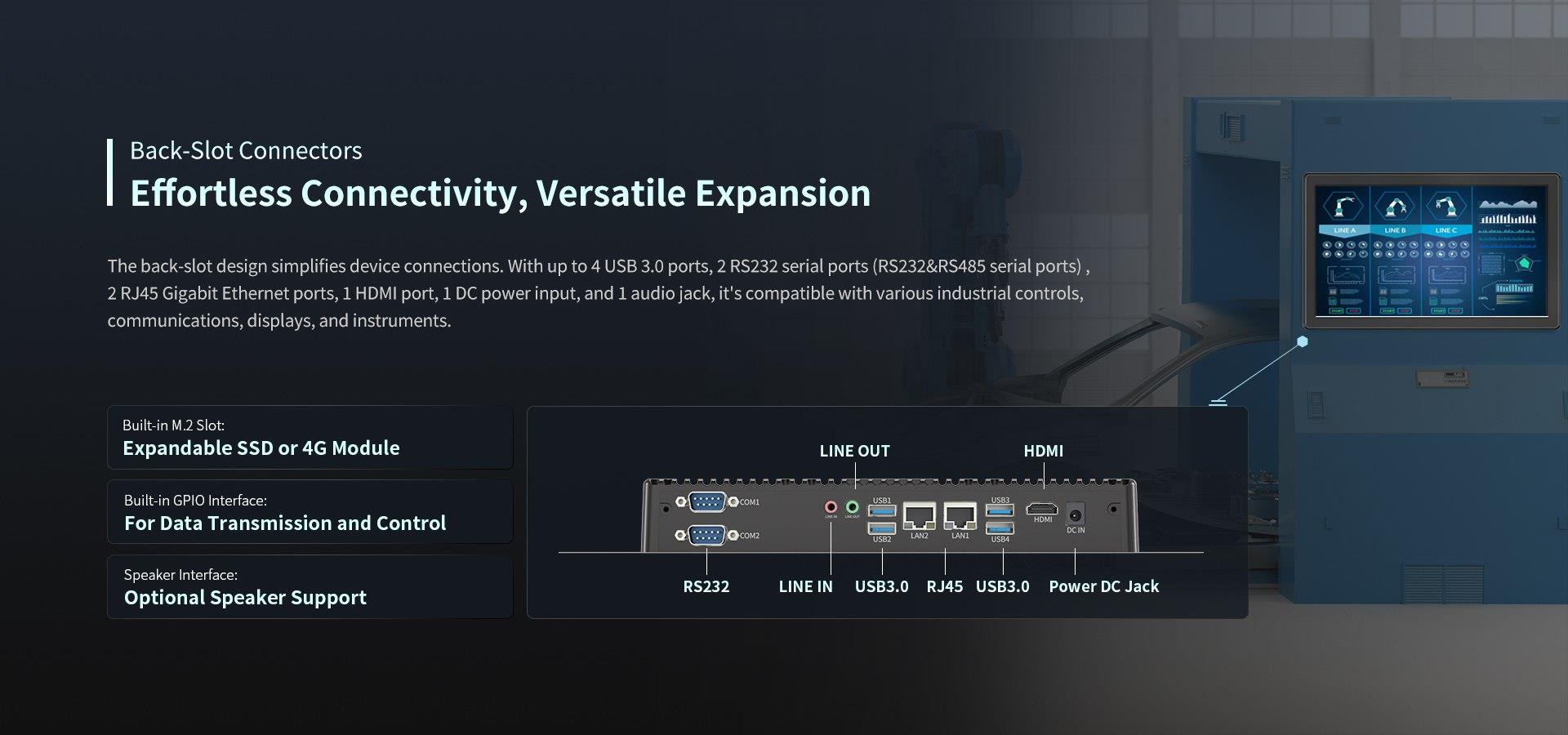

I/O Interface
Type A USB USB3.0 x 4
Power interface DC 19V x 1 (Support 12 to 24V)
3.5mm Standard Earphone Jack x 1
RJ45 x 2 (10M/100M/1000M adaptive)
DB9 PORT RS232 x 2
HDMI x 1
M2 x 1 M.2 2280 standard interface (Support SATAⅢ/PCIE3.0X4 signal)
Performance
Processor
12th Generation Intel® Core™ i5-1235U Processor
Operating System
Windows 11
Memory
RAM 8GB ROM 128GB
Adapter
AC100V to 240V, 50Hz/60Hz output DC 19V/3.42A
Wireless
Internet
2.4G+5G , supports WIFI6,BT 5.1
Ruggedness
Certification
Front panel IP65
Rugged Features
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing
Accessories
Standard
Adapter, PPC hook assembly, WiFi antenna
