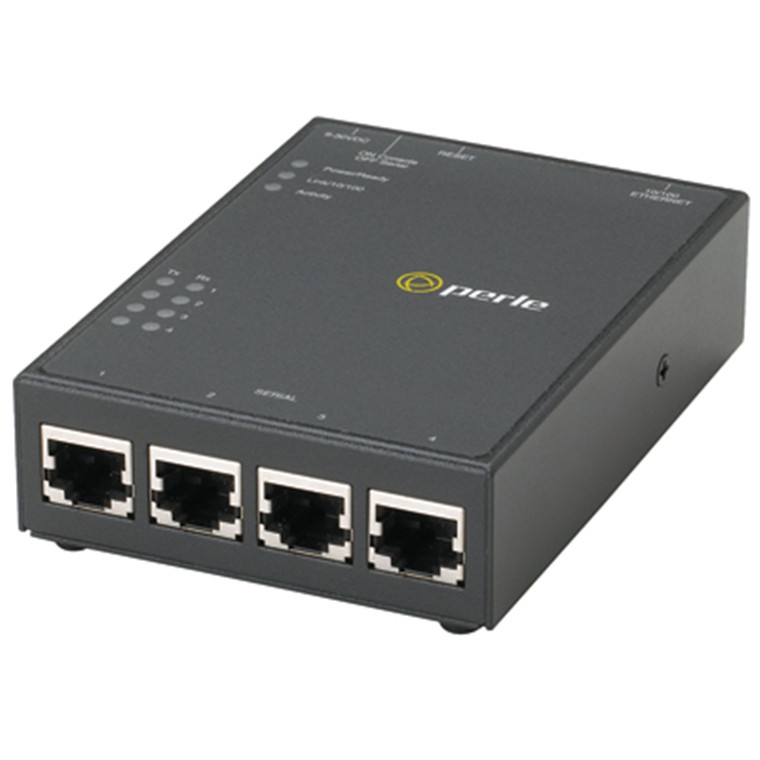

Perle IOLAN STG4 P Device Server 4 x RJ45 connectors with RS232 interface, 10/100/1000 Ethernet, 802.3af Power over Ethernet (PoE) compliant, advanced data encryption, IPv6, COM port redirector, 15kv ESD
Out of stock
Perle IOLAN STG4 P Device Server 4 x RJ45 connectors with RS232 interface, 10/100/1000 Ethernet, 802.3af Power over Ethernet (PoE) compliant, advanced data encryption, IPv6, COM port redirector, 15kv ESD
- Brand: Perle
- MPN: 4031920
- Part #: IPCPER4031920
- UPC:
- Brand: Perle
- MPN: 4031920
- Part #: IPCPER4031920
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Network Appliances
MOXA Industrial switch EDS-505A 5 port Managed Ethernet switch...
MOXA Industrial switch EDS-308-MM-SC 8 port Unmanaged switch with...
MOXA Industrial switch EDS-308-S-SC 8 port Unmanaged switch with...
MOXA Industrial switch EDS-308-M-SC 8 port Unmanaged switch with...
FootfallCam ESL Transmitter (FootfallCam 3D Max2)
Perle IOLAN STG4 P Device Server 4 x RJ45 connectors with RS232 interface, 10/100/1000 Ethernet, 802.3af Power over Ethernet (PoE) compliant, advanced data encryption, IPv6, COM port redirector, 15kv ESD
- Brand: Perle
- MPN: 4031920
- Part #: IPCPER4031920
Product URL: https://www.pbtech.co.nz/product/IPCPER4031920/Perle-IOLAN-STG4-P-Device-Server-4-x-RJ45-connecto
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
IOLAN STG4 P Secure Terminal Servers PoE Terminal Servers
- IOLAN STG4 PoE Terminal Server
- 4-port RS232 on RJ45 Ports
- 10/100/1000 Ethernet
- Small compact size
- PoE powered using 802.3af compliant power sources
- Wall, desk or DIN Rail mounting
- Advanced security feature set
Engineers and Project Managers that require a cost effective Power over Ethernet serial RS232-to-Ethernet Solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STG PoE Terminal Server. Having the highest performance processor available along with the Perle's unique TrueSerial® technology, the IOLAN STG will provide the most authentic serial connections across Ethernet.
The IOLAN STG P Terminal Server has full PoE support and operates as a Powered Device under IEEE 802.3af supporting end-span and mid-span power sources (PSE). Some other serial device servers that claim compliancy with 803.2af are in fact restricted to using mid-span power sources - buyer beware.
IOLAN STG4 PoE Terminal Servers are ideal for:
- Engineers and Project Managers requiring a high performance serial to Ethernet interface for up to 4 serial RS232 based devices. Connect to serial based applications over Ethernet
- IT Professionals requiring a cost-effective 4 port Terminal Server or serial Console Server for out of band management of IT equipment located in smaller data centers or remote sites
- Organizations that need to deploy equipment in locations that are difficult or too costly to have separate AC power installed such as ceilings, walls and kiosks
Why IOLAN STG PoE Terminal Servers are the preferred choice:
- High performance processors for the best throughput available. Ideal for time sensitive applications
- Compact size offers the smallest 4 port serial to Ethernet solution on the market
- Fully compliant with 802.3af PoE compliant power sources ( data or unused Ethernet pins )
- Next Generation IP support (IPv6) for investment protection and network compatibility
- TrueSerial® packet technology - the most authentic serial connections across Ethernet ensures serial protocol integrity
- Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
- EasyPort Web - Access equipment serial console ports by using your java-enabled Internet browser
- TruePort - Perle's com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
- Clustering - Provides a single view of all out of band console ports. Ideal for large data centers
- FIPS 140-2 - Cryptographic modules meet US Government NIST compliancy
- Dynamic DNS - Easy console management access from anywhere on the Internet
- Intelligent Power cycling of equipment with Perle Remote Power Switches
- Java-free browser access to remote serial console ports via Telnet and SSH
- Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
For more information: https://www.perle.com/products/iolan-stg-poe-terminal-server.shtml
Specifications
General
Processor
600 Mhz ARM processor
Memory
RAM MB
512
Flash MB
4000
Interface Ports
Number of Serial Ports
4
Serial Port Interface
RS232 DTE on RJ45
Sun / Solaris
Sun / Oracle 'Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Data Bits
Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
Parity
Odd, Even, Mark, Space, None
Flow Control
Hardware, Software, Both, None
Serial Port Protection
15Kv Electrostatic Discharge Protection (ESD)
Local Console Port
RS232 on RJ45 with DB9 adapter (provided)
Network
Autosensing 1000Base-T / 100Base-TX / 10Base-T
Auto-MDIX
Software selectable Ethernet speed 10/100/1000/Auto
Software selectable Half/Full/Auto duplex
Ethernet Isolation
1.5Kv Magnetic Isolation
Power
Power over Ethernet
802.3af PoE compliant data pins (1/2, 3/6 or unused pins 4/5, 7/8) (48v DC)
Power Supply Options
Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket,
Power IN over serial cable
Nominal Input Voltage
12v DC / 24v DC on Barrel Connector
Input Voltage Range
9-30v DC on Barrel Connector
Power External Device via Serial Port
+5v DC regulated, 1W max
Typical Power Consumption @ 12v DC (Watts)
2
Indicators
LEDs
Power/System Ready
Network Link activity
Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output (BTU/HR)
16.38
MTBF (hours)
184,554
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature
0C to 55C, 32F to 131F
Storage Temperature
-40C to 85C, -40F to 185F
Humidity
5 to 95% (non condensing) for both storage and operation.
Case
SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating
IP30
Mounting
Wall mount - bracket included
DIN Rail bracket optional
Product Dimensions
Weight
0.35 kg (.77 lbs)
Dimensions
112 x 82 x 28 (mm), 4.4 x 3.2 x 1.1 (in)
Packaging
Shipping weight
.54 kg (1.2 lbs)
Shipping Dimensions
260 x 170 x 70 (mm), 10.2 x 6.7 x 2.8 (in)
