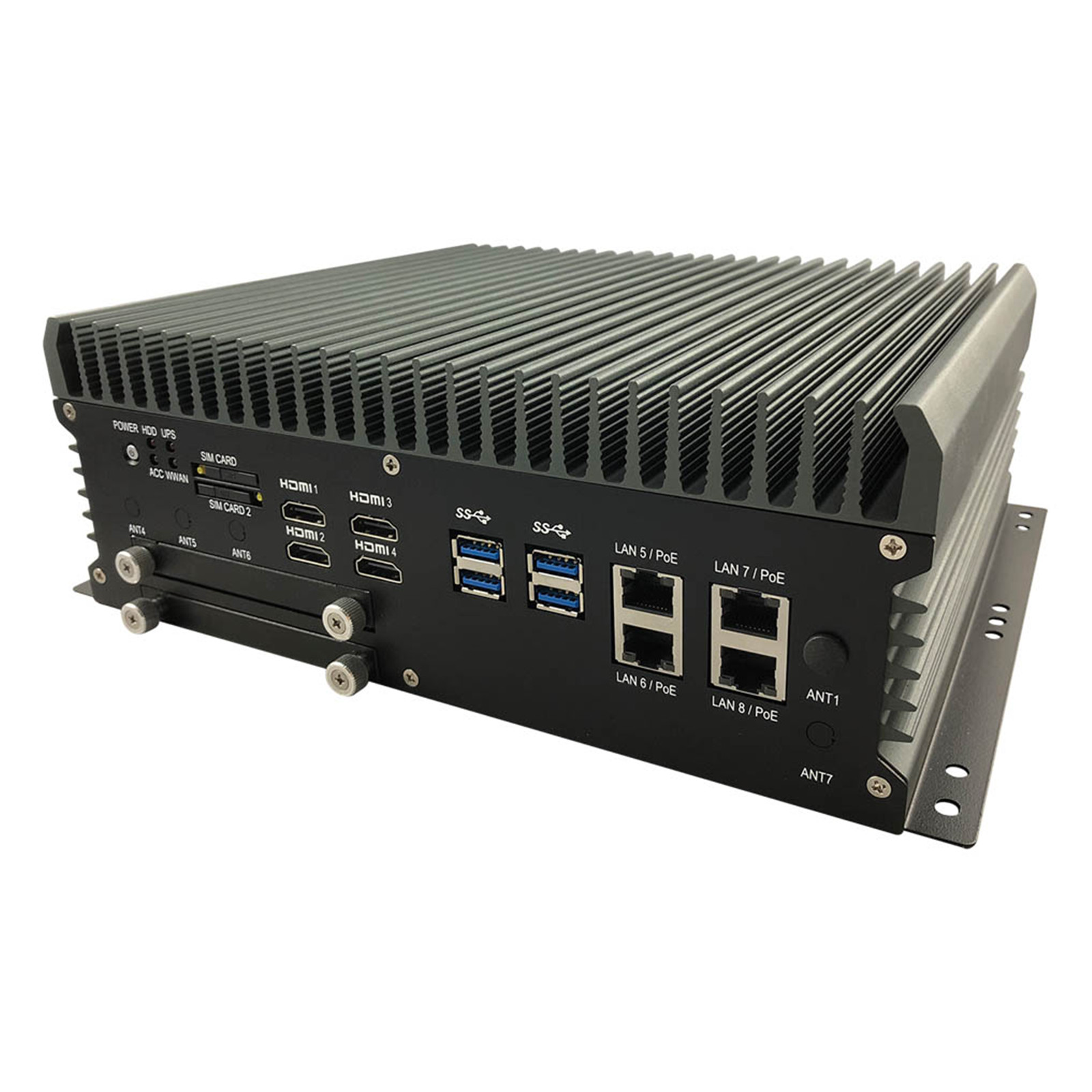

Sintrones ABOX 5100 FanlessPC, AMD V1807B, Industrial grades. AI GPU, 2 x RS-232/422/485, 8 x GPI, 4 x GPO,8 X GBE, 4 x DP,SATA Dual SATA HotSwapp, 9-48VDC Input Fast Expansible Slot support PCI-E, USB, SMBus, GPIO

PB Tech price
PB Tech price
$ 2,456 .91
 +GST
$ 2,825 .45
 inc GST

Out of stock

Sintrones ABOX 5100 FanlessPC, AMD V1807B, Industrial grades. AI GPU, 2 x RS-232/422/485, 8 x GPI, 4 x GPO,8 X GBE, 4 x DP,SATA Dual SATA HotSwapp, 9-48VDC Input Fast Expansible Slot support PCI-E, USB, SMBus, GPIO

  • Brand: Sintrones
  • MPN: ABOX-5100-V1807
  • Part #: IPCSTNABX51001
  • UPC:
PB Tech price
$ 2,456 .91 $ 2,825 .45
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

AMD Ryzen™ Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x USB 3.0/ 9-48V AI GPU Computing

- AMD Ryzen™ Embedded V1000 Platform
- Vega GPU with up to 11 Compute Units and 4 x DP 1.4
- 8 x GPI, 4 x GPO and 2 x RS-232/422/485
- Dual Hot Swappable SATA Storage
- 9-48VDC Input and Operating Temp.: -40~70°C
- 8 x GbE LAN (Optional for 8 x PoE)

Specifications

SYSTEM

CPU

AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHz)

Memory

2 x DDR4 2400 MHz SO-DIMM up to 32GB

LAN Chipset

Intel i210

Watchdog

1 ~ 255 Level Reset

TPM

2.0

I/O

Serial Port

3x RS-232/422/485

USB Port

4 x USB 3.0 Ports

LAN

8 x RJ45 Ports for GbE (Optional for 8 x POE total 100W max.)

Video Port

4 x DP

DIO Port

8 x GPI and 4 x GPO

Audio

1 x Line-out, 1 x Line-in and 1 x Mic-in

Expansion Bus

3 x Full Mini-PCIe Slots and 1 x M.2 A-E Key 2230 Slot (2 x SIM Card Sockets for 3G/LTE)

STORAGE

Type

2 x 2.5" Drive Bay for SATA Type Hard Disk Drive / SSD

POWER REQUIREMENT

Power Input

9V -48V DC Power Input

Power Protection

Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle

Power Off Control

Power off Delay Time Setting by Software and BIOS

Backup Battery

Internal Battery Kit for UPS (Optional)

Patent No. :

M447854 - Build-in Battery

MECHANICAL & ENVIRONMENTAL

Dimensions (LxWxH)

260 x 226 x 95 mm

Mounting

Wall-mount

Weight

3860g (bare-bone)

Relative Humidity

10% RH - 90% RH (non-condensing)

Operating Temp

-40°C ~ 70°C * CPU configure at 25W

Storage Temp.

-40ºC ~ 80°C

Certifications

CE, FCC Class A, E13

Patent No. (Taiwan)

M447854

ORDERING INFORMATION

Part Number

ABOX-5100-V1807
ABOX-5100P-V1807 (with PoE)

Description

AMD Ryzen™ Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 9-48V AI GPU Computing

Manufacturer Part No:
ABOX-5100-V1807
Brand:
Product Type:
Industrial grades.
UPC
-
Product Family:
ABOX 5100 FanlessPC,
Shipping Weight:
1 kg
PB Part No:
IPCSTNABX51001
Product Model:
AMD V1807B,
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
