Features

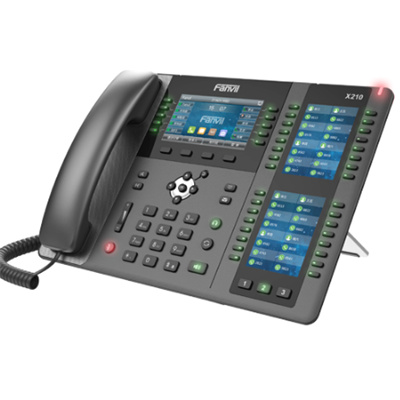

Fanvil X210 High-end Enterprise IP Phone
- 20 SIP lines, 3-way conference, hotspot
- HD audio on speakerphone and handset
- 4.3' main color display
- Built-in Bluetooth
- 2×3.5' side color displays for DSS keys
- Up to 106 DSS keys (42 tri-colored physical keys)
- Dual Gigabit ports, integrated PoE
- Wi-Fi connectivity (via Wi-Fi dongle)
- Support EHS headset
- Video Codec H.264 support for receiving video calls
- Stand with 2 adjustable angles of 40 and 50 degrees
- Compatible with major platforms: 3CX, Asterisk, Broadsoft,Metaswitch, Avaya etc.
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (On server)
- 3-way Conference
- Hot Line
- Hot desking
Phone Features
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (In/out/missed, 1000 entries)
- Black/White List Call Filtering
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 2.1: Support Bluetooth headset
- Support Wi-Fi Dongle
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Flash Drive or Server Recording )
- Action URL / Active URI
- uaCSTA
Specifications
Physical Specifications
Main LCD x1: 4.3 inch (480×272) color-screen LCD
DSS Key-mapping LCD x2: 3.5 inch (320×480) color-screen LCD
Keypad: 77 keys, including, 4 Soft-keys , 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial), 4 Navigation keys,1 OK key, 1 Return key, 2 Standard Phone Digits keys , 3 Volume Control keys, Up/Down/Mute(Microphone), 1 Hands-free key, 42 DSS Keys with tri-color LED, 3 Page-Switch (PS) key
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
DC Power Input: 5V/2A
Power Consumption (PoE): 2.6~ 9W
Power Consumption (Adapter): 2.4~8W
Working Temperature: 0~45?
Working Humidity: 10~95%
Installation: Desktop Stand
Color: Dark gray
Device Dimensions :
Desktop Stand (Angles 1): 309 x 214 x 187mm,
Desktop Stand (Angles 2): 309 x 226 x 167mm
Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)
Video
Video codec: H.264
Video call resolution: QCIF / CIF / VGA
Audio
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
Wideband Codec: G.722, AMR-WB, Opus ? Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band - DTMF-Relay(RFC2833) / SIP INFO
Network Specifications
Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)
Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
