Features

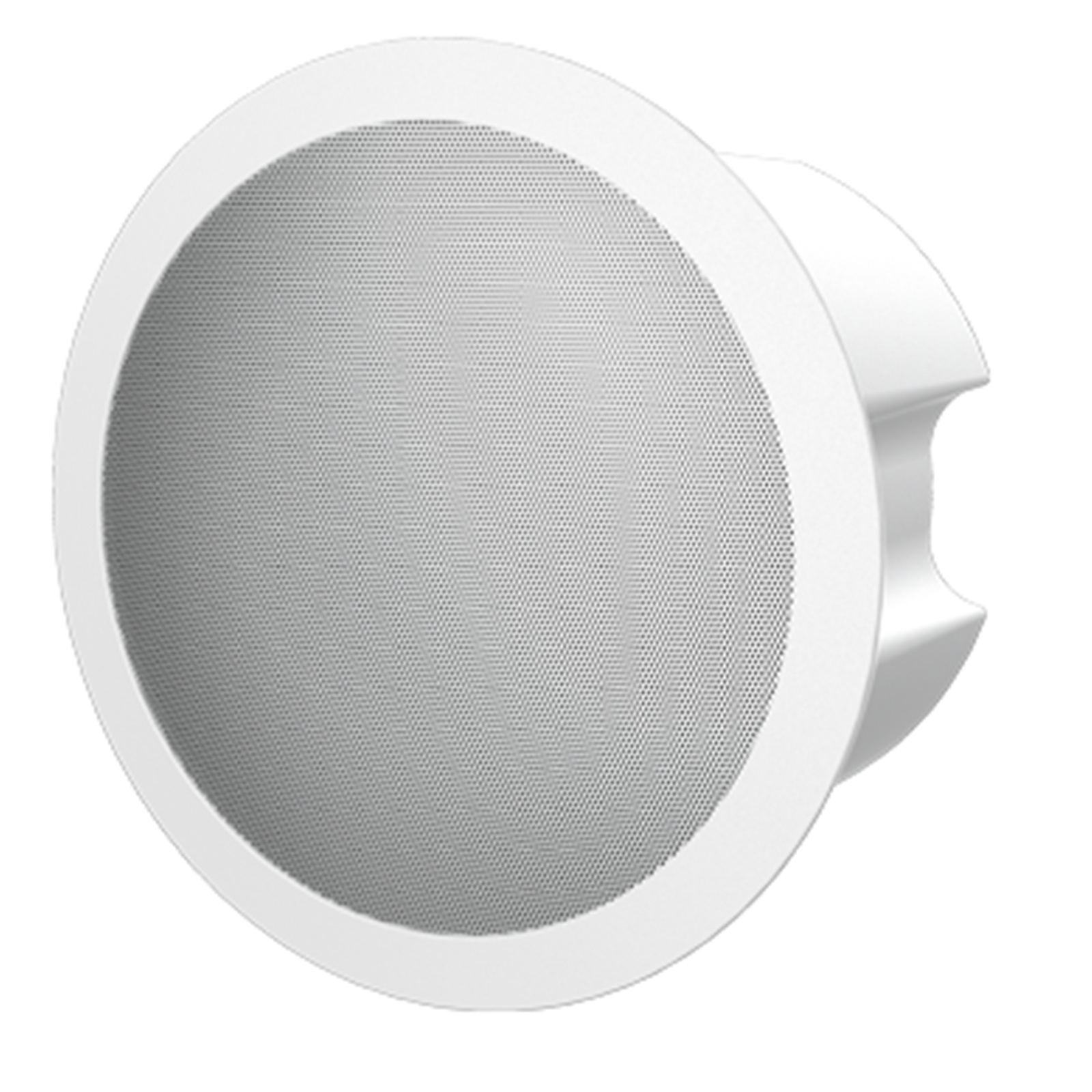

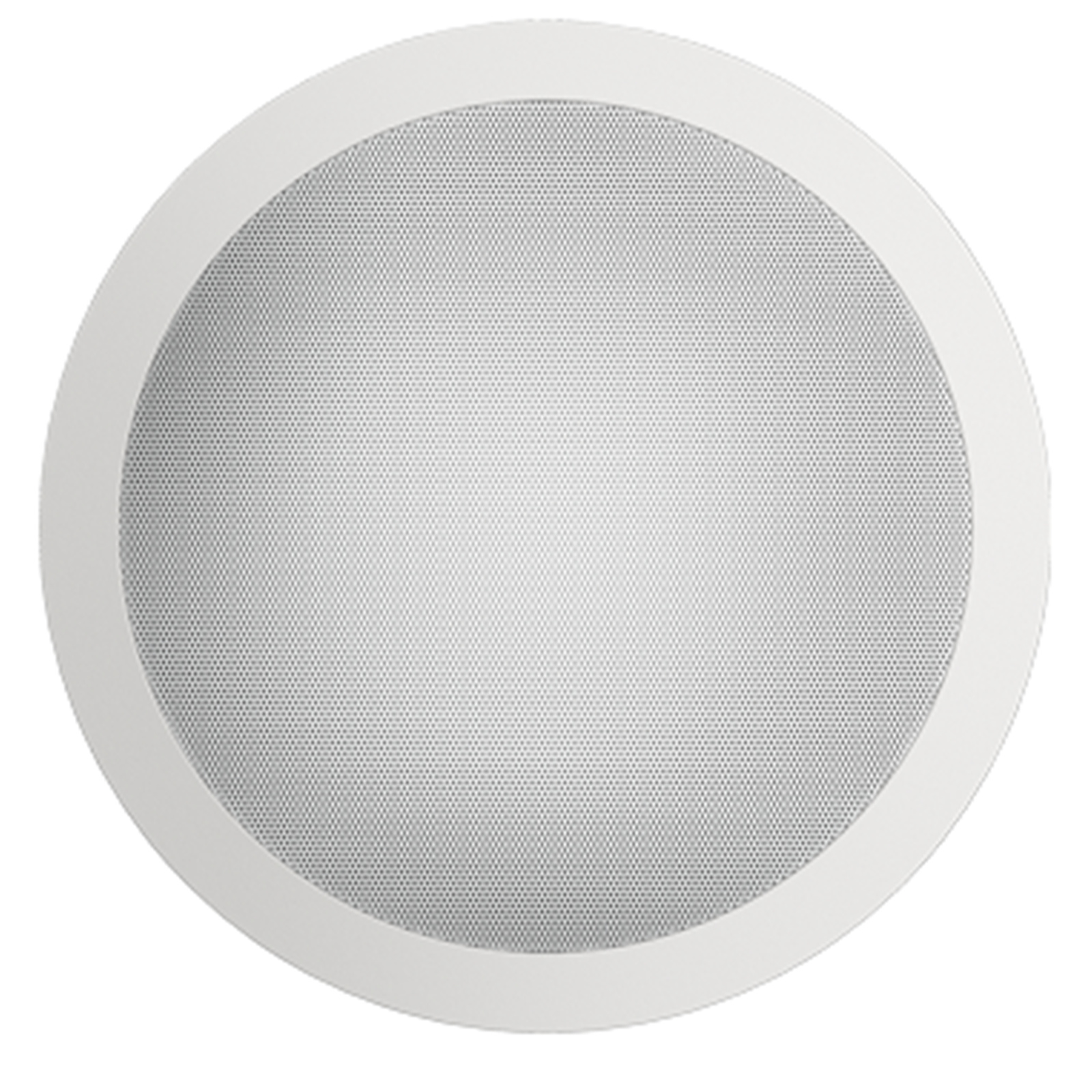

Fanvil FH-S01 SIP ceiling speaker
This is a SIP ceiling speaker featuring paging, multicasting, broadcasting and talkback functionalities. It supports up to 10 multicast zones with prioritization. It delivers high-intelligibility performance with G.722&Opus codecs. Adopted standard SIP 2.0(RFC3261) and related RFC protocols, it has strong compatibility and scalability.
Specifications
General
SIP Line
2
HD Audio(G.722)
G.722 ,Opus
Built-in Electric Relay
Yes
Access control
1
Power Supply PoE
Yes
Power Supply 12V DC
16-18V 2A
Wide Temperature Range
-20°~50°
Power Amplifier
Maximum 20W
Short Circuit Output
1
Short Circuit Input
1
Auto-Provisioning via DHCP/TR069/SIP PNP
Yes
Integration with Third Party Systems
Yes
MP3 broadcasting
Yes
Audio codecs
G.711A/U, G.729A/B, iLBC, G.723,
G.726-32K,G.722, Opus
Speaker
Frequency respons
100-20KHz
Sensitivity
89dB±3dB 1m/1W
Impedance
8O
MAX SPL
96 dB
Audio Power
PoE/10W,12V/10W,18V/15W,24V/20W ; related to power supply voltage.
Mic
Omni-Directional
Sensitivity:-36±3dB, impedance 2.2k ohm, bias voltage 2V
Physical Specifications
DC port x1
DC power input
Port:2 Pin terminal socket
RJ45 port x1
connect the network
Power over Ethernet(IEEE 802.3af, class 0)
Short circuit input and output port x1(built in relay)
Relay:MAX DC30V/2A
Port:terminal socket
Blue LED x1
Power status
DC power input
DC 12~24V/2A
Power Consumption (PoE)
1.31~11.82W
Power Consumption (Adapter)
0.76~14.71W
Working temperature
-20?~ 50?
Storage temperature
-30?~ 60?
Working humidity
10~95%
Installation
Ceiling-mounted
Color
White
Device overall dimensions
238.5mm x 238.5mm x 148.3mm
Device back box dimensions
202.5mm x 202.5mm x 139mm
