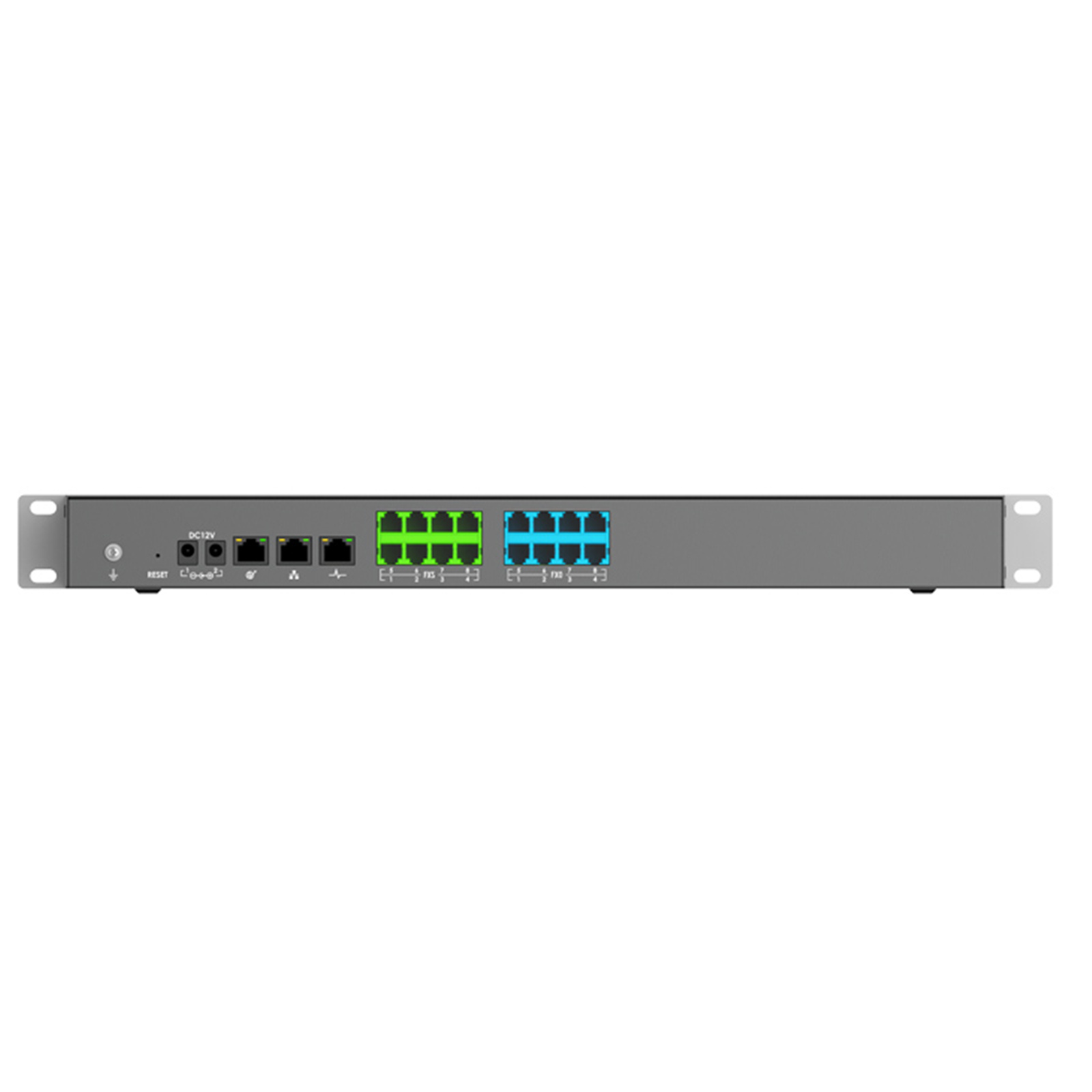

Grandstream UCM6308A Asterisk 16, 1500users/200 concurrent calls, 8 x FXO/FXS, NO VIDEO CAPABILITY
- Brand: Grandstream
- MPN: UCM6308A
- Part #: IPHGSM1058

Product URL: https://www.pbtech.co.nz/product/IPHGSM1058/Grandstream-UCM6308A-Asterisk-16-1500users200-conc
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Supports up to 1500 users and up to 200 concurrent calls
- Zero configuration provisioning of Grandstream SIP endpoints
- Built-in Instant Messaging (IM), Audio Conferencing & Web Meetings platform that supports access from computers, mobile devices, and SIP endpoints
- Free Wave App allows easy voice & Instant Messaging (IM) communications using desktops, Web, and Android/iOS devices
- API available for third-party integrations, including CRM and PMS platforms
- Advanced security protection with secure boot, unique certificate and random default password to protect calls and accounts
- Three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and support NAT router
- Automated NAT firewall traversal service facilitates secure remote connections
- Enhanced reliability with support for Hot Standby High-Availability and local dual deployment
- Supports Full-Band Opus voice codec,jitter resilience up to 50% packet loss
- Compatible with GDMS for cloud setup, management and monitoring
- Based on Asterisk* version 16 open source telephony operating system
Specifications
Manufacturer's Product Code
UCM6308A
Analog Telephone FXS Ports
8 RJ11 ports (All ports have lifeline capability in case of power outage)
PSTN Line FXO Ports
8 RJ11 ports (All ports have lifeline capability in case of power outage)
Network Interfaces
Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+
NAT Router
Yes (supports router mode and switch mode)
Peripheral Ports
2*USB 3.0, 1*SD card interface
LED Indicators
Power 1/2, FXS, FXO, LAN, WAN, Heartbeat
LCD Display
128x32 dot matrix graphic LCD with DOWN and OK buttons
Reset Switch
Yes, long press for factory reset and short press for reboot
Voice-over-Packet Capabilities
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0, jitter resilience up to 50% audio packet loss
Voice and Fax Codecs
Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
API
Full API available for third-party platform and application integration
Telephony Operating System
Based on Asterisk version 16
DTMF Methods
In-band audio, RFC4733, and SIP INFO
Provisioning Protocol & Plug-and-Play
Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk
Network Protocols
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP,HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN®
Disconnect Methods
Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect
Media Encryption
SRTP, TLS, HTTPS, SSH, 802.1X
Universal Power Supply
2x DC 12V Power Jack Input: 100~240VAC, 50/60Hz;Output: DC 12V, 2A
Dimensions
485mm(L) x 187.2mm(W) x 46.2mm(H)
Weight
Unit Weight: 2538g; Package Weight: 3463g
Temperature & Humidity
Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing)Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing)
Mounting
Rack mount & Desktop
Caller ID
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 - BT, NTT
Polarity Reversal/Wink
Yes, with enable/disable option upon call establishment and termination
Call Center
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ workload, in-queue announcement
Customizable Auto Attendant
Up to 5 layers of IVR (Interactive Voice Response) in multiple languages
Maximum Call Capacity
Users: 250; Concurrent calls (G.711): 50; Max concurrent SRTP calls (G.711): 50
Maximum Attendees of Conference Bridges
9 meeting rooms and up to 150 parties
Call Features
Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice meeting, eventlist, feature codes, busy camp-on/ call completion, voice control
Firmware Upgrade
Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products
