Features

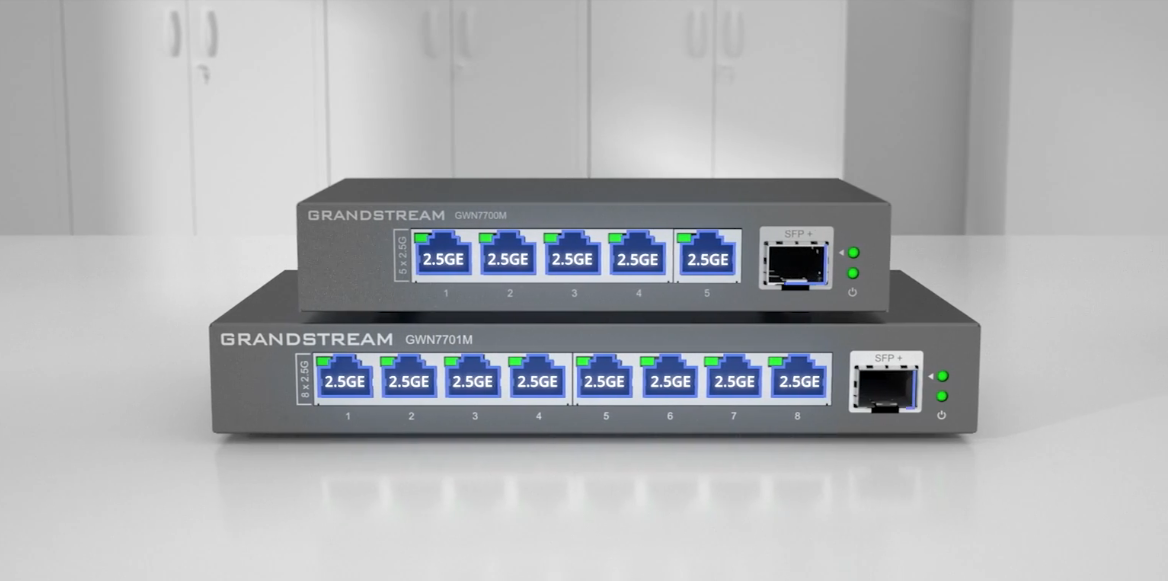

Grandstream GWN7700M Unmanaged Multi-Gigabit Switch 5-port 2.5 GigE 1-port SFP+
The Grandstream GWN7700M series are unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses. These 6 and 9-port multi-Gigabit switches support fast Ethernet, 1-Gigabit, and 2.5-Gigabit network speeds while including 1 SFP+ Gigabit fiber port that provides 1-Gigabit or 10-Gigabit high-speed uplink connectivity to your network.
The GWN7700M and GWN77001M require no configuration or installation, are desktop and wall-mountable, and provide auto MDI/MDIX to eliminate the need for crossover cables. They support auto-negotiation on each port to recognize the speeds of 100/1000/2500Mbps network devices and intelligently adjust for compatibility and optimal performance. The plug-and-play GWN7700M and GWN7701M are the ideal unmanaged network switches for home offices and small-to-medium businesses that require high-speed, multi-Gigabit connectivity.
- 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
- One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Whisper Quiet: fanless
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Green technology reduces power consumption
- QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700M Series are 6 and 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity through 5 or 8 built-in 2.5 Gbps ports.
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Specifications
Model No.
GWN7700M
2.5 Gigabit Ports
5
Enclosure
Metal
Mounting
Desktop/ Wall-Mount
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq
Port Features
5× 100/1000/2500Mbps RJ45 Ports
1× SFP+ Fiber Port
AUTO Negotiation
AUTO MDI/MDIX
Network Media
2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex
LED Indicators
Per port: Link/Activity Green; Per device: Power Green
Mac Address Table
4K
Switching Capacity
45Gbps
Jumbo Frame
9KB
Advanced Features
Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, IEEE 802.3az (Energy Efficient Ethernet), 802.1p/DSCP QoS, IGMP
Power Adapter
External 12VDC/1A
Max Power Consumption by Base System
7.0W
Environmental
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Dimensions (L x W x H)
Unit: 145 x 80 x 27mm
Weight
Unit: 0.3KG
