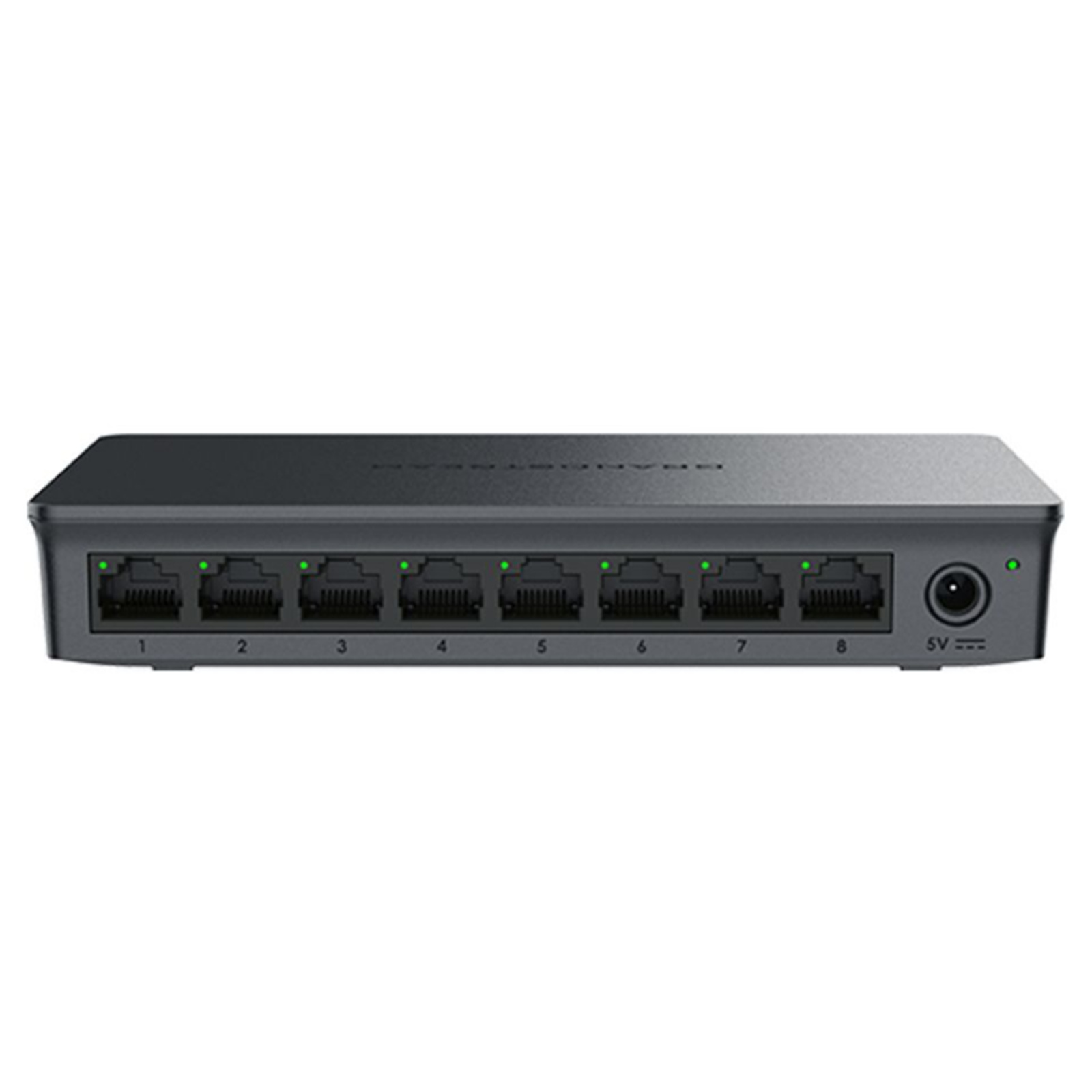

Grandstream GWN7701 8-Port Gigabit Unmanaged Switch - 1GbE x8

PB Tech price
PB Tech price
$ 32 .81
 +GST
$ 37 .73
 inc GST
$32.81  +GST
$37.73

Grandstream GWN7701 8-Port Gigabit Unmanaged Switch - 1GbE x8

PB Tech price
$ 32 .81 $ 37 .73
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 22 Sep When will I receive it?
$32.81  +GST
$37.73

10 Gigabit

No

10 Gigabit Ports

0 Ports

Form Factor

Desktop

Management Level

Unmanaged

Number of Ports

8 Ports

PoE

No

PoE Ports

N/A

PoE Budget

N/A

Similar in-stock products available at PB Tech right now

Features

Grandstream GWN7701 Unmanaged Network Switch 8-Port 5+ units (each)

- 8 Gigabit RJ45 ports
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Unlink clear FDB Feature
- QoS - Supports Default Strict Priority when present

Unmanaged Network Switches

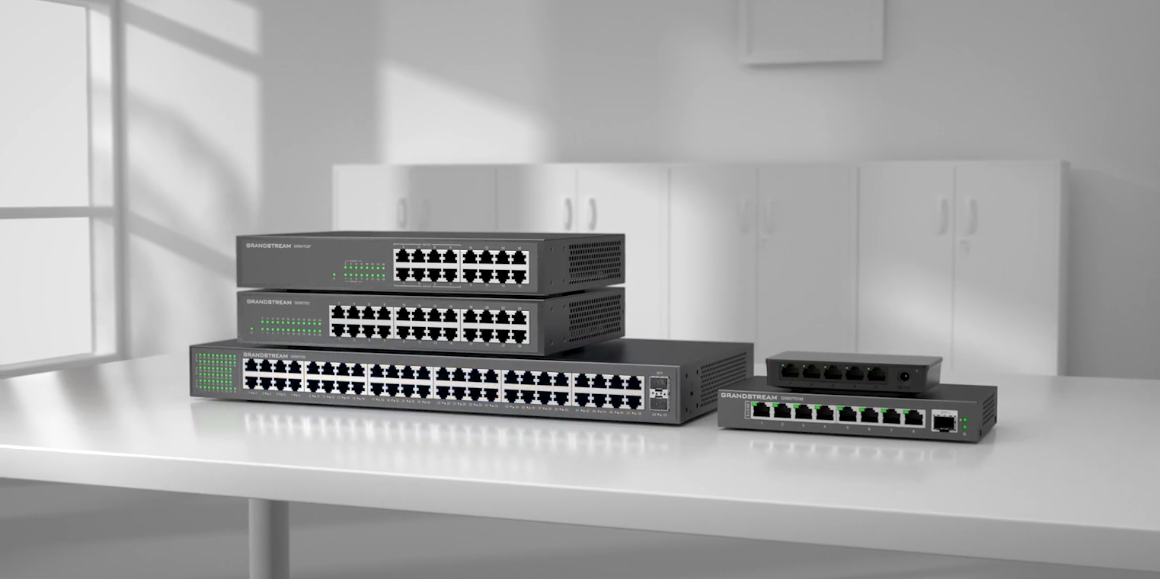

The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity to home offices and small-to-medium sized businesses.



The Ideal Model for Every Need

Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).

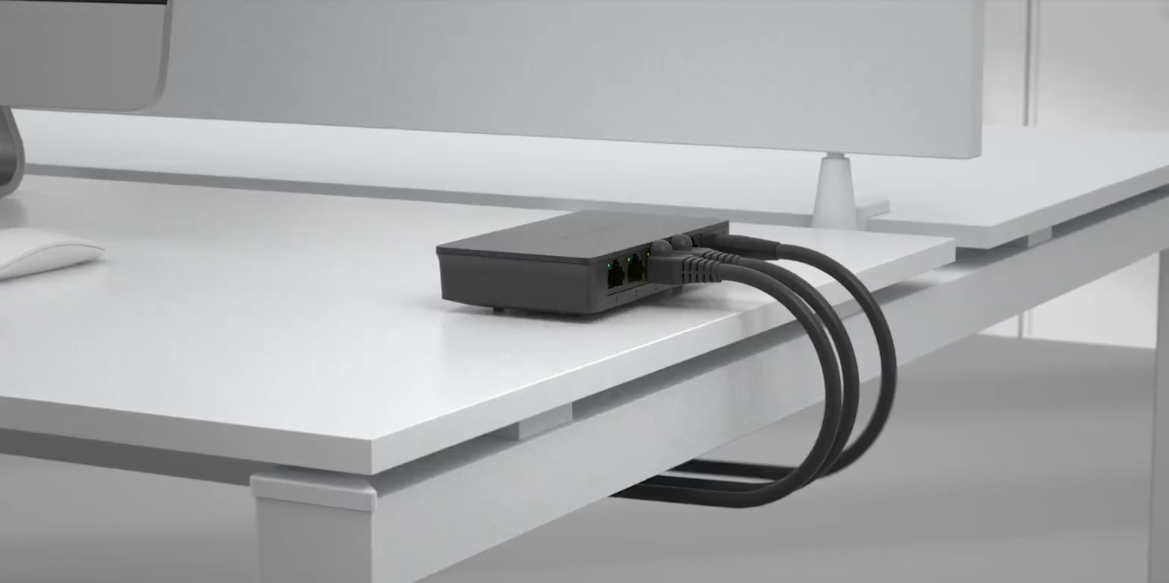

Plug and Play

These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.

Specifications

Gigabit Ports

8

PoE Port

N/A

Enclosure

Plastic

Mounting

Desktop/Wall-Mount

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

Port Feature

(8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX

Network Media

1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

PoE Configuration

None

LED Indicators

Per port: Link/Activity Green, Per device: Power Green

MAC Address Table

8K

Switching Capacity

16Gbps

Jumbo Frame

9KB

Advanced Features

Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP

Power Adapter

External 5VDC/0.6A

Max Power Consumption by Base System

2.7W

Environmental

Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

Unit: 164 x 80 x 30mm

Weight

Unit: 0.17KG

Compliance

FCC, CE, RCM, IC, UKCA

Manufacturer Part No:
GWN7701
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.38 kg
PB Part No:
IPHGSM402555
Product Model:
GWN7701
Warranty: 12 months *
