Maxhub XT10-VB Kit - XCore Kit + UCS07 4K All-in-one Conference Video Bar Kit , MTR on Windows - FOV 120°, 5x Zoom, 6-Mics Array Range up to 8M, 8W+3W Speakers
Maxhub XT10-VB Kit - XCore Kit + UCS07 4K All-in-one Conference Video Bar Kit , MTR on Windows - FOV 120°, 5x Zoom, 6-Mics Array Range up to 8M, 8W+3W Speakers
- Brand: Maxhub
- MPN: XT10-VB Kit
- Part #: IPHMHB0003
- UPC:
Select your store to check availability
- Brand: Maxhub
- MPN: XT10-VB Kit
- Part #: IPHMHB0003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Meeting Room Systems





Maxhub XT10-VB Kit - XCore Kit + UCS07 4K All-in-one Conference Video Bar Kit , MTR on Windows - FOV 120°, 5x Zoom, 6-Mics Array Range up to 8M, 8W+3W Speakers
- Brand: Maxhub
- MPN: XT10-VB Kit
- Part #: IPHMHB0003

Product URL: https://www.pbtech.co.nz/product/IPHMHB0003/Maxhub-XT10-VB-Kit---XCore-Kit--UCS07-4K-All-in-on
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 2 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 3 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

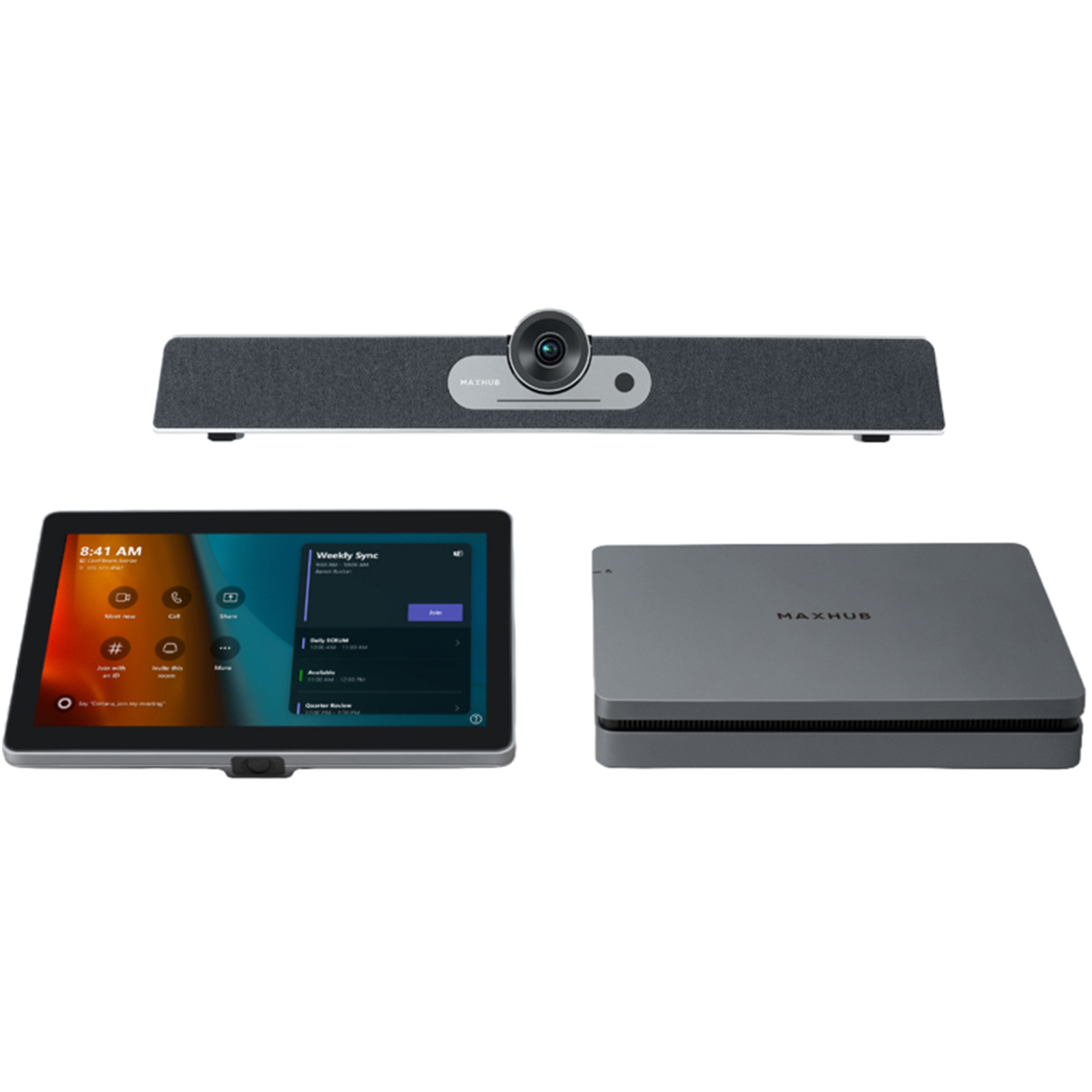

MAXHUB XT10-VB Kit - Certified for Microsoft Teams Rooms
Expanding on the foundation of the XCore Kit, the MAXHUB XT10-VB Kit incorporates a UC S07 Videobar. A simpler Microsoft Teams Rooms deployment solution.
Exceptional Performance
The MAXHUB XT10-VB Kit, is a competitively priced solution designed using a Windows compute, console and a high-performance videobar. This remarkable Kit boasts a powerful Intel 12th Gen 10-Core processor, delivering exceptional performance, and a high-resolution 10.1-inch Teams Rooms console with a motion sensor for an intuitive and immersive user experience.
Flexible, easy installation
A single Cable connects the Windows Compute to the Touch Console with an additional UC S07 Videobar. The Kit also helps to facilitate the switch to Microsoft Teams Rooms Smart Spaces for BYOD scenarios, enhancing Teams-native audio and video experiences while accommodating cost-balancing needs.
Specifications
Mini-PC XC13T
Type
Mini-PC
CPU
12th Gen Intel i3
Memory
8GB DDR4 3200MHz SO-DIMM x 2
Storage
128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s)
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
Network
1000Mbps RJ45
Operating System
Windows 11 IoT Enterprise SAC
Application
Microsoft Teams Room
USB-A 3.0
4
LAN
1
USB-C (for Teams Rooms Console)
1
HDMI Out
1
Audio Out
1
AC Power
1
Kensington Lock Slot
1
Power Supply Mode
AC POWER
Power Requirements
100-240V AC 50/60Hz
Max Power
90W
Accessories (included in the Package)
Wall Bracket x1
PC Bracket x1
Cable Cover x1
HDMI Cable (1.8m/5.9ft) x1
Power Cord (1.8m/5.9ft) x1
Quick Start Guide x1
Product Dimension
230 x 185 x 41.5 mm / 9.06 x 7.28 x 1.63 inch
Product Weight
1.36 kg / 3 lbs
Touch Control Panel TCP20T
Size
10.1 inch
Resolution
1920 (H) x 1200 (V)
Frequency Refresh Rate
60Hz
Back Light Unit
ELED
Brightness with Glass
Min.250cd/m², Typ.300cd/m²
Life Time
= 20000 Hours
Touch System Type
Capacitive touch
Surface Treatment
Anti-fingerprint, Anti-glare
HDMI In (Content Sharing)
1
USB-A 2.0 (Table Audio Devices)
1
USB-C 3.1 (for Connection to XC13T Mini PC)
1
Audio Out (Headphone, w/o mic)
1
Motion Sensor
PIR sensor for auto wake-up
Accessories (included in the Package)
USB Type-C Cable (Type C-C) 5m / 16.4ft x1
HDMI Cable 1.8m / 5.9ft x1
Quick Start Guide x1
Product Dimension
245 x 164.3 x 77.4 mm / 9.65 x 6.47 x 3.05 inch
Product Weight
0.88 kg / 1.94 lbs
VideoBar UC S07
Pixel
12M
Sensor
1/2.3-inch 12MP Sony sensor
ZOOM
5x Digital Zoom
Output Format
MJPG; YUY2; H.264
Field of View
120° (D)
Adjustable Angle
± 15° (V)
Focus Mode
Fixed-Focus
Focus Distance
1m
Special Features of camera
Auto Framing: automatic adjustment FOV to fit all participants
Speaker Tracking: voice triggered people tracking
10 Zooming Pre-sets for instant setting up
Power Requirements
12V
Overall Power(Max.)
10W
PoE Power
Yes (IEEE 802.3af or 802.3at)
Sound Chanel
1.1
Output Power
8W + 3W
Maximum Sound Pressure
80dBSPL @ 1m
Signal-to-Noise Ratio
>75dB
Frequency Range
150Hz ~ 18kHz
Microphone Quantity
6
Voice Pickup Range
8m
Microphone Frequency Range
100Hz ~ 7.5kHz
Special Features of microphone
Noise Reduction
Echo Cancellation
Anti-Reverberation
Built-in AGC Algorithm
USB 3.0 Type-C
Connect USB host, upgrade system, etc.
Audio Out
Used for external audio equipment
DC 2.0
Used for 12V power input power supply
RJ45
No IP Support, only provides PoE power
Compatibility
Support major VC software including ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc.
System Requirements
Supports Windows XP/7/8.1/10/11, Android 8.1 or higher, and MAC OS 10.12 or higher
What's in the Box
1 x USB C-A Cable (1.8m / 5.9 ft), 1 x Remote Control
1 x Power Adapter, 1 x Wall-mounted Components, 1 x Camera Privacy Cover
