Maxhub MT71-i7F i7 OPS for V7 Touch Screen only - Intel Gen12 i7, 16GB RAM, 512GB SSD with Win11 Pro
Maxhub MT71-i7F i7 OPS for V7 Touch Screen only - Intel Gen12 i7, 16GB RAM, 512GB SSD with Win11 Pro
- Brand: Maxhub
- MPN: MT71-i7F
- Part #: IPHMHB7117
- UPC:
Select your store to check availability
- Brand: Maxhub
- MPN: MT71-i7F
- Part #: IPHMHB7117
- UPC:
COMBO DEALS: Buy Together and SAVE!






Dynamix C-POWERC3 10A 3 Pin Plug to IEC C13 Power Cord - 3m - Black 1.0mm Copper Core - SAA Approved
$7.12 +GST
$8.19


Maxhub WT13 Wireless Screen Sharing Dongle - USB-C/A
$335.80 +GST
$386.17


Maxhub Mobile Trolley for 55", 65", 75" and 86" Displays, Max load 100KG - Maxhub Panel Only
$431.13 +GST
$495.80
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Digital Signage





Maxhub MT71-i7F i7 OPS for V7 Touch Screen only - Intel Gen12 i7, 16GB RAM, 512GB SSD with Win11 Pro
- Brand: Maxhub
- MPN: MT71-i7F
- Part #: IPHMHB7117

Product URL: https://www.pbtech.co.nz/product/IPHMHB7117/Maxhub-MT71-i7F-i7-OPS-for-V7-Touch-Screen-only
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 1+ | |
Hornby | 1 | |
Christchurch Central | 0 |
Features

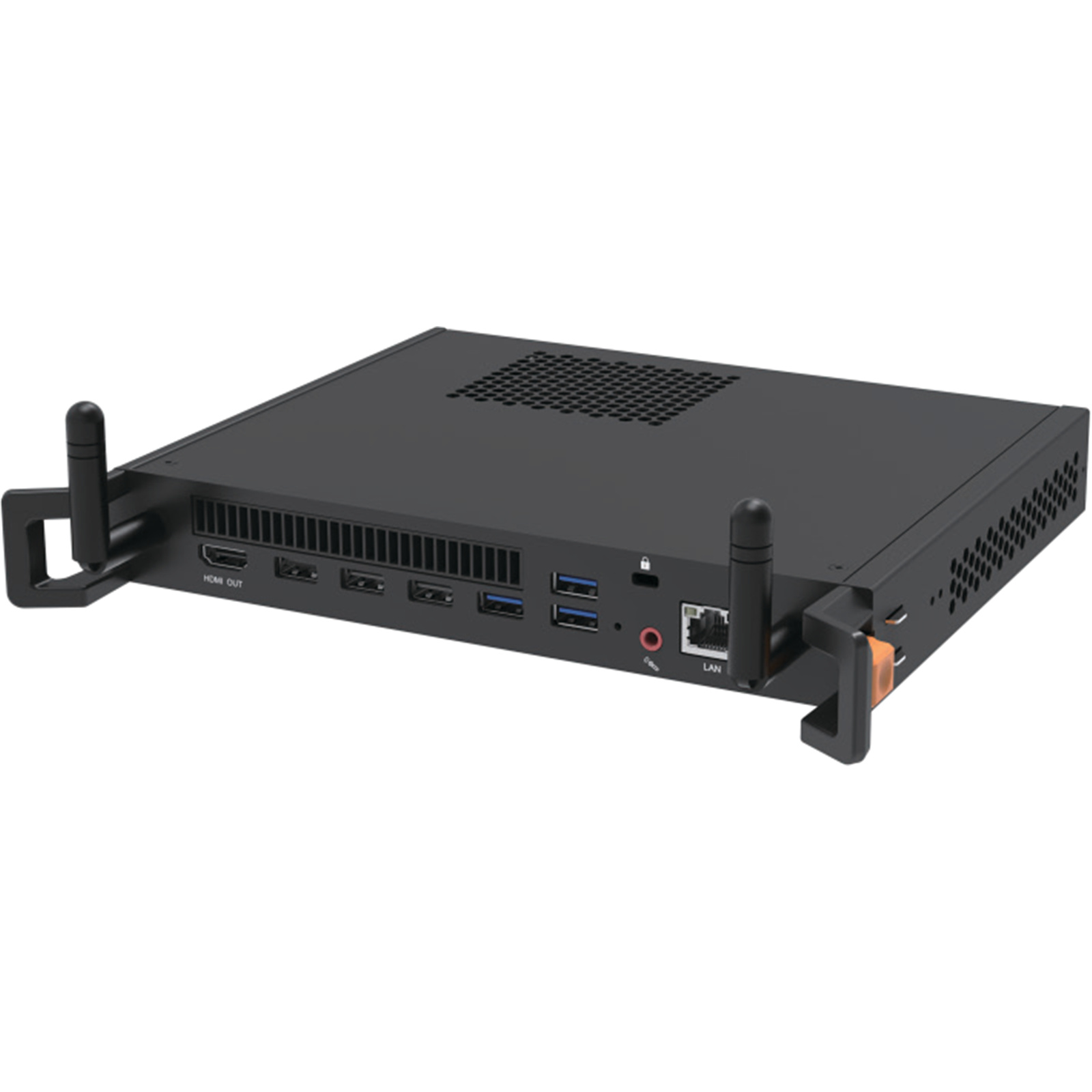

MAXHUB PC Module
MT71F is modular PC which could be easily inserted into MAXHUB Interactive Flat panel , with 12th Generation Intel® Core™ i7 Processor and pre-installed the MAXHUB OS based on windows system.
Specifications
General Specification
Device Type
Pluggable PC Module
Operating System
Windows 11 Pro
CPU
12th Generation Intel® Core™ i7 Processor -12650H
GPU
Intel UHD Graphics (supports 4K @ 60Hz)
RAM
16G , DDR4
Internal Storage
512G
Touchscreen Compatibility
Yes
TPM
2.0
Application
MAXHUB OS
Kensington Slot
Yes
Connectivity
HDMI Out (2.0)
1 (up to 4K @ 30fps)
USB 3.0 Type-A
3
USB 2.0 Type-A
3
RI45 (Ethernet, 1000M)
1
Microphone in
×1
Kingsington Security Slot
1
Power
Power Requirements
18V DC
Power Consumption Maximum
=< 110W
Power Consumption Standby
=< 2.3W
Environmental Condition
Operating Temperature
-10°~55°
Storage Temperature
-20°~60°
Operating Humidity
10% - 90%RH
Storage Humidity
10% - 90%RH
Physical Specification
Product Dimensions (W×H×D)
244.5 × 207.2 × 32 mm / 9.67 × 8.16 × 1.26 inch
Package Dimensions (W×H×D)
314 × 256 × 70 mm / 12.36 × 10.08 × 2.76 inch
Net Weight
1.2 kg / 2.65 lbs
Gross Weight
1.79 kg / 3.95 lbs
