Keychron K5M-B1 K5 MAX 100% Custom Mechanical Keyboard
Gateron Red Switch - Wireless / Wired / 2.4GHz Low Profile QMK - ANSI Full Size Layout - 104 Key - Full Assembled - RGB- Low Profile
Keychron K5M-B1 K5 MAX 100% Custom Mechanical Keyboard
Gateron Red Switch - Wireless / Wired / 2.4GHz Low Profile QMK - ANSI Full Size Layout - 104 Key - Full Assembled - RGB- Low Profile
- Brand: Keychron
- MPN: K5M-B1
- Part #: KEYKCH1324
- UPC:
Select your store to check availability
- Brand: Keychron
- MPN: K5M-B1
- Part #: KEYKCH1324
- UPC:
COMBO DEALS: Buy Together and SAVE!
Cruxtec ADS01 flammable Clean Range Compressed Air Duster 400ml Spray Can with Nozzle Dust-off...
$9.32 +GST
$10.72

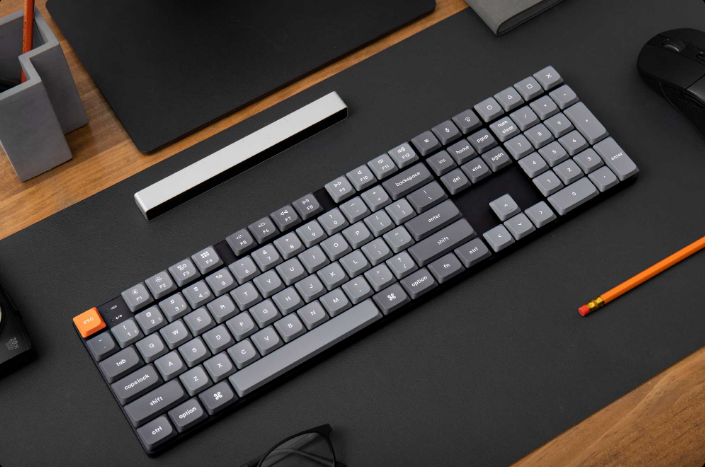

Features
The K5 Max keyboard blends classic design with advanced connectivity, featuring a 100% layout and support for 2.4 GHz, Bluetooth, and wired connections. With QMK/VIA customization, it enhances both work efficiency and gaming, offering a smooth, responsive encounter.

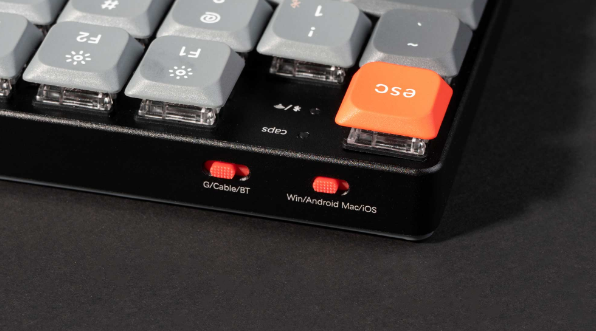

2.4 GHz & Bluetooth Connection
Experience unparalleled performance with the K5 Max's 2.4 GHz wireless connection, offering a swift 1000 Hz polling rate. Its Bluetooth 5.1 capability allows seamless switching between computer, phone, and tablet for smooth multitasking across three devices.

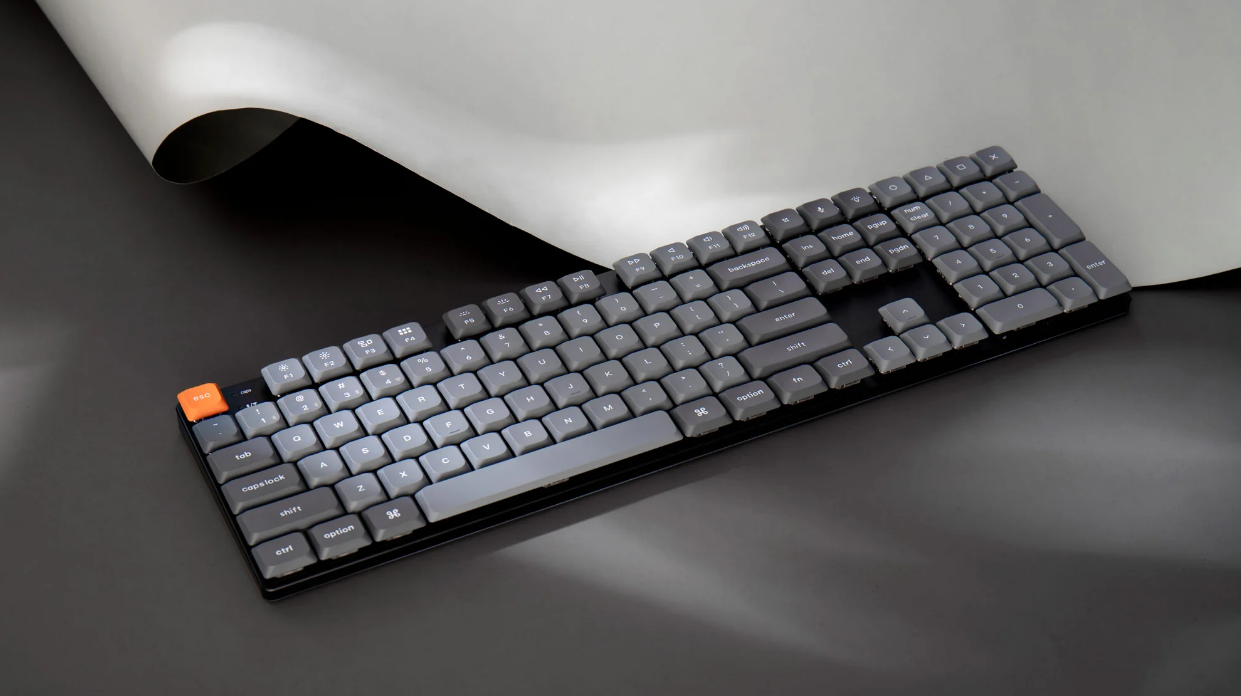

Ultra-Slim
The innovative low-profile Gateron switch is 31% slimmer than conventional normal profile switches makes the aluminum body K5 Max one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.

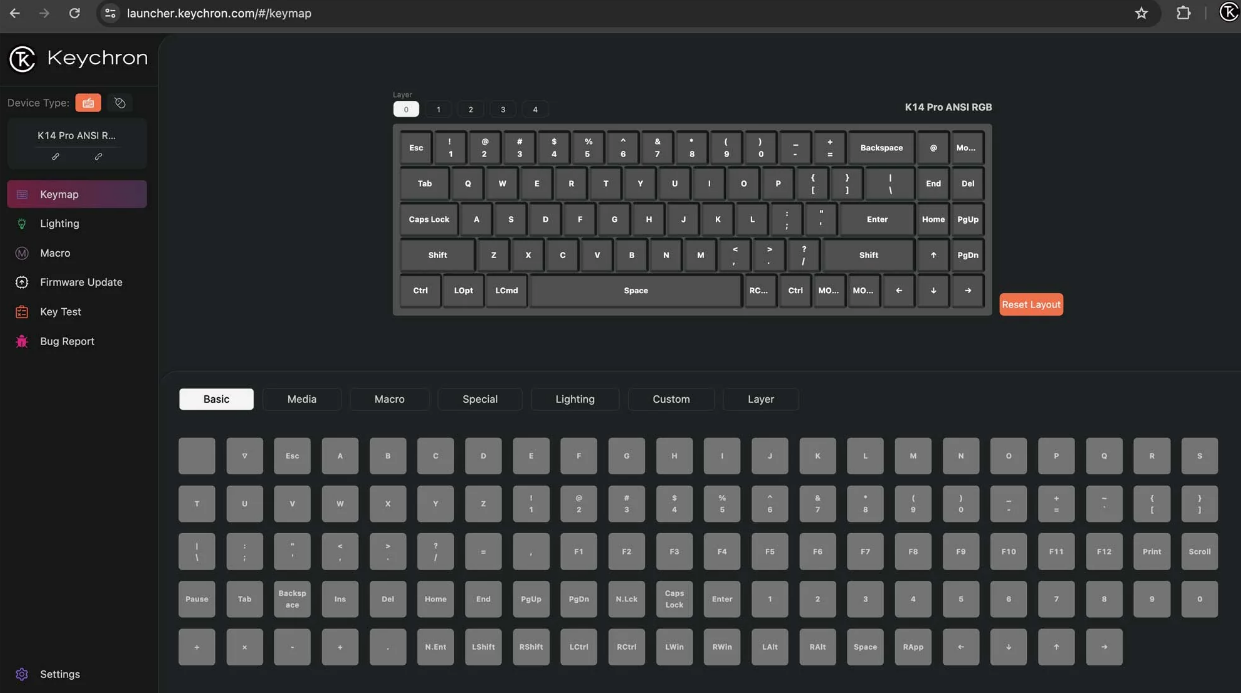

Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Suitable For All Devices
Offers a Mac layout while remaining compatible with Windows. It stands out in the market by providing the same multimedia and function key functions as Apple keyboards for Mac users, but with enhanced tactile feedback.
Additionally, you can configure different keymaps for both Mac and Windows devices. The VIA software is compatible with macOS, Windows, and Linux. The keyboard includes keycaps for both macOS and Windows, along with additional esc and enter keys, facilitating seamless switching between operating systems.
An Epic Core Inside
A powerful ARM architecture MCU equipped with 256KB Flash will provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes the latency hardly noticeable even in competitive games.
Interior Acoustic Foam
Elevate your typing with K5 Max featuring advanced IXPE acoustic foam for silent keystrokes and enhanced comfort, coupled with resilient latex foam for superior key switch support, responsiveness, and durability. Redefining the standard for a quiet, comfortable, and responsive typing experience.

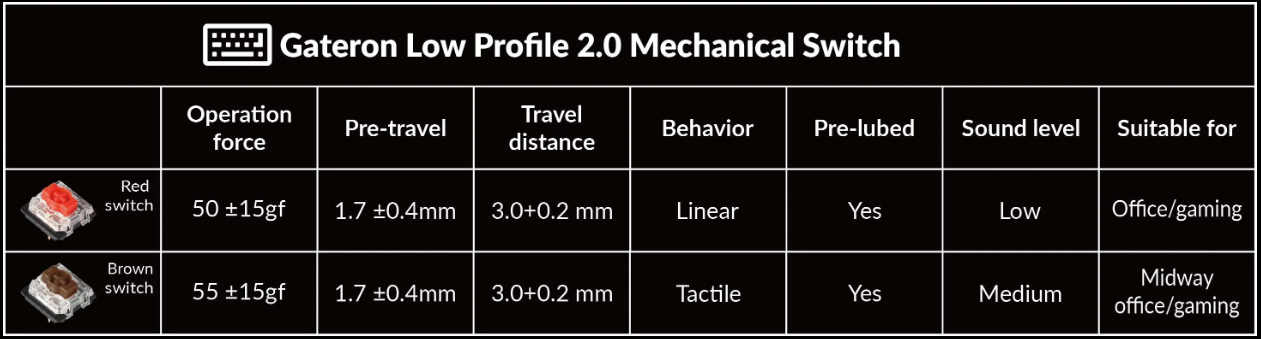

Low-Profile Gateron Switch
The Gateron low-profile MX 2.0 Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel whether you prefer linear (red) or bumpy (brown).
Low-Profile Double-Shot PBT Keycaps
Designed for premium type feeling, the K5 Max comes with our unique double-shot PBT keycaps that made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.
Redesigned Stabilizers
We've redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.

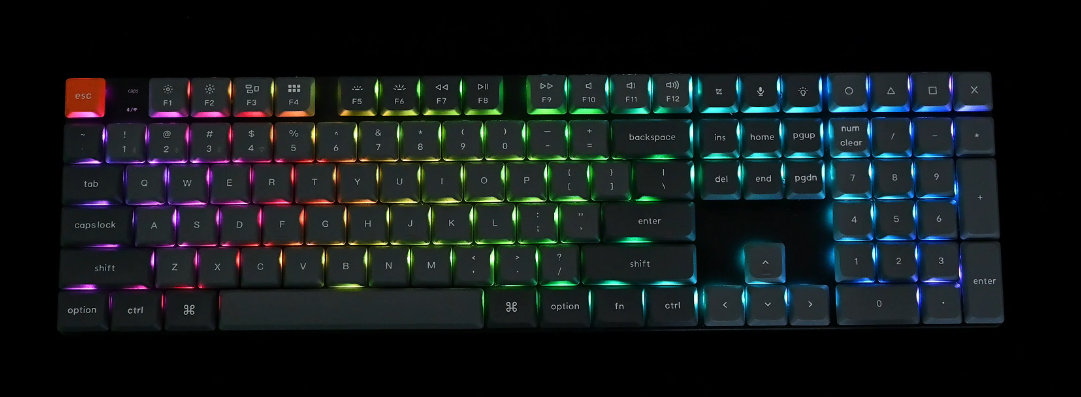

RGB Backlights
Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.

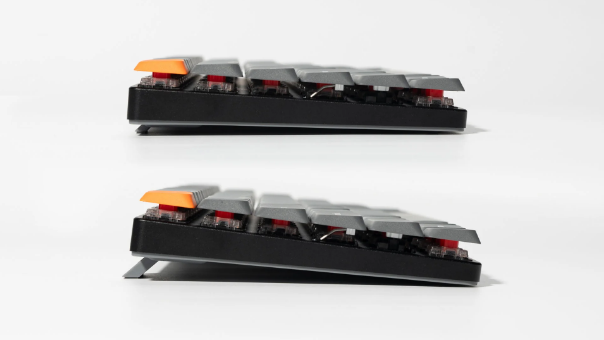

Ergonomic Support
Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Gaming Keyboards
Logitech G213 Prodigy RGB Gaming Keyboard
Razer Huntsman Mini 60% Gaming Keyboard - Mercury Edition - Razer...
Razer Ornata V3 X Low Profile Gaming Keyboard
PowerPlay E-Blue Mechanical-Sense RGB Gaming Keyboard
Razer Huntsman Mini 60% Gaming Keyboard - Razer Clicky Optical...
_20250910222933.webp)
Keychron K5M-B1 K5 MAX 100% Custom Mechanical Keyboard Gateron Red Switch - Wireless / Wired / 2.4GHz Low Profile QMK - ANSI Full Size Layout - 104 Key - Full Assembled - RGB- Low Profile
- Brand: Keychron
- MPN: K5M-B1
- Part #: KEYKCH1324
Product URL: https://www.pbtech.co.nz/product/KEYKCH1324/Keychron-K5M-B1-K5-MAX-100-Custom-Mechanical-Keybo
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 1 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The K5 Max keyboard blends classic design with advanced connectivity, featuring a 100% layout and support for 2.4 GHz, Bluetooth, and wired connections. With QMK/VIA customization, it enhances both work efficiency and gaming, offering a smooth, responsive encounter.
2.4 GHz & Bluetooth Connection
Experience unparalleled performance with the K5 Max's 2.4 GHz wireless connection, offering a swift 1000 Hz polling rate. Its Bluetooth 5.1 capability allows seamless switching between computer, phone, and tablet for smooth multitasking across three devices.
Ultra-Slim
The innovative low-profile Gateron switch is 31% slimmer than conventional normal profile switches makes the aluminum body K5 Max one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Suitable For All Devices
Offers a Mac layout while remaining compatible with Windows. It stands out in the market by providing the same multimedia and function key functions as Apple keyboards for Mac users, but with enhanced tactile feedback.
Additionally, you can configure different keymaps for both Mac and Windows devices. The VIA software is compatible with macOS, Windows, and Linux. The keyboard includes keycaps for both macOS and Windows, along with additional esc and enter keys, facilitating seamless switching between operating systems.
An Epic Core Inside
A powerful ARM architecture MCU equipped with 256KB Flash will provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes the latency hardly noticeable even in competitive games.
Interior Acoustic Foam
Elevate your typing with K5 Max featuring advanced IXPE acoustic foam for silent keystrokes and enhanced comfort, coupled with resilient latex foam for superior key switch support, responsiveness, and durability. Redefining the standard for a quiet, comfortable, and responsive typing experience.
Low-Profile Gateron Switch
The Gateron low-profile MX 2.0 Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel whether you prefer linear (red) or bumpy (brown).
Low-Profile Double-Shot PBT Keycaps
Designed for premium type feeling, the K5 Max comes with our unique double-shot PBT keycaps that made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.
Redesigned Stabilizers
We've redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.
RGB Backlights
Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.
Ergonomic Support
Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.
Specifications
Number of Keys
108 (100%)
Switches
Gateron low-profile mechanical
Switch Face
North-facing
Number of Multimedia Keys
12
Frame Material
ABS+Aluminum frame
Keycap Material
Low-profile double-shot PBT
Layout
ANSI
Polling Rate (2.4GHz and Wired Mode)
1000Hz
Polling Rate (BT Mode)
90Hz
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
*The K5 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
CONNECTIVITY AND POWER
Backlit
22 types of RGB backlight options plus endless possibilities
Battery
2000 mAh rechargeable li-polymer battery
Wireless Working Time (Backlit off)
Up to 110 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)
Up to 70 hours (Lowest brightness)
Connection
2.4 GHz / Bluetooth / Type-C wired
Bluetooth version
5.1
Bluetooth Device Name
Keychron K5 Max
Compatible System
macOS / Windows / Linux
PHYSICAL UNIT
Dimension
424 mm x 119 mm (16.69 x 4.69")
Weight
720g / 1.59 lbs
Height without keycap (front)
7.8 mm (0.3")
Height without keycap (rear)
14.7 mm (0.58")
Height incl. keycap (front)
18.2 mm (0.72")
Height incl. keycap (rear)
23.5 mm (0.92")
Typing Angle
3.37º, 4.36º and 6.56º
MCU
ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment
-10 to 50?
