Chief LCM2X2U FUSION Micro-Adjustable Large Ceiling M Video Wall

Chief LCM2X2U FUSION Micro-Adjustable Large Ceiling M Video Wall

  • Brand: Chief
  • MPN: LCM2X2U
  • Part #: KVMCHI1006
  • UPC:
  • Product Type:Other
  • Min Screen Size Supported:55 inches
  • Max Screen Size Supported:55 inches
  • Max Weight Supported:56kg
  • Max Rotation:N/A
PB Tech price:PB Tech price:
$5,18087$5,95800
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships on 26/02/2019
When will I receive it?

Finance from $51.73 per week*

No payments or interest for 12 months available

Features

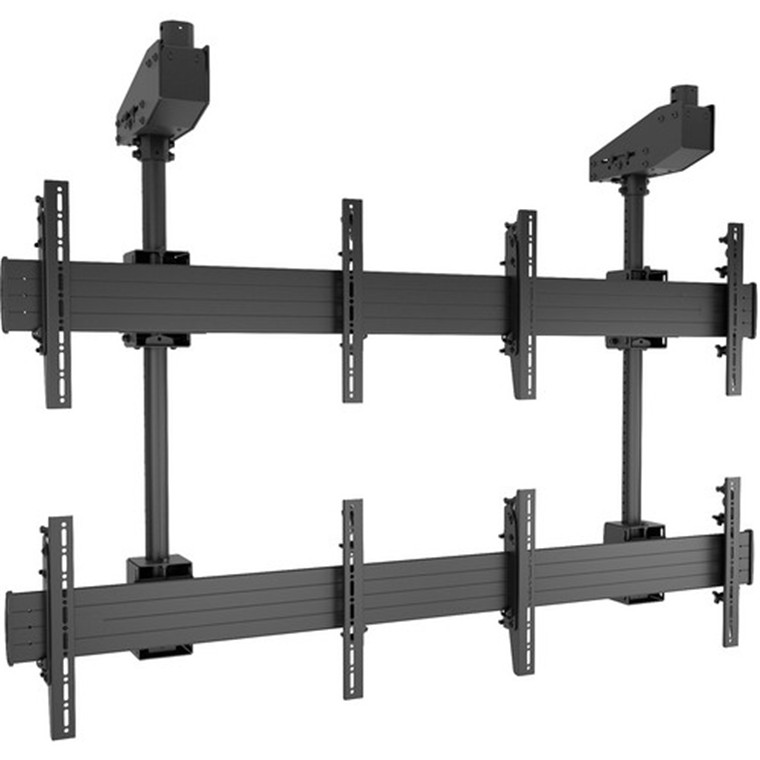

The black LCM2X2U Fusion 2 x 2 Large Ceiling Mounted Video Wall Solution from Chief makes it possible to construct video walls in prominent locations where walls are not available. This sturdy system allows you to put up four 55" displays next to each other to provide a tight display of rows and columns.

This Fusion Ceiling Mounted Video system is suitable for digital signage installations, and is compatible with traditional 1.5" NPT and CPA pinned ceiling plate and extension column systems.


Precise Screen Alignment

Align displays with independent knobs for height and plumb adjustments, without any tools


ControlZone Leveling

Micro-height and leveling adjustments at all column intersection points


Screen Positioning

Vertical and lateral adjustments provide a tight display of rows and columns 1


Heavy-Duty Construction


Solid construction supports typical displays up to 55" and 125 lb (56.7kg) per screen


Configurable


Add configurations side by side to create any video wall arrangements up to 3 screens tall

Specifications

In the Box

Raxxess LCM2X2U Fusion 2 x 2 Large Ceiling Mounted Video Wall Solution (Black)
Mounting Hardware
Interface Bracket (Right)
Interface Bracket (Left)
Array Offset
Array Head with Back Cover
End Cap
2 x Mounting Rail
2 x 48.0" (121.9cm) Array Column
CPA261 1-1/2" NPT to CPA Series Extension Column Adapter

Adjustments

Micro-adjustments of 2.00" (5.08 cm) at structural intersection points

Height Adjustment

Manual: 1.00" (2.54 cm) increments at structural intersections

Mounting Pattern Compatibility (Universal Version)

100 to 400 mm

Orientation

Landscape

Plumb Adjustment

Micro-adjustment up to 0.75" (1.90 cm)

Solution Type

Universal

Typical Screen Sizes

Recommended: 55.0" (139.7cm)

Height

Arm: 5.38" (13.66 cm)

Weight Capacity

Each display: 125.0 lb (56.7 kg)
Total: 500.0 lb (226.8 kg)

Overall Dimensions (WxHxD)

72.83 x 43.28 x 14.50" (185.00 x 138.70 x 36.83 cm)

Manufacturer Part No: LCM2X2U Brand: Chief Product Type: -
UPC - Product Family: - Shipping Weight: 1 kg
PB Part No: KVMCHI1006 Product Model: -

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
