LENKENG LKV342PRO HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs

4x2 HDMI Matrix Switch - 4K30Hz

With promo code $112.56
With promo code $129.44
Save $5
Save $6
$ 118 .48
 +GST
$ 136 .25
 inc GST
$118.48  +GST
$136.25

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

LENKENG LKV342PRO HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs

4x2 HDMI Matrix Switch - 4K30Hz

  • Brand: LENKENG
  • MPN: LKV342PRO
  • Part #: KVMLNK1019
  • UPC:
CLEARANCE
7
With promo code $112.56
With promo code $129.44
Save $5 with code CLEARANCE
Save $6 with code CLEARANCE
Without promo code
$ 118 .48 $ 136 .25
 +GST  inc GST

Part of Clearance Zone
For a limited time only, only 1 unit left!


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$118.48  +GST
$136.25
  • Brand: LENKENG
  • MPN: LKV342PRO
  • Part #: KVMLNK1019
  • UPC:

Maximum Supported Resolution

3840x2160

What PB Tech customers are saying about this product...

See More Reviews

"Amazing HDMI SWITCHER. Easily switches between my computer monitor and TV using a long hdmi cable. No loss in picture quality either. Also the blue light from it is a nice night li ...view more"

G
By: Guest 03/01/22

"Great connection and works very well."

G
By: Guest 10/12/21

"Product does what it says & is easy to set up. Saves disconnecting & reconnecting the different HDMI products to the two tvs. Easy to use with the remote."

IH
By: IanH875 22/12/20
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the LENKENG LKV342PRO HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI...
LENKENG LKV342PRO HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs 4x2 HDMI Matrix Switch - 4K30Hz
Total:
$ 130 .04
 +GST
$ 149 .55
Buy together and save $1.01 $1.16
Dynamix C-HDMIHSE-5 10Gbps High-Speed Slimline HDMI Cable - with Ethernet - 5m Max Res 4K2K 24/30Hz (3840x2160) - 8 Audio Channels - 8bit Colour Depth - Supports CEC, 3D, ARC
Dynamix C-HDMIHSE-5 10Gbps High-Speed Slimline HDMI Cable - with Ethernet - 5m Max Res 4K2K 24/30Hz (3840x2160) - 8 Audio Channels - 8bit Colour Depth - Supports CEC, 3D, ARC
$12.57 $14.46

$11.56  +GST

$13.29

You save 8% You save 8%

Features

https://www.lenkeng.com/p_detail/134/type/types

LENKENG HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs. Supports up to UHD 4K2K@30Hz & 1080p Full HD. Supports 12-bit Deep Colour, CEC, HDCP, IR Remote Control. Includes remote.

This 4x2 HDMI Matrix Switch has 4x HDMI inputs and 2x HDMI outputs. It is a true matrix switch and can distribute any one of 4x sources to any 2x displays and can work as a splitter to show the same source on 2x displays simultaneously. Analogue R/L audio and digital SPDIF audio can be extracted from HDMI signal. It supports 3D HDMI and HDMI1.4 (4K2K).



Features

  • Routes four Ultra Hi-Def sources to two Ultra HD displays
  • Supports resolutions up to Ultra HD 4K2K (3840 x 2160@30Hz) and 1080p Full HD
  • Supports 12-bit Deep Color
  • Supports PCM, Dolby Digital™ and DTS Digital Surround™
  • Support audio output simultaneously (from output A)
  • HDMI input/output cables may be up to 10/15m with a 1080p/8-bit resolution
  • Supports HDMI/MHL dual mode input (input 1)
  • Supports CEC
  • Supports HDCP
  • Supports IR remote control
  • Supports surface-mountable
  • Includes remote control (LKV342PRO-REMOTE)

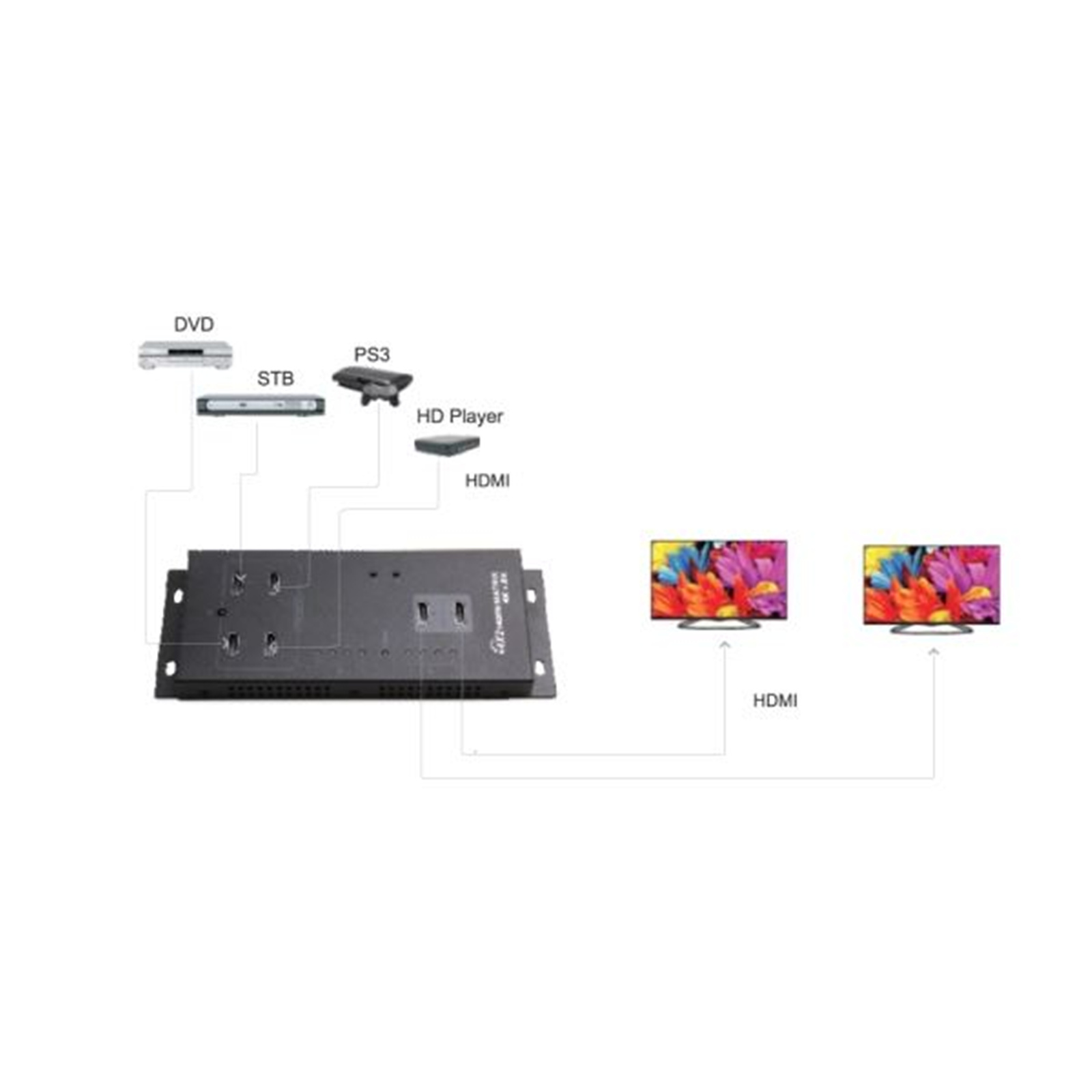

The LENKENG LKV342PRO 4x2 HDMI Matrix Switch allows you to connect four HDMI sources (such as Blu-ray players, gaming consoles, or PCs) and output them to two displays (TVs or projectors). However, it does not support video merging or multi-view (e.g., displaying all four inputs on one screen at the same time).

What it Can Do:

? Switch between different HDMI sources to output to one or both displays.
? Send different sources to different outputs (e.g., Source 1 to TV 1, Source 2 to TV 2).
? Duplicate the same source to both outputs.

What it Cannot Do:

? Combine all four inputs into one single screen (like a video wall or multi-view mode).
? Support Picture-in-Picture (PIP) or Quad-view.

If you need to display all four sources on one screen simultaneously, you would need a multi-view HDMI processor instead of a matrix switch. Let me know if you need recommendations!

Specifications

Power Supply 5V/3A
Input Ports HDMI x4
Output Ports HDMI x2
Power Indicator LED  Yellow LED x1
Signal Indicator LED Blue LED x8
Frequency Range 25MHz~340MHz
Max Transmission Rate  3.4G x 3 = 10.2Gbps
Colour Depth Supports 12-bit DeepFull HD,
Full 3D and 4K2K Video
Audio Supports Standard Audio and DSD (Direct Stream Digital)
Audio and HD (HBR) Audio
HDMI Resolution

480i@60hz. 480o@60Hz, 576i@50Hz, 576P@50Hz,
720p@50@60Hz,1080i@50@60Hz, 1080p@50@60Hz,
3D HDMI (720p@50@60Hz, 1080p@24Hz),
3840 x 2160p@24@25@30Hz

Dimension 213 x 86 x 19mm
Net Weight 390g
Colour Black
Working Temperature 0°C~60°C
Manufacturer Part No:
LKV342PRO
Brand:
LENKENG
Product Type:
HDMI Matrix Switch
UPC
-
Product Family:
-
Shipping Weight:
0.8 kg
PB Part No:
KVMLNK1019
Product Model:
LKV342PRO
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
