LENKENG LKV301HDR-V3.0 4K 3-In-1-Out HDMI HDR Switch. Support 12 bit full HD video, 3D video and 4Kx2K 30/60Hz ultraHD video. Compatible with HDMI 1.4, HDMI 2.0 & HDCP 1.4, HDCP 2.2. Includes Remote Control.

PB Tech price
PB Tech price
$ 45 .22
 +GST
$ 52 .00
 inc GST
$45.22  +GST
$52.00

LENKENG LKV301HDR-V3.0 4K 3-In-1-Out HDMI HDR Switch. Support 12 bit full HD video, 3D video and 4Kx2K 30/60Hz ultraHD video. Compatible with HDMI 1.4, HDMI 2.0 & HDCP 1.4, HDCP 2.2. Includes Remote Control.

  • Brand: LENKENG
  • MPN: LKV301HDR-V3.0
  • Part #: KVMLNK1179
  • UPC:
2
PB Tech price
$ 45 .22 $ 52 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 03 Oct When will I receive it?
$45.22  +GST
$52.00
  • Brand: LENKENG
  • MPN: LKV301HDR-V3.0
  • Part #: KVMLNK1179
  • UPC:

Features

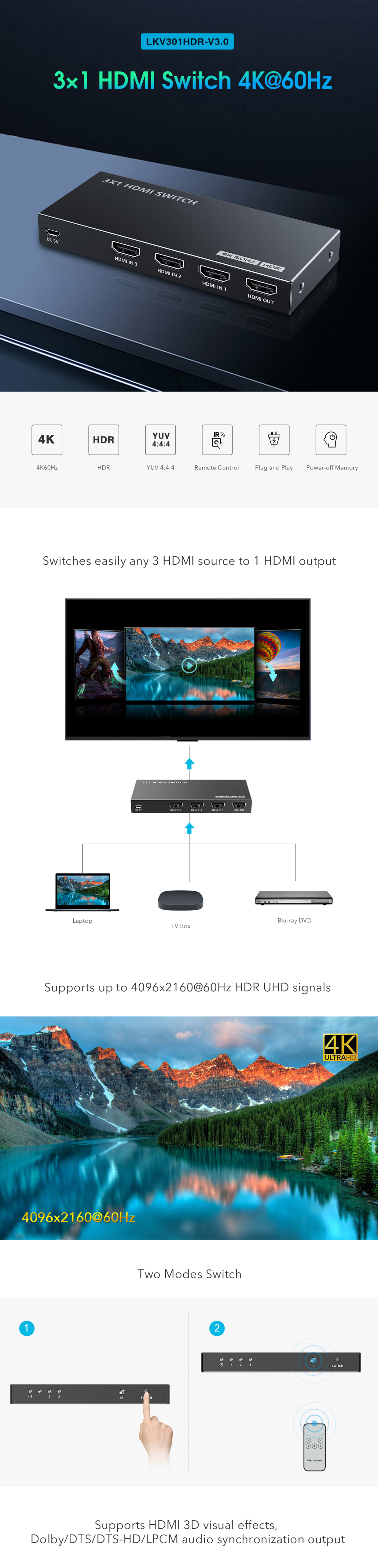

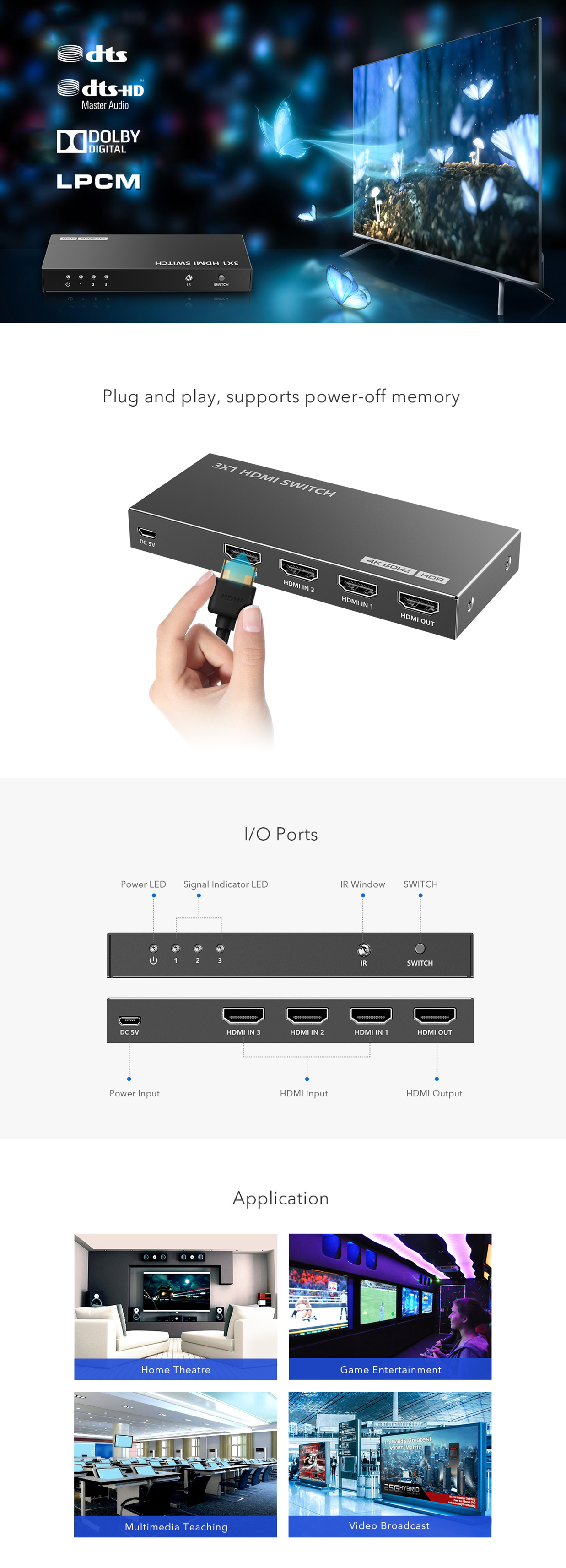

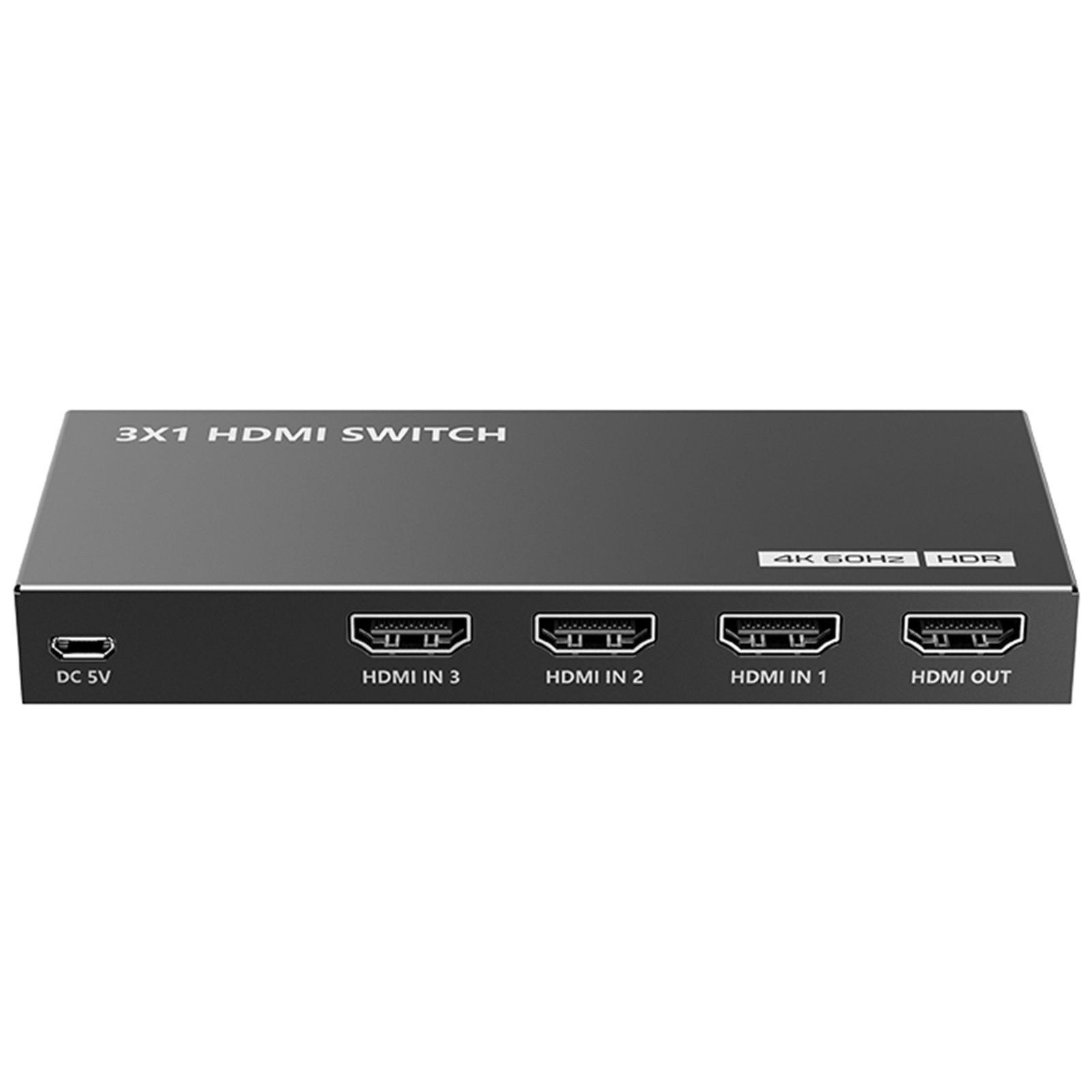

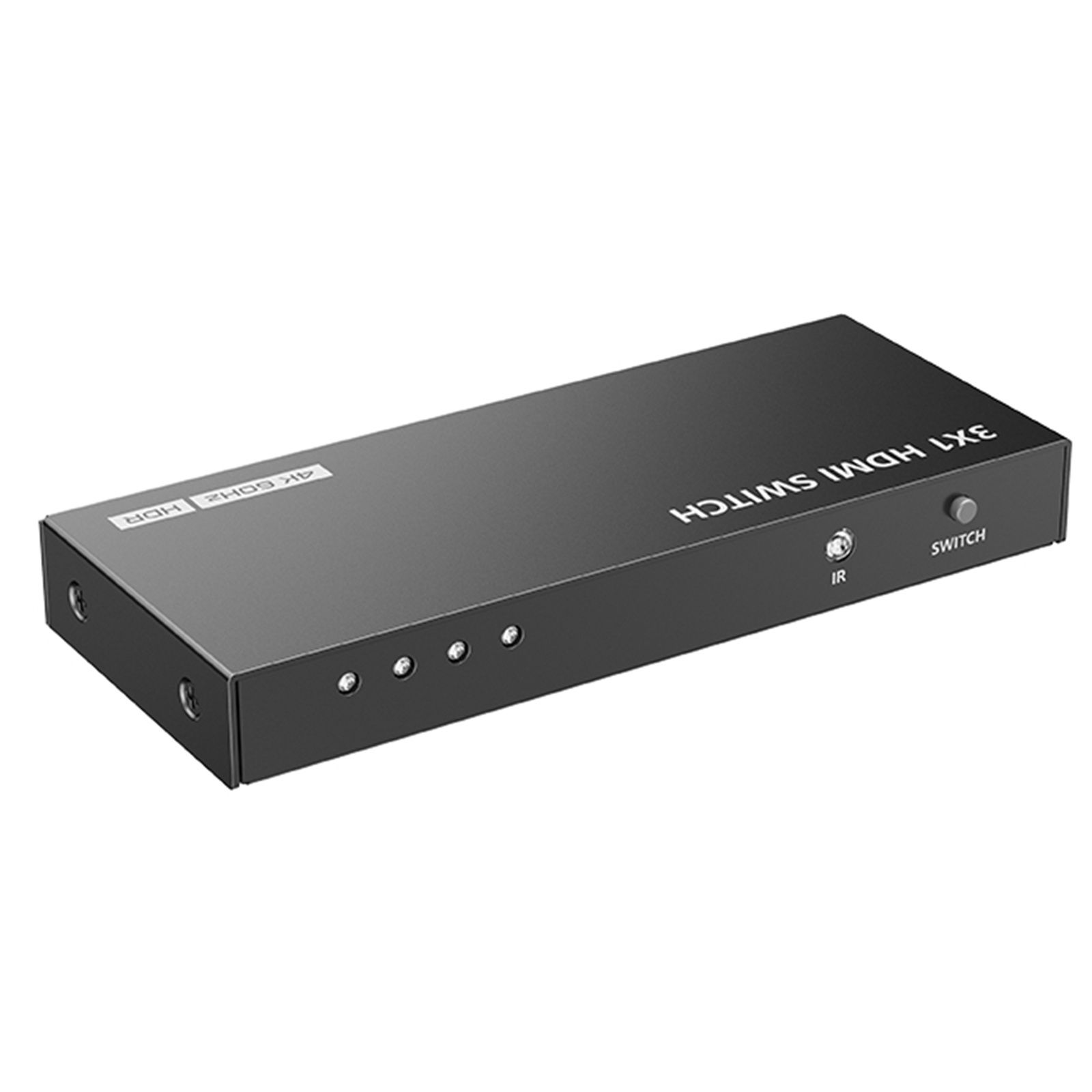

LENKENG 4K 3-In-1-out HDMI HDR Switch

This 3x1 switch routes from 3 different sources at a resolution of up to 4K@60Hz UHD to a single display. The switch has 3 HDMI inputs, which makes this unit ideal for simultaneous connection of multiple HDMI devices. In addition, this switch supports IR control, thus it is easy and flexible to control the input signal as you need. It is perfect for security systems, medium entertainment, conference exhibition centre and digital monitoring system, etc.

- Switch easily among any 3x HDMI sources
- Support resolution up to Ultra HD 4K@60Hz
- Supports highest bandwidth of up to 18Gpbs
- Support HDR
- Support HDMI 3D
- Support IR control
- Plug-and-play, easy to use Power-off memory


Specifications

Input ports

3x HDMI

Output ports

1x HDMI

Power indicator led

1x LED

Signal indicator led

3x LED

HDMI version

Compatible with HDMI 1.4, HDMI 2.0

HDCP version

Compatible with HDCP 1.4, HDCP 2.2

Video format supported

Support 12 bit full HD video, 3D video and 4K@ 30/60Hz ultra HD video

I/O TMDS signal

0.7~1.2V p-p

I/O DDC signal

5V p-p

Audio format supported

Support standard audio and DSD (Direct Stream Digital) and HD (HBR) audio

HDMI resolution

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1920x1200, 3840x 2160@ 24/25/30/50/60Hz, 4096x2160@ 24/25/30/50/60Hz

HDMI length

4K@ 60Hz HDMI input length =2m, HDMI output length =3m 1080p@ 60Hz HDMI input length =5m, HDMI output length =5m

HDR

Yes

Working temperature

0°C~60°C

Power supply

DC 5V, 500mA

Power consumption

<2.5W

Dimension

130(L) x 54(W) x 16.5(H) mm

Weight

170g

Color

Black

Manufacturer Part No:
LKV301HDR-V3.0
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
KVMLNK1179
Product Model:
LKV301HDR-V3.0
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

2.5 out of 5 Stars Based on 2 reviews
5 Stars
0
4 Stars
0
3 Stars
1
2 Stars
1
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Looking for HDCP 2.2 for white Sky Box

The picture comes through but keeps dropping off. Not suitable for the white Sky box but is working fine for all the other mediabIm porting through it

G
By: Guest 19/07/25
0 out of 0 users found this review helpful
Did you find it helpful?

Lenkeng HDMI switch

Bought a Ugreen 2 HDMI to 1 adaptor. Wouldn't let the white Sky box signal through as it’s HDCP 2.2. Then bought the Lenken 3 to 1 powered adaptor. Lets the Sky signal through but consistently drops out so don’t purchase it for this purpose as its not suitable either 😩

BD
By: BillD96 05/07/25
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
