LENKENG LKV372P HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70mRecievers.Supports PoC, Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed. Not Suitable for Cat5/5e

PB Tech price
PB Tech price
$ 100 .34
 +GST
$ 115 .39
 inc GST
$100.34  +GST
$115.39

LENKENG LKV372P HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70mRecievers.Supports PoC, Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed. Not Suitable for Cat5/5e

  • Brand: LENKENG
  • MPN: LKV372P
  • Part #: KVMLNK1186
  • UPC:
PB Tech price
$ 100 .34 $ 115 .39
 +GST  inc GST
Hurry, only 1 unit left!


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$100.34  +GST
$115.39

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the LENKENG LKV372P HDMI & IR Extender Kit Over Cat6/6A. 1080p up to...
LENKENG LKV372P HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70mRecievers.Supports PoC, Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed. Not Suitable for Cat5/5e
Total:
$ 106 .34
 +GST
$ 122 .29
Buy together and save $0.67 $0.77
Dynamix C-HDMIHSE-1 High-Speed Slimline HDMI Cable - with Ethernet - 1m 19 Pin Type A Male to Male
Dynamix C-HDMIHSE-1 High-Speed Slimline HDMI Cable - with Ethernet - 1m 19 Pin Type A Male to Male

$6.00  +GST

$6.90

You save 10% You save 10%

Features

LENKENG HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70m. Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed. Not Recommended for Cat5/5e

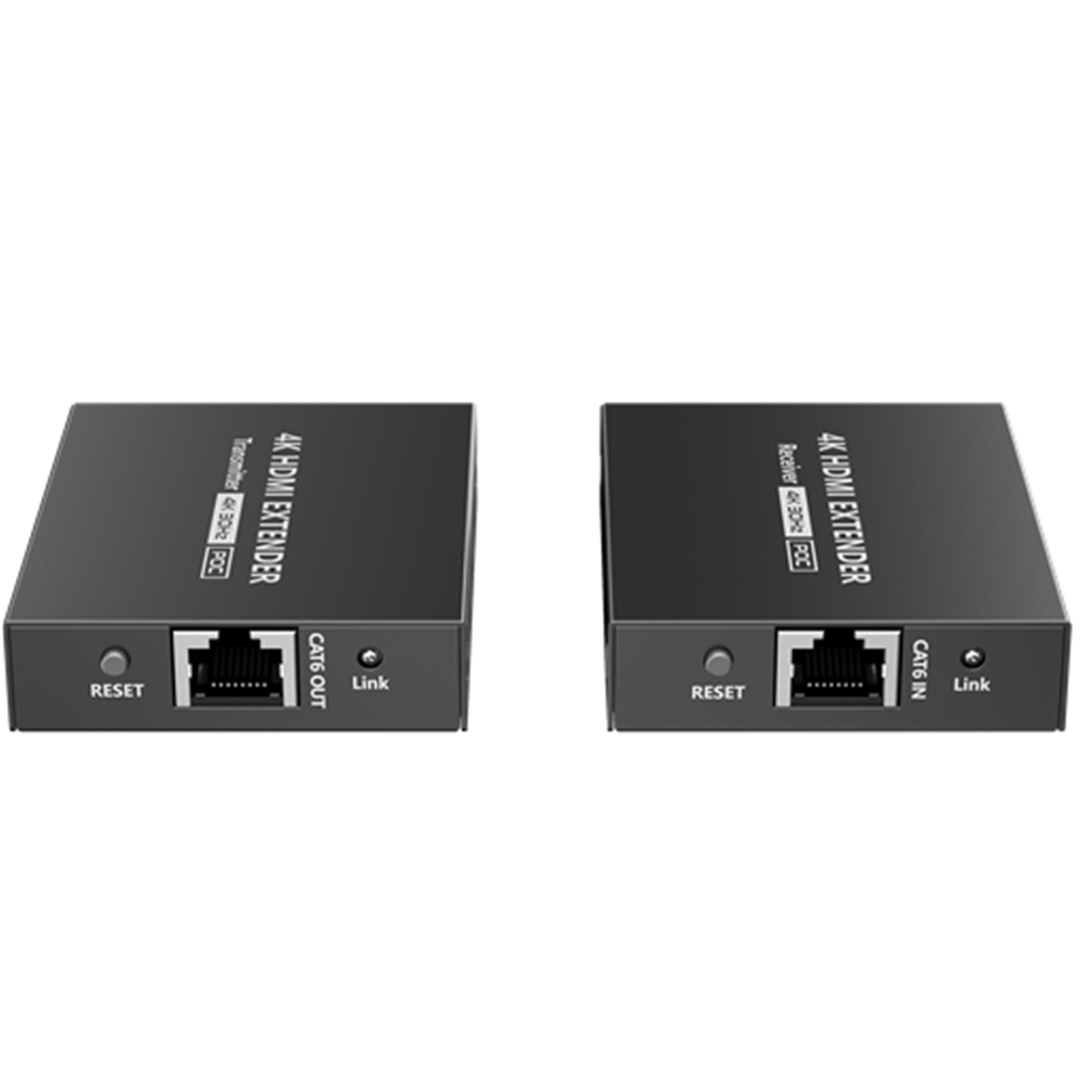

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.

- Zero latency
- Support up to 4K@30Hz resolution
- Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70meters, 4K@30Hz transmission distance is up to 40 meters
- Support IR pass-back function (20KHz~60KHz)
- Support HDR10
- Support EDID passthrough
- Support PoC network cable power supply, only TX power supply is needed

Specifications

Power Supply

Voltage/Current

DC 5V/2A

Power consumption

TX+RX

HDMI Performance and Interface

HDMI resolution

800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840x2160@24/25/30Hz

Audio formats

DTS, DTS-HD, PCM, LPCM

HDR

Support

EDID through

Support

IR Pass-back

Frequency Range: 20KHz~60KHz

Input and output TMDS signal

0.7~1.2Vp-p (TMDS)

Input and output DDC signal

5Vp-p (TTL)

Transmission Distance

Cat6/6A/7

1080p@60Hz transmission 70 metres 4K@30Hz transmission 40 metres 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)

Protection Level

Electrostatic protection of the whole machine

Implementation of the standard: IEC61000-4-2

Operating Environment

Working temperature

-20°C~60°C

Storage temperature

-30°C~70°C

Humidity (no condensation)

0%~90% RH

Body Properties

Dimension

75.0(L) x 60.0(W) x 16.5(H) mm

Weight

TX:127g

Manufacturer Part No:
LKV372P
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
KVMLNK1186
Product Model:
LKV372P
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
