LENKENG HDMI KVM Extender Over Single Cat5E/6 Cable Up to 120M
LENKENG HDMI KVM Extender Over Single Cat5E/6 Cable Up to 120M
- Brand: LENKENG
- MPN: LKV373KVM-4.0
- Part #: KVMLNK1190
- UPC:
- Brand: LENKENG
- MPN: LKV373KVM-4.0
- Part #: KVMLNK1190
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular KVM Extenders





LENKENG HDMI KVM Extender Over Single Cat5E/6 Cable Up to 120M
- Brand: LENKENG
- MPN: LKV373KVM-4.0
- Part #: KVMLNK1190

Product URL: https://www.pbtech.co.nz/product/KVMLNK1190/LENKENG-HDMI-KVM-Extender-Over-Single-Cat5E6-Cable
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 3 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

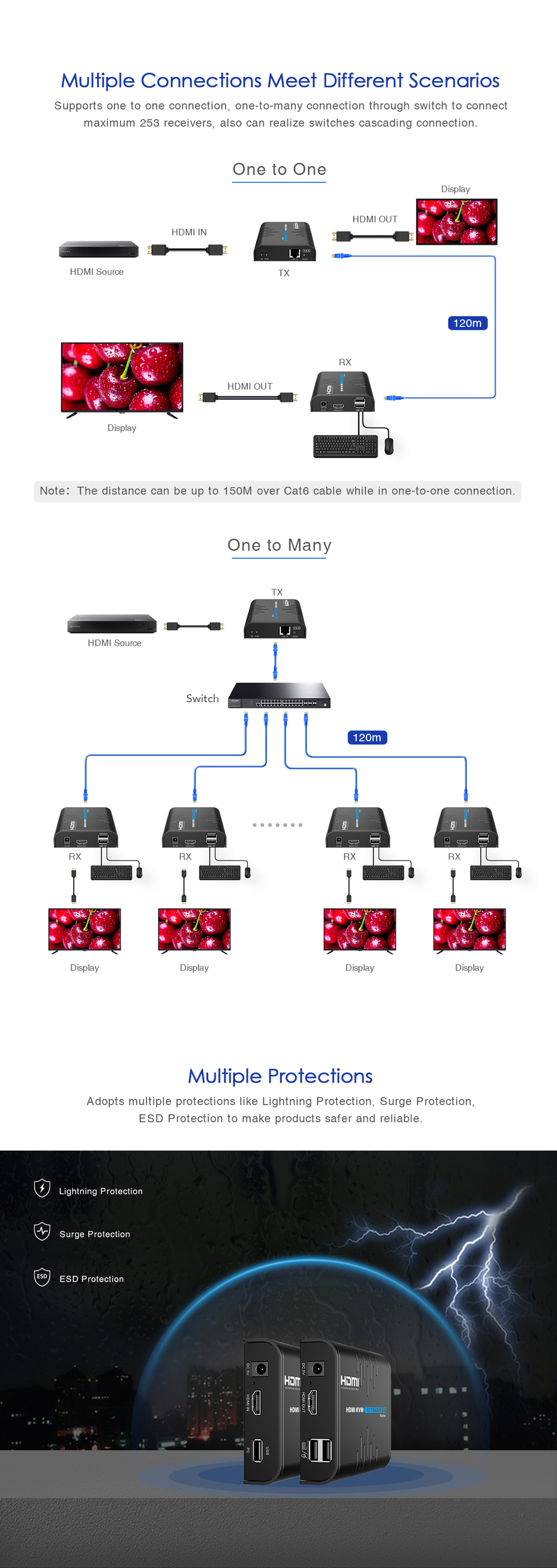

This is a HDMI™ KVM Extender, is made up of a transmitter unit(local site) and a receiver unit(remote site). The HDMI™ signal can be extended up to 120 meters via network cable, and the resolution supported is up to 1080p @ 60Hz. It allows access to a computer system from a remote console by USB connectors(USB keyboard and mouse). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location. It is also useful for control and security purposes. Therefore it is widely used in command center, data control center, operation rooms in military, bank, government, enterprise etc.
Specifications
HDM version
HDMI 1.3
HDCP version
HDCP1.4
Video bandwidth
<= 20Mbps
HDMI resolution supported
640*480 @ 60Hz
800*600 @ 60Hz
1024*768 @ 60Hz
1280*720 @ 60Hz
1360*768 @ 60Hz
1440*900 @ 60Hz
1400*1050 @ 60Hz
1680*1050 @ 60Hz
1920*1080 @ 60Hz
Audio support
PCM (44.1KHz, 48KHz)
HDMI connector
Type A, 19 pin, Female
LAN connector
RJ-45
Operation temperaure
-10°C~60°C
Relative humidity
10-95% (Noncondensing)
Protection
Lightning Protection
Surge Protection
ESD Protection
Power Consumption
TX<3.5w, RX<3.5w
Dimensions
109.6(L)x89.5(w)x26.3(H) mm
Weight
TX: 240g
RX: 240g
Colour
Black
