LENKENG 4K HDMI Extender Over 1G IP CAT5e/6/6A/7 Network Cable - Supports Resolution up to 4K60Hz
Out of stock
LENKENG 4K HDMI Extender Over 1G IP CAT5e/6/6A/7 Network Cable - Supports Resolution up to 4K60Hz
- Brand: LENKENG
- MPN: LKV582
- Part #: KVMLNK1192
- UPC:
- Brand: LENKENG
- MPN: LKV582
- Part #: KVMLNK1192
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM Extenders
LENKENG 4K HDMI Extender Over 1G IP CAT5e/6/6A/7 Network Cable - Supports Resolution up to 4K60Hz
- Brand: LENKENG
- MPN: LKV582
- Part #: KVMLNK1192
Product URL: https://www.pbtech.co.nz/product/KVMLNK1192/LENKENG-4K-HDMI-Extender-Over-1G-IP-CAT5e66A7-Netw
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

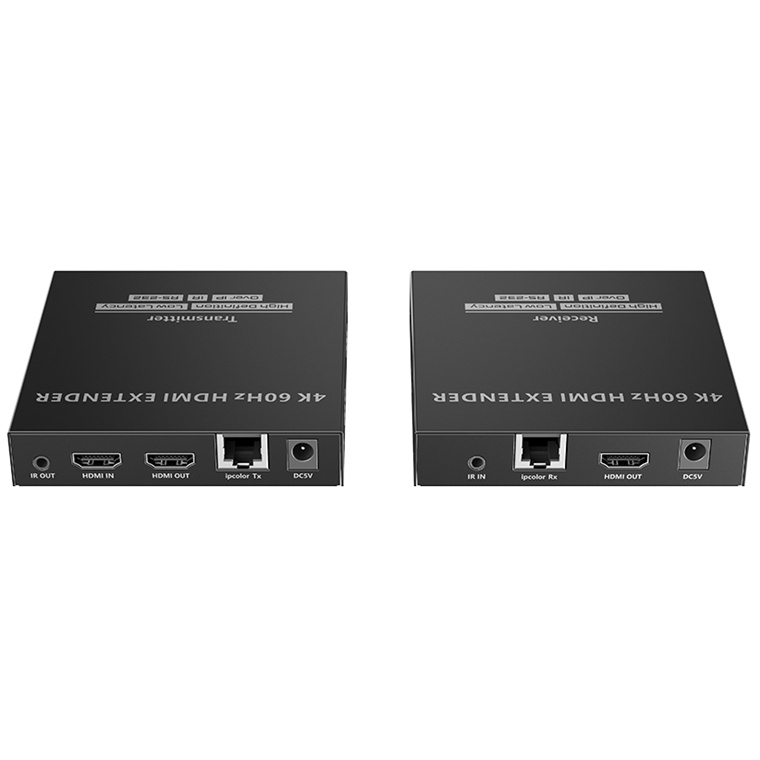

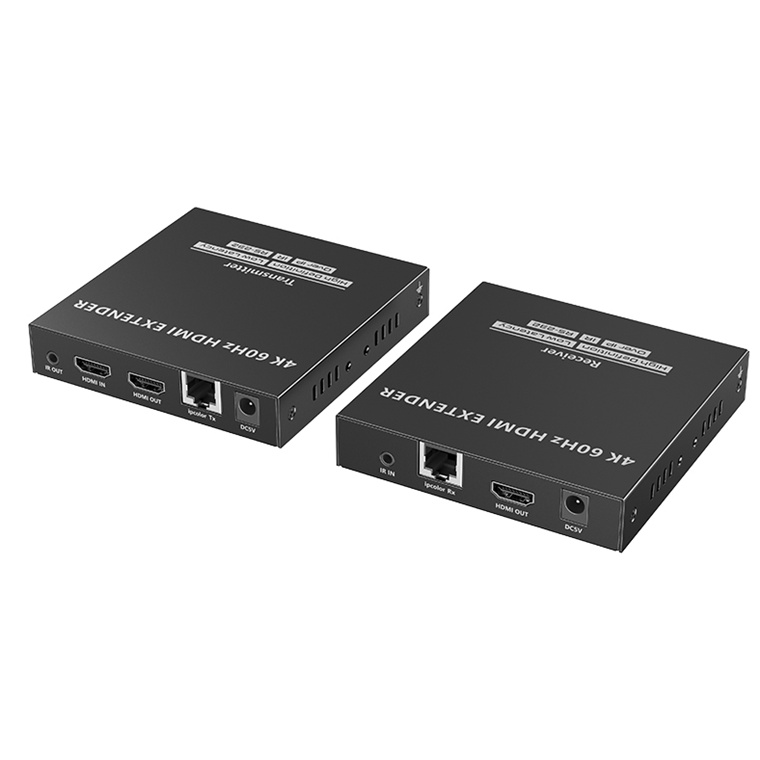

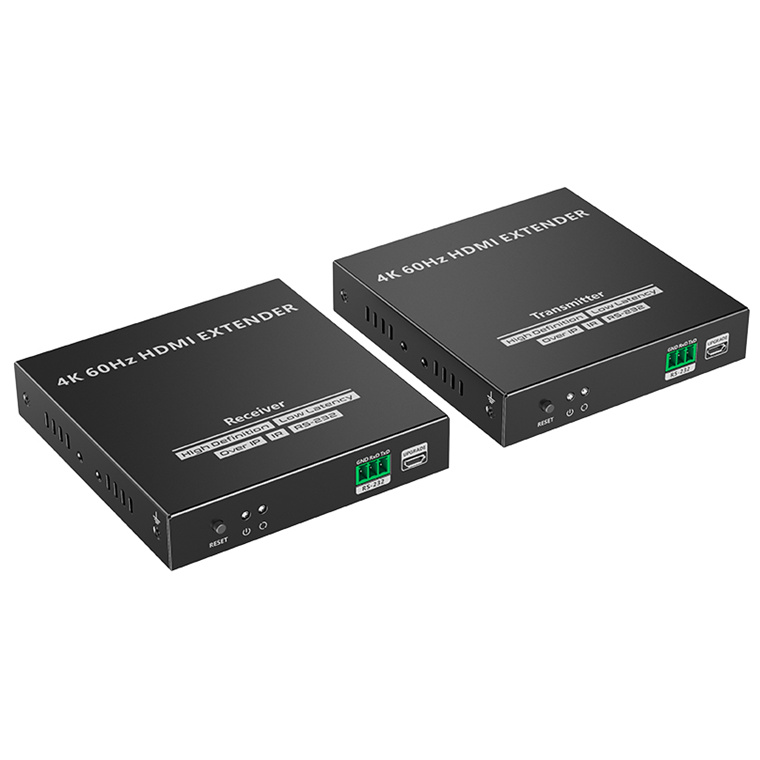

This product is a 4K @ 60Hz HDMI™ extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 4K @ 60Hz HDMI™ signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports HDMI™ loop out, IR passback, and RS-232 passthrough functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.


Specifications
HDMI length
<= 5m
Maximum transfer rate
18Gbps
Compatibility
HDMI 2.0
HDCP 1.4/HDCP 2.2
Resolutions
3840x2160 @ 24/30/50/60Hz, 1080p @ 50/60Hz, 720p @ 50/60Hz, 1920x1200 @ 60Hz, 2560x1440 @ 60Hz, 2560x1600 @ 60Hz
Connection types
One-to-one connection
One-to-many connection
Switch cascading
Transmission distance
Cat6/6A/7=120m
Transmission latency
70~180ms
IR receiving range
<= 5m
IR frequency
20kHz~60kHz
RS-232 (GND/RXD/TXD)
Default baud rate: 115200
Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Power Supply
DC 5V/1A
Power Consumption
TX <= 4.5W
RX <= 2.5W
Working temperature
-20°C~60°C
Storage temperature
30°C~70°C
Humidity
0~90%RH (no condensation)
Housing
Iron
Weight
TX: 254g
RX: 242g
Colour
Black
Dimensions
106.0(L)*103.0(W)*20.6(H) mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
