Features
This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc.
- Zero latency.
- 4K @ 60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable.
- The receiver can extract the digital audio from the transmitter through the S/PDIF port.
- Supports HDR10.
- Supports EDID passthrough, and auto downscaling.
- The transmitter supports one HDMI loop-out.
- Support IR passback function (20 ~ 60KHz).
- Lightning Protection, Surge Protection, ESD Protection.
- Supports bi-directional PoC, only the transmitter or receiver is required to supply power.

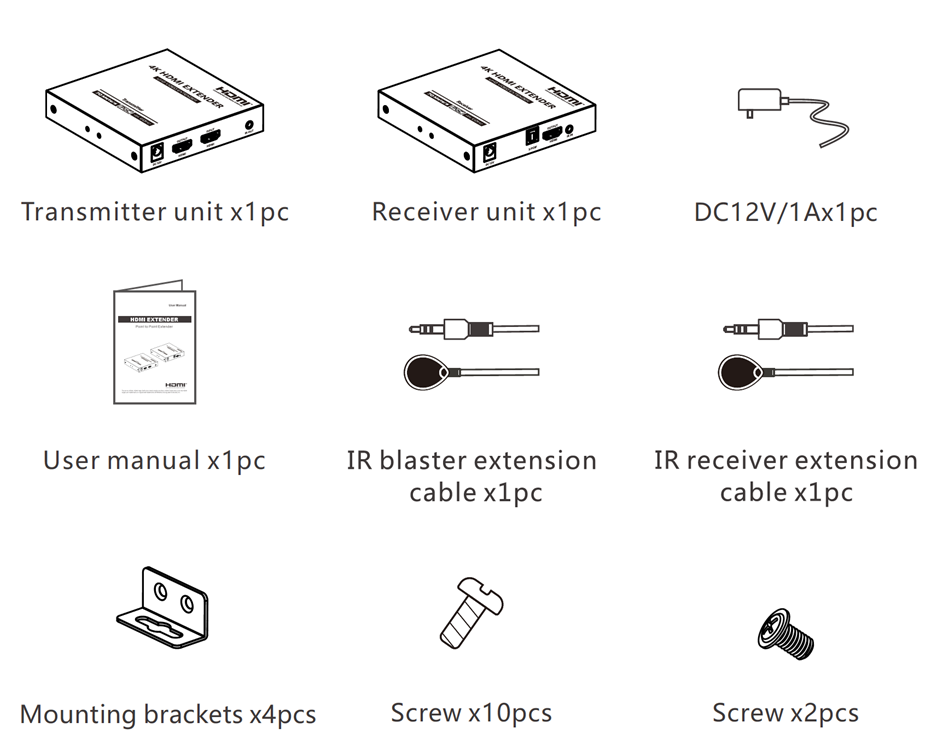

Package Contents


Specifications
Power Supply
DC12V/1A
Power Consumption
TX:4W,RX:4W
HDMI Compliance
HDMI2.0,HDMI2.2
HDMI resolution
480i @ 60Hz?480p @ 60Hz?576i @ 50Hz? 576p @ 50Hz?720p @ 50/60Hz? 1080i @ 50/60Hz?1080p @ 50/60Hz? 3840x2160 @ 24/25/30/50/60Hz 4096x2160 @ 24/25Hz?1280x960? 1280x800?1280x768?1680x1050? 1360x768?1366x768?1600x900?1024x768?800x600
Supports Audio Formats
LPCM/DTS-H D/DTS-Audi/ Dolby Digital 5.1CH/Dolby Atmos
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Input cable length
?8m(AWG24)
Output cable length
?8m(AWG24)
CAT6/6A/7 Transmission Distance
=70m
Protection Level
1a Contact discharge level 3
1b Air discharge level 3
Implementation of the standard: IEC61000-4-2
Working temperature
-20~60°C
Storage temperature
-30~70°C
Humidity (no condensation)
0~90%RH
Dimension
105.5(L) x 102.5(W) x 20(H)mm
Material
Iron
Color
Black
Weight
TX: 243g,RX: 243g
