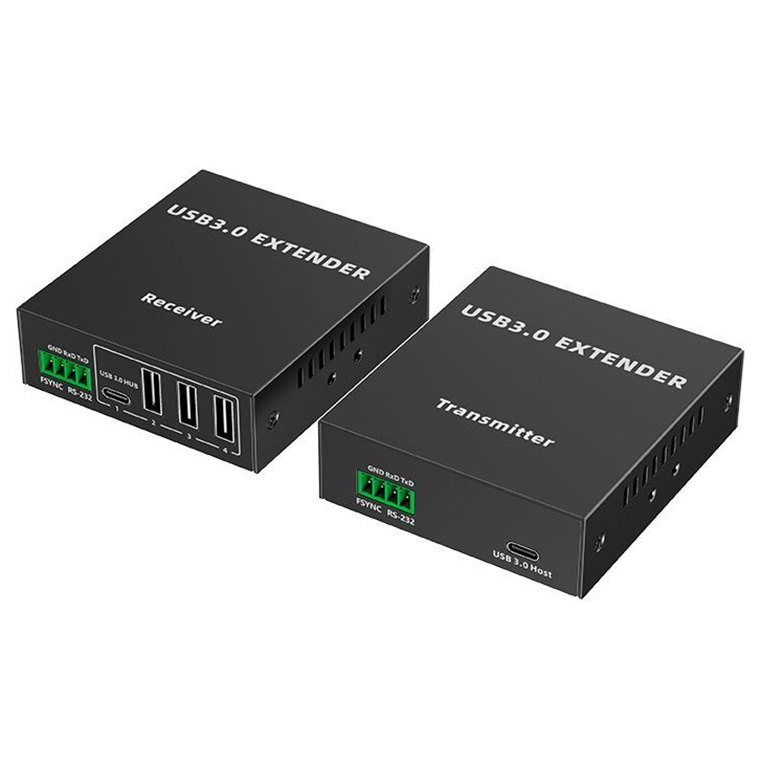

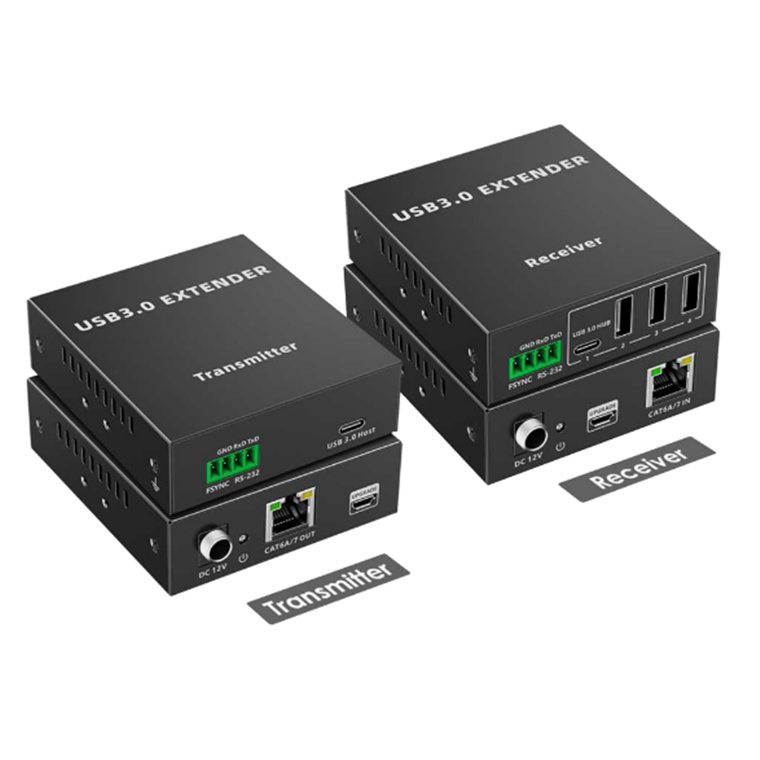

LENKENG LKV300USB LENKENG 4-Port USB-A 3.0 Extender Over Cat5e/6/7 Network Cable. Extend up to 90m (Cat6a). Easy Plug & Play. Includes Both Tx & Rx Units Rx Includes 4x USB-A, 1x RJ45 In Ports. Tx 1x USB-A, 1x RJ45 Out.
LENKENG LKV300USB LENKENG 4-Port USB-A 3.0 Extender Over Cat5e/6/7 Network Cable. Extend up to 90m (Cat6a). Easy Plug & Play. Includes Both Tx & Rx Units Rx Includes 4x USB-A, 1x RJ45 In Ports. Tx 1x USB-A, 1x RJ45 Out.
- Brand: LENKENG
- MPN: LKV300USB
- Part #: KVMLNK1200
- UPC:
- Brand: LENKENG
- MPN: LKV300USB
- Part #: KVMLNK1200
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other PC Accessories
LENKENG LKV300USB LENKENG 4-Port USB-A 3.0 Extender Over Cat5e/6/7 Network Cable. Extend up to 90m (Cat6a). Easy Plug & Play. Includes Both Tx & Rx Units Rx Includes 4x USB-A, 1x RJ45 In Ports. Tx 1x USB-A, 1x RJ45 Out.
- Brand: LENKENG
- MPN: LKV300USB
- Part #: KVMLNK1200
Product URL: https://www.pbtech.co.nz/product/KVMLNK1200/LENKENG-LKV300USB-LENKENG-4-Port-USB-A-30-Extender
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
This USB 3.0 extender enables a one-to-one connection via CAT6/6A/7 network cables, supporting a transmission distance of up to 50m with CAT6 and up to 100m with CAT6A cables. It supports 4 USB 3.0 device inputs and is fully compatible with USB 2.0 and USB 1.1. Compatible devices include printers, cameras, scanners, USB flash drives, keyboards, mice, touchscreens, and more. This versatile extender is ideal for various applications, including security monitoring, gaming, industrial control, professional audio-visual setups, smart medical systems, and more.
- The transmitter supports USB 3.0 Super-Speed and is compatible with USB 3.2 Gen1x1, USB 3.1 Gen1, and USB 2.0. The receiver supports USB 3.0 Super-Speed, USB 2.0 High-Speed, and is compatible with USB 1.1 Full-Speed.
- Supports four USB 3.0 inputs and one USB 3.0 output.
- Compatible with CAT6/6A/7 network cables. The transmission distance can reach up to 50m with CAT6 and up to 90m with CAT6A cables.
- Supports USB hub connections.
- Supports hot-plugging of USB devices and automatically identifies USB standards.
- Features PoC (Power over Cable), requiring power supply only to the receiver.
- Supports RS-232 and frame synchronization.
- Firmware can be upgraded via the Micro USB port.
- Includes lightning protection, surge protection, and ESD protection.
- Designed for stable 24/7 operation.

Specifications
USB
Transmitter: USB 3.0, compatible with USB 3.2 Gen1x1, USB 3.1 Gen1
Receiver: USB 3.0, compatible with USB 2.0, USB 1.1
Transmission Distance
CAT6 ≤ 50m; CAT6A ≤ 90m
USB Device
Support printer, camera, scanner, USB flash drive, keyboard, mouse, touch screen... etc
USB Hot-Plug
Support
USB Port
3 USB-A 3.0 input and 1 Type-C 3.0 input, 1 Type-C 3.0 output
Housing
Transmitter: Iron
Receiver: Iron
Dimensions
85.0(L) x 76.0(W) x 25.0(H) mm
Weight
Transmitter: 172g
Receiver: 182g
Colour
Black
Power Supply
Receiver: DC 5V/1A
Power Consumption
<= 8W
Working Tempreture
-20°C ~ 60°C
Storage Tempreture
-30°C ~ 70°C
Humidity
0 ~ 90% (No Condensation)
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
