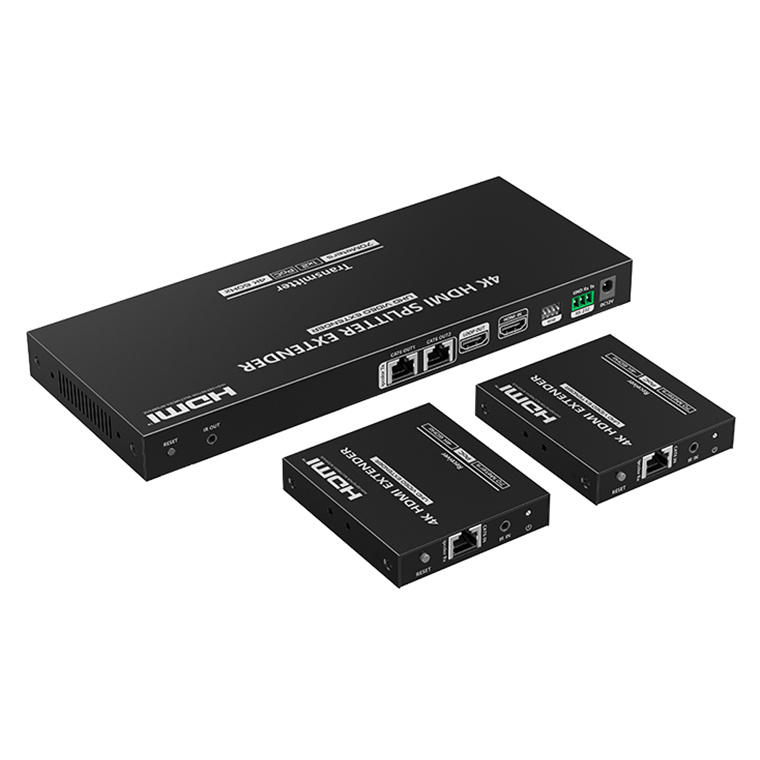

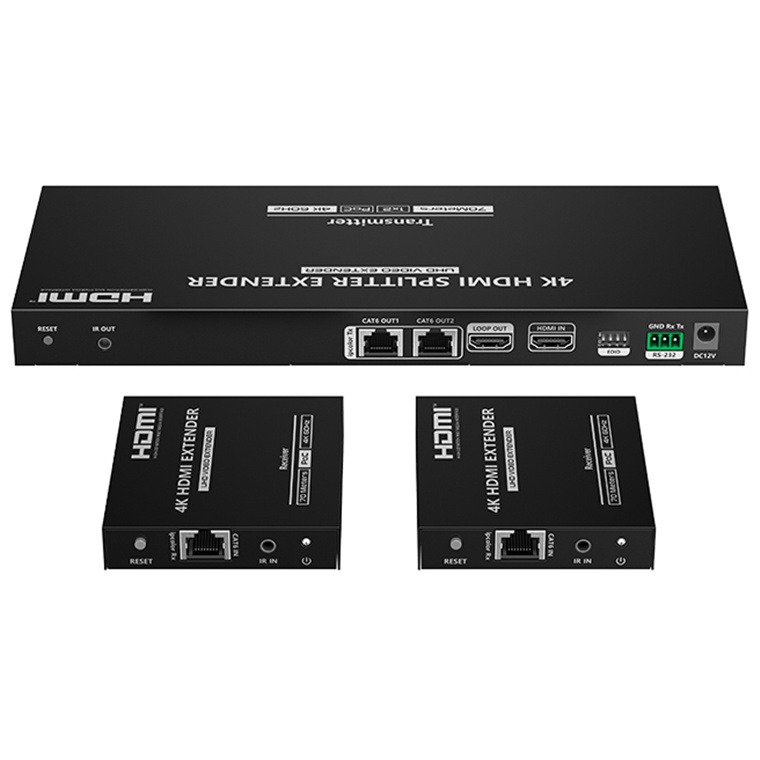

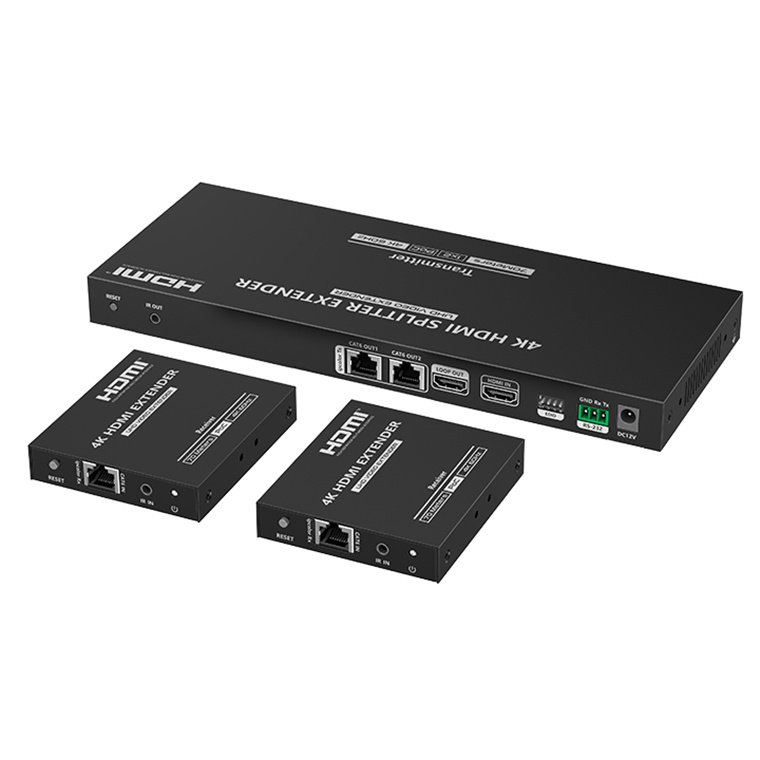

LENKENG LKV822P-N 1-In-2-Out 4K 60Hz HDMI Splitter Extender
LENKENG LKV822P-N 1-In-2-Out 4K 60Hz HDMI Splitter Extender
- Brand: LENKENG
- MPN: LKV822P-N
- Part #: KVMLNK1205
- UPC:
- Brand: LENKENG
- MPN: LKV822P-N
- Part #: KVMLNK1205
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Wired AV Extenders
LENKENG LKV822P-N 1-In-2-Out 4K 60Hz HDMI Splitter Extender
- Brand: LENKENG
- MPN: LKV822P-N
- Part #: KVMLNK1205
Product URL: https://www.pbtech.co.nz/product/KVMLNK1205/LENKENG-LKV822P-N-1-In-2-Out-4K-60Hz-HDMI-Splitter
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

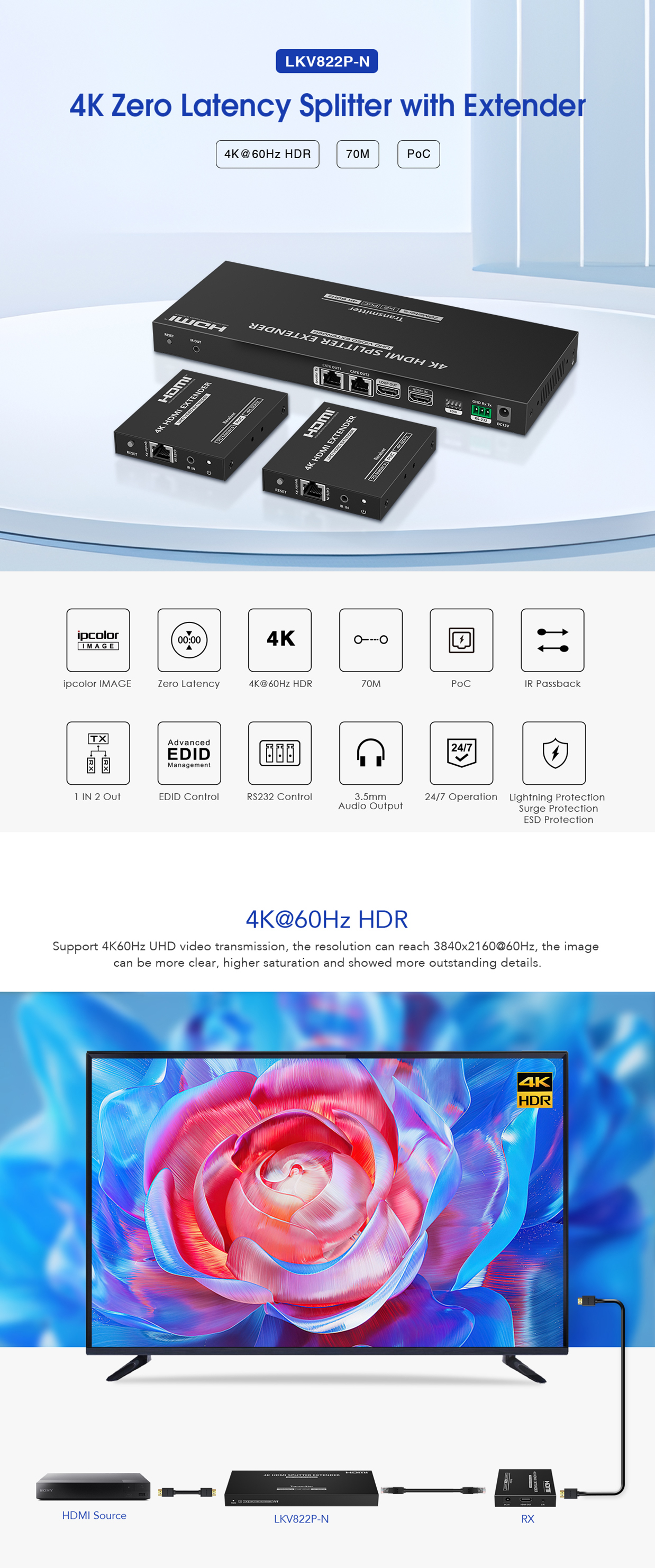

LENKENG 1-In-2-Out 4K 60Hz HDMI Splitter Extender
- Zero-latency transmission

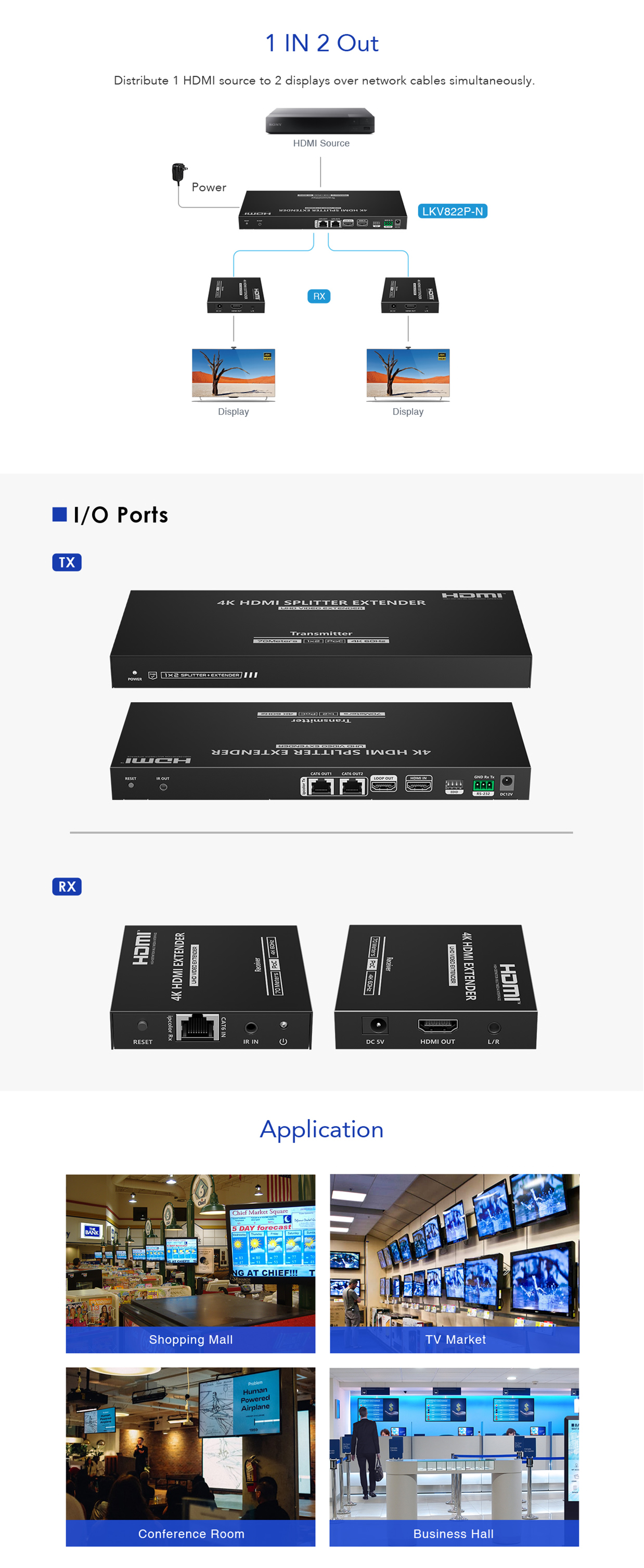

- Split and extend 1 HDMI input signal to 2 identical outputs over CAT6/6A/7 cable

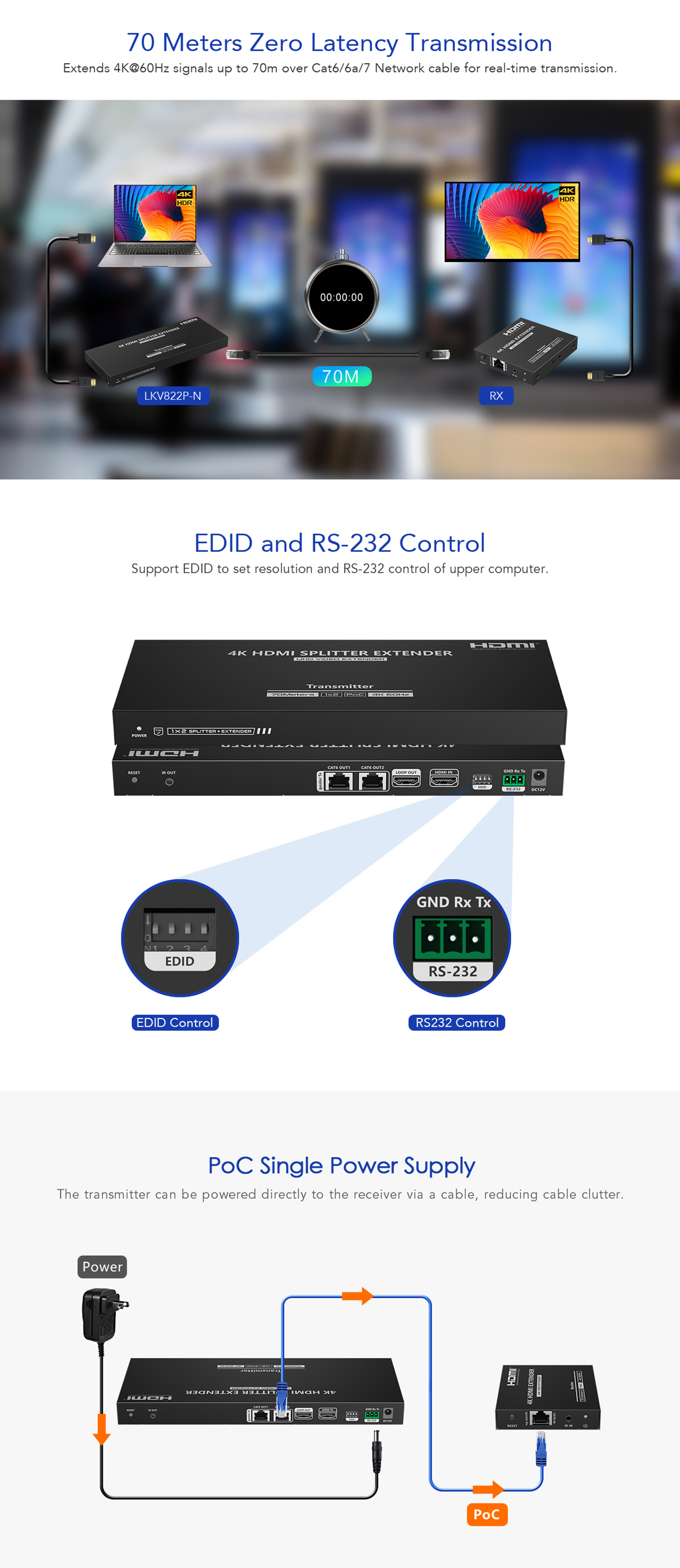

- Supports 4K @ 60Hz resolution, maximum transmission distance up to 70 m
- Supports IR passback (20 kHz-60 kHz)
- Transmitter supports HDMI loop-out
- Receiver supports S/PDIF digital audio output
- Supports EDID passthrough or manual EDID selection via EDID switch
- Surge protection, lightning protection, and ESD protection
- Equipped with rack-mount ears
- PoE supported; only the transmitter requires power



Specifications
Material
Iron
Color
Black
Transmission protocol
ipcolor
Distribution mode
1 IN 2 OUT
Transmission distance
CAT6/6A/7<=70m
HDMI signal
HDMI 2.0, HDCP 2.2
HDMI Resolution
480i @ 60Hz
480p @ 60Hz
576i @ 50Hz
576p @ 50Hz
720p @ 50/60Hz
1080i @ 50/60Hz
1080p @ 50/60Hz
1280x960 @ 24/25/30/50/60Hz
1280x800 @ 24/25/30/50/60Hz
1280x1024 @ 24/25/30/50/60Hz
1680x1050 @ 24/25/30/50/60Hz
1600x1200 @ 24/25/30/50/60Hz
1600x900 @ 24/25/30/50/60Hz
1024x768 @ 24/25/30/50/60Hz
800x600 @ 24/25/30/50/60Hz
1920x1200 @ 24/25/30/50/60Hz
3840x2160 @ 24/25/30/50/60Hz
4096x2160 @ 24/25/30Hz
Audio formats
4K: LPCM/DTS/Dolby Digital 5.1
1080P: LPCM/DTS/Dolby Digital 5.1/Dolby Digital plus7.1
IR
Support IR passback function (20KHz~60KHz)
RS-232
3 pin: TxD-RxD-GND, follows RS-232 levels
Protection
ESD protection
1a Contact discharge level 2
1b Air discharge level 3
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection
Power supply
TX: DC12V/1A
Power consumption
TX+RX<9W
Dimensions
TX: 265.0(L) x 104.0(W) x 23.0(H)mm
RX: 85.0(L) x 75.5(W) x 16.5(H)mm
Weight
TX: 670g RX: 145g
Working temperature
-20~60℃
Storage temperature
-30~70℃
Humidity (no condensation)
0~90% RH
