LENKENG LKV483 HDbitT HDMI Extender over IP CAT5/5e/6 Network Cable Kit
LENKENG LKV483 HDbitT HDMI Extender over IP CAT5/5e/6 Network Cable Kit
- Brand: LENKENG
- MPN: LKV483
- Part #: KVMLNK9235
- UPC:
- Brand: LENKENG
- MPN: LKV483
- Part #: KVMLNK9235
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular KVM Extenders





LENKENG LKV483 HDbitT HDMI Extender over IP CAT5/5e/6 Network Cable Kit
- Brand: LENKENG
- MPN: LKV483
- Part #: KVMLNK9235

Product URL: https://www.pbtech.co.nz/product/KVMLNK9235/LENKENG-LKV483-HDbitT-HDMI-Extender-over-IP-CAT55e
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

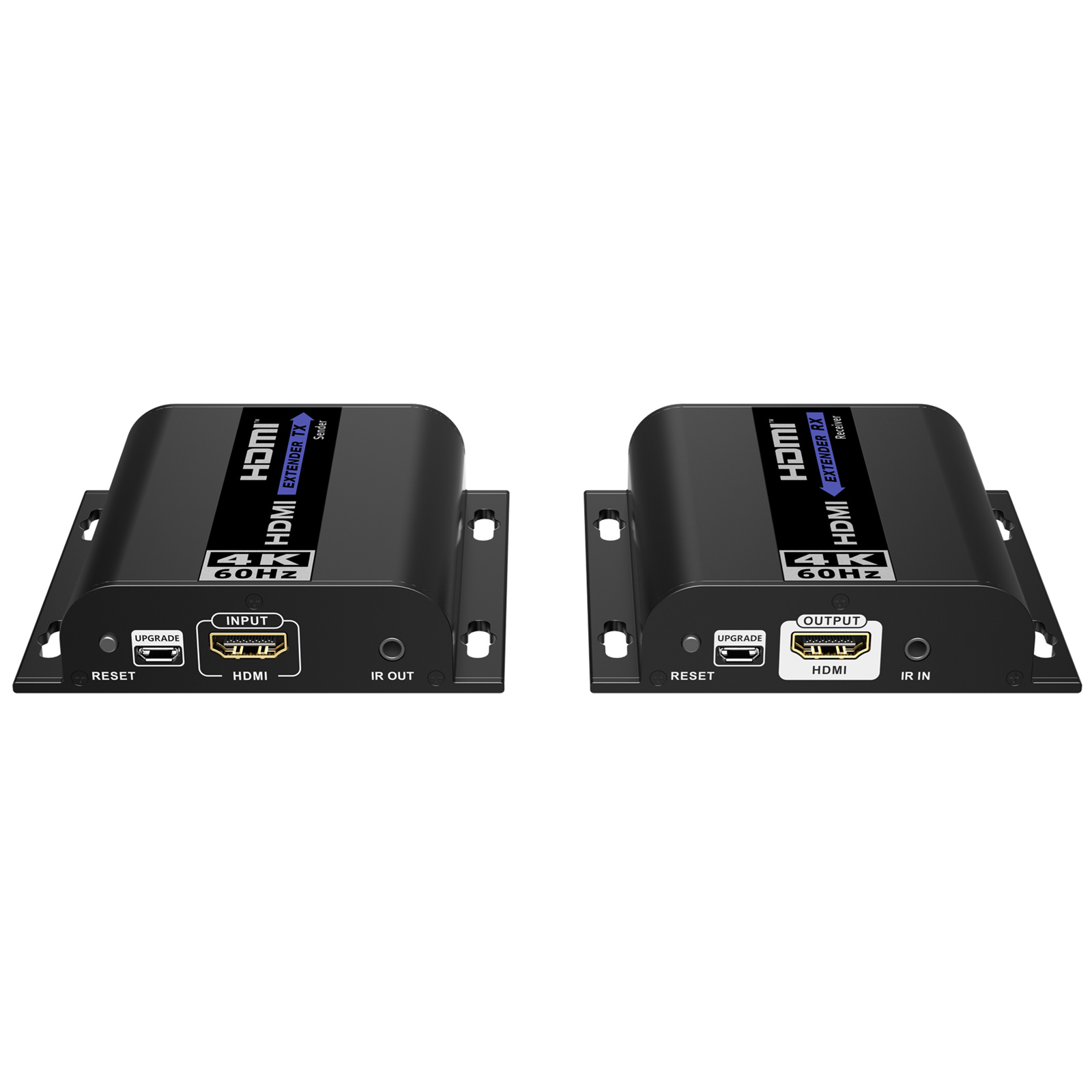

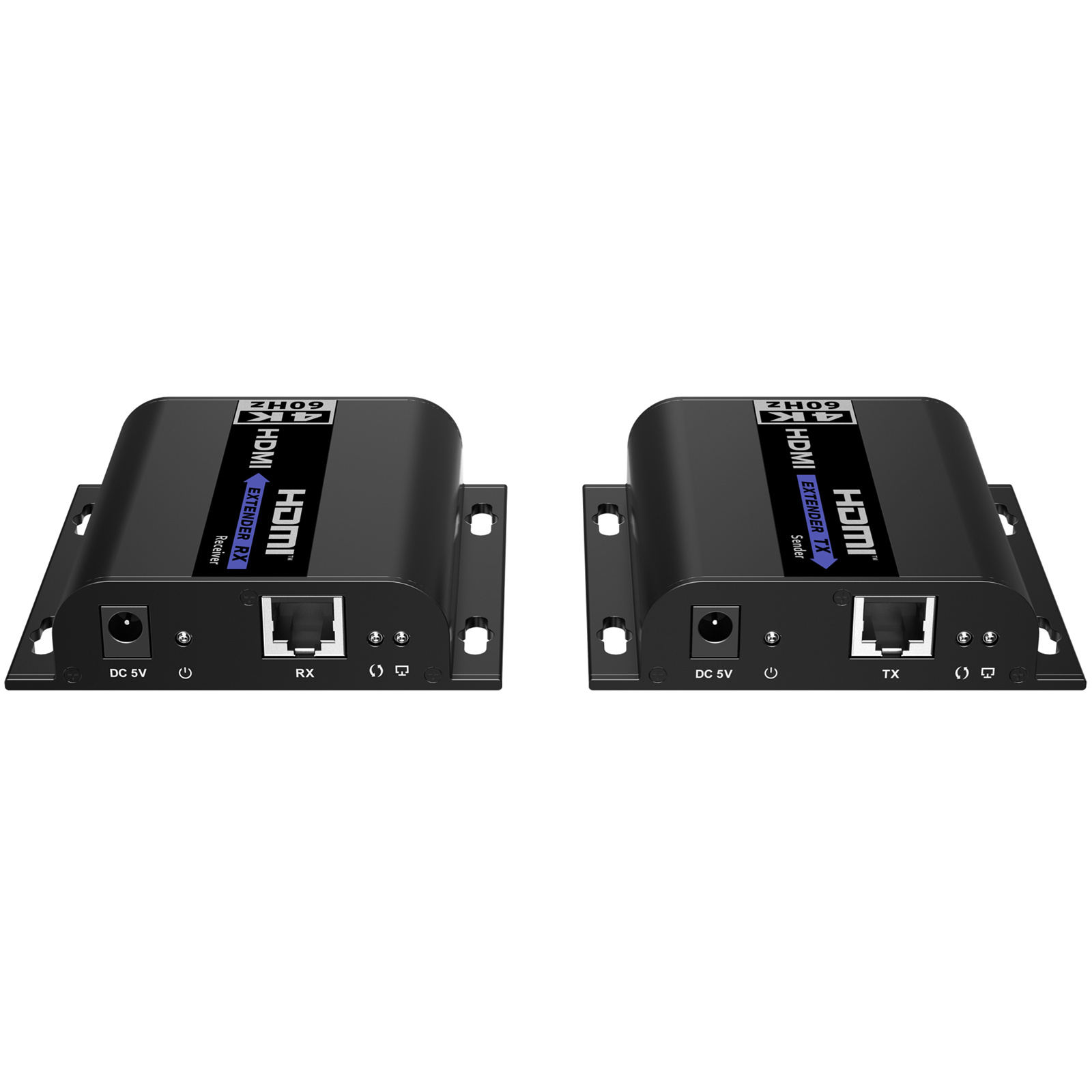

This product is a 4K @ 60Hz HDMI™ extender kit consisting of a sender and a receiver. The 4K @ 60Hz HDMI™ signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports IR passback functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Specifications
HDMI length
<= 5m
Maximum transfer rate
18Gbps
Compatibility
HDMI 2.0, HDCP 1.4/HDCP 2.2
Resolutions
4096x2160 @ 24/30/50/60Hz, 3840x2160 @ 24/30/50/60Hz, 1080P @ 24/25/30/50/60Hz, 720P @ 50/60Hz, 576P @ 60Hz, 480P @ 60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600
Connection types
One-to-one connection
One-to-many connection
Switch cascading
Transmission distance
CAT5 80m / CAT5E 100m / CAT6 120m
Transmission latency
1080P: 80~130ms
4K @ 60Hz: 150~220ms
HDMI output
LPCM 2.0
IR receiving range
<= 5m
IR frequency
20kHz~60kHz
Power Supply
TX/RX: DC 5V/1A
Power Consumption
TX <= 3.5W, RX <= 2.5W
Working temperature
-20°C~60°C
Storage temperature
-30°C~70°C
Humidity
0~90%RH (no condensation)
Housing
Aluminium
Weight
TX: 156g
RX: 154g
Colour
Black
Dimensions
96.8(L)*94(W)*23.7(H) mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
