Rextron 2 Ports Dual Monitor HDMI KVM Switch With HDCP Engine, EDID, USB 3.2 Gen 1, Audio, HotkeyControl
Rextron 2 Ports Dual Monitor HDMI KVM Switch With HDCP Engine, EDID, USB 3.2 Gen 1, Audio, HotkeyControl
- Brand: Rextron
- MPN: MKAG-G3122
- Part #: KVMREX0218
- UPC:
- Brand: Rextron
- MPN: MKAG-G3122
- Part #: KVMREX0218
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular KVM Desktop Switches
Rextron 2 Ports Dual Monitor HDMI KVM Switch With HDCP Engine, EDID, USB 3.2 Gen 1, Audio, HotkeyControl
- Brand: Rextron
- MPN: MKAG-G3122
- Part #: KVMREX0218
Product URL: https://www.pbtech.co.nz/product/KVMREX0218/Rextron-2-Ports-Dual-Monitor-HDMI-KVM-Switch-With
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The MKAG-G3122, 2 Ports Dual Monitor HDMI 2.0 KVM Switch With HDCP Engine and EDID built-in, allows users to share one set of keyboard, mouse, monitor, and audio between two computers, and supports resolutions up to 4K 60Hz (4:4:4).
Dual Monitor HDMI 2.0 KVM Switch with HDCP Engine and the EDID management function enables KVM switch to copy or automatically learn EDIDs from the connected monitor via EDID push button, which ensures the optimized video output without flickering or black screen issues. Independent 3.5mm stereo analog audio and USB 3.2 Gen 1 ports provide excellent I/O speed to meet most requirements. For your convenience, there is also a buzzer sound effect for operation confirmation.
Rextron Dual Monitor KVM Switch MKAG-G3122 supports not only the mainstream but also the latest PC graphics cards for multiple monitor setups to extend your desktop and expand the work area across displays, which help enhance productivity and is ideal for content creators, graphic designers, CAD and CAM designers, and users in educational and financial institutions to work efficiently.
- Dual-Monitor Design Fulfills User's Optimum Work-Efficiency
- HDMI 2.0 Video Supports Most Popular Resolutions Up to 4K 60Hz ( 4:4:4 )
- HDR10 Support for Best Visual Experience
- HDCP 2.2 / HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
- HDCP Engine Ensures Low-Latency Switch
- HDCP Management Allows User to Select Proper HDCP Version
- EDID Management, Including EDID Copy / Auto EDID, Ensures Display Compatibility
- Plug-and-Play without Software or Driver
- USB 3.2 Gen 1 Provides Excellent 5Gbps Speed

Special Design for HDCP Slide Switch
This 2 Ports HDMI 2.0 KVM Switch enables users to copy or learn EDIDs automatically from the connected monitors, and the exclusive HDCP slide switch on the rear panel allows users to select the 3 preset HDCP modes:
Mode-1: Auto mode allows HDCP 2.2 or HDCP 1.4 content pass-thru (factory default)
Mode-2: HDCP 1.4 mode allows HDCP 1.4 content to be licensed
Mode-3: NONE mode allows non-HDCP content to be played
NOTE: The upgrade port (mini USB-B port) is designed for firmware update.

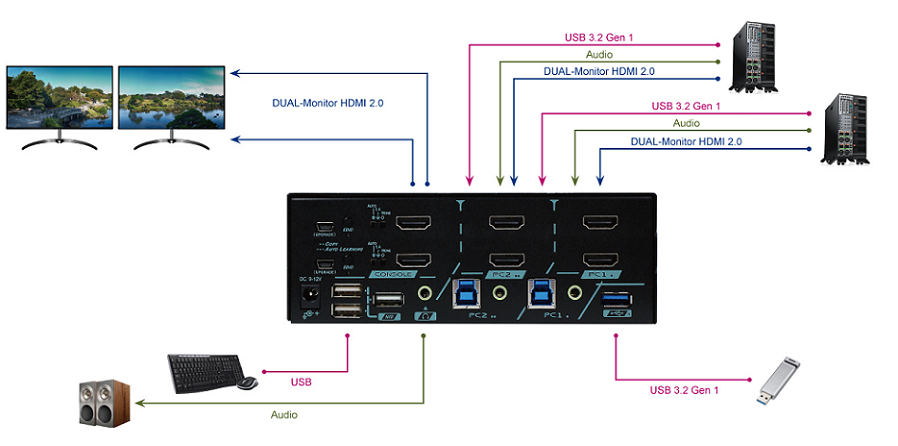

Connection

What Is KVM Switch?
KVM stands for "Keyboard, Video, and Mouse". KVM allows you to access multiple computers or servers via only one set of Keyboard, Mouse and Monitor. Computers may be selected by pressing the KVM push button directly, by issuing hotkey commands or by activating OSD window. KVM switch is a compact size pure hardware solution plug-and-play system without any driver or software installation. It simply reduces redundant cables and encourages a neat and tidy working environment, saving you space, time, equipment, and money.
Where Do KVM Switches Use?
The KVM switches basically have 2 to 4 USB ports, allowing you to share keyboards, mice, printers, USB thumb drives, webcams, headsets, or other peripherals. Rextron USB KVM Switch products are suitable to be used in SOHO, Server Rooms, Airports, Stations or the environment that needs to control multiple PCs at the same time.
Specifications
Model
MKAG-G3122
Computer/Server Ports (Input)
HDMI x 4 ( Dual Display x 2 PCs )
USB 3.2 Gen 1 Type B x 2
Audio Jack in x 2
Console Ports (Output)
HDMI x 2 ( Dual Display )
USB 3.2 Gen 1 Type A x 2 ( Rear & Front )
USB HID Type A x 4 (Rear & Front)
Audio Jack out x 1
Video Resolution (Max.)
4096x2160 @ 60Hz (4:4:4)
3840x2160 @ 60Hz (4:4:4)
Push Buttons
Port Selection x 1
Auto EDID & EDID Copy Function x 2
HDCP Slide Switch
x 2 ( Auto / 1.4 / None )
HDCP Compliance
HDCP 2.2 / 1.4
Control Methods
Hotkey / Push Button
LED Indicator (Power / Status)
Computer Ready x 2 (Green)
Computer Selected x 2 (Red)
EDID Copy x 2
EDID Management
Copy / Auto / Default
HDCP Engine
Yes ( On Each Video Input Port )
Automatic Scan Interval
3, 8, 15, 30 seconds
Power Supply
DC 9~12V
Operation Environment
0~40°C, Humidity<80%
Storage Temperature
-20~60°C
Enclosure
Metal
Dimensions (H x W x D)
64 x 160 x 100 mm
Weight
780 g
