StarTech.com PEXUSB3S25 2 Port PCIe USB3.0 Card with UASP

PB Tech price
PB Tech price
$ 70 .43
 +GST
$ 80 .99
 inc GST
$70.43  +GST
$80.99

StarTech.com PEXUSB3S25 2 Port PCIe USB3.0 Card with UASP

  • Brand: StarTech.com
  • MPN: PEXUSB3S25
  • Part #: KVMSTT2528548
  • UPC: 065030854603
PB Tech price
$ 70 .43 $ 80 .99
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 07 Oct When will I receive it?
$70.43  +GST
$80.99

Features

The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Improved Performance with UASP


UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.


The StarTech.com Advantage

- Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth
- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design
- Power high-powered USB devices as necessary, with the optional LP4 power connector

Specifications

Bus Type
PCI Express

Card Type
Standard Profile (LP bracket incl.)

Chipset ID
Renesas / NEC - µPD720202

Industry Standards
USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0

Interface
USB 3.0

Port Style
Integrated on Card

Ports
2

Maximum Cable Length
9.8 ft [3 m]

Maximum Data Transfer Rate
5 Gbps

Type and Rate
USB 3.0 - 5 Gbit/s

UASP Support
Yes

Connector Type(s)
1 - PCI Express x1 Male

External Ports
2 - USB Type-A (9 pin) USB 3.0 Female

Internal Ports
1 - LP4 (4 pin, Molex Large Drive Power) Male

OS Compatibility
Windows® Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.31 to 4.4.x LTS versions only

Humidity
5~85% RH

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

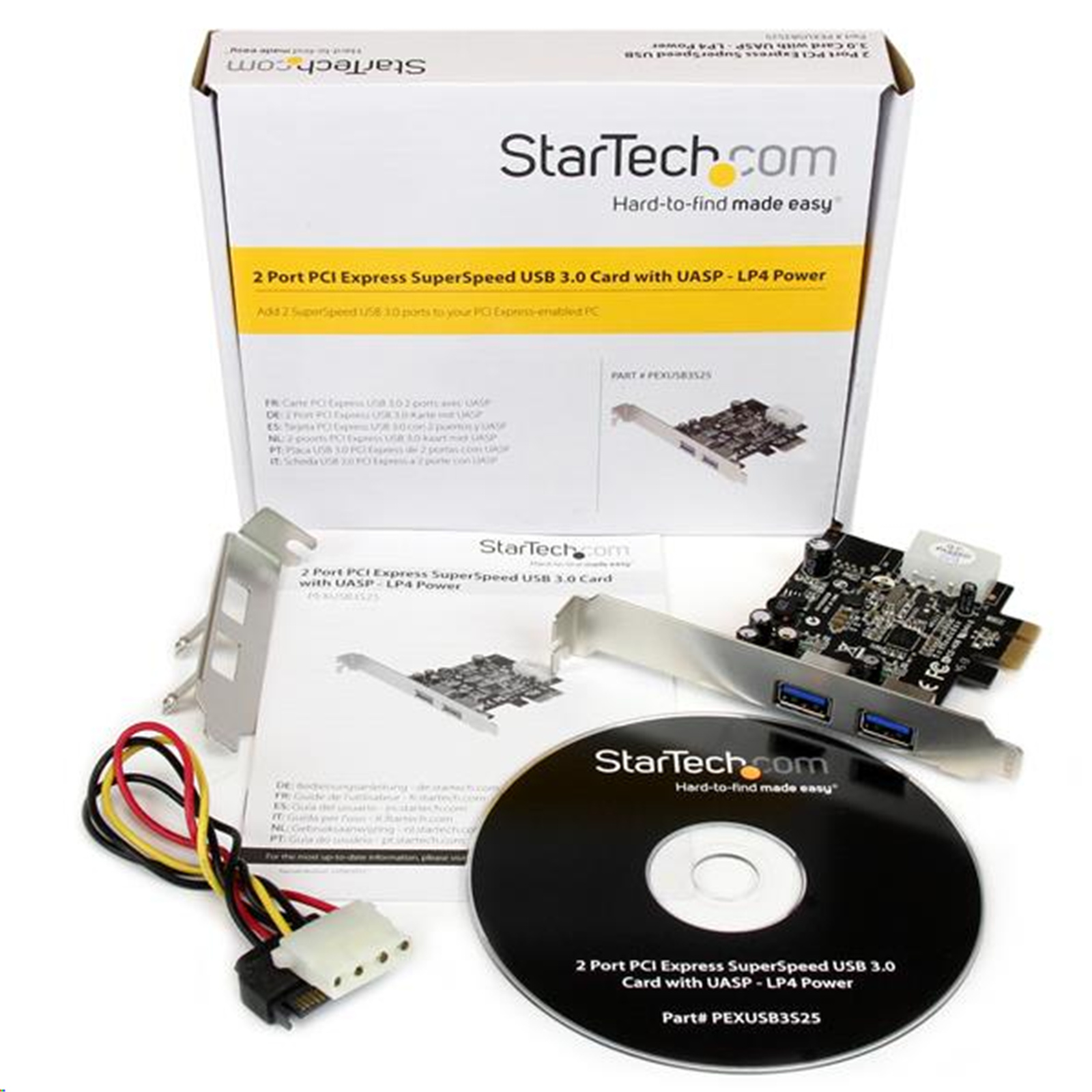

Included in Package
1 - PCIe USB 3.0 Card
1 - Low Profile Bracket
1 - SATA to LP4 Cable
1 - Driver CD
1 - Instruction Manual
Manufacturer Part No:
PEXUSB3S25
Brand:
Product Type:
-
UPC
065030854603
Product Family:
-
Shipping Weight:
0.4 kg
PB Part No:
KVMSTT2528548
Product Model:
PEXUSB3S25
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
