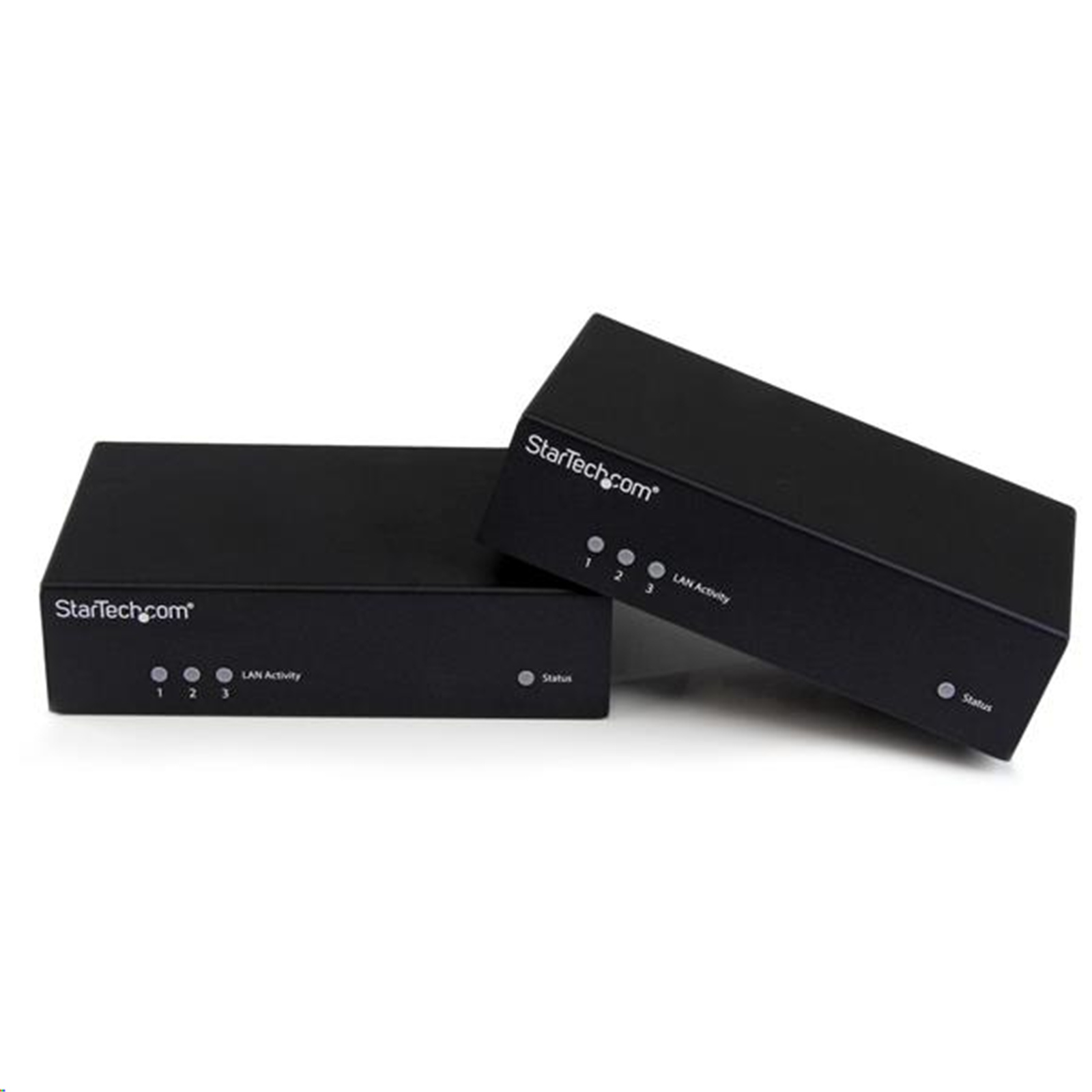

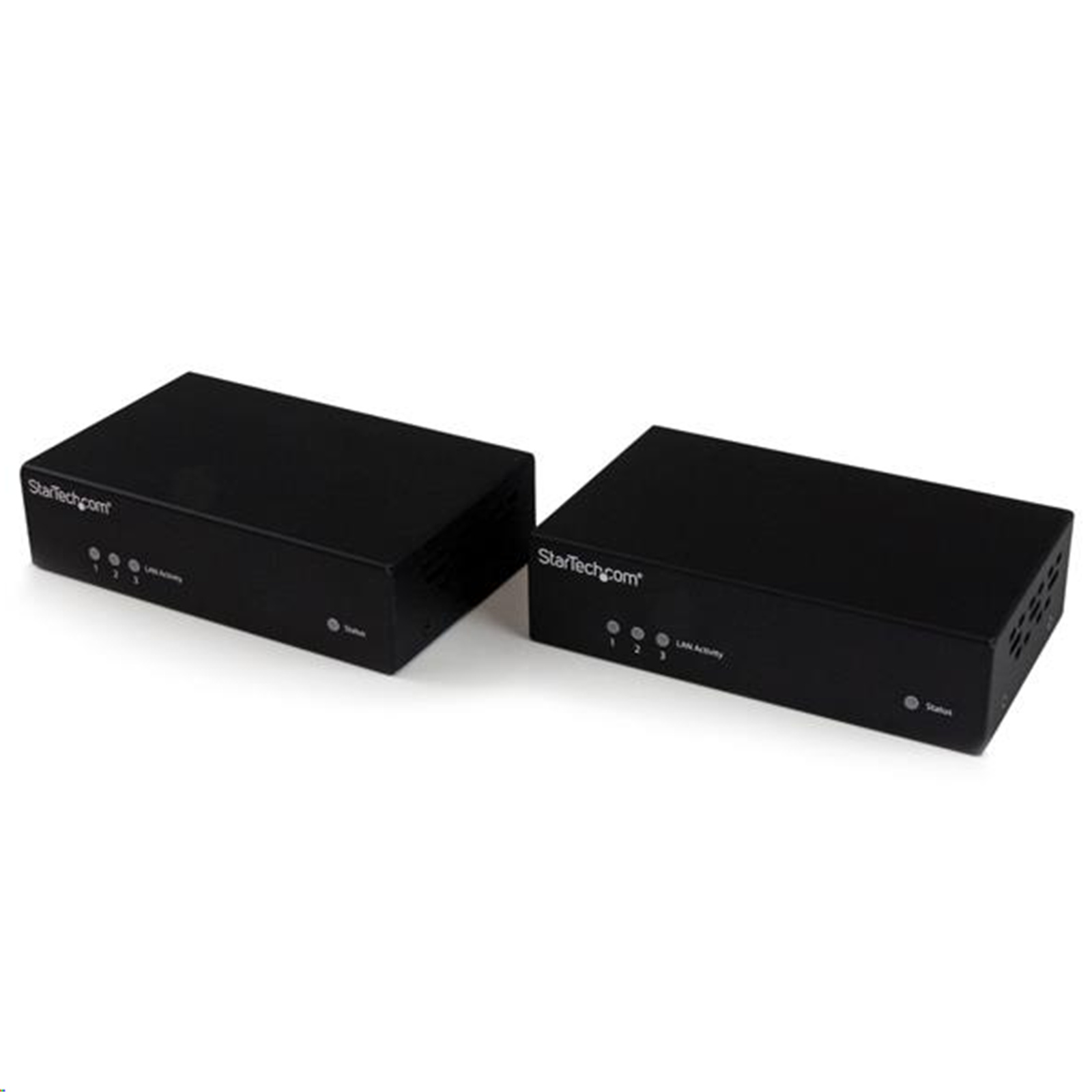

StarTech.com ST121HDBT5 HDMI Over CAT5e Cat6 Extender - 330ft

  • Brand: StarTech.com
  • MPN: ST121HDBT5
  • Part #: KVMSTT2570749
  • UPC: 065030855006
PB Tech price
$ 868 .70 $ 999 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: StarTech.com
  • MPN: ST121HDBT5
  • Part #: KVMSTT2570749
  • UPC: 065030855006

Device Type

Transmitters & Receivers

Extension Distance

100m

Maximum Supported Resolution

3840x2160

Video Interface

HDMI

Wireless Technology

N/A

Features

The StarTech.com HDBaseT Extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered from one power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.


What is HDBaseT?


HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.


Extend More than Video with HDBaseT

The extender offers HDBaseT technology with HDMI, IR, RS232, Ethernet, and power in a single extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you to operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display for interactive digital signage presentations. While the built-in 6-Port Ethernet hub lets you connect 5 IP devices to your network (3 remote, 2 local).


Astonishing Picture Quality at 330 Feet Away


With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With HDBaseT you'll be amazed at how Ultra HD picture quality, four times the resolution of high-definition 1080p can be maintained even at 330 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions, you can comfortably use this extender to make any video source look great, while future proofing your setup for 4K implementation.


Hassle-free, Professional Installation with a Single Cable


This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you'll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting. The ST121HDBT5 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage


- Hassle-free installation with only a single power adapter for both the transmitter and receiver
- Tidy, professional installation with optional mounting hardware included
- Save installation cost with all-in-one HDMI, RS-232 Serial, IR, and 10/100 hub extension through non-proprietary CAT5e/CAT6 Ethernet cabling

Specifications

Audio
Yes

Cabling
Cat 5 UTP or better

Daisy-Chain
No

Ports
1

Rack-Mountable
Yes

Audio Specifications
7.1 Surround Sound

Max Distance
100 m / 330 ft

Maximum Cable Length
328 ft [100 m]

Maximum Digital Resolutions
4K

Supported Resolutions
3840x2160 (4K)
2560x1600
1920x1200
1920x1080 (1080p)
1280x720 (720p)

Wide Screen Supported
Yes

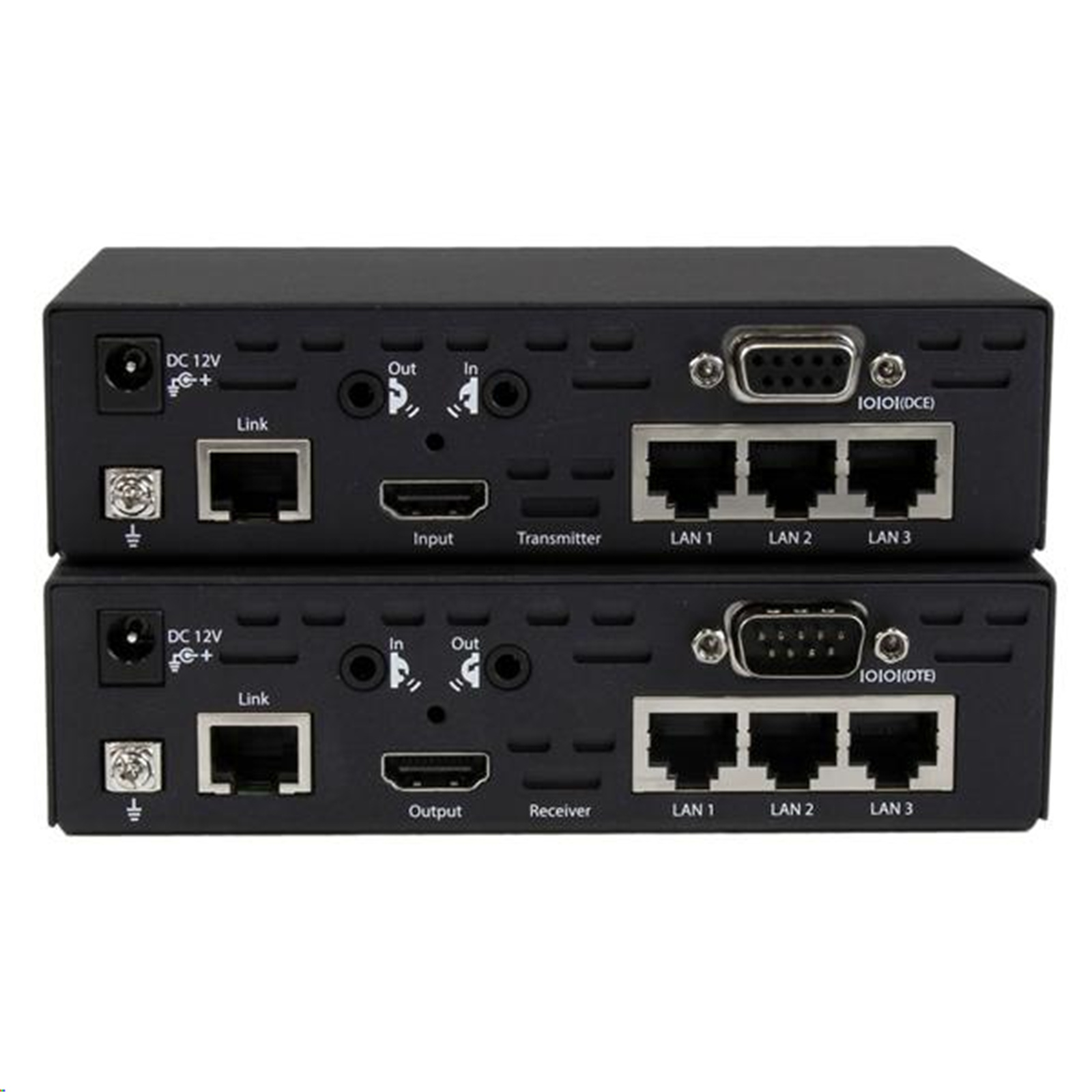

Local Unit Connectors
1 - HDMI (19 pin)
1 - RJ-45
1 - DB-9 (9 pin, D-Sub)
2 - IrDA (Infrared, SIR/FIR)
3 - RJ-45

Remote Unit Connectors
1 - HDMI (19 pin)
1 - RJ-45
1 - DB-9 (9 pin, D-Sub)
2 - IrDA (Infrared, SIR/FIR)
3 - RJ-45

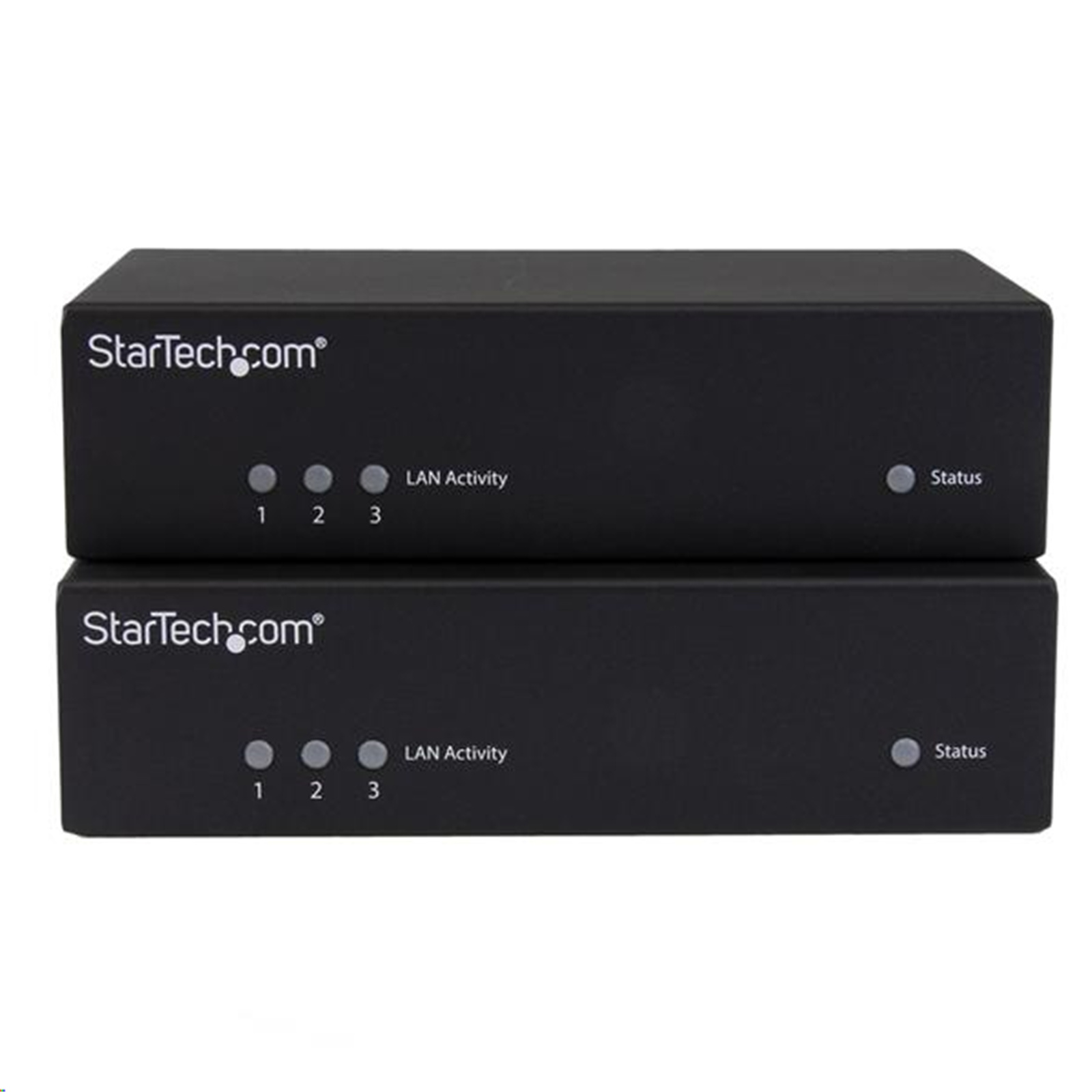

LED Indicators
1 - Status LED
3 - LAN Activity LEDs

Input Current
0.5 A

Input Voltage
100 ~ 240 AC

Output Current
1.5 A

Output Voltage
12 DC

Power Consumption (In Watts)
18

Power Source
AC Adapter Included

Humidity
0% - 80 % RH (non-condensing)

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-10°C to 60°C (14°F to 140°F)

Colour
Black

Enclosure Type
Aluminum

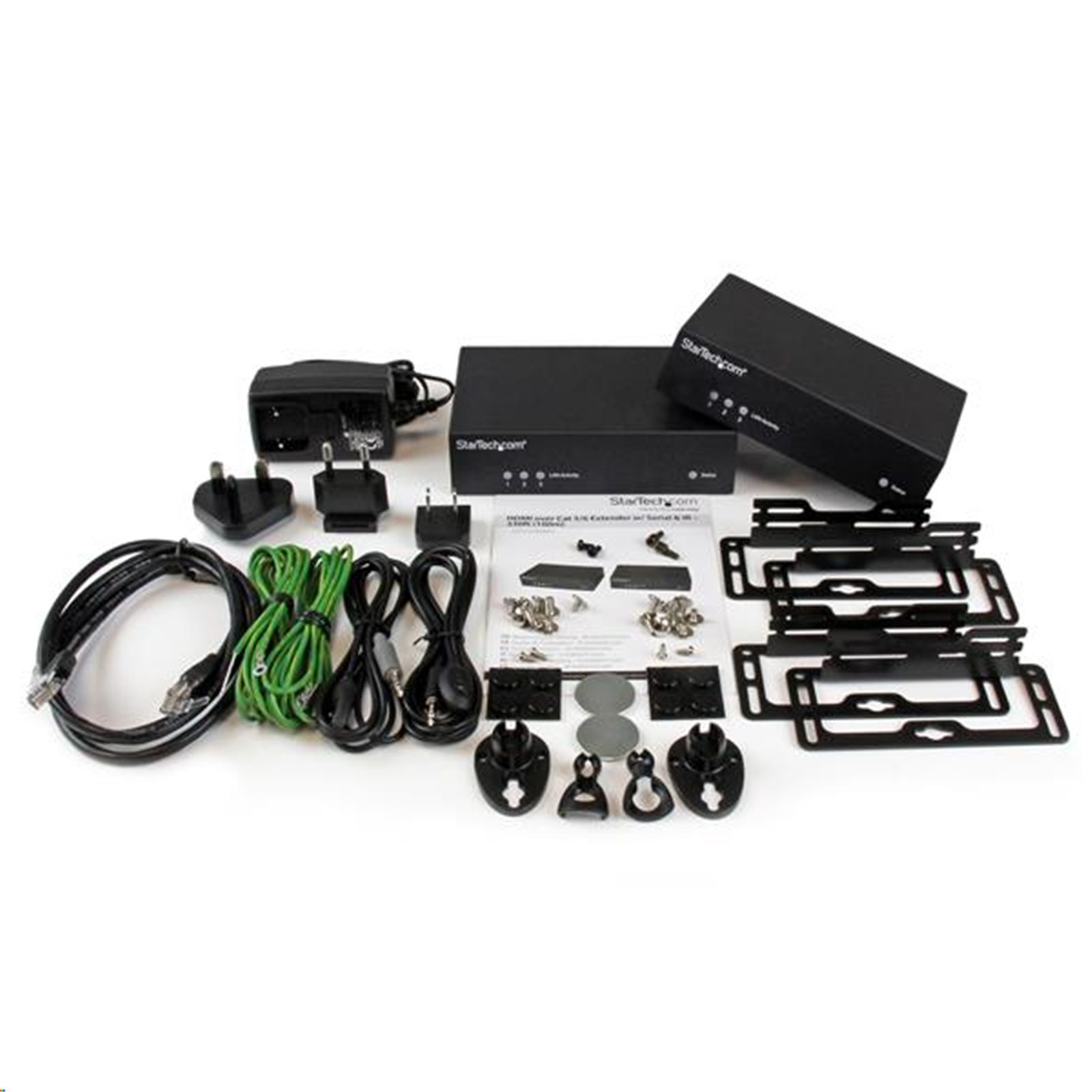

Included in Package
1 - HDMI extender
1 - HDMI receiver
1 - IR sensor kit (transmitter cable & receiver cable)
1 - CAT5 cable
2 - grounding wires
2 - mounting brackets
2 - foot pad sets
1 - universal power adapter (NA, EU, UK, AU)
1 - instruction manual

Manufacturer Part No:
ST121HDBT5
Brand:
Product Type:
-
UPC
065030855006
Product Family:
-
Shipping Weight:
1.788 kg
PB Part No:
KVMSTT2570749
Product Model:
ST121HDBT5
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
