StarTech.com IES81000POE 8 Port Industrial Gigabit PoE+ Switch
StarTech.com IES81000POE 8 Port Industrial Gigabit PoE+ Switch
- Brand: StarTech.com
- MPN: IES81000POE
- Part #: KVMSTT2572139
- UPC:
- Brand: StarTech.com
- MPN: IES81000POE
- Part #: KVMSTT2572139
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
StarTech.com IES81000POE 8 Port Industrial Gigabit PoE+ Switch
- Brand: StarTech.com
- MPN: IES81000POE
- Part #: KVMSTT2572139
Product URL: https://www.pbtech.co.nz/product/KVMSTT2572139/StarTechcom-IES81000POE-8-Port-Industrial-Gigabit
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components. Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W. A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex. The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren't available, with 30 Watts per-port from the switch
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction
Specifications
Hardware
Industry Standards
IEEE 802.3at/af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control
Ports
8
Performance
Auto MDIX
Yes
Buffer Size
128 KB
Compatible Networks
10/100/1000 Mbps
Flow Control
Half-duplex back-pressure and IEEE802.3x full-duplex
Full Duplex Support
Yes
Maximum Data Transfer Rate
2 Gbps (Full-Duplex)
Switching Architecture
Store-and-Forward
Connector(s)
Connector Type(s)
8 - RJ-45 Female
Software
OS Compatibility
OS Independent; No additional drivers or software required
Indicators
LED Indicators
1 - Power
8 - Activity
8 - 10/100 Mbps
8 - 1000 Mbps
8 - PoE
Power
Center Tip Polarity
Positive
Input Current
2 A
Input Voltage
100 ~ 240 AC
Output Current
2.31 A
Output Voltage
52 DC
Plug Type
M
Power Consumption (In Watts)
120
Power Source
AC Adapter Included
Environmental
Humidity
10~90% RH (Non-Condensing)
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 90°C (-4°F to 194°F)
Physical Characteristics
Colour
Black
Enclosure Type
Steel

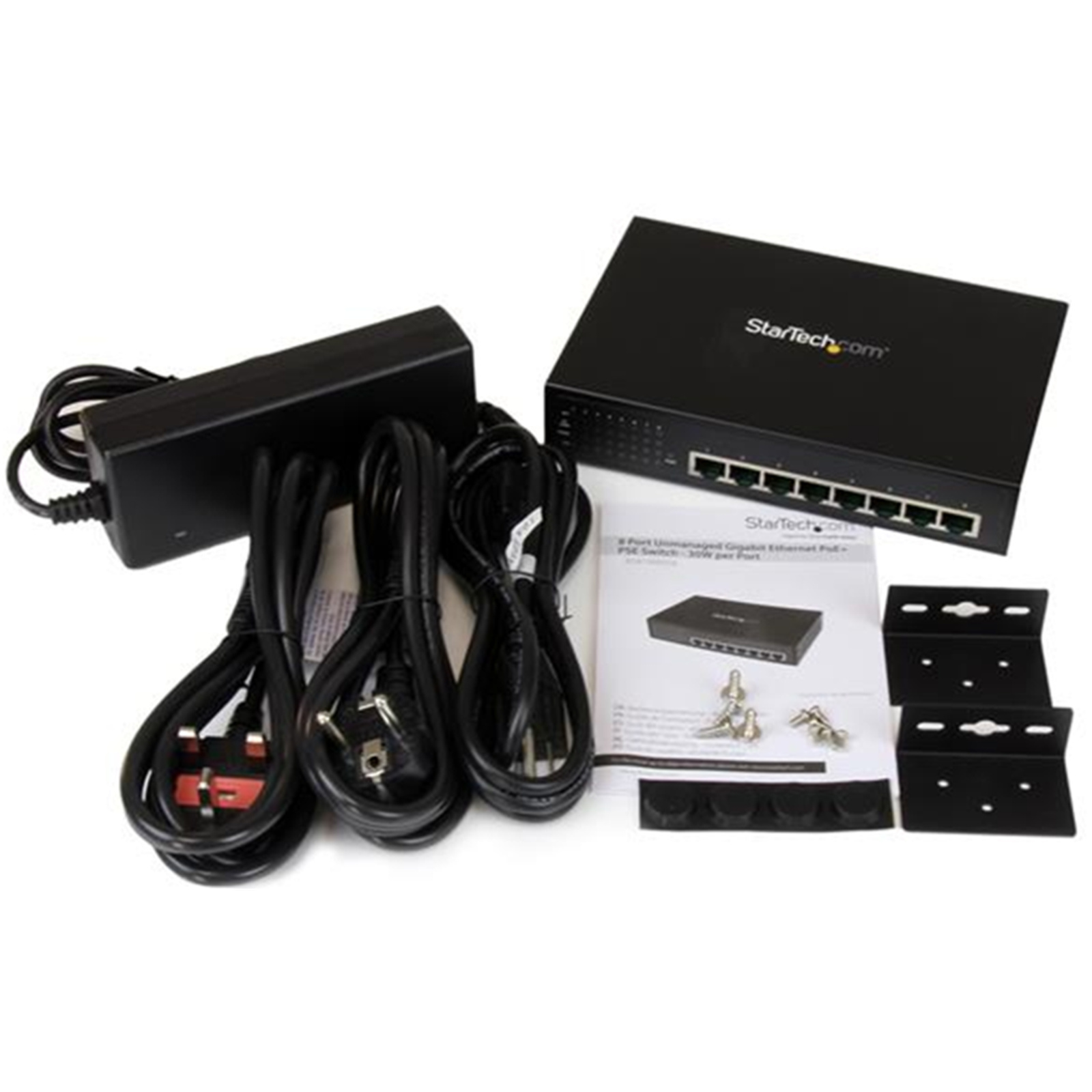

Included in Package
1 - 8 Port Gigabit PoE Switch
2 - Wallmount Brackets
1 - Set, Rubber Feet
1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
1 - Instruction Manual
