StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture

  • Brand: StarTech.com
  • MPN: VS424HDPIP
  • Part #: KVMSTT2784146
  • UPC: 065030858403
PB Tech price
$ 2,310 .43 $ 2,656 .99
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 07 Oct When will I receive it?
$2,310.43  +GST
$2,656.99

Finance from $23.85 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: StarTech.com
  • MPN: VS424HDPIP
  • Part #: KVMSTT2784146
  • UPC: 065030858403

Maximum Supported Resolution

1920x1200

Features

The VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) gives you the power to seamlessly combine and distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display.


See the Whole Picture

The split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4).


Control Your Output


Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using RS232 serial, your local TCP/IP network, or the included IR remote control.


Increase the Versatility of Your Displays


The VS424HDPIP is a flexible video switch that can improve any video display application. The picture-and-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate and saving you from wasting money on additional displays in your digital signage applications. For security monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to four different displays in different locations -- you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring a tidy and professional installation.

The VS424HDPIP is backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage


See the whole picture by adding multiple HDMI sources to the same display with picture-and-picture
Control your output and make your digital signage operation easier with remote control operation using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control)
Increase the versatility of your display and save money, with the picture-and-picture technology reducing the number of displays required with up to four video sources on the same display

Specifications

Hardware

Audio
Yes
Cabling
HDMI
Output Signal
HDMI
Ports
4

Performance


Audio Specifications
7.1 Surround Sound
Maximum Digital Resolutions
1920x1200
Supported Resolutions
1920x1200
1920x1080
1280x720
640x480
Wide Screen Supported
Yes

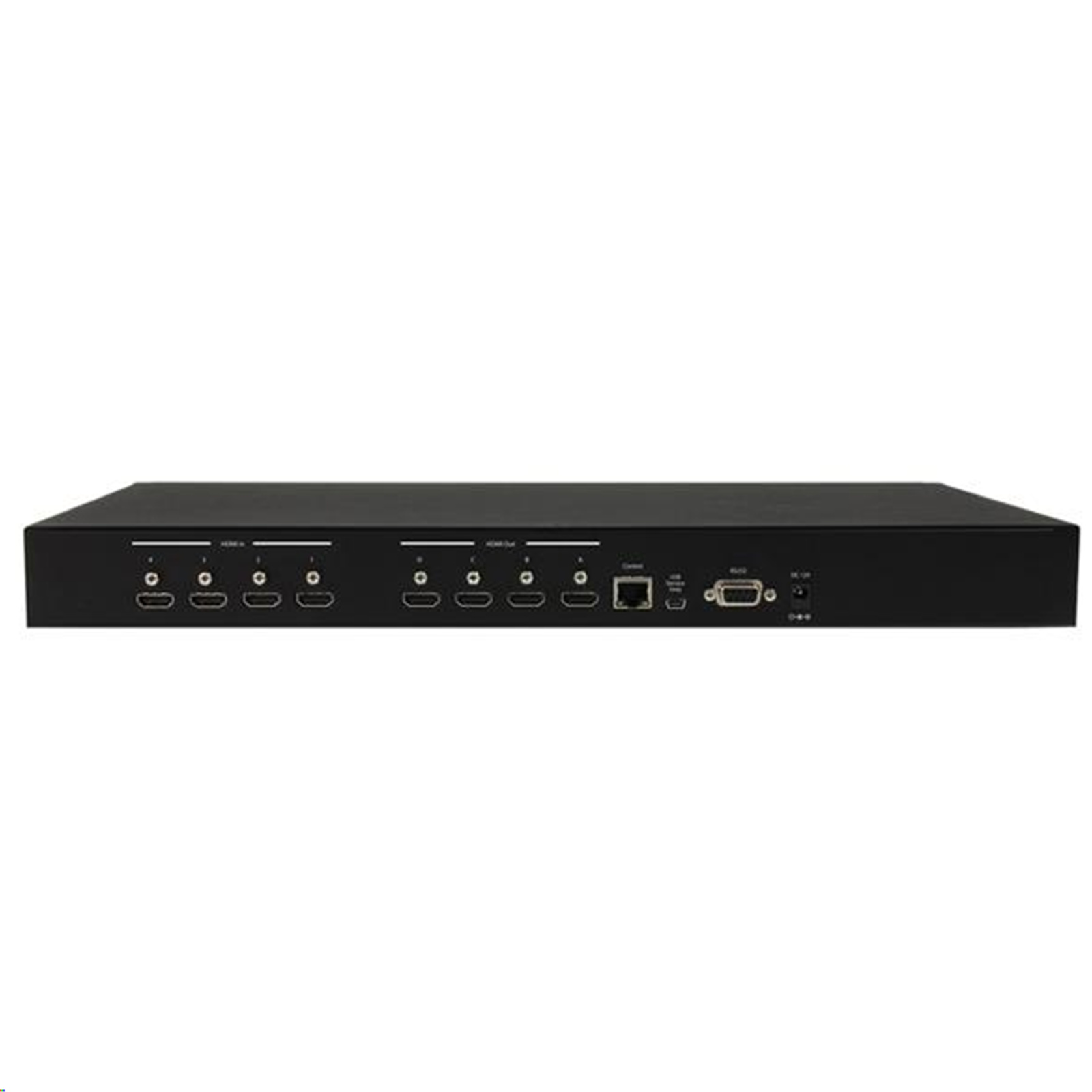

Connector(s)

Connector A
4 - HDMI (19 pin) Female
Connector B
4 - HDMI (19 pin) Female
Connector Type(s)
1 - DB-9 (9 pin, D-Sub) Male
1 - RJ-45 Female
1 - IrDA (Infrared, SIR/FIR)

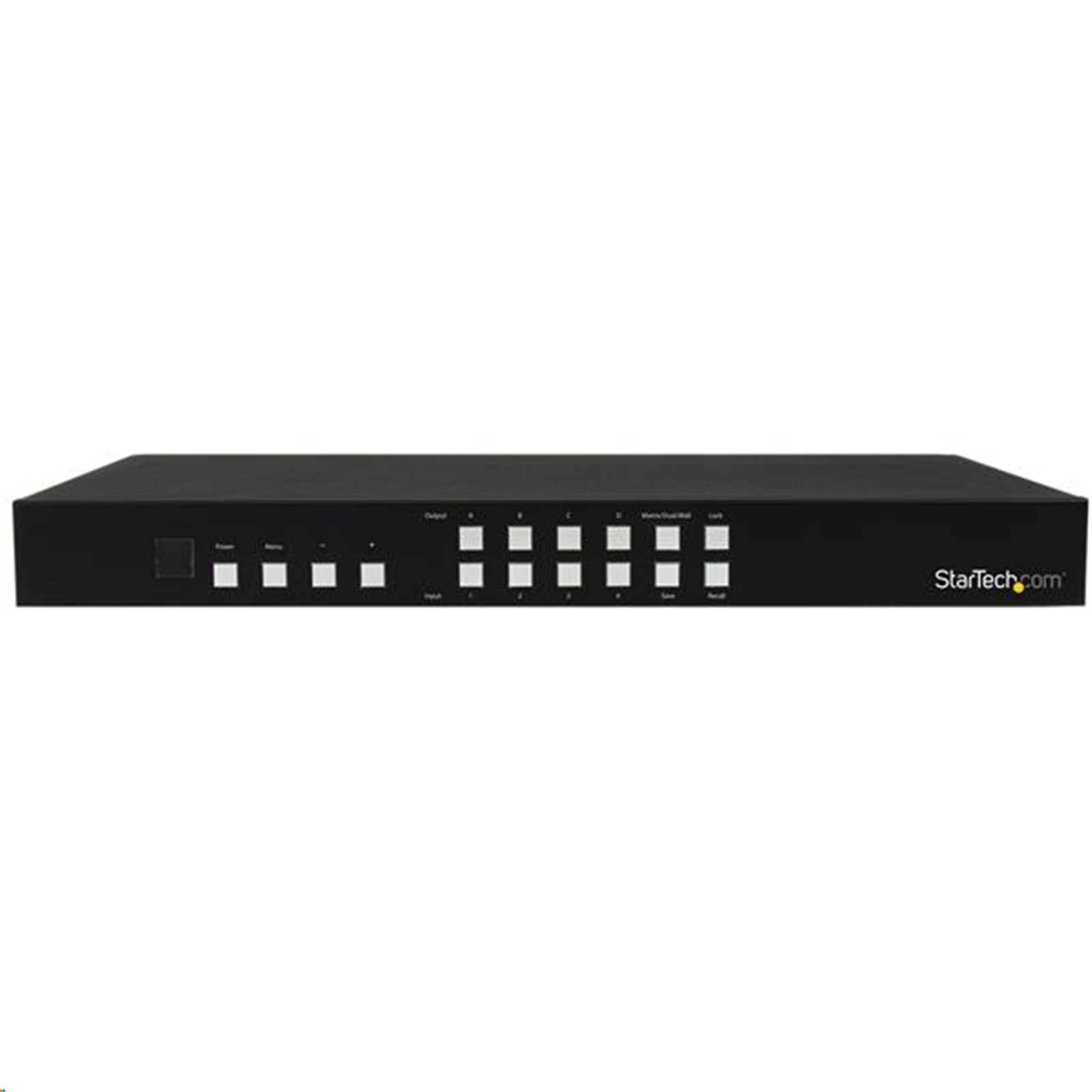

Indicators

LED Indicators
1 - Power LED
1 - Menu LED (OSD)
2 - Menu Operation LED (+ / -)
4 - Output Selection LED (A / B / C / D)
4 - Input Selection LED (1 / 2 / 3 / 4)
1 - Mode Selection LED (Matrix / Dual / Wall)
1 - Save LED
1 - Lock LED

Power


Input Current
1 A
Input Voltage
100 ~ 240 AC
Output Current
3 A
Output Voltage
12 DC
Power Consumption (In Watts)
36
Power Source
AC Adapter Included

Environmental

Humidity
20% - 90 % RH (non-condensing)
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color
Black
Enclosure Type
Aluminum

Included in Package
1 - 4x4 HDMI matrix switch
1 - remote control
2 - mounting brackets
1 - universal power adapter (NA, EU, UK, ANZ)
1 - instruction manual
Manufacturer Part No:
VS424HDPIP
Brand:
Product Type:
HDMI Matrix Switch
UPC
065030858403
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
KVMSTT2784146
Product Model:
VS424HDPIP
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
