StarTech.com SV431DPU3A2 4-Port DisplayPort KVM - USB3.0 - 4K

Special price
Special price
$ 786 .94
 +GST
$ 904 .98
 inc GST
$786.94  +GST
$904.98

StarTech.com SV431DPU3A2 4-Port DisplayPort KVM - USB3.0 - 4K

  • Brand: StarTech.com
  • MPN: SV431DPU3A2
  • Part #: KVMSTT3302465
  • UPC: 065030863728
Special price
$ 786 .94 $ 904 .98
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
$786.94  +GST
$904.98

Finance from $8.85 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

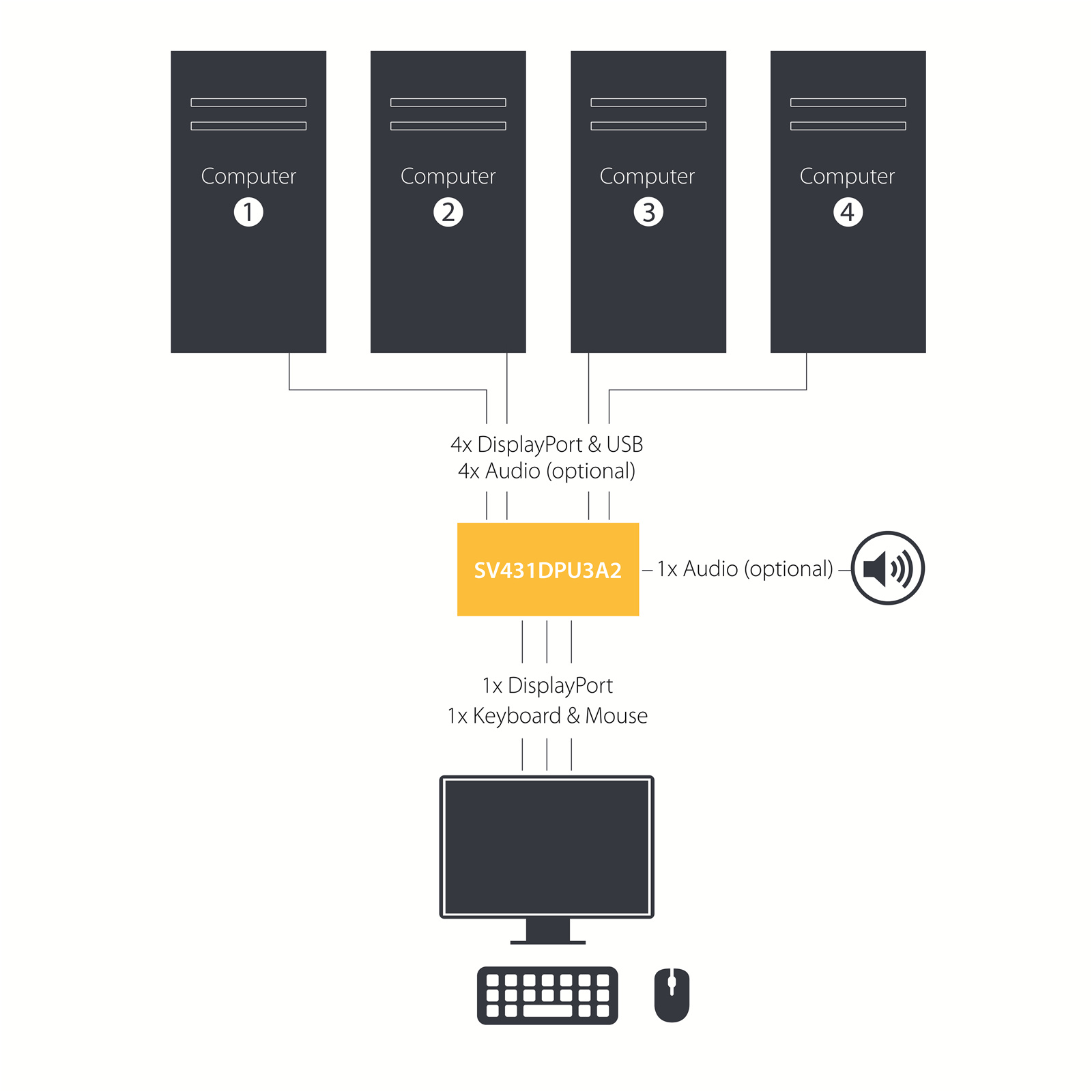

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.


Convenient and cost-effective USB 3.0 peripheral sharing


This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of  disconnecting and reconnecting your peripherals. With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.


Astonishing picture quality


Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.


Complete multimedia control


The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Rackmount your KVM switch


If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Specifications

Hardware

Audio
Yes
Cables Included
No
Daisy-Chain
No
KVM Ports
4
Number of Monitors Supported
1
PC Interface
USB 3.0
PC Video Type
DisplayPort
Rack-Mountable
Optional

Performance


Audio Specifications
2-Channel Stereo supported
Hot-Key Selection
Yes
IP Control
No
Maximum Cable Length
32.8 ft [10 m]
Maximum Digital Resolutions
3840x2160 @ 30 Hz
On-Screen Display
No
Port Selection Support
Push Button and Hotkeys
Supported Resolutions
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
Wide Screen Supported
Yes

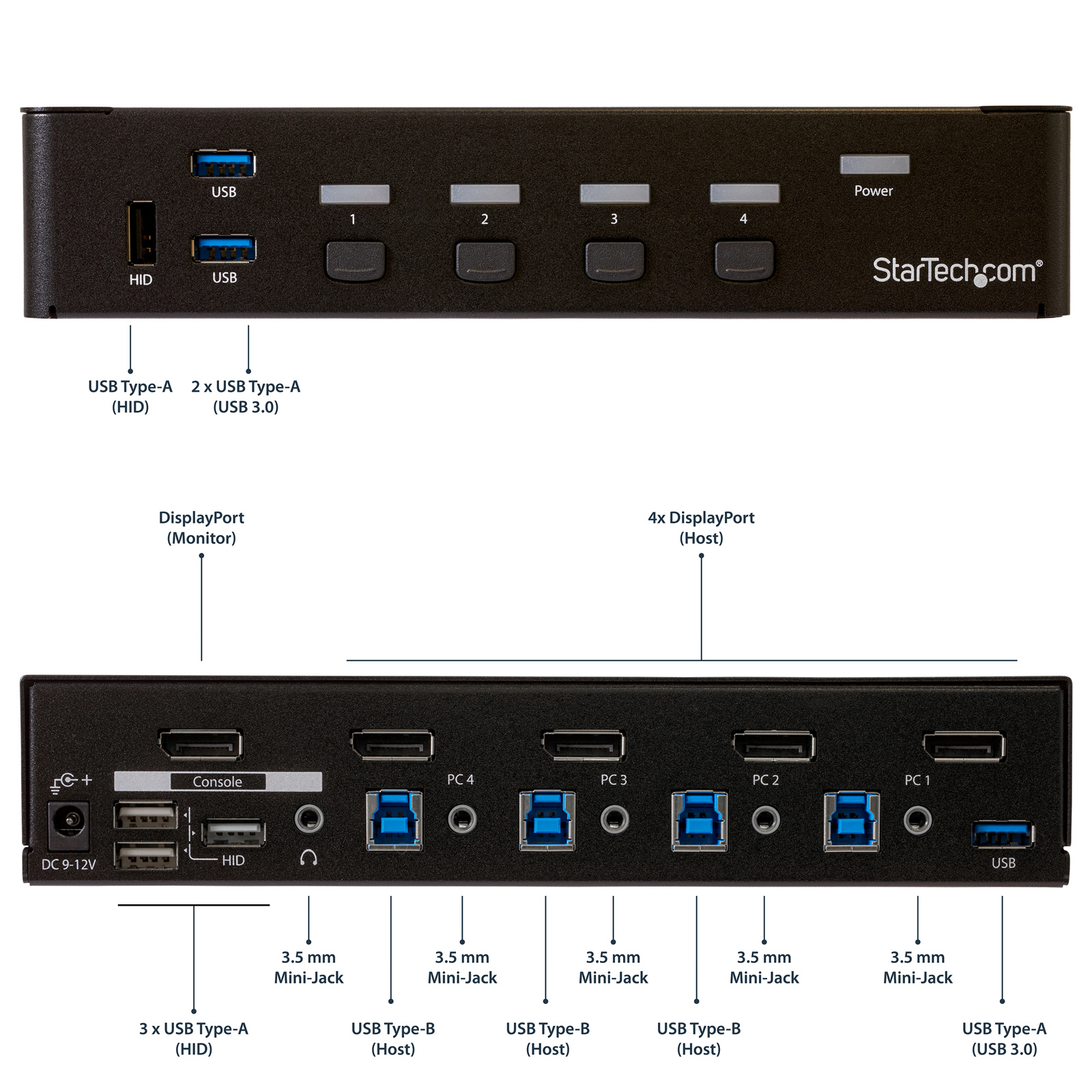

Connector(s)


Console Interface(s)
1 - DisplayPort (20 pin) Female Output
1 - 3.5 mm Mini-Jack (3 Position) Female Output
4 - USB Type-A (9 pin) USB 3.0 Female

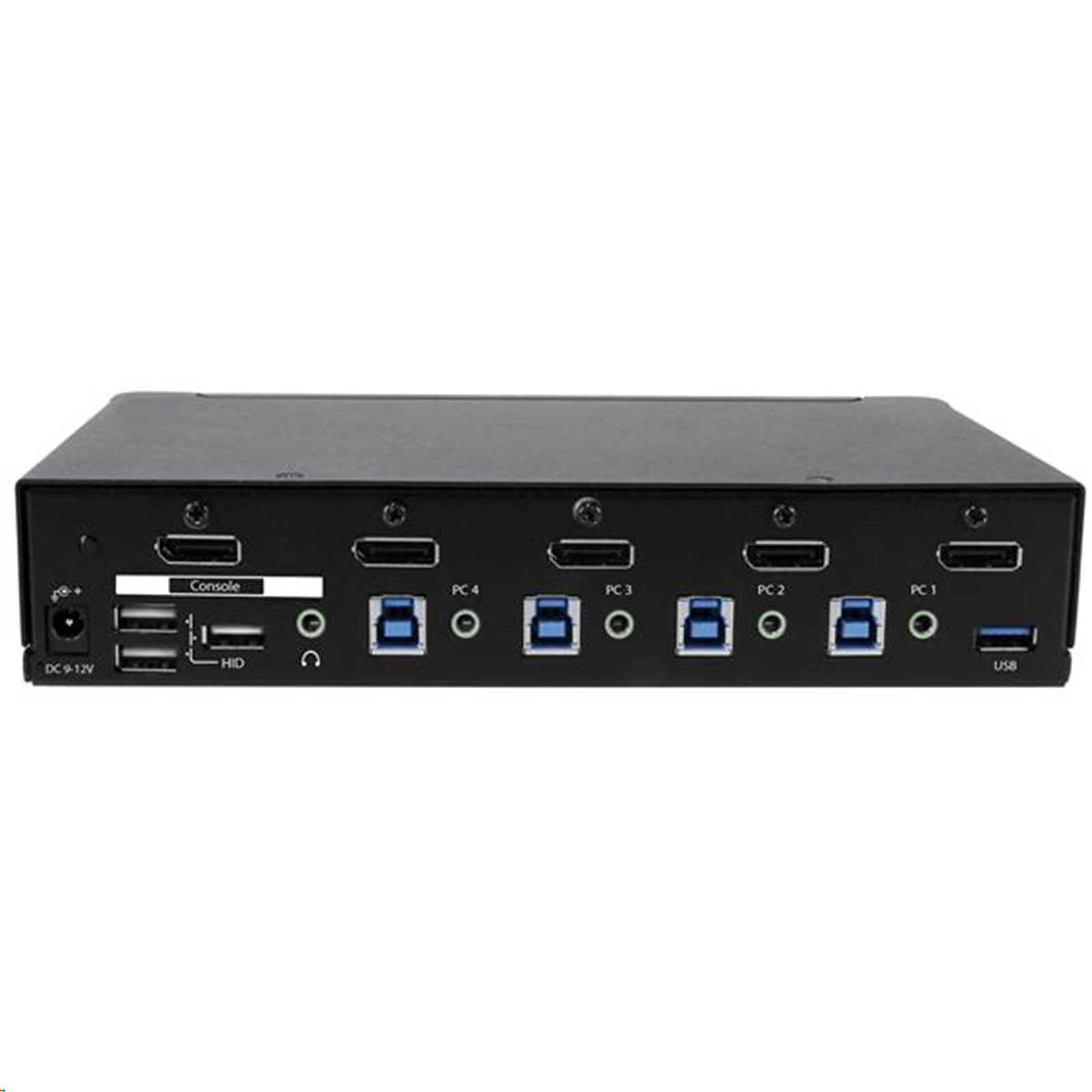

Host Connectors
4 - DisplayPort (20 pin) Female Input
4 - USB Type-B (9 pin) USB 3.0 Female
4 - 3.5 mm Mini-Jack (3 Position) Female Input
Other Interface(s)
3 - USB Type-A (9 pin) USB 3.0 Female

Indicators


LED Indicators
4 - port selection/link LEDs
1 - power LED

Power


Input Voltage
100 ~ 240 AC
Output Current
1.5 A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
18

Environmental


Humidity
0~80% RH Non-Condensing
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)

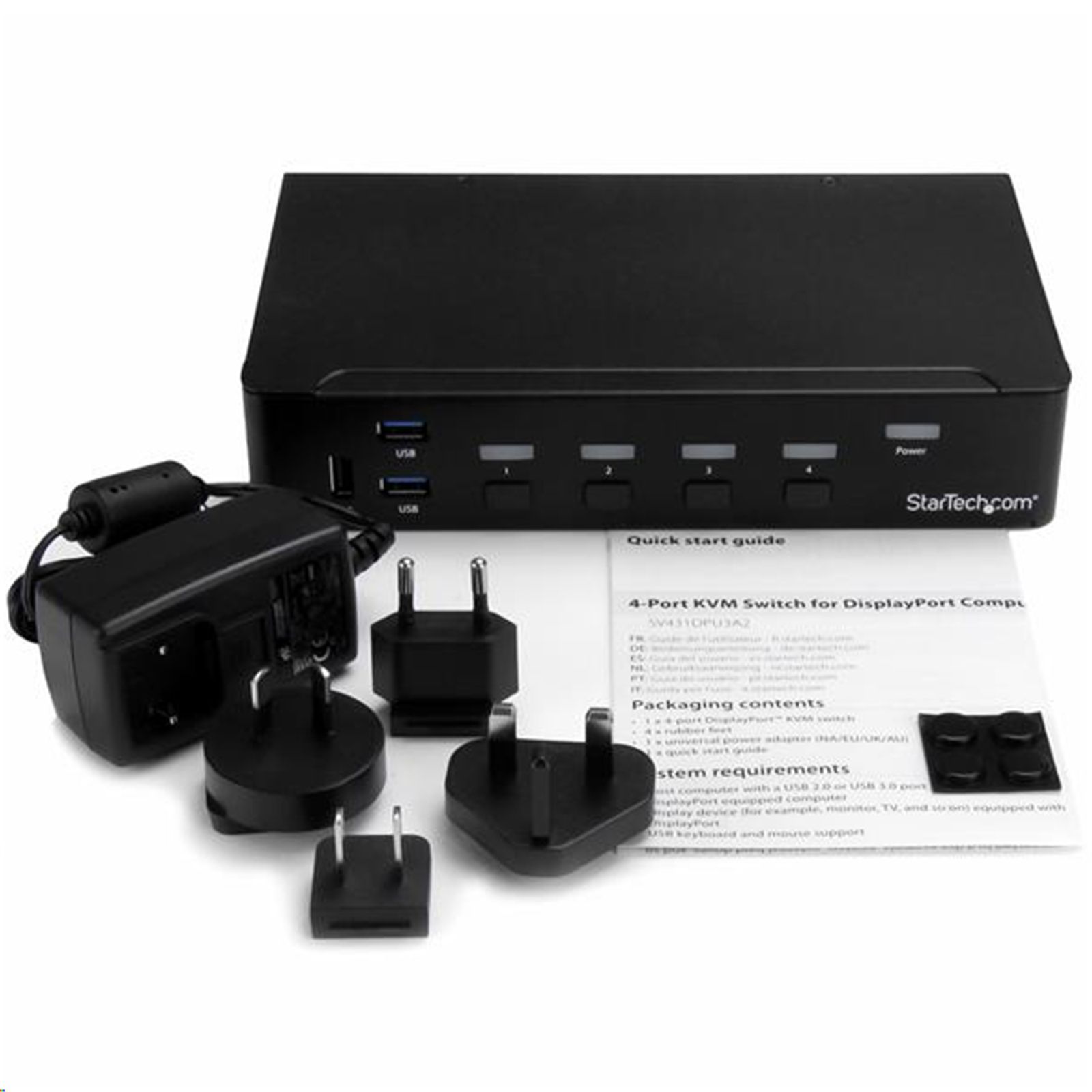

Included in Package
1 - 4-port DisplayPort KVM switch
4 - rubber feet
1 - universal power adapter (NA, EU, UK, ANZ)
1 - quick start guide
Manufacturer Part No:
SV431DPU3A2
Brand:
Product Type:
-
UPC
065030863728
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
KVMSTT3302465
Product Model:
SV431DPU3A2
Warranty: 24 months *
