StarTech.com RKCONS1716K 16 Port Rackmount KVM Console w/ 1.8m Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
StarTech.com RKCONS1716K 16 Port Rackmount KVM Console w/ 1.8m Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
- Brand: StarTech.com
- MPN: RKCONS1716K
- Part #: KVMSTT4400776
- UPC: 065030872546
- Brand: StarTech.com
- MPN: RKCONS1716K
- Part #: KVMSTT4400776
- UPC: 065030872546
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other KVM Accessories





StarTech.com RKCONS1716K 16 Port Rackmount KVM Console w/ 1.8m Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
- Brand: StarTech.com
- MPN: RKCONS1716K
- Part #: KVMSTT4400776
- UPC:065030872546

Product URL: https://www.pbtech.co.nz/product/KVMSTT4400776/StarTechcom-RKCONS1716K-16-Port-Rackmount-KVM-Cons
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
VM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware
Included
- Maximize your server rack space with a 1U rackmount design
- Intuitive system integration with direct support for up to 16 servers
- Ready to use with built-in touchpad and keyboard
- Save money and rack space with a cost-effective 1U rackmount LCD console
- Set up easily with all necessary mounting brackets, cables and screws included
Providing centralized control of up to 16 servers, this 16-port rackmount KVM console?gives you?easy access?to your?systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution?

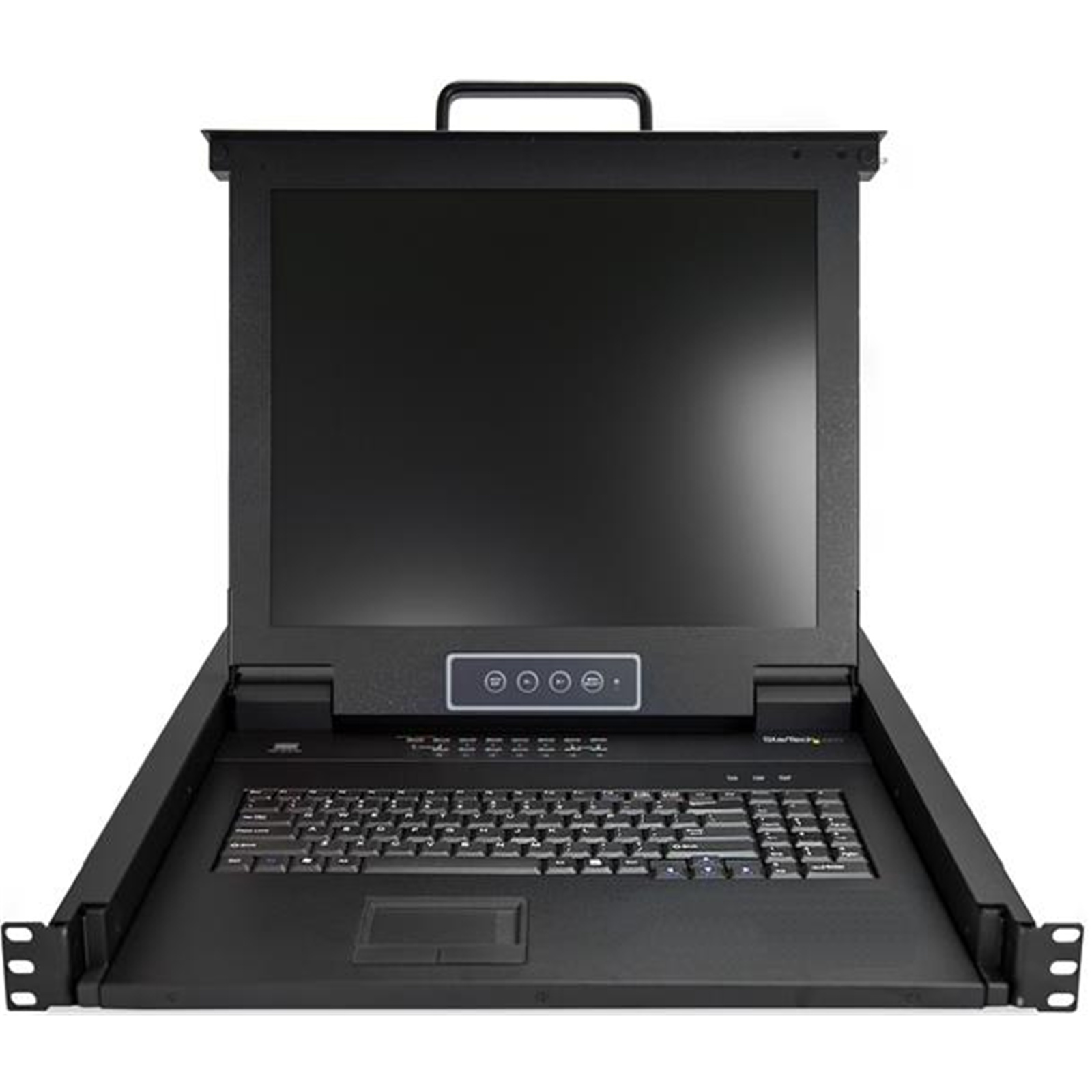

The 1U rackmount console features a built-in keyboard, and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
This?16-port?KVM console?comes with everything?you need to set up right out of the box:?
16 VGA KVM Cables
Mounting Rails
M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech. com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Control up to 16 systems directly from the console, or dozens of KVM-connected computers
- Manage cabinet-mounted servers and KVM switches
Specifications
HARDWARE
Audio
No
Cables Included
Yes
Daisy-Chain
No
Display Size
17in
Front Door Key Lock
No
KVM Ports
16
Number of Monitors Supported
1
Panel Type
Active Matrix TFT LCD
PC Interface
USB
PC Video Type
VGA
Rack-Mountable
Yes
U Height
1U
PERFORMANCE
Aspect Ratio
5:4
Brightness
250 cd/m²
Color Depth
8-bit, 16.7M colors
Contrast Ratio
1000:1
Hot-Key Selection
Yes
IP Control
No
Maximum Analog Resolutions
1280 x 1024
Maximum Number of Users
1
MTBF
50, 000 Hrs
On-Screen Display
Yes
Pixel Pitch Support
0.264 x 0.264 mm
Port Selection Support
Push Button, Hotkeys, and OSD (On Screen Display)
Response Time
5ms
Supported Resolutions
Resolutions up to 1280 x 1024 @ 60Hz
Viewing Angle
170° (H), 160° (V)
CONNECTOR(S)
Console Interface(s)
1 - VGA (15 pin, High Density D-Sub) Female Output
2 - USB Type-A (4 pin) USB 2.0 Female Input
Host Connectors
16 - VGA (15 pin, High Density D-Sub) Female Input
Other Interface(s)
1 - 15 Pin High Density D-Sub Female Input
SPECIAL NOTES / REQUIREMENTS
Note
The minimum mounting depth of this rackmount console is less than the length of the console itself. Please consider the length of the rackmount console when evaluating if it will fit into your rack.
INDICATORS
LED Indicators
16 - Green/Red - Online/Selected LED
POWER
Input Current
1.5A
Input Voltage
100 - 240 AC
Power Consumption (In Watts)
23W
Power Source
International Power Cords
ENVIRONMENTAL
Humidity
10 ~ 80% RH
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
Cable Length
6 ft
Colour
Black
Material
Steel
Maximum Mounting Depth
35.4 in [90 cm]
Minimum Mounting Depth
22 in [56 cm]
Product Height
1.7 in [4.3 cm]
Product Length
22.9 in [58.1 cm]
Product Width
17.6 in [44.8 cm]
Weight of Product
30.3 lb [13.7 kg]
PACKAGING INFORMATION
Package Height
7.3 in [18.5 cm]
Package Length
30.1 in [76.5 cm]
Package Width
24.2 in [61.5 cm]
WHAT'S IN THE BOX
Included in Package
1 - KVM Console
16 - KVM Cables
8 - M5 Cage Nuts
8 - M5 Screws
5 - Regional Power Cords (NA, JP, UK, EU, ANZ)
2 - Mounting Rails
1 - Quick-Start Guide
